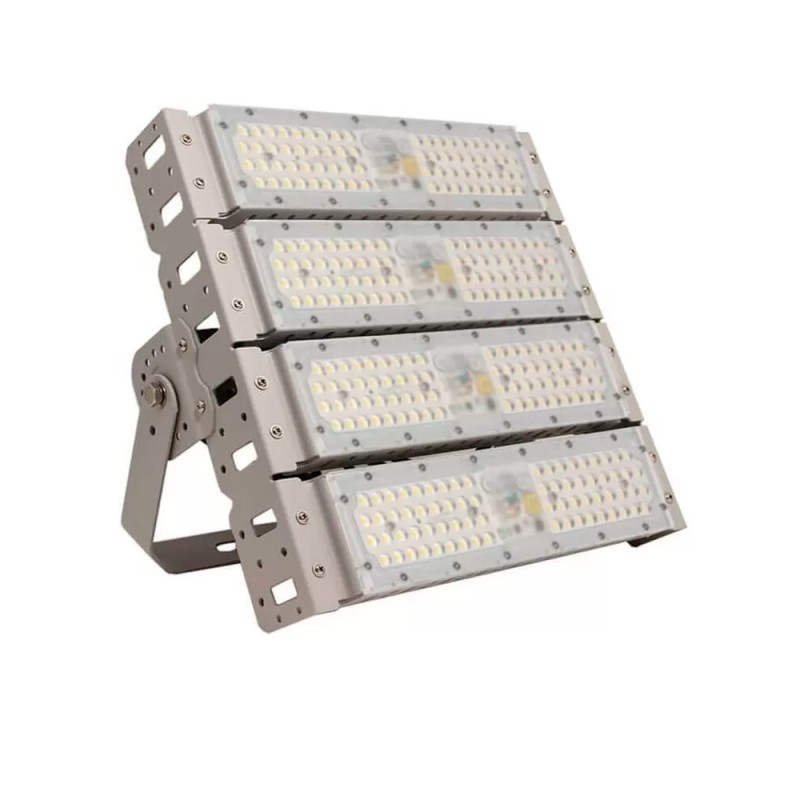

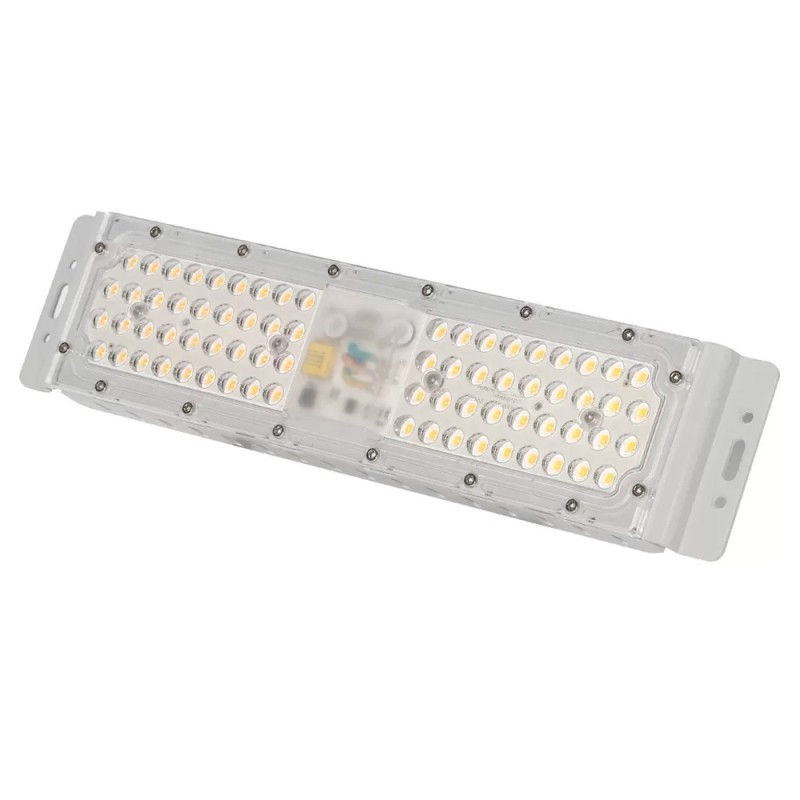

200W MAGNUM DOB LED Floodlight OSRAM chip 28000Lm
The 200W MAGNUM DOB LED Floodlight is a powerful and efficient lighting solution, designed to effectively illuminate any type of space, both indoors and outdoors. Featuring a triple-core OSRAM 3030-3D chip, this floodlight stands out for its high luminous flux of 28000 lumens, providing the efficiency and reliability required by the current professional lighting market.

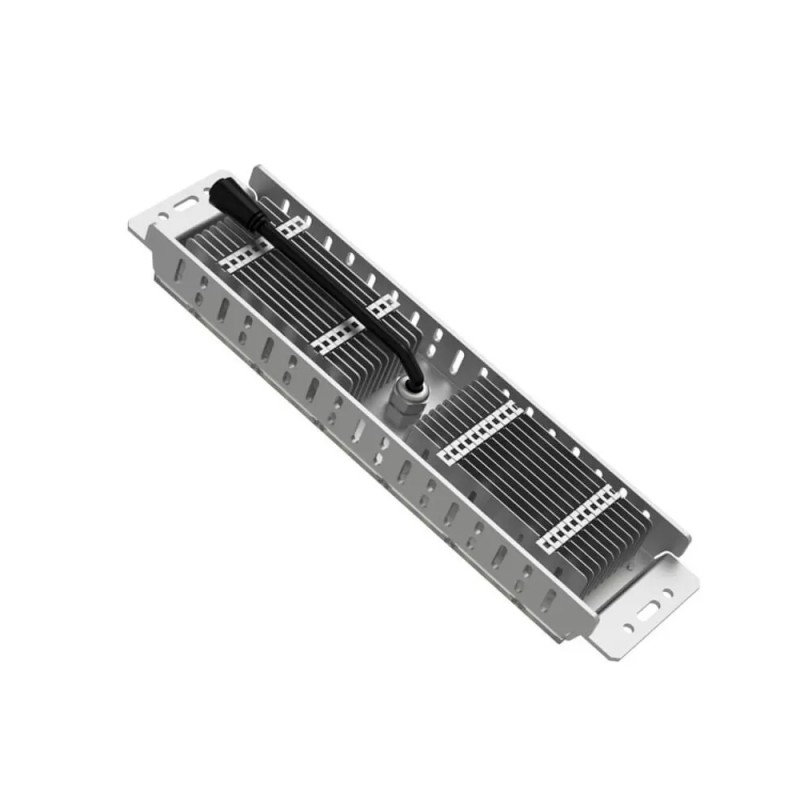

Made 100% of aluminum, both in the housing and the handles, the MAGNUM LED Floodlight is an extremely lightweight product, which makes transportation and installation at height easy. Additionally, its anti-corrosion paint guarantees long-lasting durability, protecting the floodlight from oxidation even in harsh environments.
- Power: 200W
- Luminous Flux: 28000 lumens
- LED Chip: OSRAM 3030-3D triple-core
- Beam Angle: 60º or 90º
- Material: Aluminum (housing and handles)
- Dimensions: 300x315x55mm
LED Floodlight 200W MAGNUM DOB OSRAM Chip 28000 lm IP65
The 200W MAGNUM DOB LED floodlight with a triple-core OSRAM 3030-3D chip delivers 28000 lumens, with a selectable 60º or 90º beam. 100% aluminium, anticorrosion paint, IP65, up to 80% energy savings and a 5-year warranty.
⚡ 200W💡 28000 lm🌡 60º/90º☂ IP65
| 200W Power | 28000 lm Luminous flux | 60º/90º Beam | IP65 Protection |
The 200W MAGNUM DOB LED floodlight is a powerful, efficient lighting solution, designed to light any type of space, indoors and outdoors. Fitted with a triple-core OSRAM 3030-3D chip, it stands out for its high luminous flux of 28000 lumens, delivering the efficiency and reliability that today's professional lighting demands.
The DOB (Driver On Board) MAGNUM model offers optimal lighting at medium distance, with selectable 60º or 90º beam-angle options to suit every need. Made 100% of aluminium (housing and handles), it is extremely light, making transport and installation at height easy. Its anticorrosion paint guarantees long durability, and its LED technology allows up to 80% energy savings. IP65 protection, dimensions 300x315x55 mm, 5-year warranty.
Why choose this product?
28000 lm, professional efficiency and reliability.
Suits medium distances and every need.
100% aluminium, anticorrosion paint, up to 80% savings.
Technical specifications
| Product type | MAGNUM DOB LED floodlight |
|---|---|
| Power | 200W |
| Luminous flux | 28000 lm |
| LED chip | Triple-core OSRAM 3030-3D |
| Beam angle | 60º or 90º |
| Technology | DOB (Driver On Board) |
| Material | Aluminium (housing and handles) |
| Paint | Anticorrosion |
| Protection | IP65 |
| Energy savings | Up to 80% |
| Dimensions | 300x315x55 mm |
| Warranty | 5 years |
Advantages
- Triple-core OSRAM 3D: 28000 professional lm.
- 60º or 90º beam: selectable to suit the need.
- 100% aluminium: light and easy to install.
- Anticorrosion paint: long durability.
- Up to 80% savings: advanced LED technology.
- IP65, 5-year warranty: indoor and outdoor.

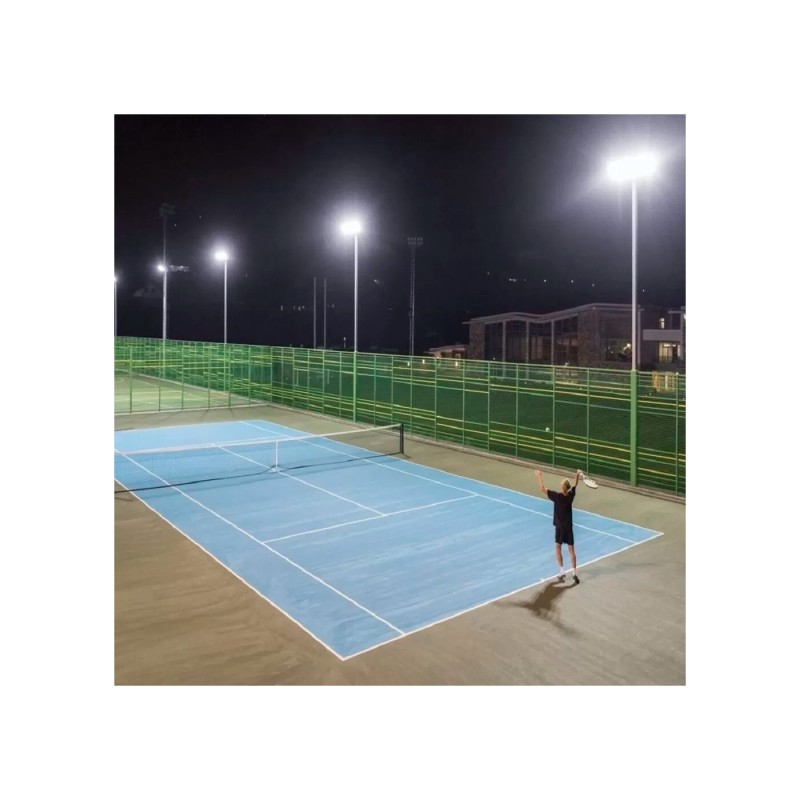

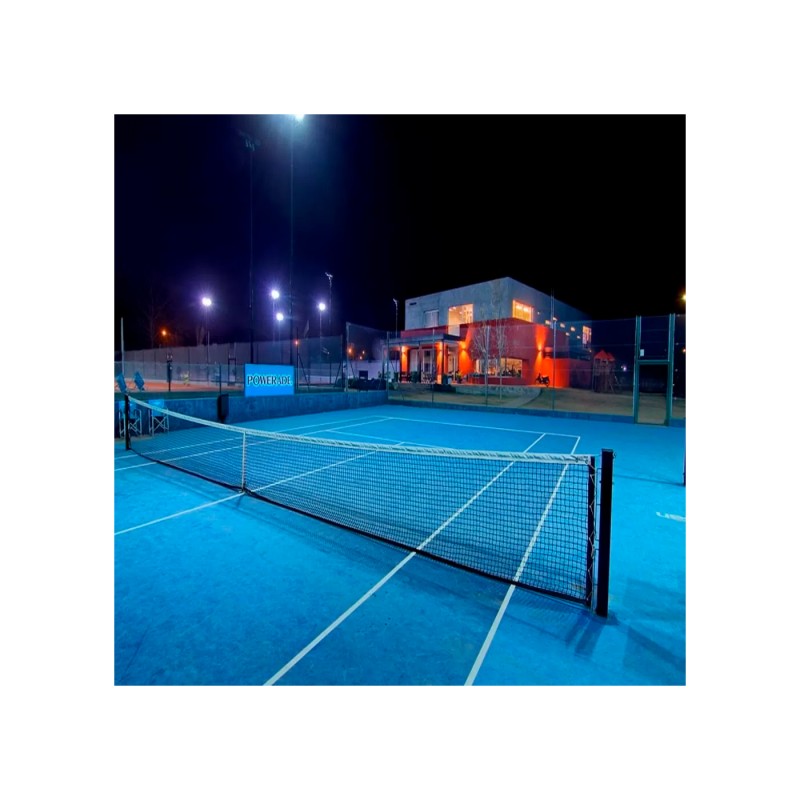

Recommended applications
| 🚪 | Gardens, parks and squares — outdoor lighting. |
| 🏠 | Roundabouts and walkways — road lighting. |
| 🏛 | Museums and galleries — highlighting. |
| 🌿 | Event spaces — powerful lighting. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |

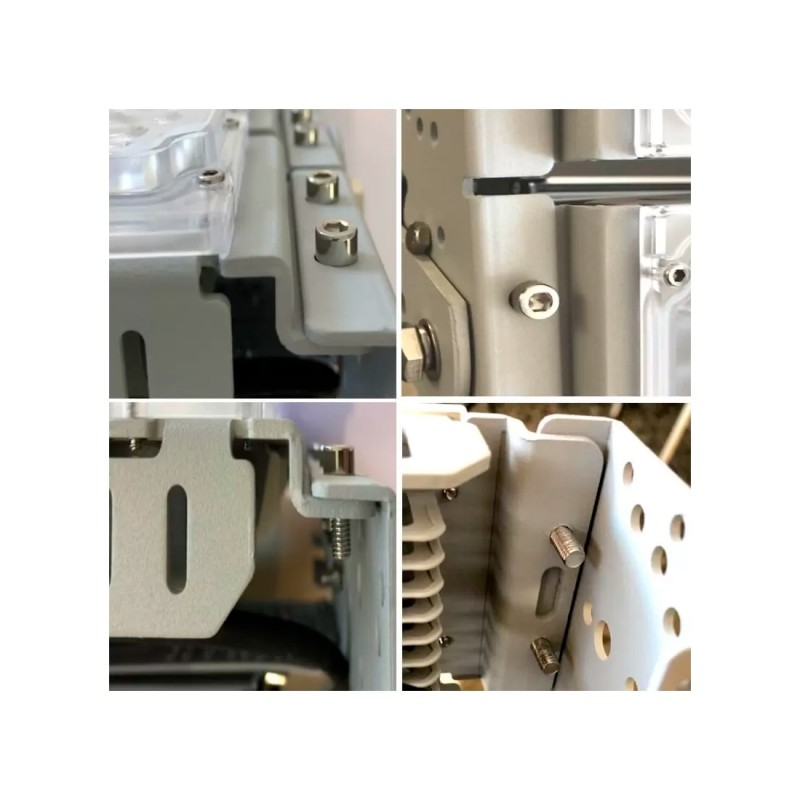

| 2 | Fix the floodlight Mount the floodlight via its adjustable bracket. |
| 3 | Wire at 220-240V DOB technology: direct connection to the mains. |
| 4 | Aim and choose the angle Set the tilt and the optic (60º or 90º). |
Frequently asked questions
28000 lumens, with a triple-core OSRAM 3030-3D chip.
60º or 90º, selectable.
Yes, its IP65 protection suits indoor and outdoor use.
| ⚡ 200W 28000 lm | ☂ IP65 60º/90º | 🧰 Aluminium -80% | 🛡 Warranty 5 years |
Data sheet
- Power (W)
- 200
- Power source (V)
- 175-260V
- Color temperature CCT
- 4000K
5000K
- LED
- SMD3030
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 140
- Brightness (Lm)
- 28000
- Colour
- Grey
- IP
- IP65
- IK
- IK10
- Luminous angle
- 60º
90º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.91
- Measures (mm)
- 300x315x55mm
- Material
- Aluminum + PMMA
- Driver
- DOB
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- E
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
