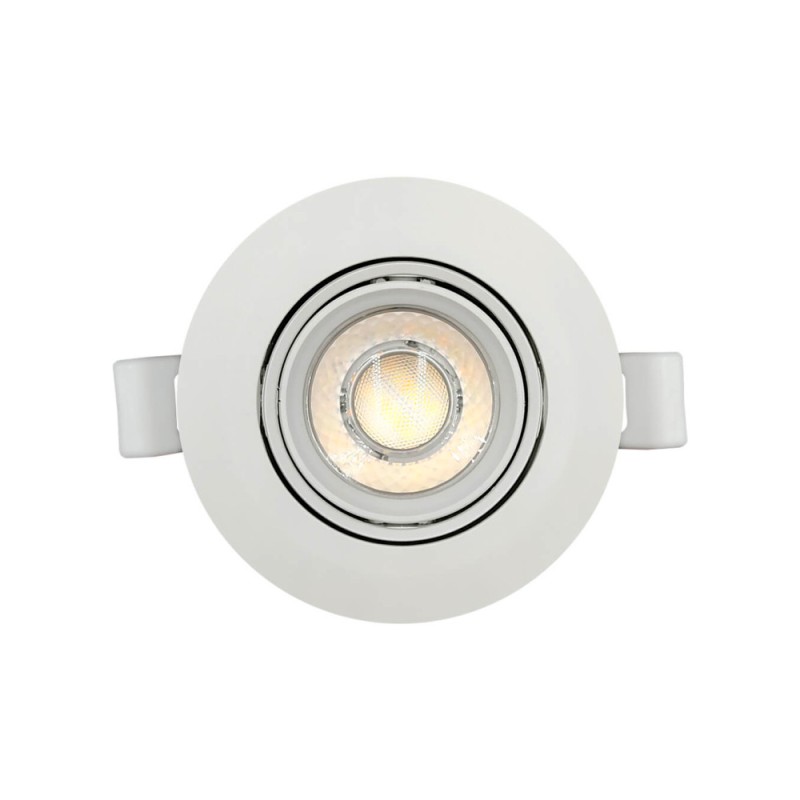

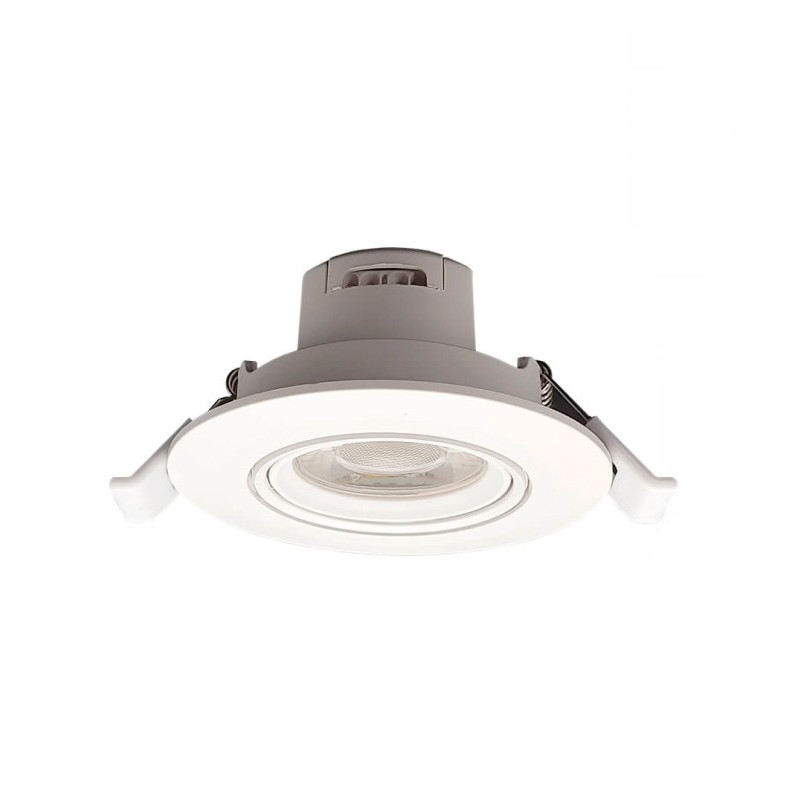

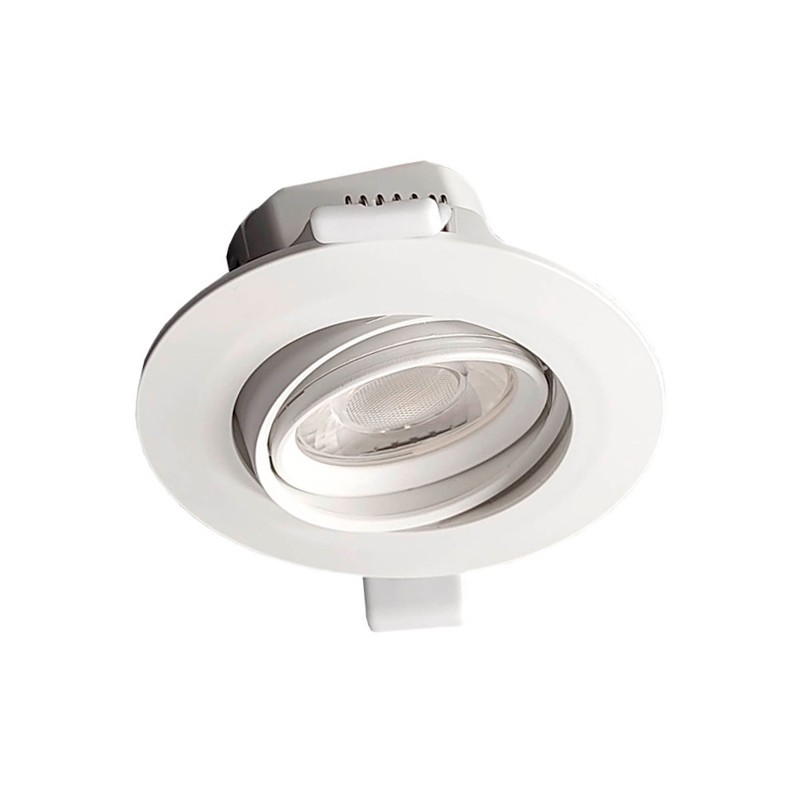

7W CCT White Circular Recessed Adjustable LED Downlight 700Lm

3.99 € (tax incl.)
F
Available
In stock: 600 Items
Reference:
IL-LSPL7W-CCT-91269

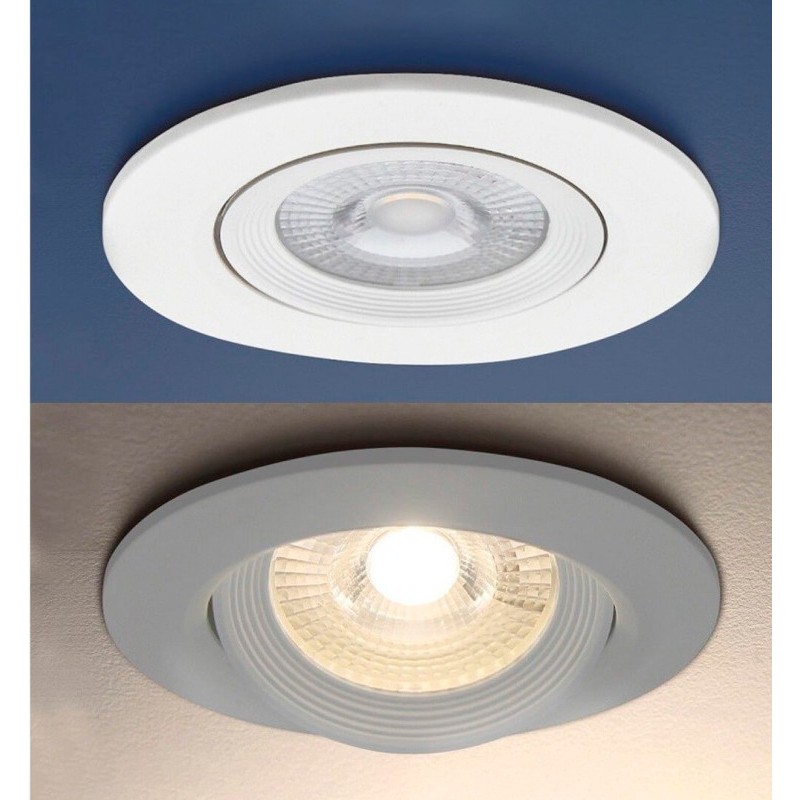

The 7W recessed circular LED downlight offers a modern and minimalist design, perfect for high-quality indoor lighting. With its ability to tilt up to 24º and a 60º light optic, this spotlight is ideal for precise and efficient illumination.

Equipped with a CCT temperature selector that allows switching between warm, neutral, and cool light, it adapts to different environments and preferences. Its white color design and PC construction make it durable and aesthetically pleasing, suitable for various spaces such as homes, offices, and shops.

  • Power: 7W
  • LED Chip: COB
  • Luminous Flux: 700 lumens

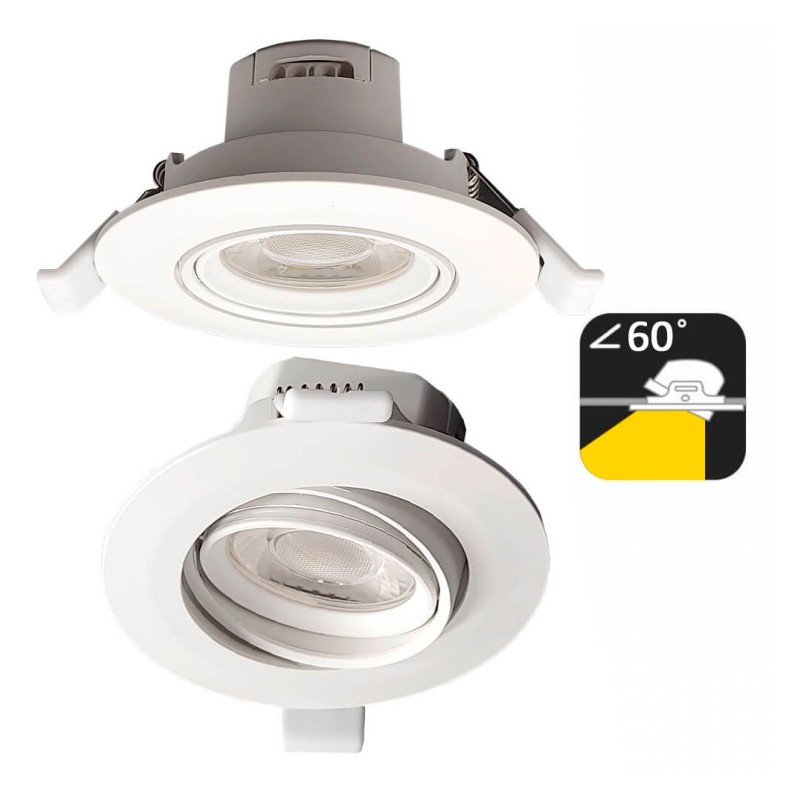

  • Light Optic: 60º
  • Adjustable: Up to 24º

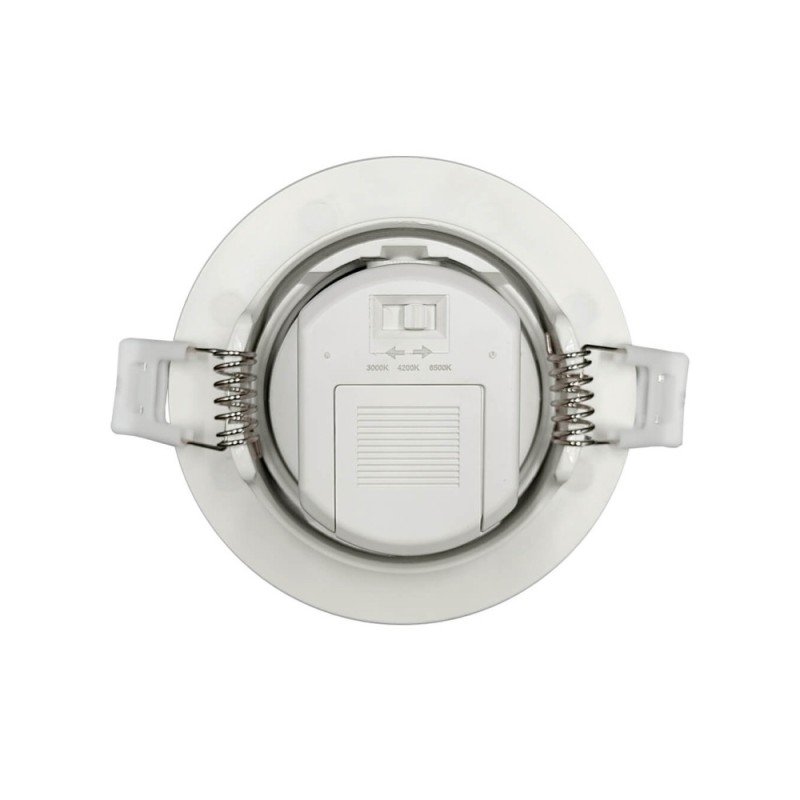

  • CCT Selector: Warm, neutral, and cool
  • IP Rating: IP40
  • Dimensions: Ø90x45mm
  • Cut-out Dimensions: Ø70mm
Read moreShow less
Download PDF
You may also like
No items
Description

7W CCT White Circular Recessed Adjustable LED Downlight


The 7W circular recessed LED downlight offers a modern and minimalist design, perfect for high-quality indoor lighting. With its ability to tilt up to 24º and a 60º light optic, this spotlight is ideal for precise and efficient lighting.

Equipped with a CCT temperature selector that allows switching between warm, neutral, and cool light, it adapts to different environments and preferences. Its white color design and PC construction make it durable and aesthetically pleasing, suitable for various spaces such as homes, offices, and shops.

Technical Specifications


  • Power: 7W
  • LED Chip: COB
  • Luminous Flux: 700 lumens
  • Light Optic: 60º
  • Adjustable: Up to 24º
  • CCT Selector: Warm, neutral, and cool
  • Material: PC
  • Color: White
  • IP Rating: IP40

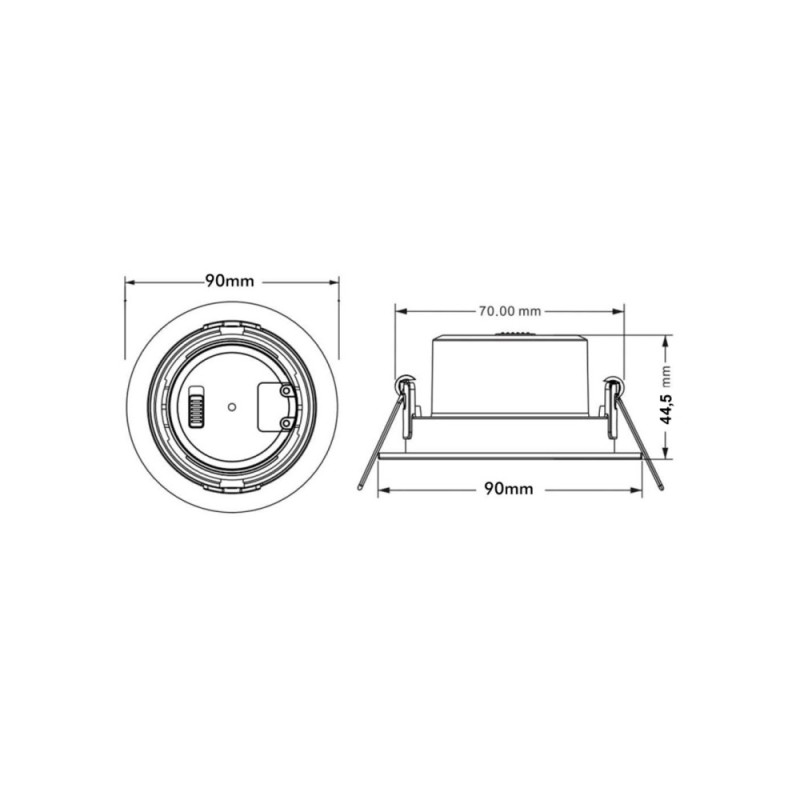

  • Dimensions: Ø90x45mm
  • Cut-out Dimensions: Ø70mm
  • Driver and Connections: Integrated into the spotlight

Installation Instructions


Installing this LED downlight is simple thanks to its integrated driver and connections system:

  1. Mark and cut an opening in the ceiling with a diameter of Ø70mm.
  2. Connect the integrated driver to the power supply, ensuring the power is turned off.
  3. Insert the downlight into the opening, adjusting its orientation to achieve the desired angle.
  4. Turn on the power and select the desired color temperature using the CCT selector.

Recommended Applications


Thanks to its versatile design and energy efficiency, this LED downlight is perfect for a wide range of applications such as:

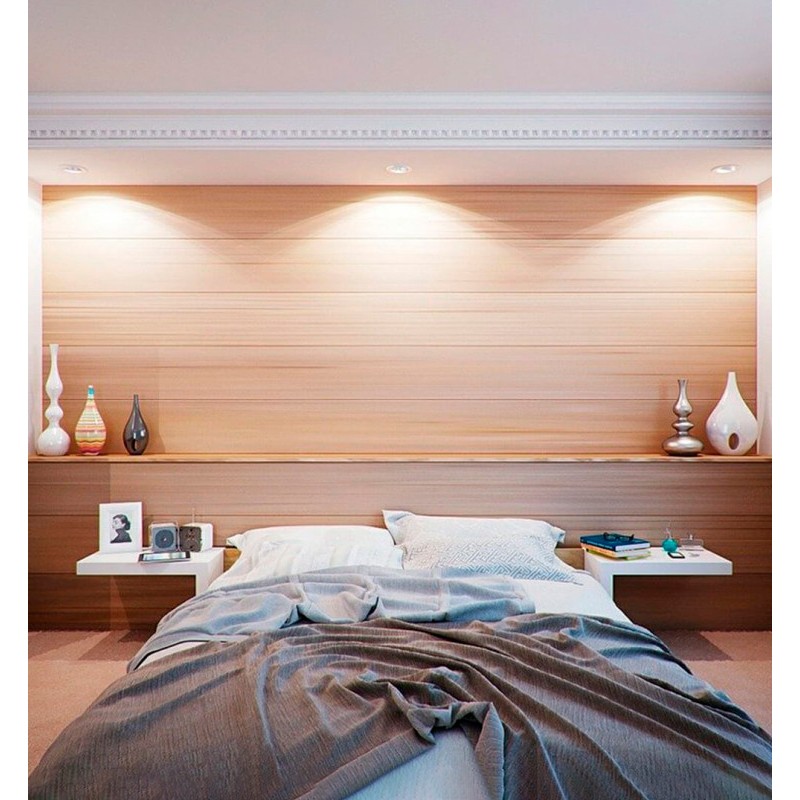

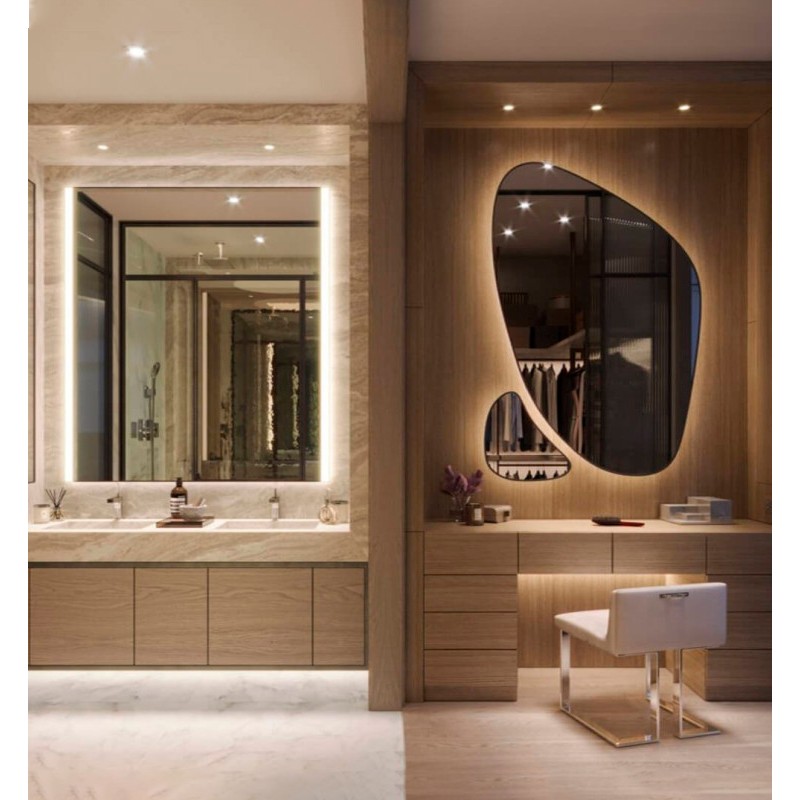

  • Decorative and functional lighting in homes.

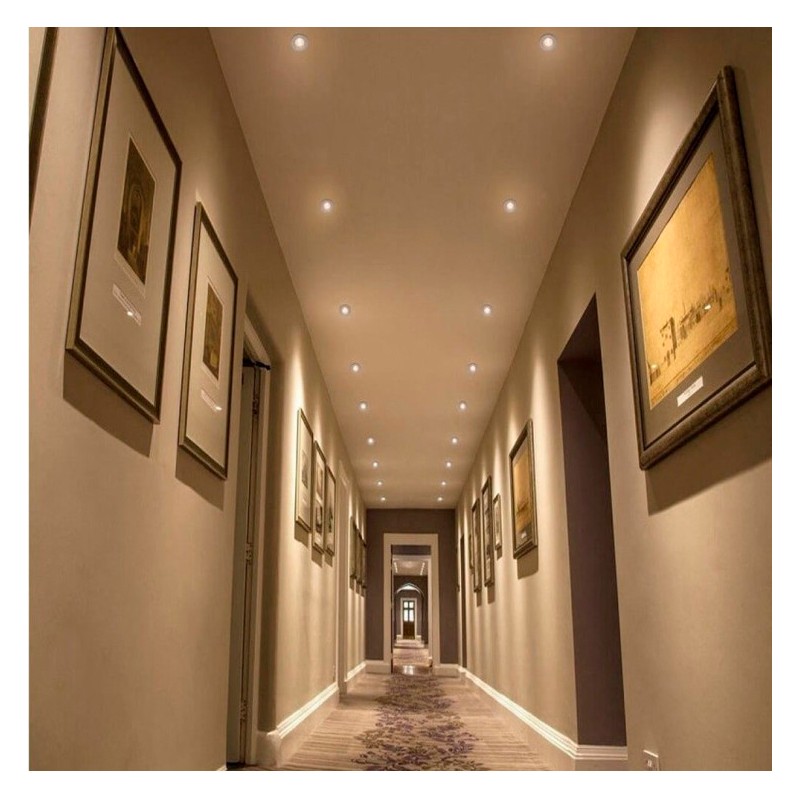

  • Reception areas and corridors in offices.
  • Showcases and exhibition areas in shops.
  • Focused lighting in museums and galleries.
Read moreShow less
Product Details
IL-LSPL7W-CCT-91269

Data sheet

Power (W)
7
Power source (V)
220-240V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
COB
Luminous efficacy (Lm/W)
100
Brightness (Lm)
700
CRI
+80
Colour
White
IP
IP40
IK
IK06
Luminous angle
60º
Frequency (Hz)
50-60Hz
Power factor
0.50
Measures (mm)
Ø90x45mm
Medida de corte (mm.)
Ø70mm
Material
Thermoplastic
Operating temperature
-20ºC ~ +40ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
25.000h
Certification
CE - RoHS
Warranty
3 años
