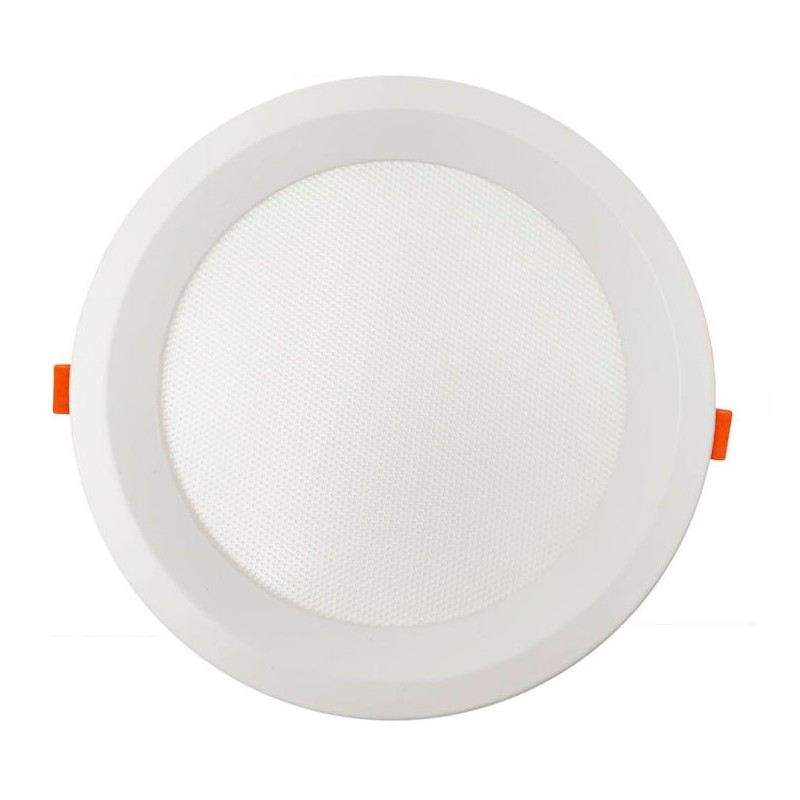

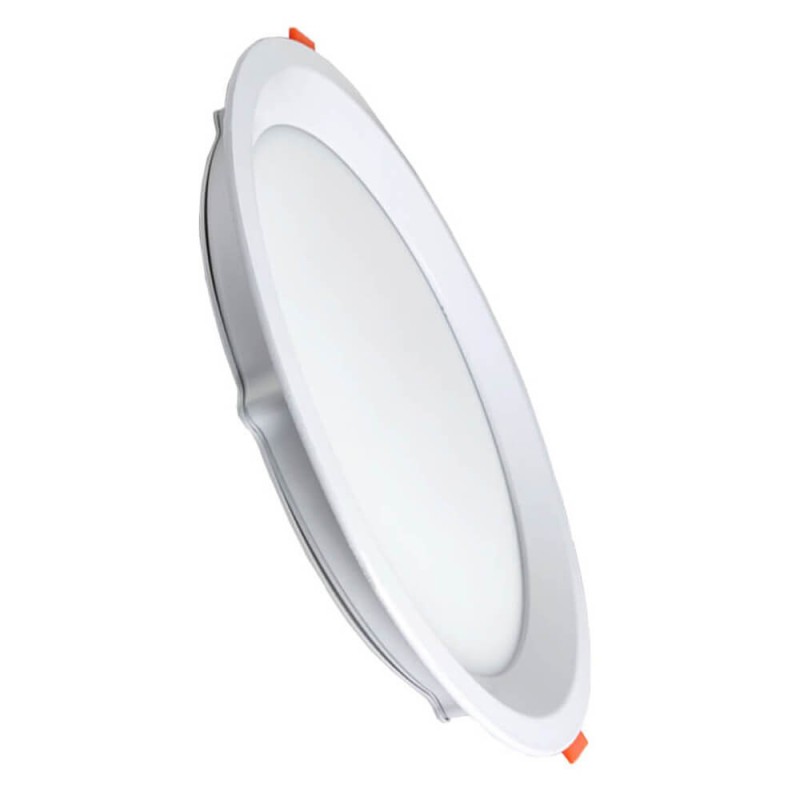

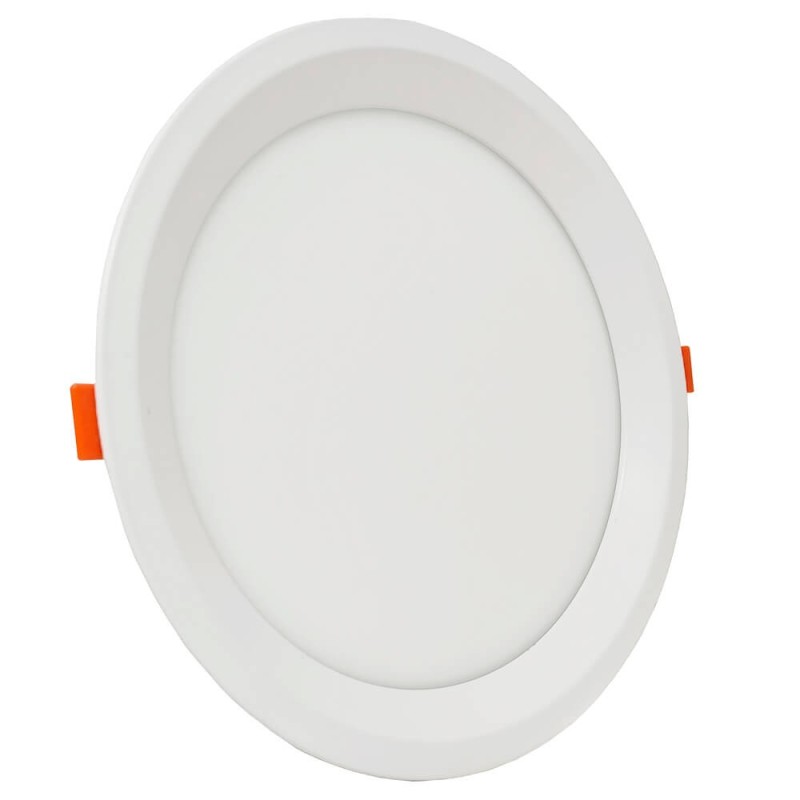

24W 3000Lm Recessed Selectable CCT LED Downlight OSRAM Chip
The 24W Circular LED Downlight Panel with OSRAM chip SMD2835 DURIS E is an ideal option for uniformly and efficiently illuminating various areas, from commercial to residential spaces. Its 4CCT color temperature selector allows for adapting the lighting to different environments and needs, while the power selector between 18W and 24W offers flexibility in energy consumption.

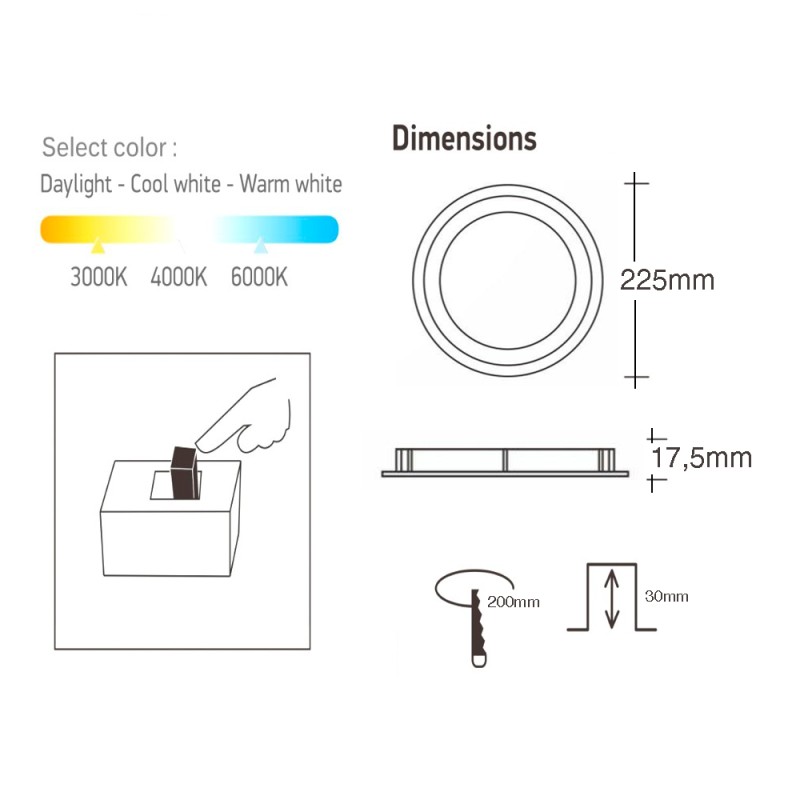

With a diameter of 225mm and a thickness of 18mm, this LED panel features a compact design that makes it suitable for ceiling installation. The cutout size is Ø200mm. The microprismatic PC diffuser with a low UGR<19 level reduces glare and visual fatigue, providing comfortable and safe lighting. Additionally, its CRI>85 level ensures accurate color reproduction, enhancing the visual quality of the environment.
- Power: 18W / 20W / 22W / 24W
- LED Chip: OSRAM SMD2835
- Color Temperature: 2700K / 3000K / 4000K / 5700K (4CCT)
- Luminous Flux: 3000 lm
- Dimensions: Ø225x18mm
- Cutout Size: Ø200mm

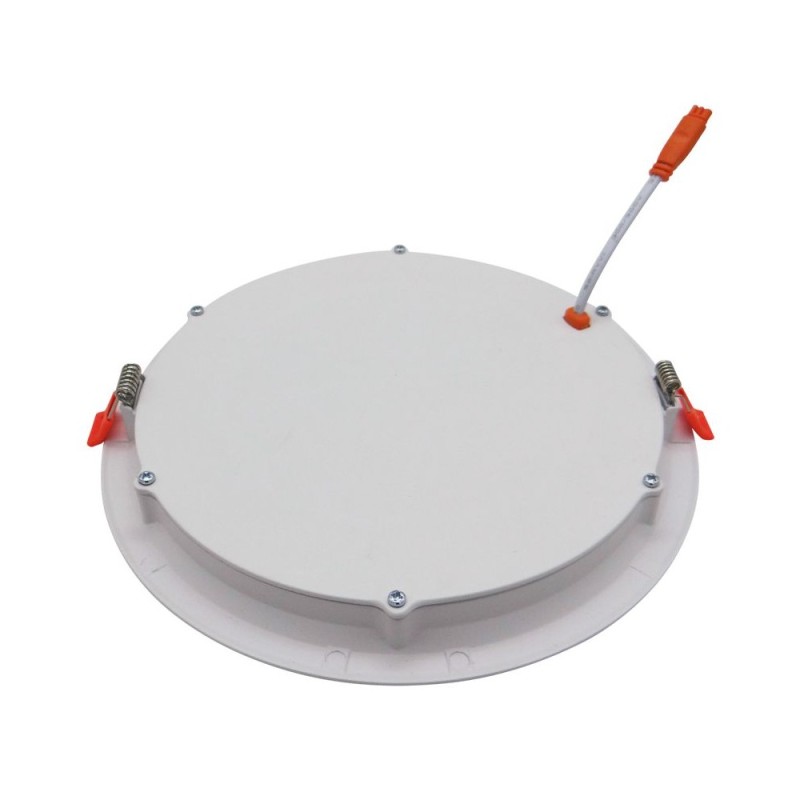

- Flicker-Free External Driver

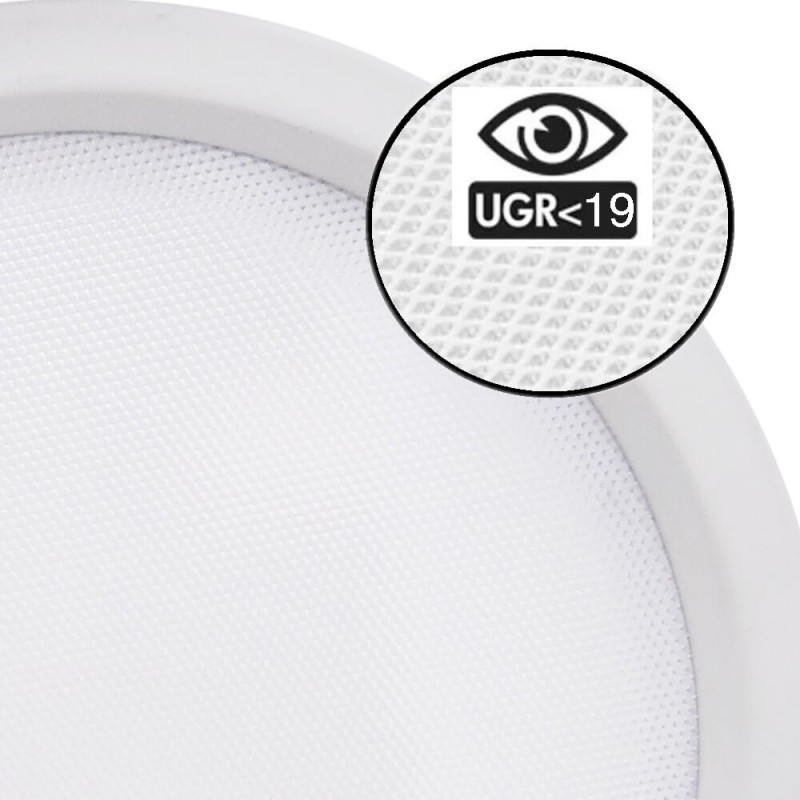

- Diffuser: Microprismatic PC UGR<19
- Color Rendering Index (CRI) >85
LED Downlight round 18-24W CCT 3000 lm UGR<19 OSRAM Chip IP20
The 18-24W recessed round led downlight with a OSRAM chip delivers 3000 lumens (120º), with a opal diffuser UGR < 19 that reduces glare. Selectable CCT temperature via the included driver, IP20. Adjustable power (18/20/22/24W).
⚡ 18-24W💡 3000 lm👀 UGR < 19🌈 CCT
| 18-24W Power | 3000 lm Luminous flux | UGR < 19 Glare | IP20 Protection |
The 18-24W recessed round led downlight, fitted with a high-performance OSRAM chip, is an efficient, durable lighting solution, perfect for commercial and residential applications. With a 120º angle, it lights any space evenly, without shadows, and provides 3000 lumens. Made of aluminium, its slim, refined design adds a modern touch.
Its opal diffuser (UGR < 19) significantly reduces glare and eye strain, for comfortable lighting. The colour temperature is selectable thanks to the included driver, letting you adapt the atmosphere to each room in a single device. Adjustable power (18/20/22/24W).
Why choose this product?
Reduces glare, comfortable lighting.
Adapt the temperature to each room (driver included).
3000 lm, 120º, aluminium.
Available light shades
Four selectable colour temperatures from the same luminaire:
| 2700 K Warm | 3000 K Warm+ | 4000 K Neutral | 5700 K Cool |
Technical specifications
| Product type | Recessed round LED Downlight |
|---|---|
| Power | 18-24W |
| Luminous flux | 3000 lm |
| LED chip | OSRAM |
| Beam angle | 120º |
| Diffuser | Opal (UGR < 19) |
| Material | Aluminium |
| Protection | IP20 |
| Outer dimensions | Ø200 mm |
| Ceiling cut-out | Ø200 mm |
| Driver | Included |
Advantages
- UGR < 19: opal diffuser.
- Selectable CCT: temperature of choice.
- 3000 lm at 18-24W: even lighting.
- OSRAM chip: high performance.
- Driver included: CCT selector.
- IP20: indoor use.
Recommended applications
| 🚪 | Offices and shops — comfortable lighting. |
| 🏠 | Hotels and restaurants — adjustable atmosphere. |
| 🏛 | Halls and corridors — general lighting. |
| 🌿 | Homes — false ceilings. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Choose the temperature Set the CCT selector on the driver. |
| 3 | Prepare the cut-out Make a Ø200 mm cut-out and wire the driver. |
| 4 | Recess and check Insert the luminaire and check the lighting. |
Frequently asked questions
Yes, the CCT is selectable via the included driver.
Yes, its opal diffuser offers a UGR < 19.
Ø200 mm.
| ⚡ 18-24W 3000 lm | 👀 UGR<19 CCT | 🌈 Selectable OSRAM | ☂ IP20 Driver incl. |
Data sheet
- Power (W)
- 18/20/22/24
- Power source (V)
- 220-240V
- Color temperature CCT
- Seleccionable 4CCT 2700K-3000K-4000K-6500K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 120
- Brightness (Lm)
- 3000
- Color rendering index (Ra):
- ≥85
- Colour
- White
- IP
- IP20
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Forma
- Redondo
- Measures (mm)
- Ø225x17mm
- Medida de corte (mm.)
- Ø200mm
- Material
- Aluminum + PC
- Driver
- CCT Flicker Free
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- E
- Lifespan
- 40.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637220668
