30x60cm 32W LED Panel 3200Lm UGR19

18.95 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Warm white 3000K
  • Natural white 4000K
  • Cool white 6000K
In stock: 15 Items
Reference:
PN32W-3K

Recessed LED Panel sized 30x60cm, featuring an ultra-thin backlight construction with a thickness of just 30mm, white aluminum perimeter frame and opal polycarbonate diffuser. With a low power consumption of 32W, the slim LED panel is equipped with LED SMD2835 offering excellent performance of 100Lm/W, and a luminous flux of 2640 lumens. The LED panel measures 295x595mm, fitting perfectly into removable Armstrong ceiling tiles. Similarly, we offer fixing clips for direct embedding in plasterboard, or stainless steel hanging kits (sold separately).

3-year warranty.

Read moreShow less
Download PDF
You may also like
Description

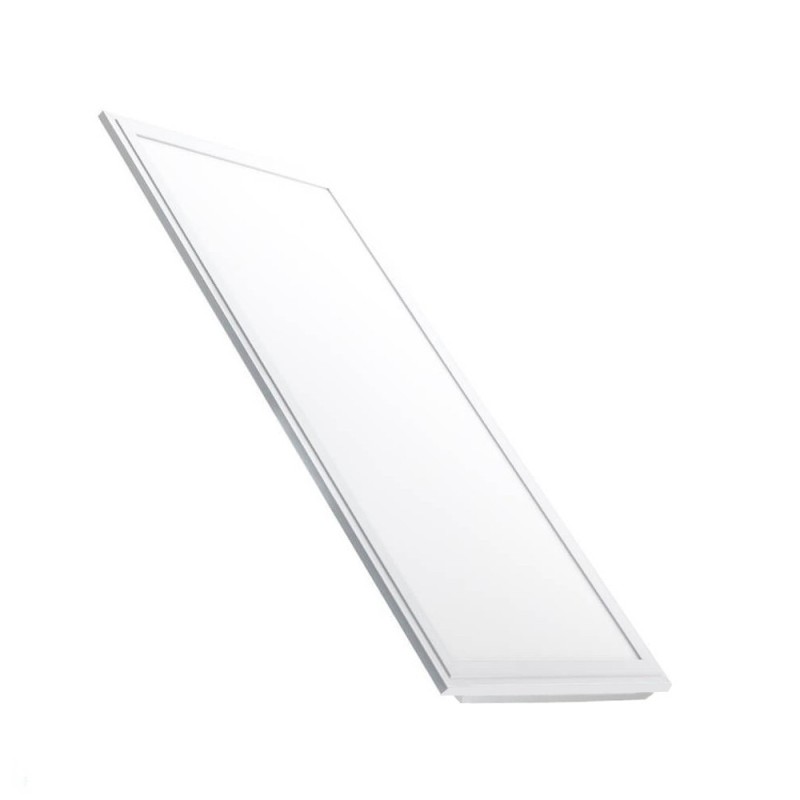

Recessed Backlight LED Panel 30x60cm 32W White

Backlight LED Panel 30x60cm 32W 3200Lm with a stylish finish, high-quality white lacquered aluminum frame, and an ultra-thin design of just 8mm thickness.

Its integrated high brightness and intensity SMD2835 LED lighting system, along with its shiny aluminum reflector, manages to emit a luminous flux of 3200 lumens, with a performance exceeding 100Lm/W, equivalent to fluorescent panels and fixtures up to 80W, achieving more than 60% energy savings. The LED panel provides instant start-up, free from flickers and noise, with a wide beam angle of 160º, making it perfect for installation in areas where space maximization is required, projecting light evenly and without glare.

Mounting and Installation of the 60x30cm Backlight LED Panel

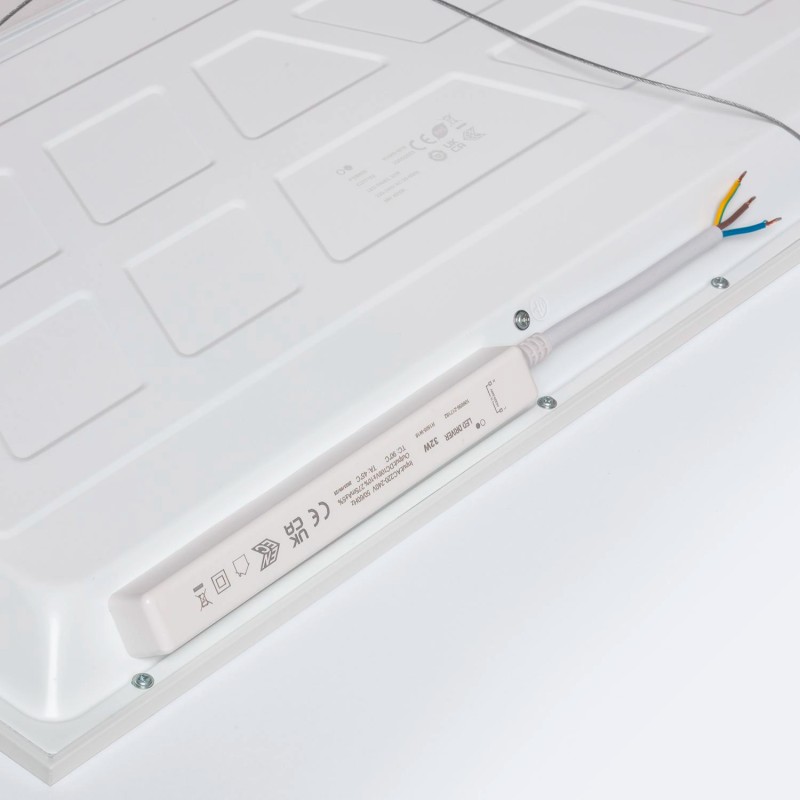

The recessed LED panel includes a high-quality and durable external LED driver to maximize the lifespan of the LED panel. The driver features the latest technology in insulation and protection, meeting all CE and RoHS standards. It supports a wide input voltage range of 220-240V. The included driver is NOT dimmable, so if you wish to adjust your LED panel, contact us and we will offer alternatives like purchasing additional dimmable drivers for TRIAC systems.

The backlight LED panel supports three mounting methods:

  • Mounting in ceiling tiles: The most common installation method. Remove a plaster tile or the old fluorescent fixture, connect the driver to the power supply, and place the LED panel resting on the aluminum profiles. Remember, the panel is powered directly via the supplied driver, and does not require ballasts or reactances.
  • Hanging / suspended mounting: We also offer additional accessories such as steel cables to hang the LED panels from the ceiling (not included in the initial supply, sold separately). This solution is perfect for lighting specific areas, especially in places with very high ceilings.
  • Recessed in plasterboard ceiling: Similarly, we have downlight type clips for installing the LED panels into cut-outs made in plasterboard ceilings. These clips are also sold separately.

Uses and Applications of the 60x30cm Backlight LED Panel 32W

  • Offices, studies, and offices
  • Meeting rooms
  • Restaurants and bars
  • Hotels
  • Libraries and schools
  • Retail and businesses
Read moreShow less
Product Details
PN32W-3K

Data sheet

Power (W)
32
Power source (V)
220-240V
Color temperature CCT
3000K
4000K
6000K
LED
SMD2835
Luminous efficacy (Lm/W)
110
Brightness (Lm)
3200
CRI
+80
Colour
White
IP
IP20
Luminous angle
160º
Frequency (Hz)
50-60Hz
Measures (mm)
595x295x30mm
Material
Aluminum + PC
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
E
Lifespan
30.000h
Certification
CE - RoHS
Warranty
3 años

Specific References

EAN13
8435637208703
