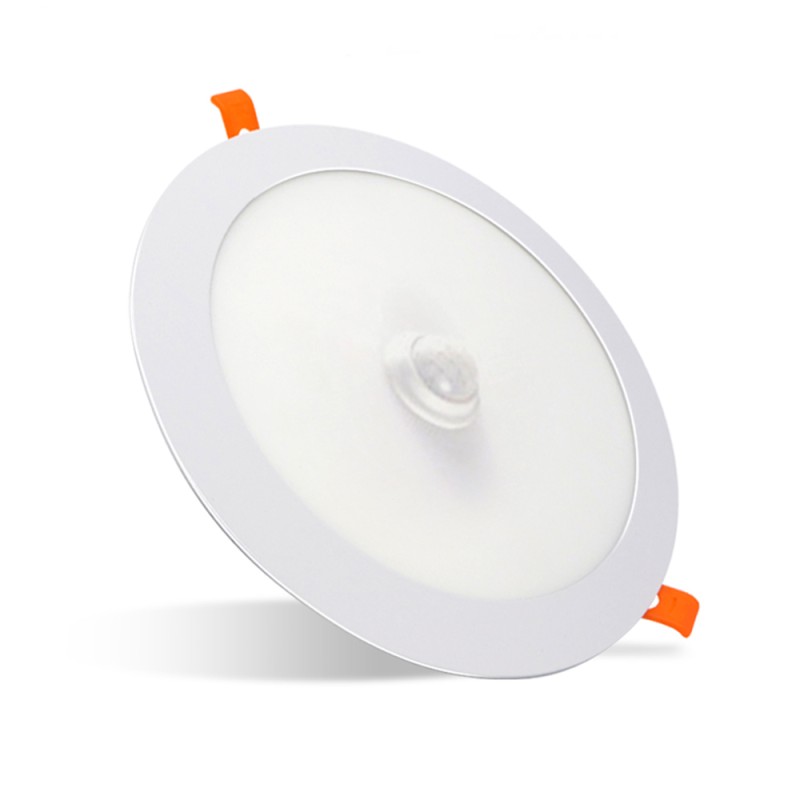

24W 4CCT OSRAM Chip recessed LED Downlight with motion detector

23.95 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Selectable CCT (3000K-4000K-6000K)
In stock: 32 Items
Reference:
IL-90813-CCT-24W

The 24W circular slim LED downlight panel, equipped with an OSRAM chip, provides a brightness of up to 3000 lumens and allows selection between four color temperatures (2700K, 3000K, 4000K, 6000K). Made of aluminum and PMMA, this recessed luminaire is ideal for interiors with cut-out holes Ø205mm. Its adjustable motion sensor detects up to 6 meters and offers time and brightness settings. With a luminous angle of 120º, it ensures uniform and efficient lighting, perfect for various applications.

  • Power: 18W / 20W / 22W / 24W (adjustable)
  • Brightness: 2250 - 3000 lumens (110 Lm/W)
  • Color Temperature: 4CCT (2700K, 3000K, 4000K, 6000K)
  • Dimensions: Outer diameter 225mm, cut-out hole Ø205mm
  • Motion Sensor: Range of 6 meters, configurable detection time (30/45/300 seconds)
  • Brightness Detection: 3 adjustable levels
  • Protection: IP40 (indoor use)
Read moreShow less
Download PDF
You may also like
No items
Description

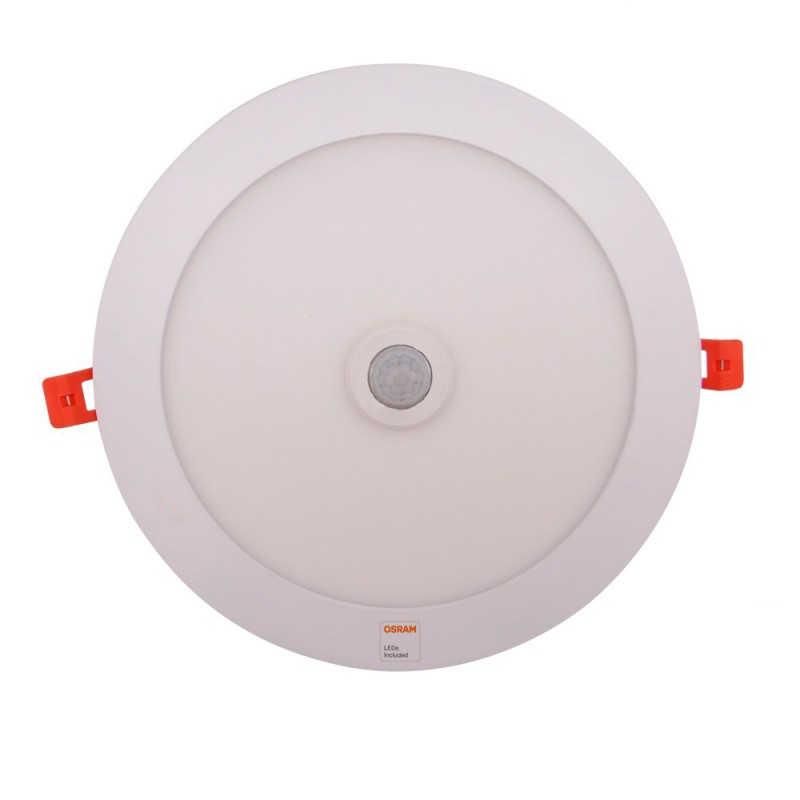

Slim LED Downlight Plate 24W OSRAM Chip with Motion Sensor - 4CCT


24W slim circular LED downlight panel with OSRAM chip and 4CCT motion sensor. Offers 3000 lumens of brightness, adjustable power and color, and an elegant white design.

The 24W slim circular LED downlight panel, equipped with an OSRAM chip, provides up to 3000 lumens of brightness and allows selection between four color temperatures (2700K, 3000K, 4000K, 6000K). Made of aluminum and PMMA, this recessed luminaire is ideal for interiors with Ø205mm cut-out holes. Its adjustable motion sensor detects up to 6 meters and offers time and brightness settings. With a 120º luminous angle, it ensures uniform and efficient lighting, perfect for various applications.

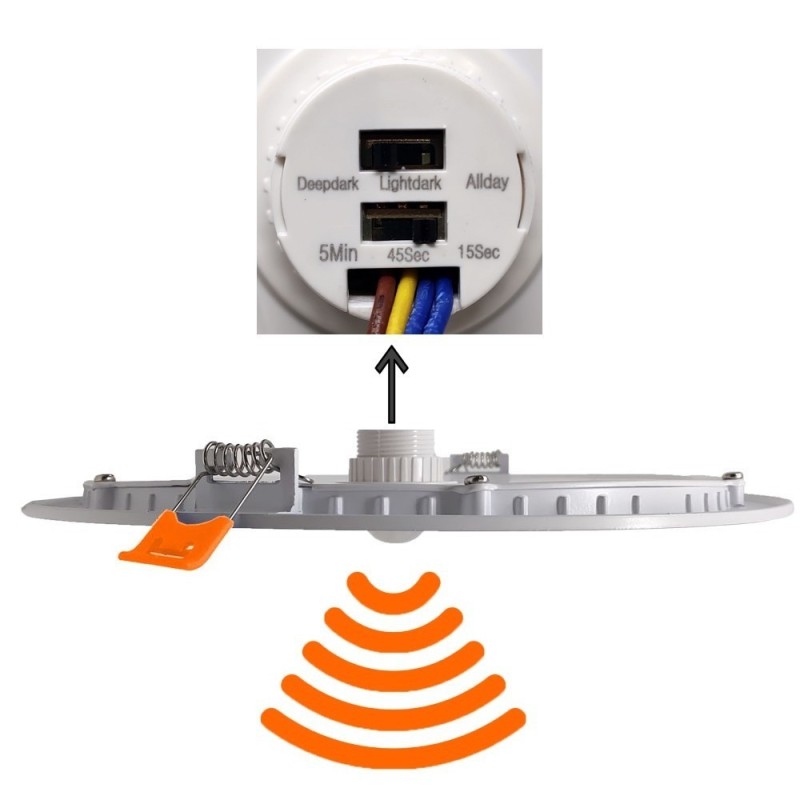

Integrated PIR Motion Sensor


The motion sensor integrated into the 24W slim LED downlight plate has a range of 6 meters and activates upon detecting motion. It offers three detection time settings: 30 seconds, 45 seconds, and 300 seconds. Additionally, it allows brightness detection to be adjusted at three different levels, ensuring the light turns on only when necessary. This not only optimizes energy consumption but also provides comfort and security in any space.

Technical Specifications


  • Power: 18W / 20W / 22W / 24W (adjustable)
  • Brightness: 2250 - 3000 lumens (110 Lm/W)
  • Color Temperature: 4CCT (2700K, 3000K, 4000K, 6000K)
  • Material: Aluminum and white lacquered PMMA

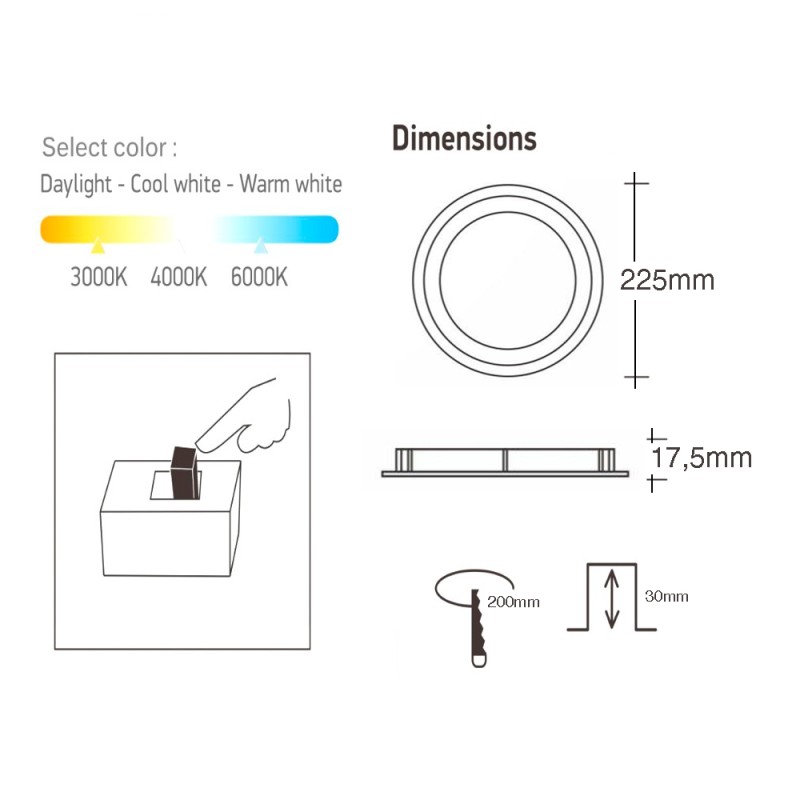

  • Dimensions: Outer diameter 225mm, cut-out hole Ø205mm
  • Luminous Angle: 120º
  • Motion Sensor: Range of 6 meters, configurable detection time (30/45/300 seconds)
  • Brightness Detection: 3 adjustable levels
  • Protection: IP40 (indoor use)
  • Durability: >100,000 cycles

4CCT Color Temperature Selection


4CCT refers to the luminaire's ability to adjust the color temperature in four different levels: 2700K, 3000K, 4000K, and 6000K. This allows changing the ambiance of a room from warm and cozy light (2700K) to cool and energizing light (6000K) without needing to replace the luminaire. The adjustment is made through a selector on the driver, making it easy to adapt the lighting to different needs and preferences in a single luminaire.

Installation Instructions


  1. Cut-Out Preparation: Verify that the cut-out hole in the ceiling is Ø205mm.

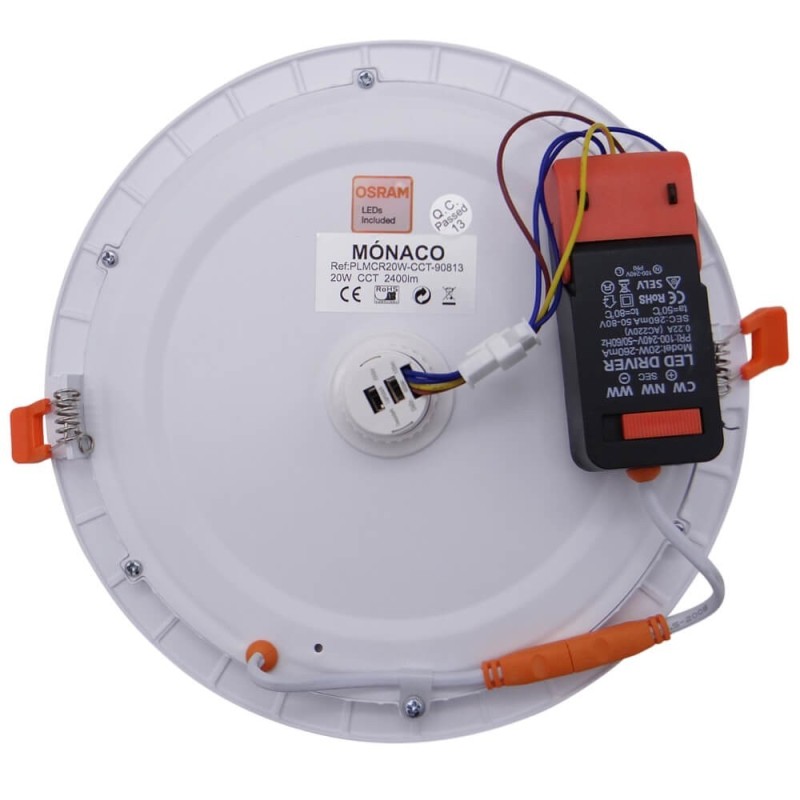

  2. Driver Connection: Connect the luminaire's driver to the power supply, ensuring to select the desired color temperature using the 4CCT selector.
  3. Plate Installation: Insert the downlight panel into the hole, securing it firmly with the mounting springs.
  4. Sensor Adjustment: Adjust the motion sensor according to your preferences, selecting the detection time and desired brightness level.
  5. Functionality Test: Turn on the electrical system and verify that the luminaire works correctly, activating upon motion detection and emitting light at the selected color temperature.
Read moreShow less
Product Details
IL-90813-CCT-24W

Data sheet

Power (W)
24
Power source (V)
220-240V
Color temperature CCT
Seleccionable 4CCT 2700K-3000K-4000K-6500K
LED chip brand
OSRAM
LED diode efficiency (Lm/W)
110
Brightness (Lm)
3000
CRI
+85
Colour
White
IP
IP40
Luminous angle
120°
Frequency (Hz)
50-60Hz
Forma
Redondo
Measures (mm)
Ø225x18mm
Medida de corte (mm.)
Ø205mm
Material
Aluminum + PMMA
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
E
Lifespan
40.000h
Certification
CE - RoHS
Warranty
3 años

Specific References

EAN13
8435637210409
