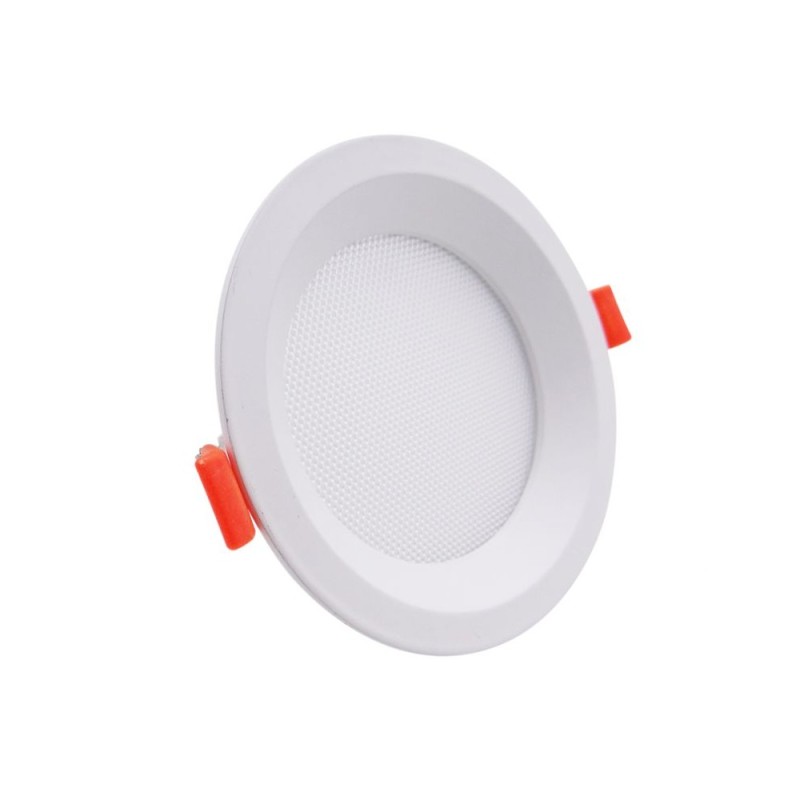

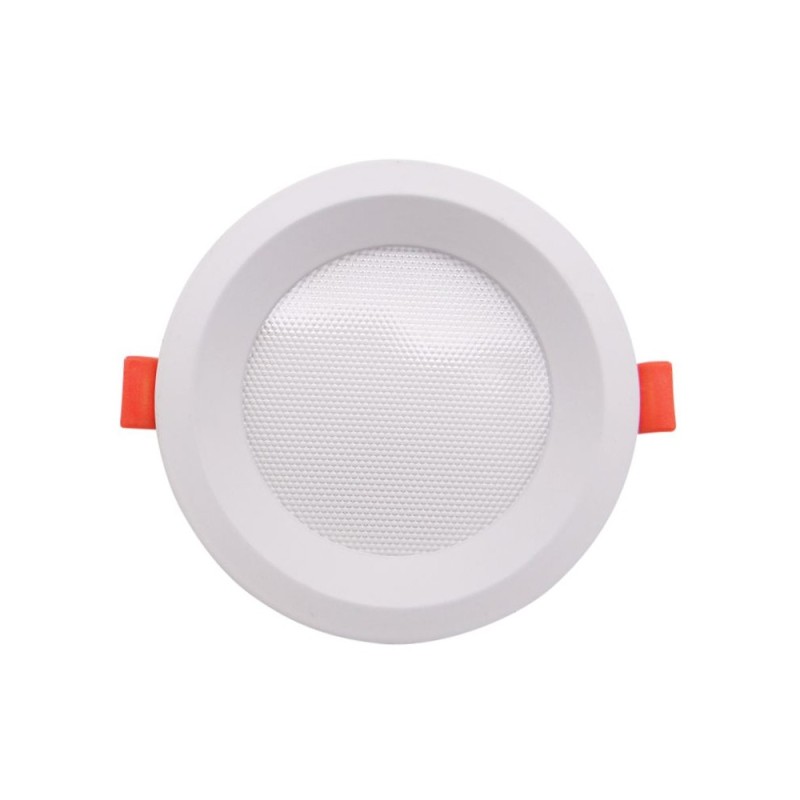

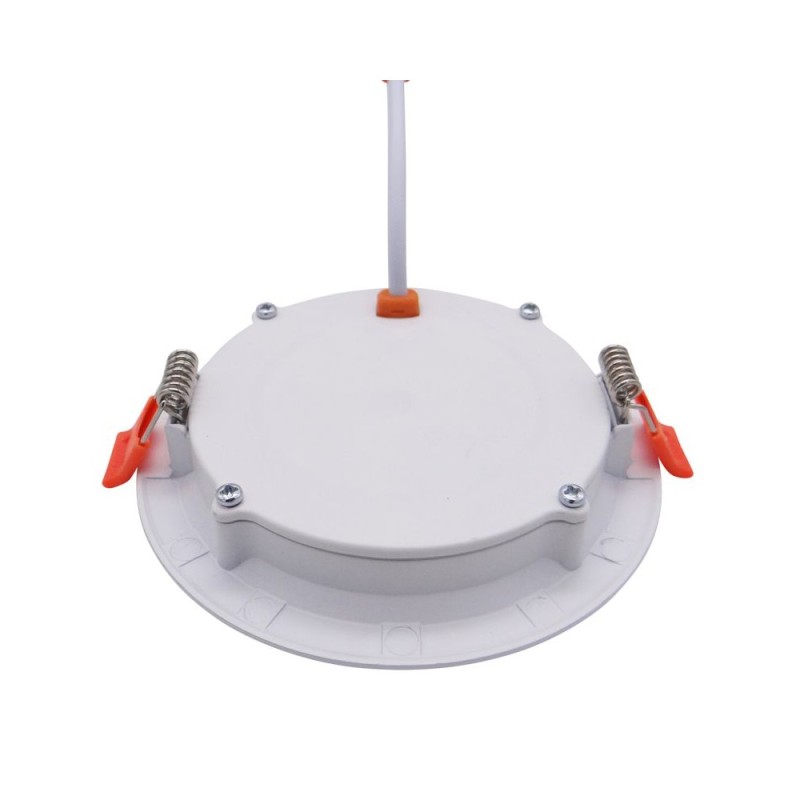

12W 1440Lm Selectable CCT LED Downlight UGR19 OSRAM Chip
The Circular Recessed LED Downlight of 12W is the ideal solution for those looking for efficient and modern lighting. Made of high-quality aluminum and polycarbonate, and lacquered in white, this LED Downlight stands out for its flat and elegant design, which easily integrates into any space.
Equipped with an OSRAM SMD2835 LED chip, the Downlight offers a luminous flux of 1440 lumens, ensuring clear and uniform lighting. Additionally, its microprismatic diffuser reduces glare to a UGR<19 level, providing a visually comfortable environment.
- Power: 12W
- Luminous Flux: 1440 lumens
- LED Chip: OSRAM SMD2835
- Material: Aluminum and polycarbonate
- Color: Lacquered white
- Dimensions: Ø117x18mm
- Cutout Dimensions: Ø108mm
- Diffuser: Microprismatic UGR<19
- Color Temperature: Selectable between 3000K / 4000K / 6000K
- Driver: External included
LED Downlight round 12W CCT 1440 lm UGR<19 OSRAM Chip IP20
The 12W recessed round led downlight with a OSRAM chip delivers 1440 lumens (120º), with a opal diffuser UGR < 19 that reduces glare. Selectable CCT temperature via the included driver, IP20.
⚡ 12W💡 1440 lm👀 UGR < 19🌈 CCT
| 12W Power | 1440 lm Luminous flux | UGR < 19 Glare | IP20 Protection |
The 12W recessed round led downlight, fitted with a high-performance OSRAM chip, is an efficient, durable lighting solution, perfect for commercial and residential applications. With a 120º angle, it lights any space evenly, without shadows, and provides 1440 lumens. Made of aluminium, its slim, refined design adds a modern touch.
Its opal diffuser (UGR < 19) significantly reduces glare and eye strain, for comfortable lighting. The colour temperature is selectable thanks to the included driver, letting you adapt the atmosphere to each room in a single device.
Why choose this product?
Reduces glare, comfortable lighting.
Adapt the temperature to each room (driver included).
1440 lm, 120º, aluminium.
Available light shades
Available in three selectable colour temperatures, to match the atmosphere of each space:
| 3000 K Warm white | 4000 K Neutral white | 6000 K Cool white |
Technical specifications
| Product type | Recessed round LED Downlight |
|---|---|
| Power | 12W |
| Luminous flux | 1440 lm |
| LED chip | OSRAM |
| Beam angle | 120º |
| Diffuser | Opal (UGR < 19) |
| Material | Aluminium |
| Protection | IP20 |
| Driver | Included |
Advantages

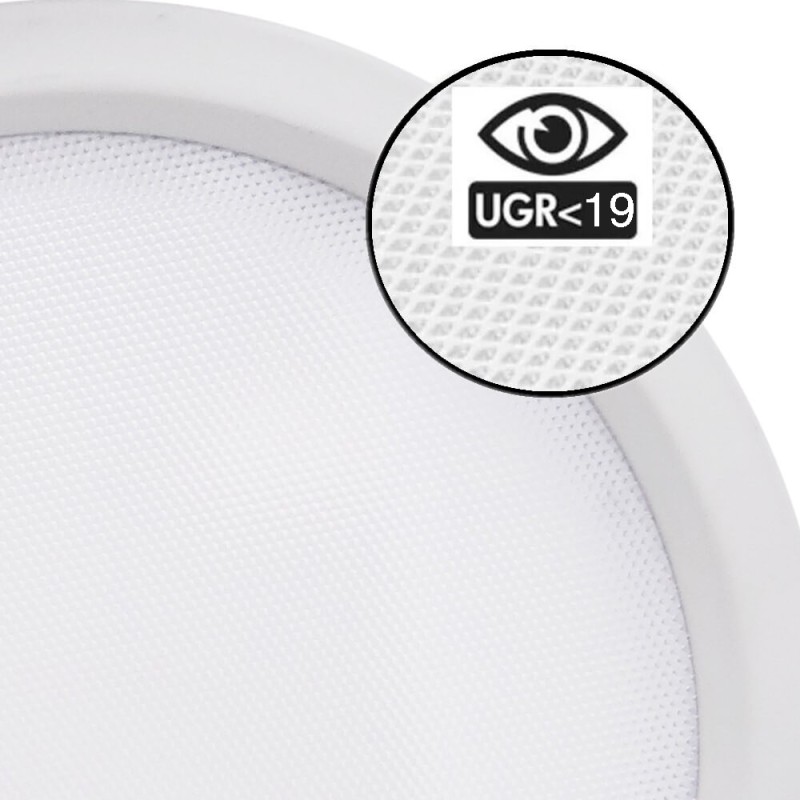

- UGR < 19: opal diffuser.
- Selectable CCT: temperature of choice.
- 1440 lm at 12W: even lighting.
- OSRAM chip: high performance.
- Driver included: CCT selector.
- IP20: indoor use.
Recommended applications
| 🚪 | Offices and shops — comfortable lighting. |
| 🏠 | Hotels and restaurants — adjustable atmosphere. |
| 🏛 | Halls and corridors — general lighting. |
| 🌿 | Homes — false ceilings. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Choose the temperature Set the CCT selector on the driver. |
| 3 | Wire it Wire the included driver to the mains. |
| 4 | Recess and check Insert the luminaire and check the lighting. |
Frequently asked questions
Yes, the CCT is selectable via the included driver.
Yes, its opal diffuser offers a UGR < 19.
No, it is designed for indoors.
| ⚡ 12W 1440 lm | 👀 UGR<19 CCT | 🌈 Selectable OSRAM | ☂ IP20 Driver incl. |
Data sheet
- Power (W)
- 12
- Power source (V)
- 85-265V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Brightness (Lm)
- 1440
- Color rendering index (Ra):
- ≥85
- Colour
- White
- IP
- IP20
- Frequency (Hz)
- 50-60Hz
- Forma
- Redondo

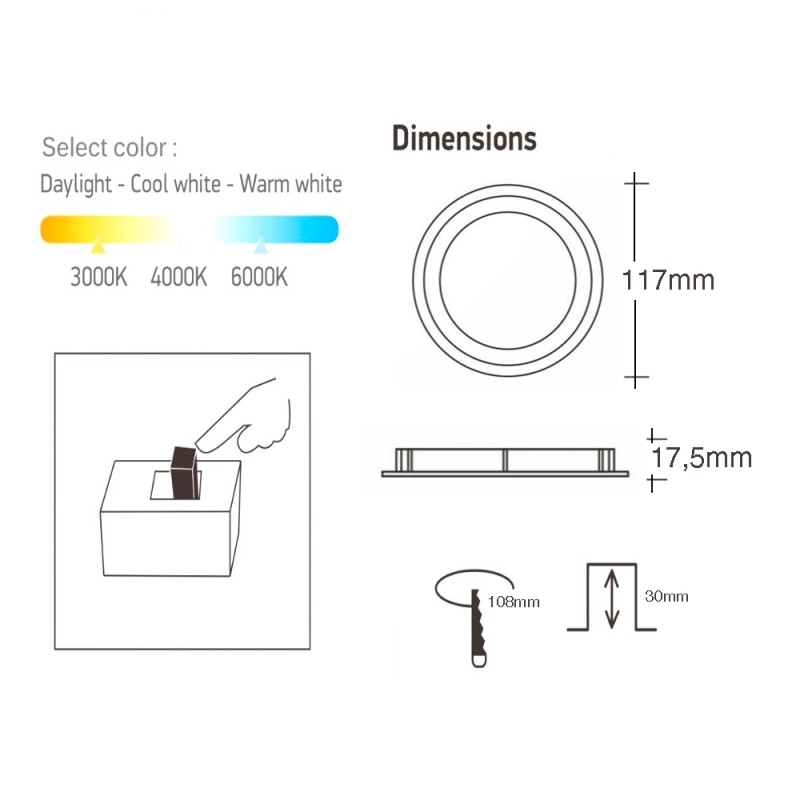

- Measures (mm)
- Ø117x18mm
- Medida de corte (mm.)
- Ø108mm
- Material
- Aluminum + PC
- Driver
- CCT no flicker
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 40.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8436540806178
 David on 2024-12-01 19:31:01 | Question: Hola, Estoy interesado en el Downlight LED 12W CCT (Referencia: IL-90842-CCT), y quisiera saber como se efectua la selección de la temperatura de color. Se debe hacer al instalarlo con algun selector en el própio downlight o driver, o se puede hacer en cualquier momento mediante una secuencia de pulsado del interruptor que enciende la luz ? Gracias |
Answer: El downlight CCT de 12W incluye un selector de temperatura de color en el cable del driver, por lo que la elección del color deberá realizarse en el momento de la instalación. Se puede cambiar posteriormente, pero para ello habrá que desmontar el downlight del techo para acceder de nuevo al selector. | |
