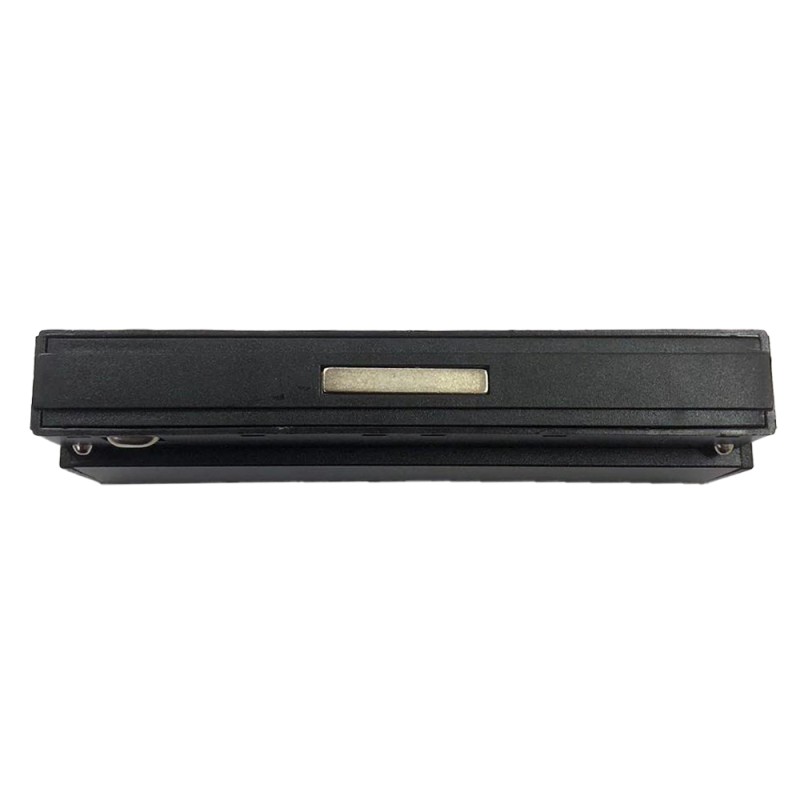

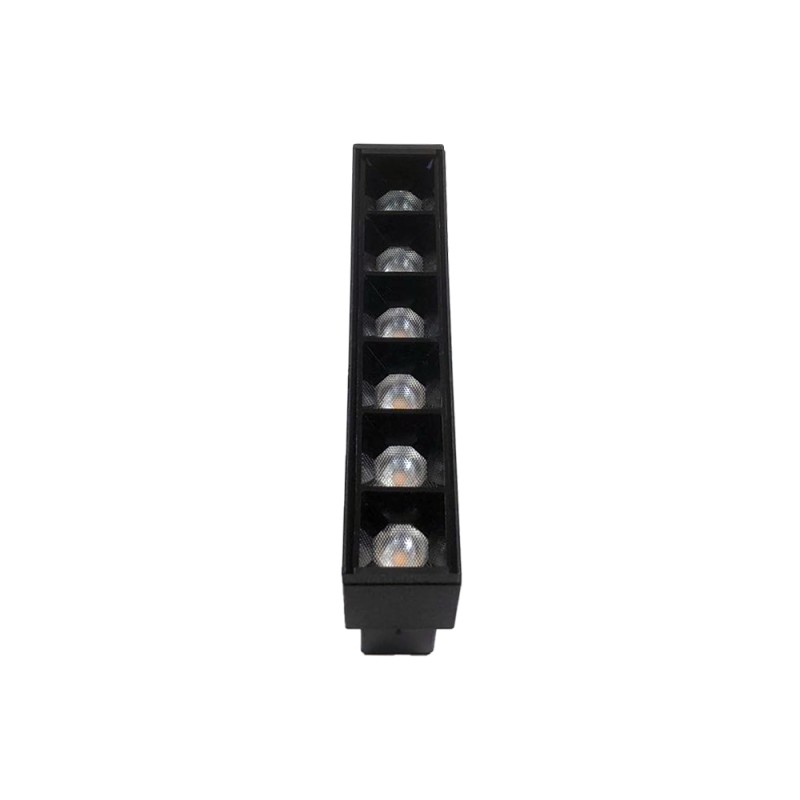

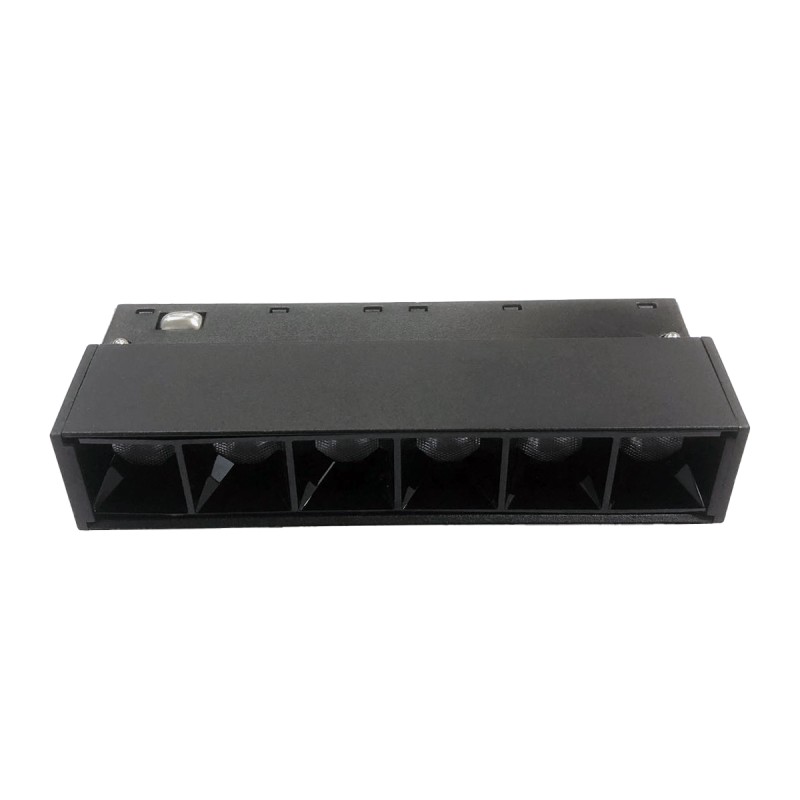

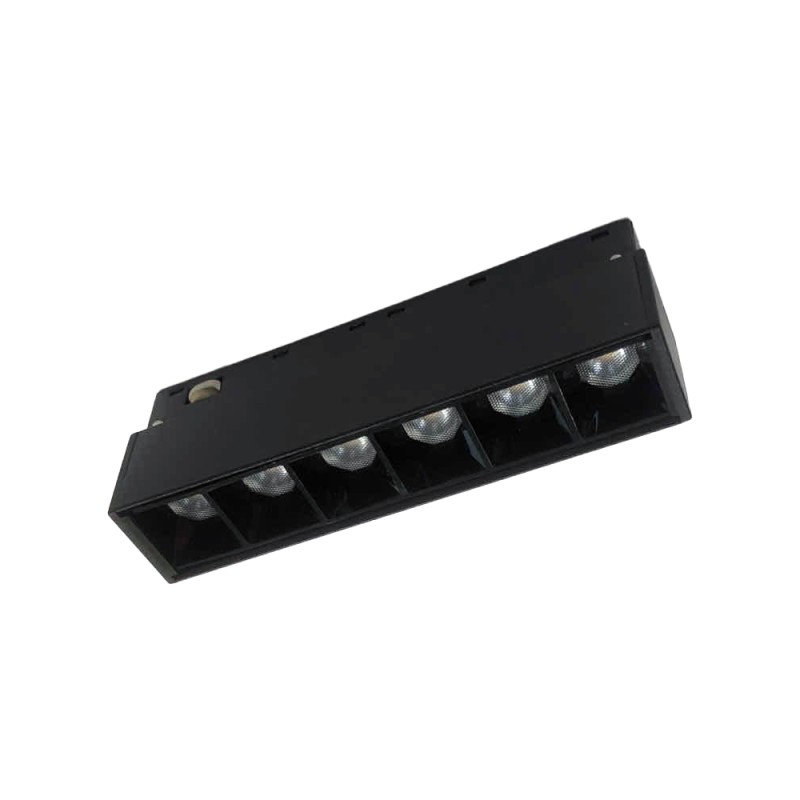

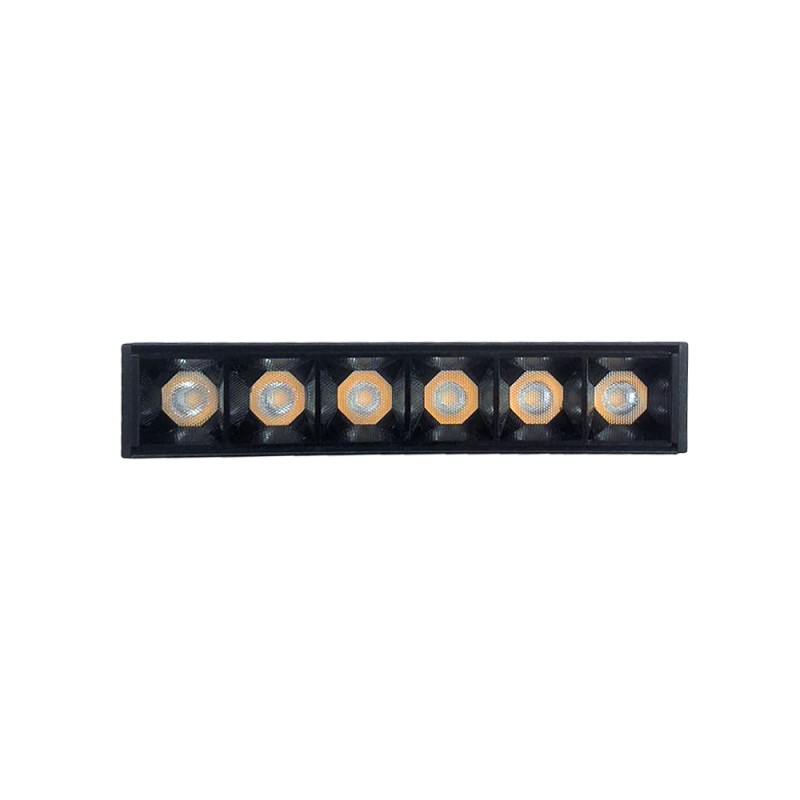

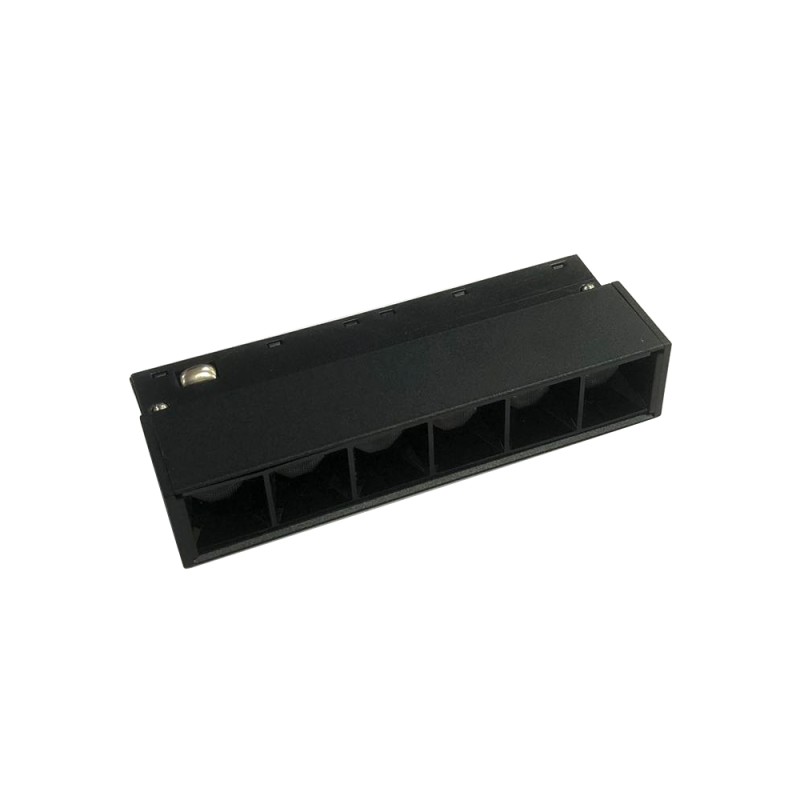

6W 48V Linear LED OSRAM chip Spotlight for Magnetic Track UGR17
The Linear LED Spotlight 6W is a modern and compact lighting solution designed to provide accent lighting without glare, thanks to its UGR<17 rating.
Made of aluminum and PC, this magnetic linear spotlight features an elegant black housing that integrates perfectly into any environment. It incorporates a high-performance OSRAM LED chip that offers a luminous flux of 600 lumens, ensuring excellent color reproduction with a CRI<90, reproducing vibrant and true-to-life colors.
The linear LED spotlight is designed to operate at 48V on magnetic tracks with a width of 27mm, and its click mounting system allows it to be easily placed on the track without the need for screws, fasteners, or tools.
- Power: 6W
- Luminous Flux: 600 lumens
- UGR Rating: <17
- CRI: <90
- Operating Voltage: 48V
- Dimensions: 112x22x42mm
Linear LED Spotlight 6W for Magnetic Track
The Linear LED Spotlight 6W is a modern and compact lighting solution designed to provide accent lighting without glare, thanks to its UGR<17 rating.
Made of aluminum and PC, this magnetic linear spotlight features an elegant black housing that integrates perfectly into any environment. It incorporates a high-performance OSRAM LED chip that offers a luminous flux of 600 lumens, ensuring excellent color reproduction with a CRI<90, reproducing vibrant and true-to-life colors.
The linear LED spotlight is designed to operate at 48V on magnetic tracks with a width of 27mm, and its click mounting system allows it to be easily placed on the track without the need for screws, fasteners, or tools.
Technical Specifications
- Power: 6W
- Luminous Flux: 600 lumens
- UGR Rating: <17
- CRI: <90
- Material: Aluminum and PC
- Housing Color: Black
- Operating Voltage: 48V
- Magnetic Track Width: 27mm
- Dimensions: 112x22x42mm
- Mounting: Click system, no screws or tools required
- Warranty: 3 years
The Linear LED Spotlight for Magnetic Track is the perfect choice for those seeking high-quality accent lighting and easy installation in magnetic track systems. With its modern and compact design, it is ideal for highlighting specific elements in any space.
Data sheet
- Power (W)
- 6
- Power source (V)
- 48V
- Color temperature CCT
- 3000K
4000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Dimmable
- Sí
- Luminous efficacy (Lm/W)
- 100
- Brightness (Lm)
- 600
- CRI
- +90
- Colour
- Black
- IP
- IP20
- Luminous angle
- 24º
- Measures (mm)
- 112x22x42mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 30.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
