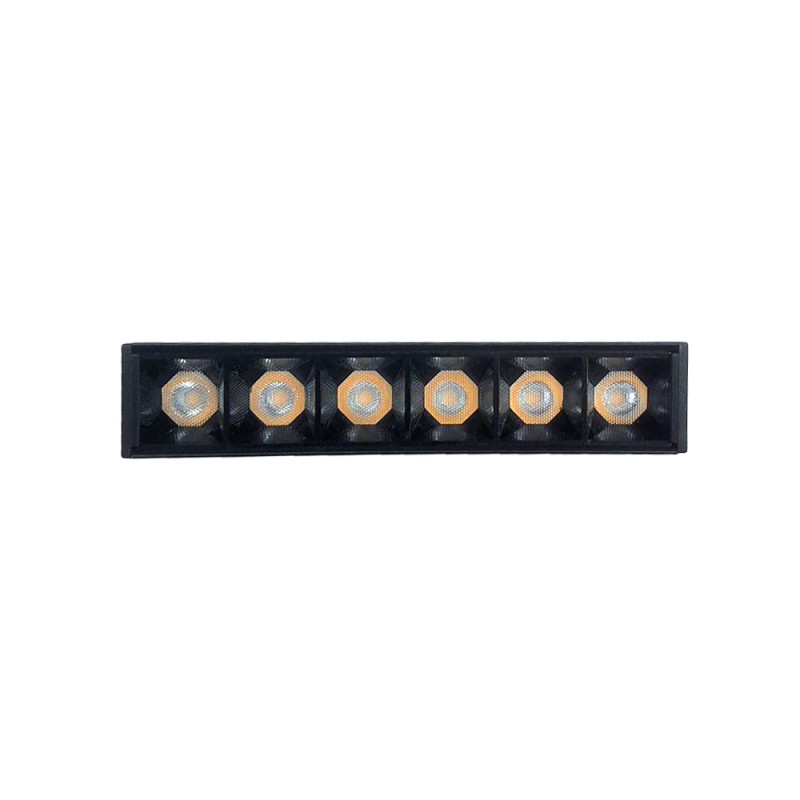

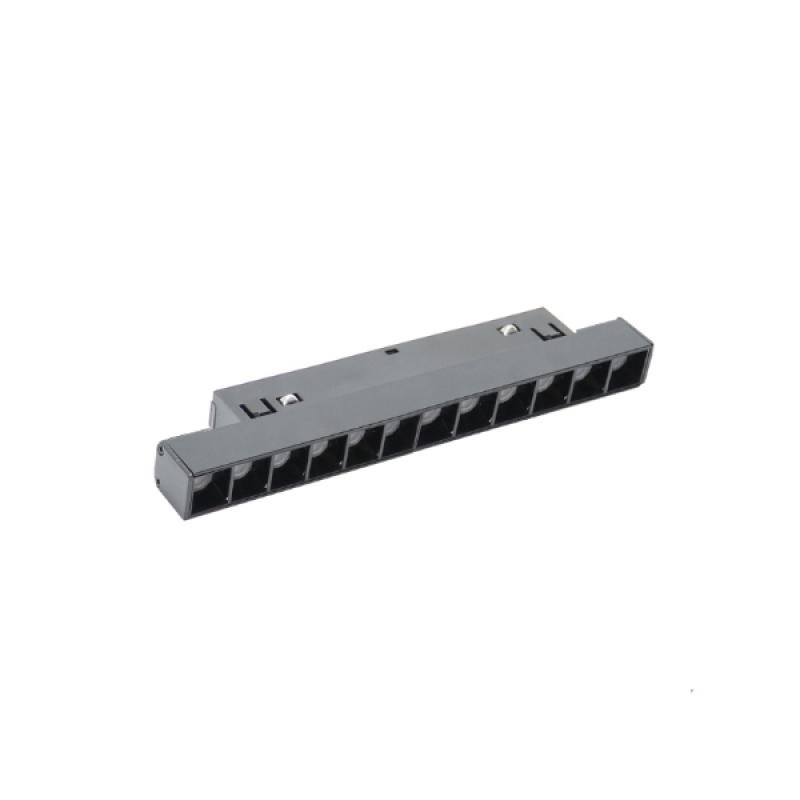

12W 48V LED Linear Spotlight OSRAM Chip for Magnetic Track
The 12W LED Linear Spotlight is a modern and compact lighting solution, designed to provide accent lighting without glare, with a UGR rating of <17.
Made of aluminum and PC, this magnetic linear spotlight features a black housing that integrates perfectly into any environment. It incorporates a high-performance OSRAM LED chip, delivering a luminous flux of 1200 lumens, ensuring excellent color reproduction with a CRI of <90, allowing colors to appear vivid and true to life.

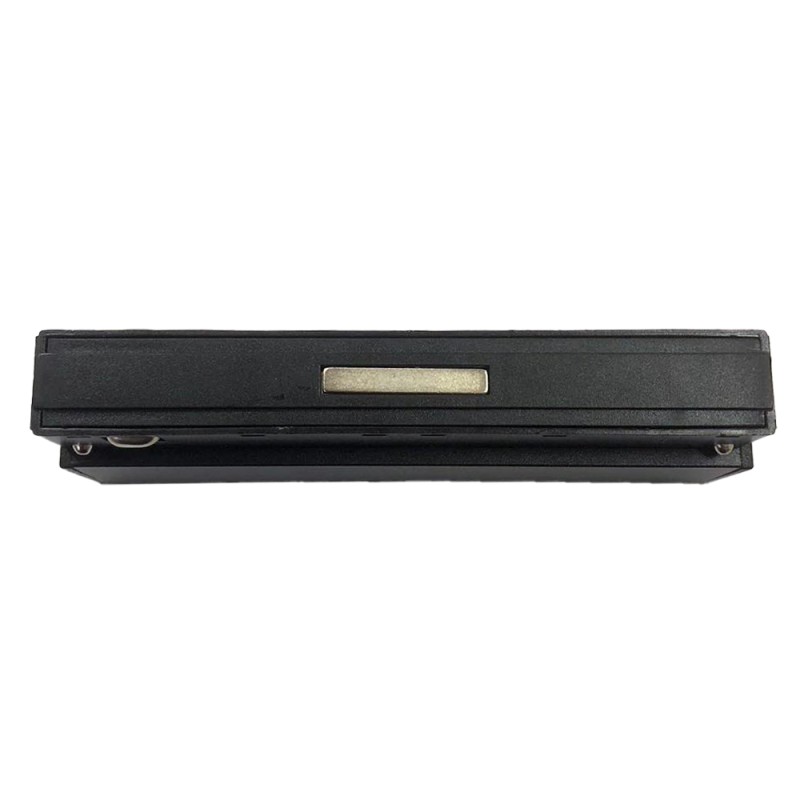

The LED linear spotlight is designed to operate at 48V on 27mm wide magnetic tracks, and its click mounting system allows it to be easily placed on the track without the need for screws, anchors, or tools.
- Power: 12W
- Luminous Flux: 1200 lumens
- UGR Rating: <17
- CRI: <90
- Material: Aluminum and PC
- Operating Voltage: 48V
- Magnetic Track Width: 27mm

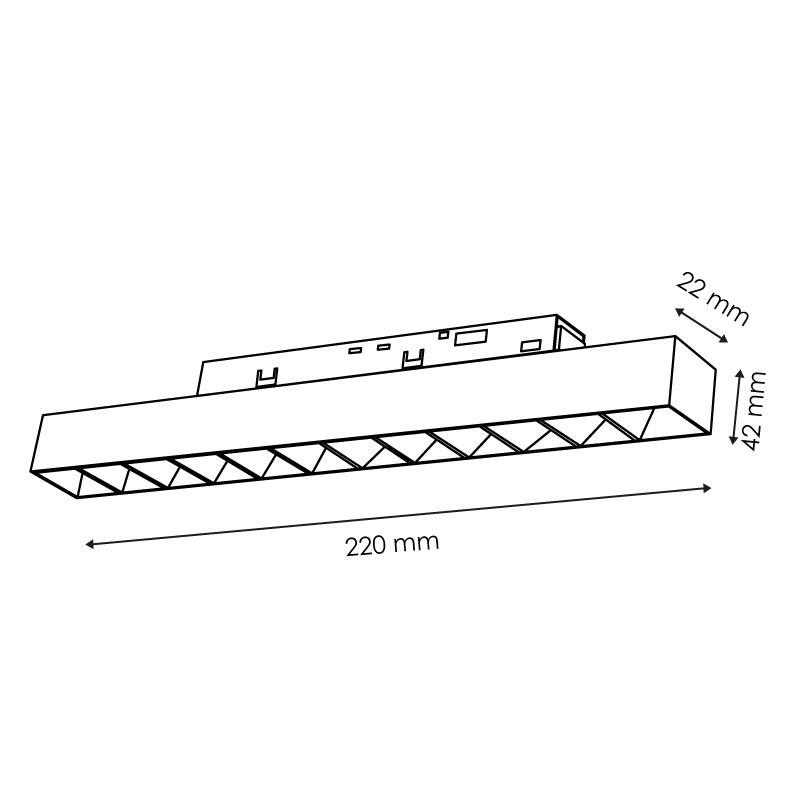

- Dimensions: 220x22x42mm
12W LED Linear Spotlight 48V with OSRAM Chip for Magnetic Track
The 12W LED Linear Spotlight is a modern and compact lighting solution, designed to provide accent lighting without glare, with a UGR<17 rating.
Made of aluminum and PC, this magnetic linear spotlight features a black housing that integrates perfectly into any environment. It incorporates a high-performance OSRAM LED chip, delivering a luminous flux of 1200 lumens, ensuring excellent color reproduction with a CRI<90, allowing colors to appear vivid and true to life.
The LED linear spotlight is designed to operate at 48V on 27mm wide magnetic tracks, and its click mounting system allows it to be easily placed on the track without the need for screws, anchors, or tools.
Technical Specifications
- Power: 12W
- Luminous Flux: 1200 lumens
- UGR Rating: <17
- CRI: <90
- Material: Aluminum and PC
- Housing Color: Black
- Operating Voltage: 48V
- Magnetic Track Width: 27mm
- Dimensions: 220x22x42mm
- Mounting: Click system, no screws or tools required
- Warranty: 3 years
The 12W LED Linear Spotlight for Magnetic Track is ideal for those seeking precise and efficient accent lighting in magnetic track systems. Its versatile design and simplified installation make it an excellent choice for various applications.
Data sheet
- Power (W)
- 12
- Power source (V)
- 48V
- Color temperature CCT
- 3000K
4000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Dimmable
- Sí
- Luminous efficacy (Lm/W)
- 100
- Brightness (Lm)
- 1200
- CRI
- +90
- Colour
- Black
- IP
- IP20
- Luminous angle
- 24º
- Measures (mm)
- 220x22x42mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 30.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
