30W CCT PRO LED Downlight LIFUD driver UGR19 3900Lm IP44

24.95 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Selectable CCT (3000K-4000K-6000K)
In stock: 680 Items
Reference:
IL-90807-CCT

Round 30W recessed LED downlight with high-performance EPISTAR SMD2835 LED chip, offering a luminous flux of 3900 lumens. It features a micro-prismatic diffuser with UGR<19, significantly reducing the glare effect of traditional downlights.

The LIFUD driver includes a CCT color temperature selector, allowing you to choose between 3000K, 4000K, and 6000K in a single device.

Thanks to its IP44 protection rating, it is ideal for installation in bathrooms, kitchens, damp areas, and covered outdoor spaces.

  • External dimensions: Ø225x35mm
  • Ceiling cut-out: Ø205mm
  • Depth: 35mm
  • Power consumption: 30W
  • Replacement for: 300W conventional luminaires / 100W low consumption luminaires
  • Energy consumption savings: 90%
  • Includes external driver: with CCT color selector function
  • Panel water resistance rating: IP44, suitable for damp areas.
  • Low glare rating: UGR<19
  • Color rendering index: CRI>85
Read moreShow less
Download PDF
You may also like
No items
Description

Recessed LED Downlight Round IP44 30W CCT


30W round recessed LED downlight with high-performance EPISTAR SMD2835 LED chip, offering a luminous flux of 3900 lumens. It features a micro-prismatic diffuser with a UGR<19 rating, significantly reducing the glare effect of traditional downlights.

The LIFUD driver includes a CCT color temperature selector, allowing you to choose between 3000K, 4000K, and 6000K in a single device.

Thanks to its IP44 protection rating, it is ideal for installation in bathrooms, kitchens, damp areas, and covered outdoor spaces.

Technical data of the 30W round recessed IP44 LED downlight

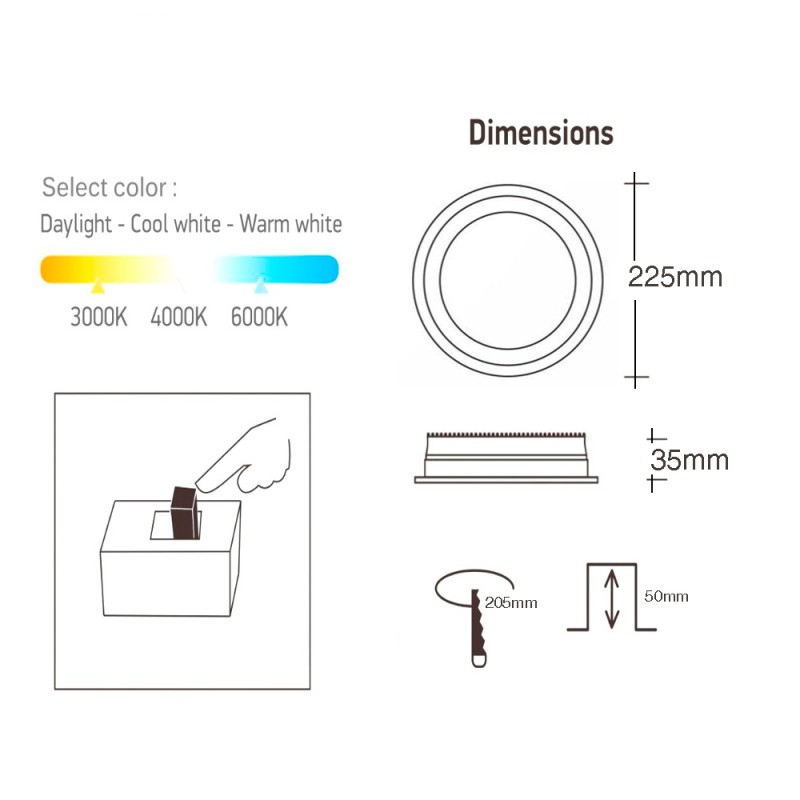

  • External dimensions: Ø225x35mm
  • Ceiling cut-out: Ø205mm
  • Depth: 35mm
  • Average consumption: 30W
  • Replacement for: 300W conventional luminaires / 100W low consumption luminaires
  • Energy consumption savings: 90%
  • Includes external driver: with CCT color selector function
  • CCT color temperatures: 3000K / 4000K / 6000K
  • Driver connection: direct to 230V mains
  • Panel water resistance rating: IP44, suitable for damp areas. Not recommended for outdoor use.
  • Luminous angle: 120º
  • Low glare rating: UGR<19
  • Color rendering index: CRI>85

Advantages of the 30W round recessed LED downlight IP44


  • Energy efficiency: With a consumption of 30W, it replaces conventional 100W luminaires, saving up to 90% in energy consumption.
  • Color temperature selector: The LIFUD driver allows selecting between 3000K, 4000K, and 6000K in a single device, adapting to the environment's needs.
  • Resistance and durability: With IP44 protection, it is ideal for bathrooms, kitchens, and damp areas.
  • High-quality lighting: With a CRI>85 and a luminous angle of 120º, it provides uniform and excellent quality light.
  • Glare reduction: Thanks to its micro-prismatic diffuser with UGR<19, it minimizes glare, offering a visually comfortable environment.

Recommended Uses and Applications


  • Bathrooms and kitchens: Perfect for damp areas due to its IP44 protection rating.
  • Offices and shops: Ideal for work and sales areas where uniform, glare-free lighting is needed.
  • Hallways and common areas: Provides efficient and comfortable lighting in high-traffic areas.
  • Covered outdoor areas: Suitable for use in outdoor spaces as long as they are covered and protected from direct rain.

Installation Recommendations


  • Make a round cut in the ceiling of Ø205mm.
  • Connect the external driver directly to the 230V mains.
  • Select the desired color temperature using the CCT selector on the LIFUD driver.
  • Insert the downlight into the cut-out and secure it firmly.
  • Ensure the electrical connection and installation comply with current regulations.
Read moreShow less
Product Details
IL-90807-CCT

Data sheet

Power (W)
30
Power source (V)
220-240V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
SMD2835
LED chip brand
EPISTAR
Luminous efficacy (Lm/W)
130
Brightness (Lm)
3900
CRI
+85
Colour
White
IP
IP44
Luminous angle
120º
Frequency (Hz)
50-60Hz
Forma
Redondo
Measures (mm)
Ø225x35mm
Medida de corte (mm.)
Ø205mm
Material
Aluminum + PC
Driver
LIFUD flicker-free
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
E
Lifespan
40.000h
Certification
CE - RoHS
Warranty
5 años

Specific References

EAN13
8436540806154
