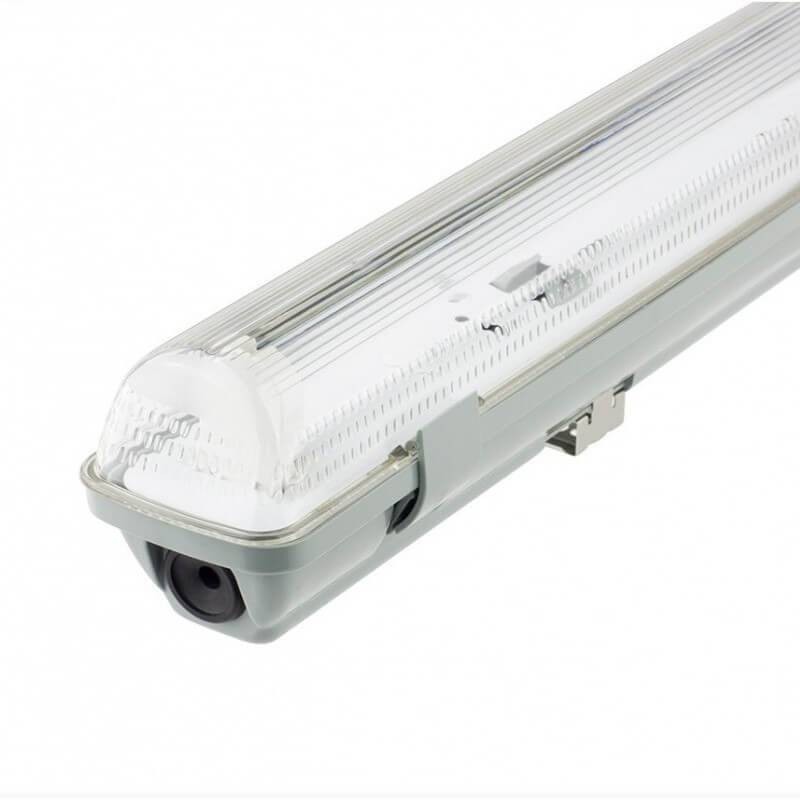

Waterproof fixture for 1x120cm LED tube IP65
Waterproof fixture that allows for the installation of a T8 tube with an IP65 waterproof rating. Measuring 1270x66x90mm, it fits a 120cm T8 tube. Wired with a G13 socket and versatile connection for one or two ends (with or without a starter fuse). The fixture is made of ABS and polycarbonate.
** LED TUBE NOT INCLUDED **
Empty IP65 Waterproof Fitting for one tube 120 cm LED
An IP65 waterproof fitting ready to take one tube of 120 cm LED tube. In ABS and polycarbonate, with a translucent diffuser and single-end connection, it protects your tubes in damp or dusty environments.
☂ IP65🔅 120 cm🔌 G13⚙ ABS + PC
| IP65 Protection | 120 cm Tube | 1 No. of tubes | G13 Connection |
The IP65 waterproof fitting is an empty batten prepared for installing one tube of 120 cm LED tube. With an IP65 protection rating, it effectively protects the tubes against dust and water jets, making it ideal for demanding environments.
Made from ABS and polycarbonate, with a grey base and a translucent diffuser that lets light through without loss of intensity, it has a compact 1270 x 70 x 60 mm design. It is supplied pre-wired, with G13 lampholder and single-end connection, and accepts any of our 120 cm LED tubes.
Why choose this product?
Resists dust and water jets.
Quick installation with single-end connection.
Sturdy and durable, with a translucent diffuser and no light loss.
Technical specifications
| Product type | Waterproof fitting for LED tubes |
|---|---|
| Protection | IP65 |
| Number of tubes | 1 |
| Compatible tube length | 120 cm |
| Connection | G13 lampholder, single-end |
| Material | ABS and polycarbonate |
| Diffuser | Translucent |
| Dimensions | 1270 x 70 x 60 mm |
| Wiring | Pre-wired |
Advantages
- IP65 sealing: suited to damp and dusty environments.
- For one tube of 120 cm: compatible with all our LED tubes.
- Pre-wired G13: quick single-end installation.
- ABS and polycarbonate: sturdy and durable.
- Translucent diffuser: light with no loss of intensity.
Recommended applications
| 🚪 | Garages and workshops — waterproof technical lighting. |
| 🏠 | Warehouses and storage areas — dusty environments. |

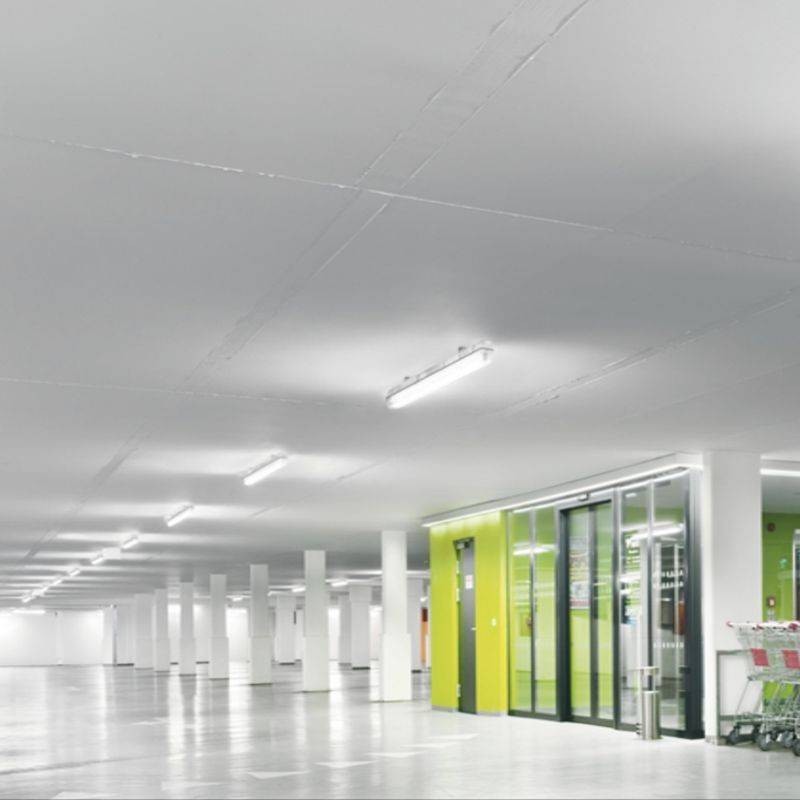

| 🏛 | Car parks — rugged lighting. |
| 🌿 | Industrial kitchens and damp rooms — IP65 protection. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the fitting Fix the fitting to the ceiling or wall using the included brackets. |
| 3 | Install the tube Insert the 120 cm LED tube and seat it on the G13 lampholder. |
| 4 | Connect and close Make the single-end connection, close the fitting and restore power. |
Frequently asked questions
Any of our 120 cm LED tubes with single-end connection.
IP65: resistant to dust and water jets.
Yes, it is pre-wired with G13 lampholder and single-end connection.
| ☂ IP65 Waterproof | 🔌 G13 Pre-wired | ⚙ ABS + PC Sturdy | 📦 In stock Fast shipping |
Data sheet
- Lampholder
- G13
- IP
- IP65
- IK
- IK08
- Measures (mm)
- 1270x66x90
- Material
- ABS
- Certification
- CE - RoHS
- Warranty
- 3 años
 EMILIO on 2025-08-11 13:38:39 | Question: ¿ están dotadas estas pantallas con detector de presencia ? ¿ Tienen algún modelo que si lo esté? Un saludo |
Answer: Estas pantallas están vacías y están diseñadas y preparadas para incluir tubos LED, no tienen iluminación por si solas. Para el uso que quieren, deberán adquirir también los tubos LED, en este caso con sensor de movimiento. De esta forma, si en algún momento se funden los tubos, bastará con cambiarlos sin tener que reemplazar la luminaria completa. Adjunto el enlace a la página de los tubos con sensor radar: https://www.premiumled.es/es/tubos-led-t8/tubo-led-t8-18w-120cm-sensor-radar-luz-permanente-20-2-extremos | |
