15W 60cm Triproof LED Linkable Batten 1650Lm IP65

6.95 € (tax incl.)
F
Available
Color temperature CCT (ºK)
  • Cool white 5700K

Volume discounts

Quantity Unit price You Save
20 6.60 € 6.95 €
In stock:
Reference:
PL-PE15W60-57K

The Linear Waterproof LED Batten of 15W and 60cm offers powerful and durable lighting for industrial and professional environments. Made of aluminum and thermoplastic, this batten ensures resistance and durability. Its linkable design allows interconnection from both ends without the need for disassembly, making it ideal for linkable installations. The integrated SMD2835 LED chip provides a luminous flux of 1650 lumens, with a luminous angle of 120º for uniform light distribution.

  • Power: 15W
  • Luminous Flux: 1650 lumens
  • IP65 Rating
  • Dimensions: 590x53x37mm
Read moreShow less
Download PDF
You may also like
No items
Description

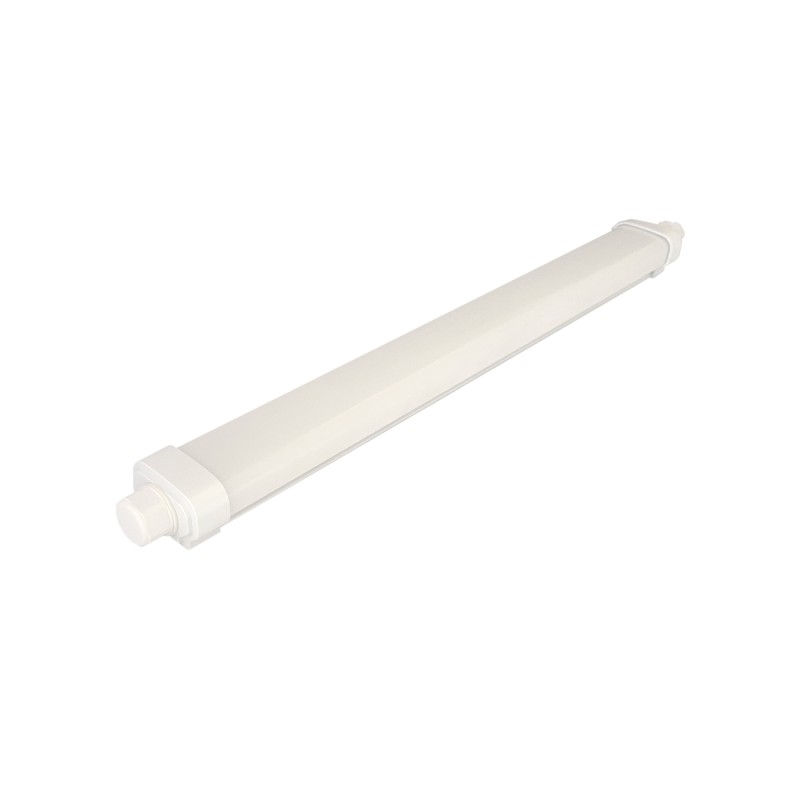

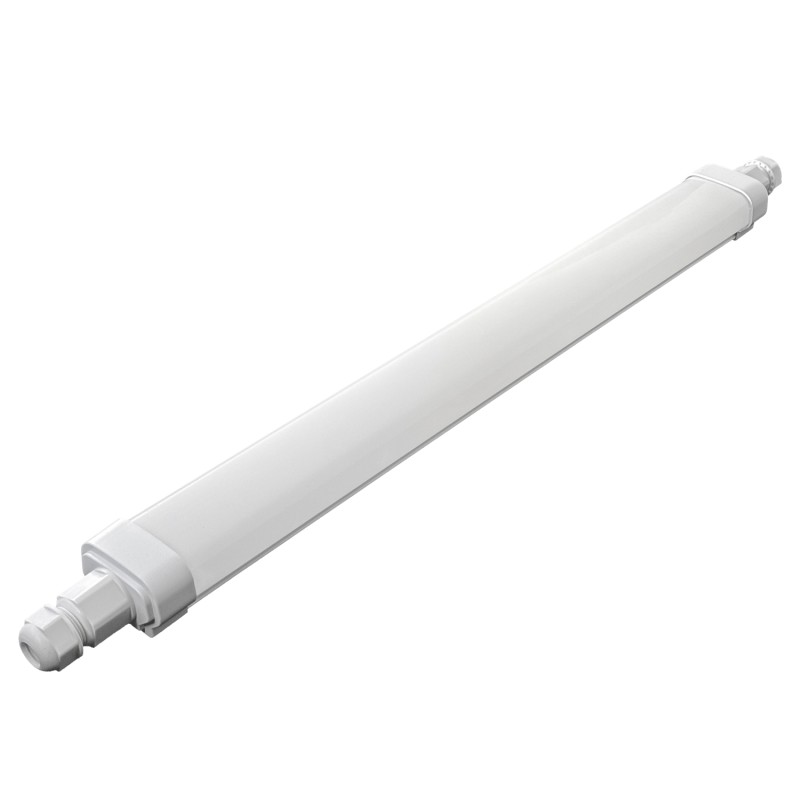

15W 60cm Triproof LED Linkable Batten 1650Lm IP65


The 15W 60cm Linear LED Waterproof Batten is the perfect solution for lighting in industrial and professional environments. Pre-wired connection at both ends for easy and efficient installation.

The 15W 60cm Linear LED Waterproof Batten offers powerful and durable lighting for industrial and professional environments. Made of aluminum and thermoplastic, this batten ensures resistance and durability. Its linkable design allows interconnection at both ends without the need for disassembly, making it ideal for linkable installations.

The integrated SMD2835 LED chip provides a luminous flux of 1650 lumens, with a luminous angle of 120º for uniform light distribution. With IP65 rating and IK08 protection, it is resistant to dust, water, and impacts, ensuring reliable operation in demanding environments. Additionally, it has an energy efficiency rating of F for lower energy consumption.

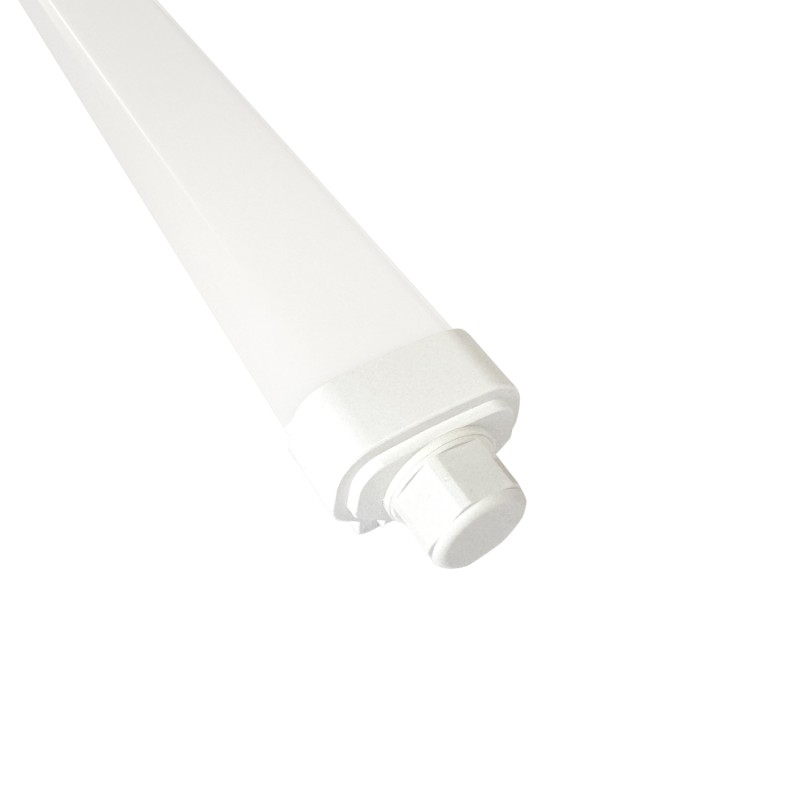

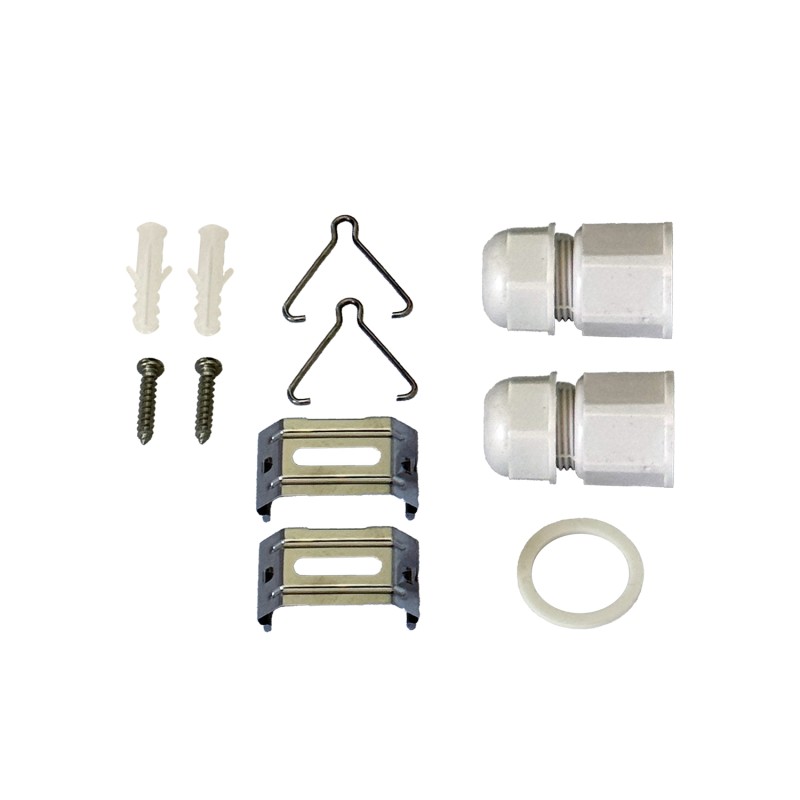

Each unit includes a watertight end cap and a cable gland for secure linking. All necessary accessories for surface mounting are also included, with the option for suspension (chain not included).

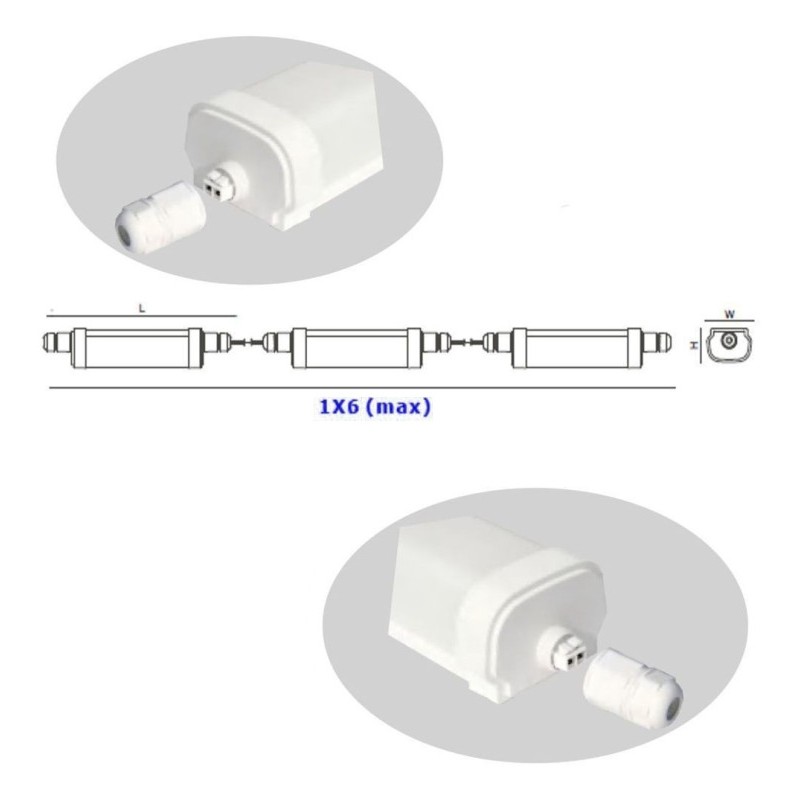

Interconnectability:

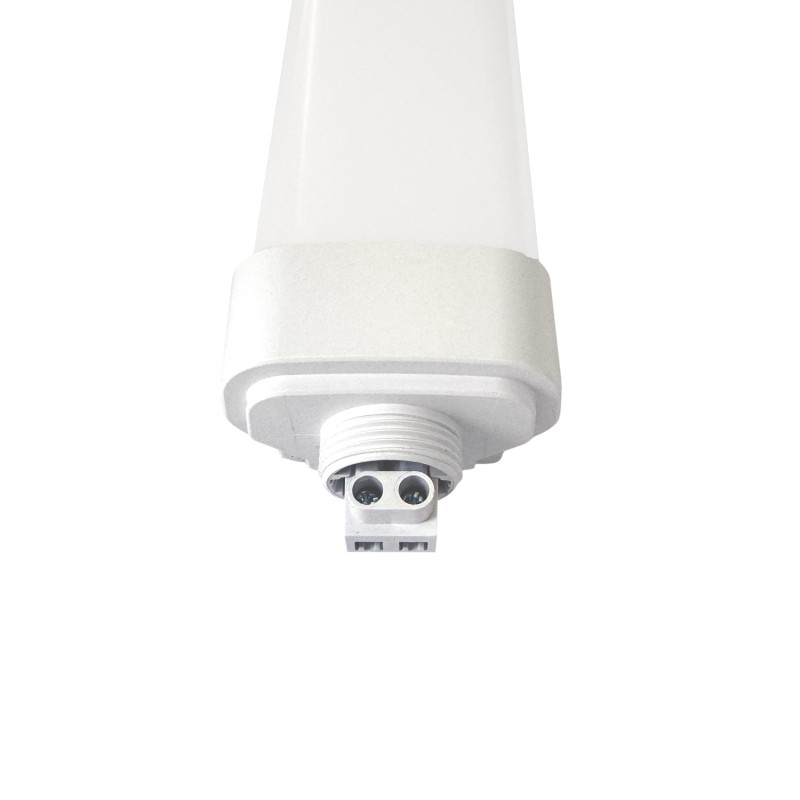

The Linear LED Waterproof Batten is easily linkable thanks to the integrated connectors at both ends, located within the watertight cable gland. This feature allows wiring an installation of up to 6 units in linked-series without the need for disassembly. The inclusion of the connectors in the design greatly facilitates the installation process, saving time and effort for the user.

Technical Specifications:


  • Power: 15W
  • Length: 60cm
  • LED Chip: SMD2835
  • Luminous Flux: 1650 lumens
  • Material: Aluminum and Thermoplastic
  • Luminous Angle: 120º
  • IP Rating: IP65
  • IK Protection: IK08
  • Energy Efficiency Rating: F
  • Dimensions: 590x53x37mm

Product Advantages:


  • Pre-wired connection at both ends for easy installation.
  • Resistant to dust, water, and impacts for use in demanding environments.
  • Compact and durable design in aluminum and thermoplastic.
  • Low energy consumption with F energy efficiency rating.
  • Includes all necessary accessories for surface mounting.

Uses and Applications:


  • Lighting in warehouses, factories, and industrial buildings.
  • Lighting in garages, corridors, and work areas.
  • Outdoor lighting such as patios, entrances, or loading areas.
  • Ideal for commercial and residential applications requiring efficient and durable lighting.
Read moreShow less
Product Details
PL-PE15W60-57K

Data sheet

Power (W)
15
Power source (V)
220-240V
Color temperature CCT
5700K
LED
SMD2835
Brightness (Lm)
1650
Colour
White
IP
IP65
IK
IK08
Luminous angle
120º
Frequency (Hz)
50-60Hz
Power factor
0.90
Measures (mm)
590x53x37mm
Material
Aluminum
Thermoplastic
Operating temperature
-20ºC ~ +40ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
25.000h
Certification
CE - RoHS
Warrantie
3 años
