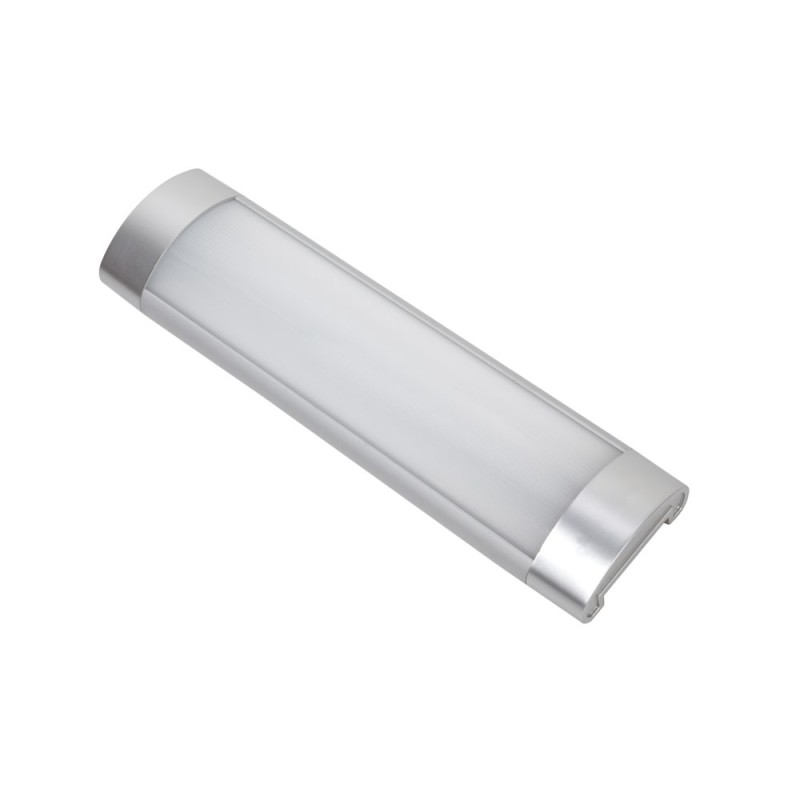

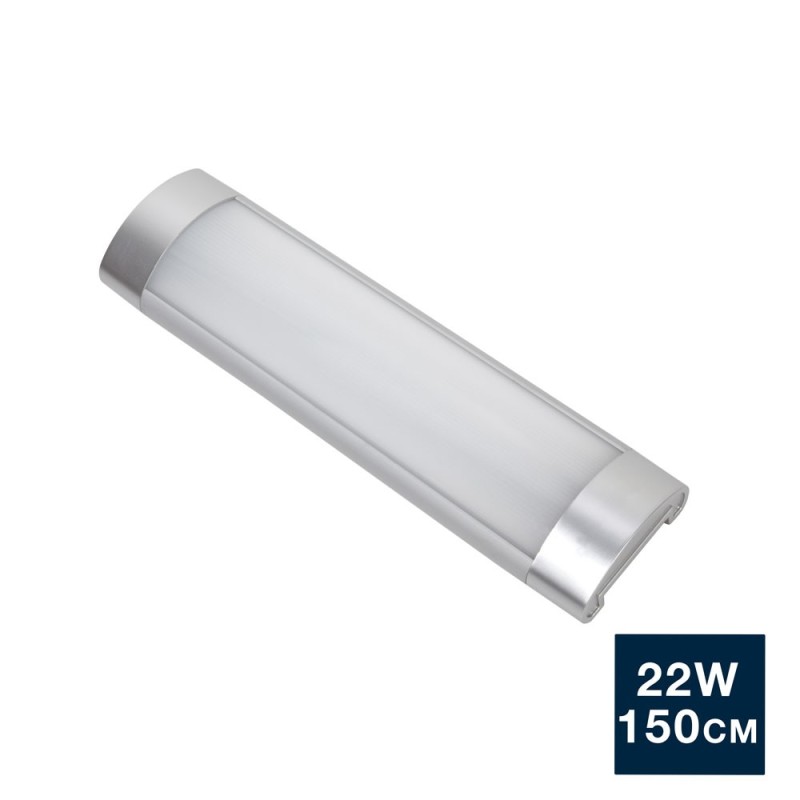

22W 150cm LED Batten 22W 150cm IP20 2112Lm
The 22W LED Batten is the ideal solution for efficient and discreet indoor lighting. With a length of 150cm and a design in aluminum and polycarbonate with a silver finish, this batten offers a modern and elegant touch to any space. Thanks to its SMD2835 LED chip with high brightness, it provides uniform and clear light of 2112 lumens, with a neutral white color of 4000K, perfect for any setting.
- Power: 22W
- Luminous Flux: 2112 lumens
- Light Color: Neutral White 4000K
- LED Chip: SMD2835 high brightness
- IP Rating: IP20, for indoor use
- Beam Angle: 180º, even coverage
- Color Rendering Index (CRI): >85
- Impact Protection: IK08
- Dimensions: 1500x80x36mm
- Input Voltage: 100-240V
Linear LED Batten 22W 150 cm 2112 lm IP20
The linear LED batten 22W (150 cm) in aluminium and polycarbonate delivers 2112 lumens in 4000K neutral white with a 180º angle. High-brightness SMD2835 chip, IP20, IK08, for efficient, elegant linear indoor lighting.
⚡ 22W💡 2112 lm🌡 180º☂ IP20
| 22W Power | 2112 lm Luminous flux | 180º Angle | IP20 / IK08 Protection |
The linear LED batten 22W is the ideal solution for efficient, discreet indoor lighting. With a length of 150 cm and an aluminium-and-polycarbonate design with a silver finish, it adds a modern, elegant touch to any space. Its high-brightness SMD2835 LED chip provides even, clear light of 2112 lumens, with a 180º angle for homogeneous coverage.

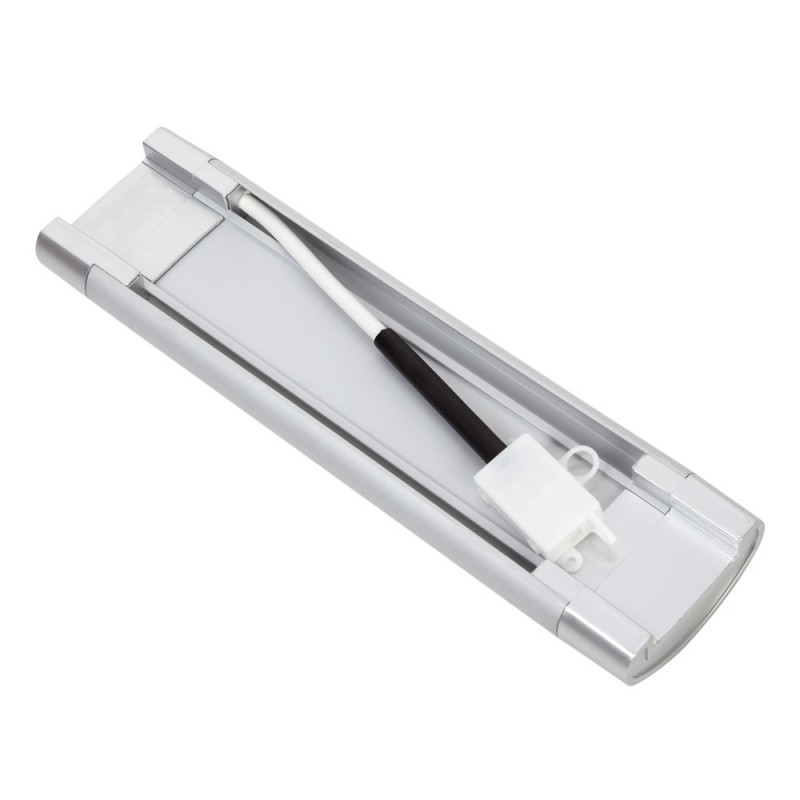

Sturdy and impact-resistant (IK08) and IP20-rated for indoors, it allows wall or ceiling installation, with the connection cable at the back (hidden). Its slim design fits perfectly into offices, shops, corridors and residential spaces, powered at 100-240V.
Why choose this product?
2112 lumens, SMD2835 chip, 180º angle.
Aluminium + PC, elegant silver finish.
Sturdy, impact-resistant, for indoors.
Technical specifications
| Product type | Linear LED batten |
|---|---|
| Power | 22W |
| Length | 150 cm |
| Luminous flux | 2112 lm |
| LED chip | High-brightness SMD2835 |
| Light colour | Neutral white 4000K |
| CRI | > 85 |
| Beam angle | 180º |
| Material | Aluminium + PC |
| Input voltage | 100-240V |
| Protection | IP20 (indoor) |
| Impact resistance | IK08 |
| Dimensions | 1500x80x36 mm |
Advantages
- 2112 lm at 22W: high efficiency.
- 180º angle: homogeneous coverage.
- Aluminium + PC: slim silver design.
- IP20 / IK08: sturdy and impact-resistant.
- 100-240V: simple installation.
- Indoor: offices, shops, corridors.
Recommended applications
| 🚪 | Offices — efficient linear lighting. |
| 🏠 | Shops and showrooms — even light. |
| 🏛 | Corridors and halls — discreet design. |
| 🌿 | Residential spaces — kitchens, garages. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the batten Fix the batten to the wall or ceiling. |
| 3 | Wire it Connect the connection cable (100-240V). |
| 4 | Check Restore power and check the lighting. |
Frequently asked questions
2112 lumens at 22W, with an SMD2835 chip.
180º, for homogeneous coverage.
No, it is designed for indoors (IP20).
| ⚡ 22W 2112 lm | 🌡 180º 150 cm | ☂ IP20 IK08 | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 22
- Power source (V)
- 100-240V
- Color temperature CCT
- 4000K
- LED
- SMD2835
- Brightness (Lm)
- Color rendering index (Ra):
- ≥85
- Colour
- Plata
- IP
- IP20
- IK
- IK08
- Luminous angle
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 1500x80x36mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637204170
