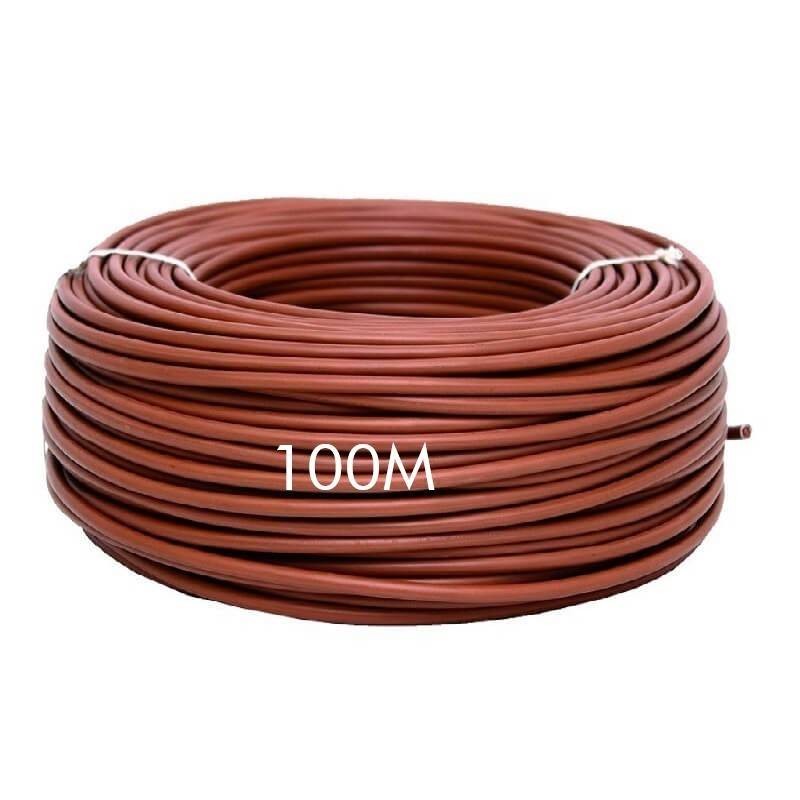

Halogen-Free Cable 2.5mm H07Z1-K 100M Roll
100-metre roll. The unsheathed halogen-free unipolar insulating cable of 2.5mm is composed of a class 5 polished copper flexible conductor according to UNE EN 60228. The insulation is composed of TI 7 type polyolefin according to UNE EN 50363-7. The operating voltage has a range of 450/750 V, the test voltage is 2,500 V.
Halogen-free Cable H07Z1-K 1x2,5 mm² - 100 m roll
A safer installation with a halogen-free cable H07Z1-K with a 1x2,5 mm² cross-section. Fire-resistant and non-flame-propagating, with low smoke and corrosive-gas emission, it is mandatory in new buildings and public-assembly premises. Sold in 100-metre rolls.
🔌 1x2,5 mm²⚡ 450/750 V🌡 -15 à +70 ºC🔥 Halogen-free
| 1x2,5 mm² Cross-section | 450/750 V Voltage | -15 à +70 ºC Temperature | 100 m Roll |
The halogen-free H07Z1-K cable with a 1x2,5 mm² cross-section ensures a safe installation: its main strengths are its fire resistance and its excellent ability not to propagate flame. Its use is mandatory in new buildings and public-assembly premises, where low smoke and corrosive-gas emission is essential in the event of fire.
It is made of a flexible class-5 polished copper conductor to UNE EN 60228, with TI 7 polyolefin (UNE EN 50363-7) insulation. Its operating voltage is 450/750 V (test voltage 2500 V) and its operating temperature range runs from -15 à +70 ºC. It is sold in 100-metre rolls and is commonly installed in conduits, on surfaces or recessed.
Why choose this product?
Non-flame-propagating, with low smoke and corrosive-gas emission.
Class-5 copper conductor to UNE EN 60228.
Required in new buildings and public-assembly premises.
Technical specifications
| Product type | Halogen-free electrical cable |
|---|---|
| Designation | H07Z1-K |
| Cross-section | 1x2,5 mm² |
| Conductor | Flexible class-5 polished copper (UNE EN 60228) |
| Insulation | Ti 7 polyolefin (une en 50363-7) |
| Operating voltage | 450/750 V |
| Test voltage | 2500 V |
| Operating temperature | -15 à +70 ºC |
| Approx. outer Ø | 3,6 mm |
| Weight | 31,4 kg/km |
| Resistance at 20ºC | 7,98 Ω/km |
| Packaging | 100 m roll |
Advantages
- Halogen-free: low smoke and corrosive-gas emission in case of fire.
- Non-flame-propagating: limits the spread of fire.
- Class-5 copper conductor: high flexibility to UNE EN 60228.
- Standards-compliant: suitable for fixed indoor installations.
- 100 m roll: convenient packaging for your installations.
Recommended applications
| 🚪 | Hospitals and health centres — enhanced fire safety. |
| 🏠 | Cinemas and theatres — public-assembly premises. |
| 🏛 | Schools and public buildings — mandatory halogen-free installations. |
| 🌿 | Surface or recessed conduits — fixed indoor installations. |
Installation guide
| 1 | Switch off the power Cut the supply before any work. |
| 2 | Prepare the run Lay the cable in the conduit, on the surface or recessed, as required. |
| 3 | Make the connection Connect the conductor in line with applicable electrical regulations. |
| 4 | Check the installation Verify insulation and proper tightening before energising. |
Frequently asked questions
That the cable emits little smoke and corrosive gas in case of fire and does not propagate flame.
Its operating voltage is 450/750 V, with a test voltage of 2500 V.
In 100-metre rolls.
| 🔥 Halogen-free Fire safety | ✅ UNE EN 60228 Compliant | 🔌 1x2,5 mm² Class-5 copper | 📦 100 m roll In stock |
Data sheet
- Power source (V)
- 450V/750V
- Measures (mm)
- 100m.
- Material
- Polilefina + Cobre
- Operating temperature
- -15ºC ~ +70ºC
- Certification
- AENOR-HAR 07Z1-K
CE - RoHS
- Warranty
- 2 años
Specific References
- ean13
- 8435637201230
