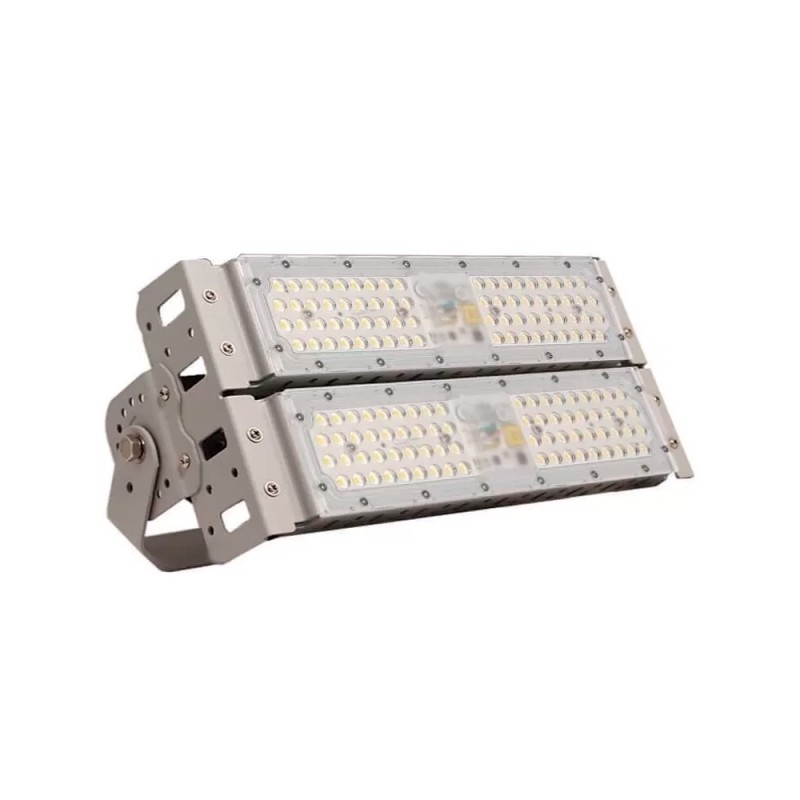

100W MAGNUM DOB LED Floodlight OSRAM chip 14000Lm
The 100W MAGNUM DOB LED Floodlight is a powerful and efficient lighting solution, designed to effectively illuminate any type of space, both indoors and outdoors. Equipped with an OSRAM 3030-3D triple-core chip, this floodlight stands out with its high luminous flux of 14000 lumens, providing the efficiency and reliability demanded by today's professional lighting market.
Thanks to its advanced LED technology, the MAGNUM DOB LED Floodlight allows for up to 80% energy savings compared to traditional luminaires. This makes it an ideal option for lighting projects seeking efficiency and sustainability.
- Power: 100W
- Luminous Flux: 14000 lumens
- LED Chip: OSRAM 3030-3D triple-core
- Light Beam Angle: 60º or 90º
- Material:</str
LED Floodlight 100W MAGNUM DOB OSRAM Chip 14000 lm IP65
The 100W MAGNUM DOB LED floodlight with a triple-core OSRAM 3030-3D chip delivers 14000 lumens, with a selectable 60º or 90º beam. 100% aluminium, anticorrosion paint, IP65, up to 80% energy savings and a 5-year warranty.
⚡ 100W💡 14000 lm🌡 60º/90º☂ IP65
| 100W Power | 14000 lm Luminous flux | 60º/90º Beam | IP65 Protection |
The 100W MAGNUM DOB LED floodlight is a powerful, efficient lighting solution, designed to light any type of space, indoors and outdoors. Fitted with a triple-core OSRAM 3030-3D chip, it stands out for its high luminous flux of 14000 lumens, delivering the efficiency and reliability that today's professional lighting demands.
The DOB (Driver On Board) MAGNUM model offers optimal lighting at medium distance, with selectable 60º or 90º beam-angle options to suit every need. Made 100% of aluminium (housing and handles), it is extremely light, making transport and installation at height easy. Its anticorrosion paint guarantees long durability, and its LED technology allows up to 80% energy savings. IP65 protection, dimensions 305x155x80 mm, 5-year warranty.
Why choose this product?
14000 lm, professional efficiency and reliability.
Suits medium distances and every need.
100% aluminium, anticorrosion paint, up to 80% savings.
Technical specifications
| Product type | MAGNUM DOB LED floodlight |
|---|---|
| Power | 100W |
| Luminous flux | 14000 lm |
| LED chip | Triple-core OSRAM 3030-3D |
| Beam angle | 60º or 90º |
| Technology | DOB (Driver On Board) |
| Material | Aluminium (housing and handles) |
| Paint | Anticorrosion |
| Protection | IP65 |
| Energy savings | Up to 80% |
| Dimensions | 305x155x80 mm |
| Warranty | 5 years |
Advantages
- Triple-core OSRAM 3D: 14000 professional lm.
- 60º or 90º beam: selectable to suit the need.
- 100% aluminium: light and easy to install.
- Anticorrosion paint: long durability.
- Up to 80% savings: advanced LED technology.
- IP65, 5-year warranty: indoor and outdoor.
Recommended applications
| 🚪 | Gardens, parks and squares — outdoor lighting. |
| 🏠 | Roundabouts and walkways — road lighting. |
| 🏛 | Museums and galleries — highlighting. |
| 🌿 | Event spaces — powerful lighting. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the floodlight Mount the floodlight via its adjustable bracket. |
| 3 | Wire at 220-240V DOB technology: direct connection to the mains. |
| 4 | Aim and choose the angle Set the tilt and the optic (60º or 90º). |
Frequently asked questions
14000 lumens, with a triple-core OSRAM 3030-3D chip.
60º or 90º, selectable.
Yes, its IP65 protection suits indoor and outdoor use.
| ⚡ 100W 14000 lm | ☂ IP65 60º/90º | 🧰 Aluminium -80% | 🛡 Warranty 5 years |
Data sheet
- Power (W)
- 100
- Power source (V)
- 175-260V
- Color temperature CCT
- 4000K
5000K
- LED
- SMD3030
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 140
- Brightness (Lm)
- 14000
- Colour
- Grey
- IP
- IP65
- IK
- IK10
- Luminous angle
- 60º
90º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.91
- Measures (mm)
- 305x155x80mm
- Material
- Aluminum + PMMA
- Driver
- DOB
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- E
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
