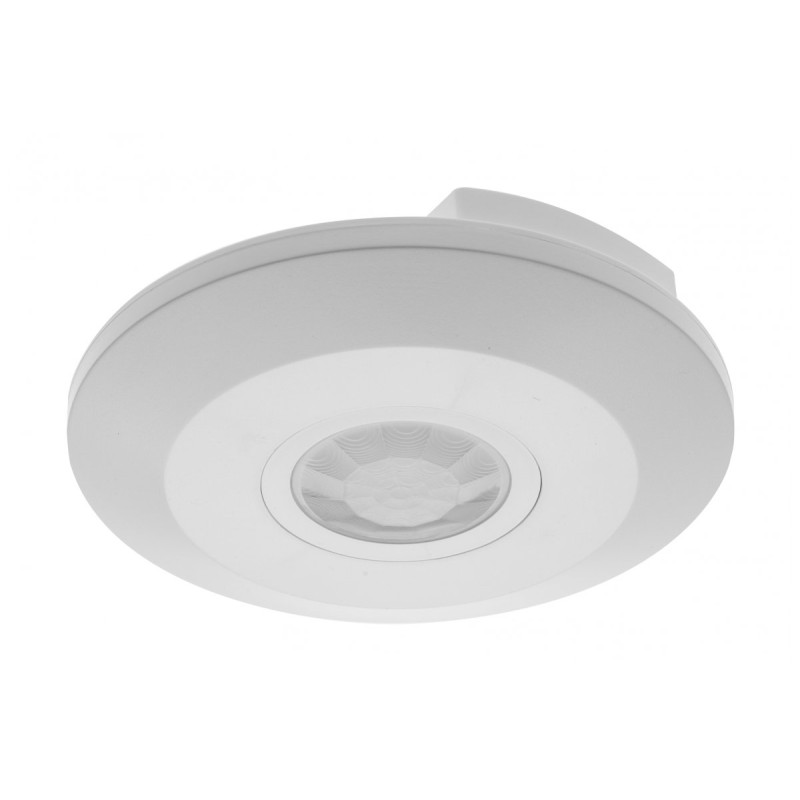

Ultra-Slim 360º Surface-Mounted White Motion Sensor
The Ultra-Slim Surface-Mounted Motion Sensor is the ideal solution for automating the lighting of indoor spaces, offering a modern and compact design that fits perfectly into any environment. Equipped with infrared detection technology, this sensor allows for efficient control of lighting in hallways, stairs, bathrooms, and other areas where automatic lighting is required.

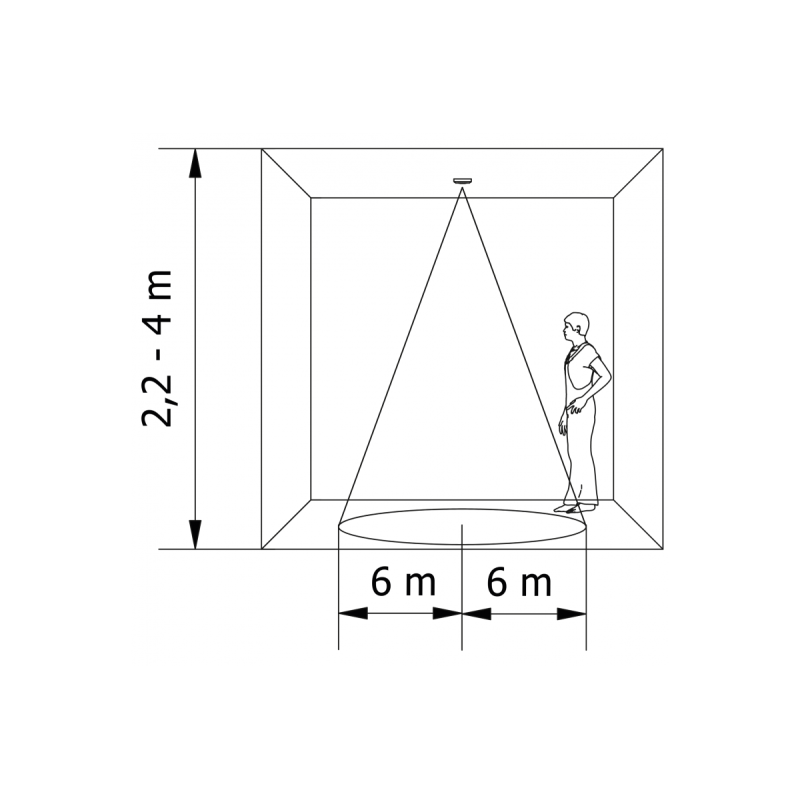

The motion sensor allows you to adjust the lighting time from a minimum of 10 seconds to a maximum of 15 minutes, as well as configure the light sensitivity through the integrated dusk sensor. Additionally, its 360º detection angle and range of up to 6 meters ensure total coverage of the desired area.
- Detection Type: Infrared (IR)
- Detection Range: 360º
- Detection Distance: Up to 6 meters
- Timer: Adjustable from 10 seconds to 15 minutes
- Dusk Sensor: Adjustable sensitivity based on ambient light
- Maximum Load: 2000W (incandescent) / 300W (LED)
- Input and Output Voltage: 220-240V
- Material: Heat-resistant thermoplastic
- Dimensions: Ø115x24mm
Slim Surface Motion Sensor 360º IP20 White
An ultra-slim surface motion sensor with a modern, compact design. With 360º coverage, a 6-metre range and time and sensitivity settings, it automates indoor lighting discreetly.
🔄 360º📏 6 m🔌 IP20⚫ Slim white
| 360º Coverage | 6 m Detection | IP20 Protection | Slim Design |
The ultra-slim surface motion sensor is an ideal solution for automating the switching of indoor luminaires, with a modern, compact design that suits any environment. Fitted with infrared detection technology, it efficiently controls lighting in corridors, stairs, bathrooms and other spaces needing automatic switching.
It lets you set the on-time, from a minimum of 10 seconds to a maximum of 15 minutes, as well as the light sensitivity via its built-in dusk sensor. Its 360º detection angle and 6-metre maximum range ensure total coverage of the desired area, all in an ultra-slim white surface housing.
Why choose this product?
Detection over 6 metres for reliable automatic switching.
Compact white housing that integrates discreetly.
Adjustable on-time and light sensitivity.
Technical specifications
| Product type | Ultra-slim surface motion sensor |
|---|---|
| Coverage angle | 360º |
| Detection range | 6 m |
| Timer | 10 s to 15 min |
| Light sensitivity | Adjustable (dusk sensor) |
| Sensor type | Infrared |
| Colour | White |
| Mounting | Surface |
| Protection | IP20 (indoor) |
Advantages
- 360º coverage: detection over 6 metres.
- Ultra-slim design: discreet ceiling integration.
- Adjustable 10 s - 15 min: on-time to suit you.
- Dusk sensor: switching based on ambient light.
- Infrared detection: reliable and precise.
- Energy savings: lighting only when needed.
Recommended applications
| 🚪 | Corridors and stairs — automatic switching on passage. |
| 🏠 | Bathrooms — convenience and savings. |
| 🏛 | Halls and entrances — presence detection. |
| 🌿 | Offices — lighting on demand. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Surface-mount Fix the sensor to the ceiling on the surface. |

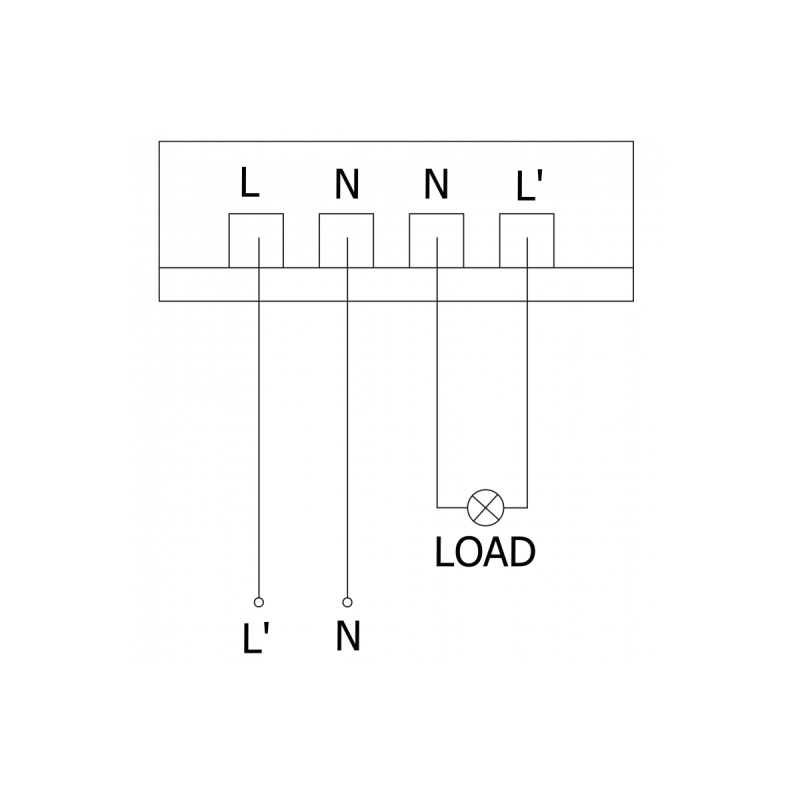

| 3 | Make the connection Wire the input and output as per electrical regulations. |
| 4 | Set the parameters Adjust the time (10 s - 15 min) and light sensitivity, then test. |
Frequently asked questions
Up to 6 metres, with a 360º angle.
Yes, from 10 seconds to 15 minutes.
No, its IP20 rating means it is for indoor use.
| 🔄 360º 6 m | ⚫ Slim Discreet | ⏱ 10 s-15 min Adjustable | 📦 In stock Fast shipping |
Data sheet
- Power (W)
- 300
- Power source (V)
- 220-240V
- Luminous angle
- 360º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- Ø115x24mm
- Material
- Thermoplastic
- Operating temperature
- -20ºC ~ +55ºC
- Lifespan
- 30.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
