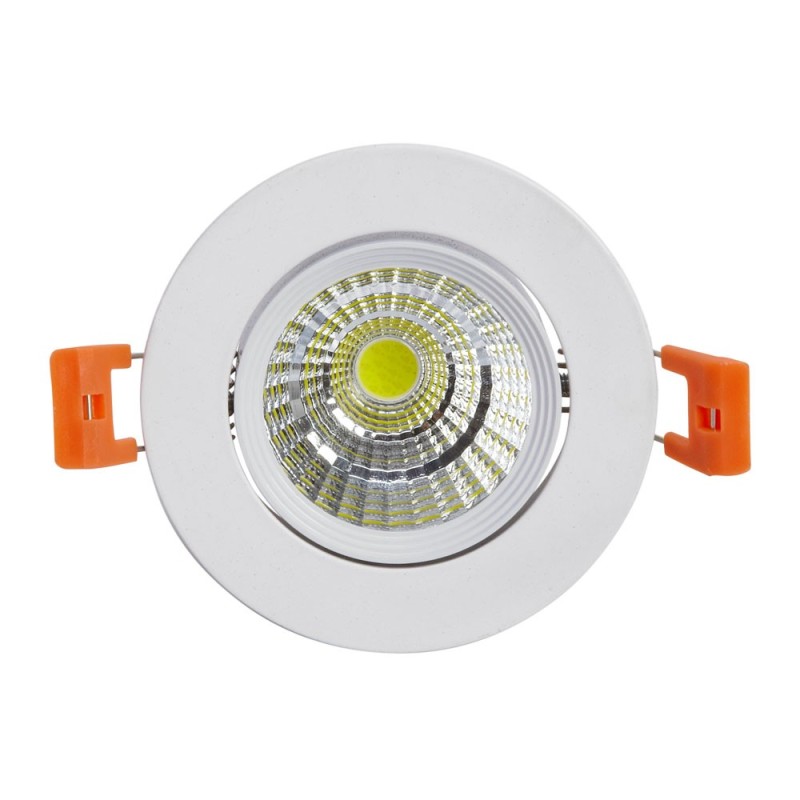

3W Tiltable LED White Recessed Spot Downlight 330Lm
The 3W adjustable LED downlight is the perfect solution for indoor lighting. Equipped with a high-brightness COB LED chip, this downlight offers 330 lumens of brightness, ensuring clear and powerful illumination. With an IP20 classification, it is perfect for use in dry areas. Made of aluminum and PC, this white downlight is ideal for easy and quick replacement in standard recessed downlight holes.
- Power: 3W
- Brightness: 330 lumens
- IP Classification: IP20
- Color: White
- LED Chip: High-brightness COB
- Outer Diameter: Ø85mm
- Cut-out Diameter: Ø75mm

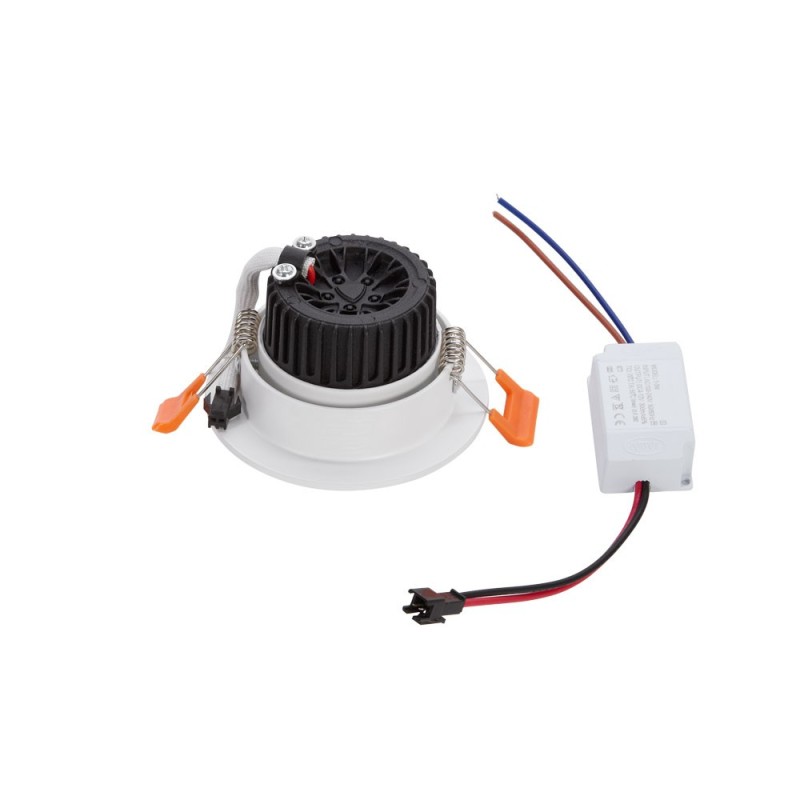

- Driver: High-performance external

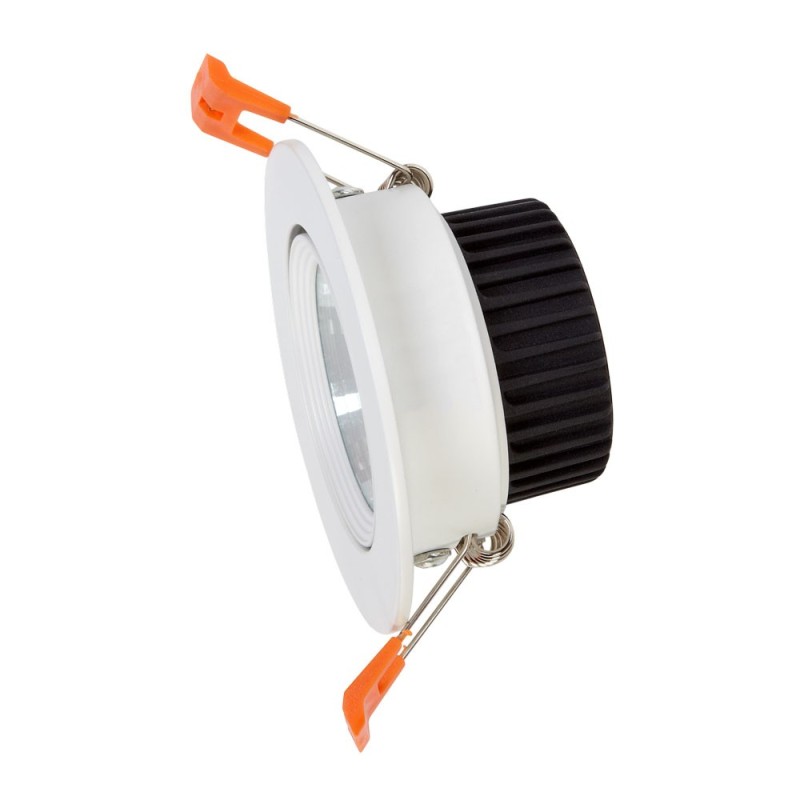

- Adjustability: Tiltable and adjustable up to 45º
- Light Beam Angle: 120º
Recessed Adjustable COB LED Spot 3W 330 lm IP20 - white
The 3W COB LED downlight spot, adjustable, delivers 330 lumens with a 120º optic. Tiltable up to 45º, in aluminium with a white finish, Ø85 mm outer, Ø75 mm cut-out, IP20, external driver included.
⚡ 3W💡 330 lm🔄 45º🌡 120º
| 3W Power |
330 lm Luminous flux |
45º Adjustable |
Ø75 mm Cut-out |
The 3W COB LED downlight spot, adjustable, is the perfect solution for indoor lighting, offering 330 lumens and an IP20 rating. Made of aluminium with a white finish, it is ideal for easy, quick replacement in standard recessed-spot holes.
Fitted with a high-brightness COB LED chip, it provides clear, powerful light. Its Ø85 mm outer diameter and Ø75 mm cut-out ease installation. It is tiltable and adjustable up to 45º to aim the light exactly where needed, with a 120º optic for wide, even lighting. It includes a high-performance external driver for efficient, stable operation.
Why choose this product?
Aim the light exactly where needed.
Wide, even lighting, 330 lm.
Aluminium white finish, Ø75 mm, easy installation.
Technical specifications
| Product type | Adjustable COB LED downlight spot |
|---|---|
| Power | 3W |
| Luminous flux | 330 lm |
| LED chip | High-brightness COB |
| Orientation | Tiltable up to 45º |
| Optic | 120º |
| Dimensions | Ø85 mm (Ø85x40 mm) |
| Cut-out | Ø75 mm |
| Material | Aluminium, white finish |
| Driver | External, included |
| Protection | IP20 (indoor) |
Advantages
- Adjustable up to 45º: directable light.
- 120º optic: wide, even lighting.
- COB 3W, 330 lm: clear and powerful.
- Ø75 mm cut-out: easy standard replacement.
- External driver included: stable operation.
- white aluminium: durable and elegant.
Recommended applications
| 🚪 | Living rooms and bedrooms — accent lighting. |
| 🏠 | Shops — product highlighting. |
| 🏛 | Corridors and halls — adjustable lighting. |
| 🌿 | Offices — spot replacement. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Prepare the cut-out Use a standard Ø75 mm hole. |
| 3 | Wire the driver Connect the included external driver to the mains. |
| 4 | Recess and aim Insert the spot, aim it (up to 45º) and check. |
Frequently asked questions
Yes, tiltable and adjustable up to 45º.
Ø75 mm (outer diameter Ø85 mm).
Yes, a high-performance external driver is included.
| ⚡ 3W 330 lm |
🔄 45º 120º |
📐 Ø75 mm Ø85 outer |
☂ IP20 Indoor |
Data sheet
- Power (W)
- 3
- Power source (V)
- 100-240V
- Color temperature CCT
- 3000K
4000K
6500K
- LED
- COB
- Luminous efficacy (Lm/W)
- 110
- Brightness (Lm)
- 330
- Color rendering index (Ra):
- ≥80
- Colour
- White
- IP
- IP20
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- Ø85x40mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637204095
