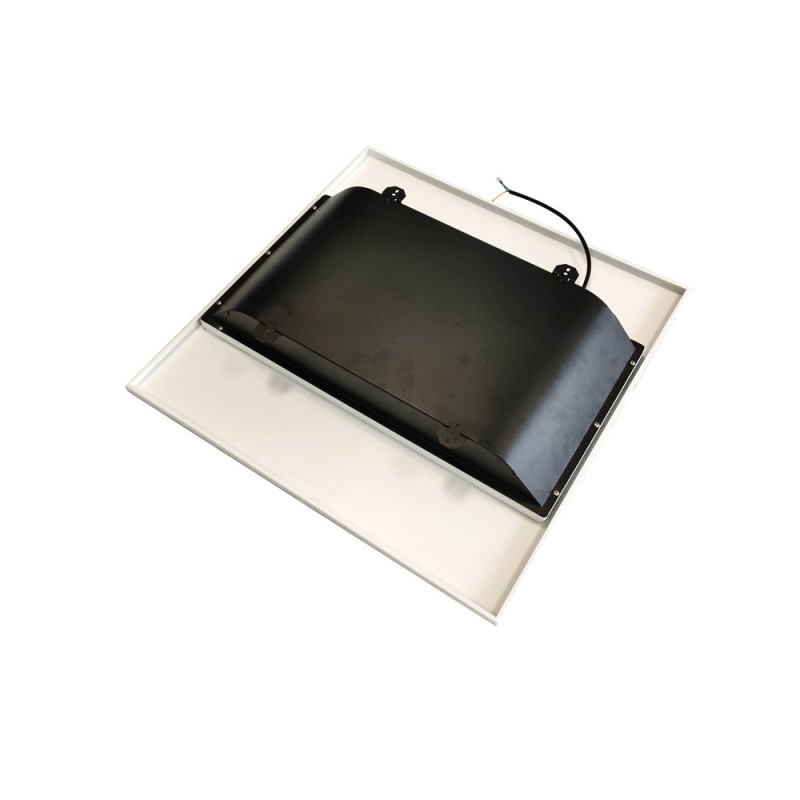

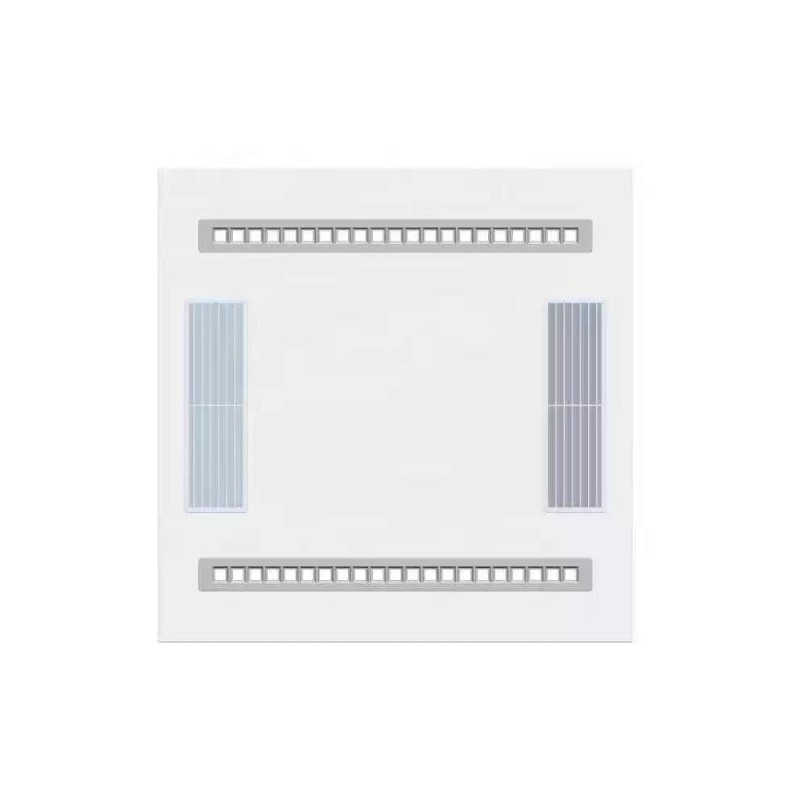

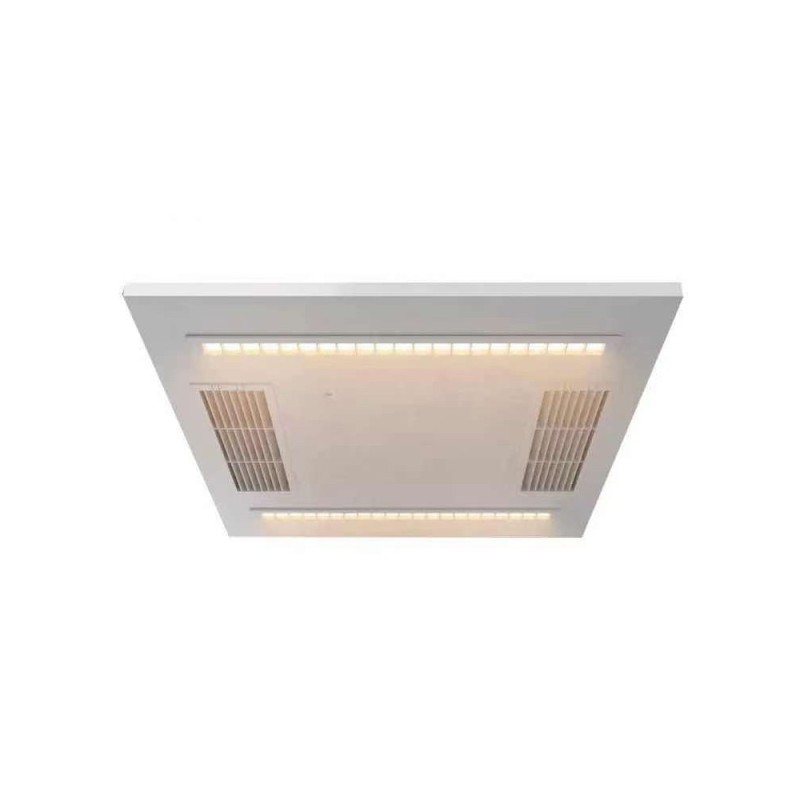

30W 60x60cm LED Panel LED with HEPA13 Air Purifier + UV-C Philips Germicidal
LED panel with antivirus and antibacterial air purification system. Sanitizes 99.92% of airterminal particles in a 20m2 area within 2 hours.

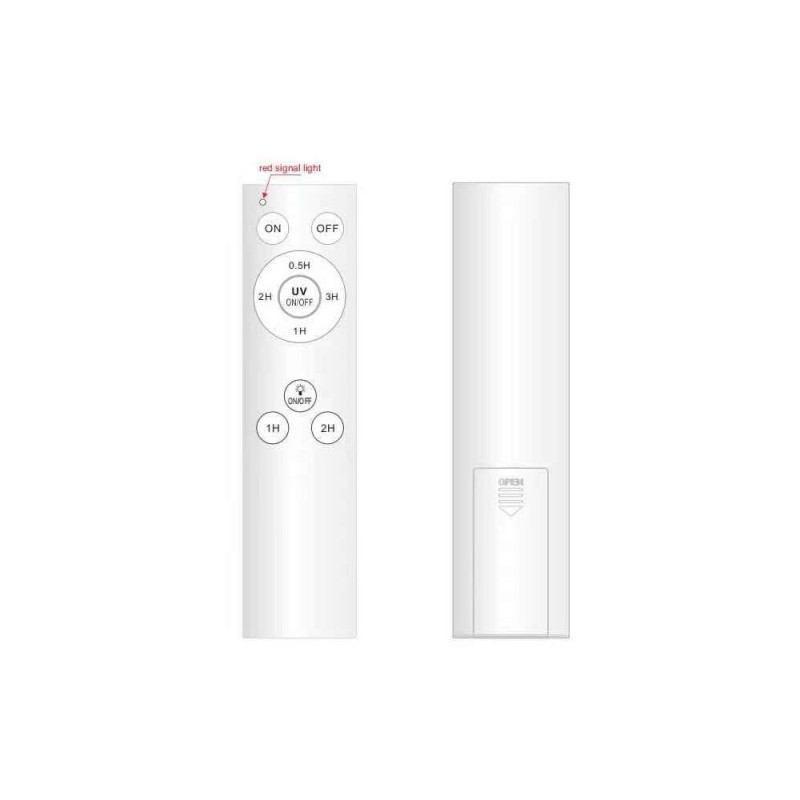

The lighting and purification functions are independent. Can be controlled via remote control (even multiple panels simultaneously).

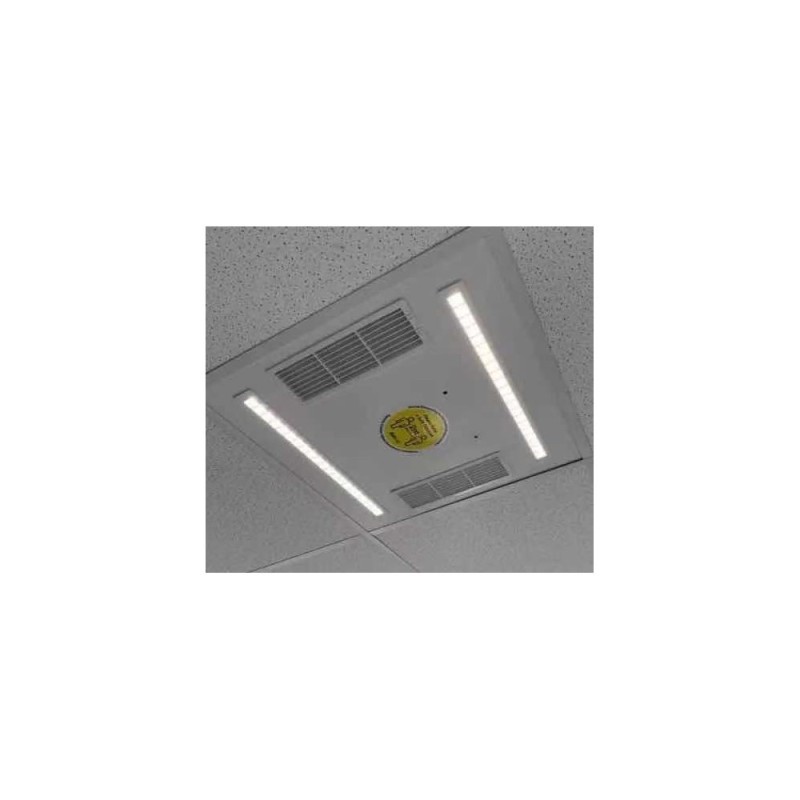

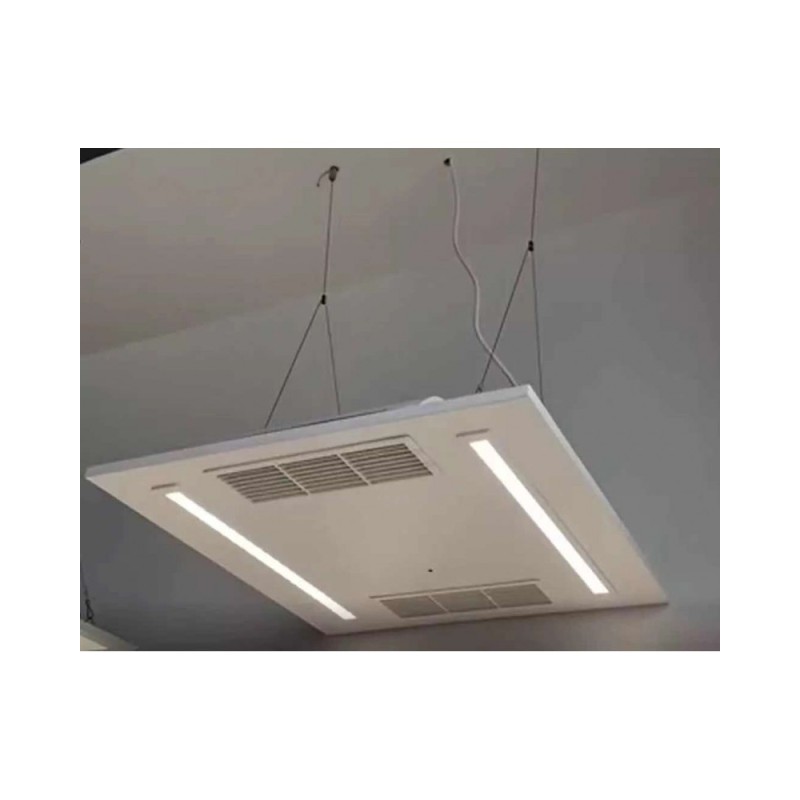

Power: 45W (30W LED panel, 15W UVC lamp). Silent: only 36dB. Recessed mounting in Armstrong ceiling. Other mounting options available for surface, plaster, or suspended installation. Consult accessories.
- Luminous efficiency: 3600 lm@4.000K CRI80
- Available color temperatures: 3.000K, 4.000K, or 6500K.
- Automatic shutdown timer from 30 minutes to 12 hours.
- Light filter change indicator after 2,160 hours of use (9 months, 8 hours on).
- HEPA H13 filter: Traps up to 99.46% of particles as small as 0.3 μm (including viruses, bacteria, microbes, and fungi).

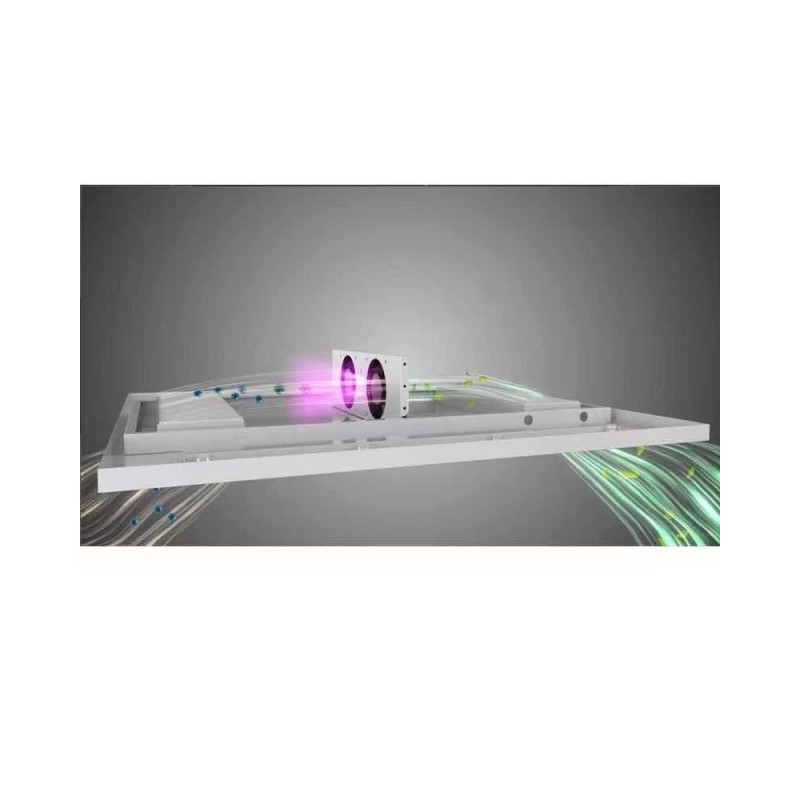

- UVC light: Internal germicidal lamp by PHILIPS, ozone-free, allowing the presence of people and pets.
- UVC lifespan of 11,000 hours (after 9,000 hours, efficiency is reduced to 80%).
LED Panel 30W 60x60 cm with HEPA H13 Air Purifier + Philips UV-C Germicidal 3600 lm
The 30W 60x60 cm LED panel integrates an antivirus, antibacterial air-purification system: HEPA H13 filter and Philips UV-C germicidal lamp (ozone-free). Sanitises 99.92% of air particles in 20 m² in 2 hours. 3600 lm lighting, CCT 3000/4000/6500K, remote, quiet (36 dB).
💧 HEPA H13☢ UV-C💡 3600 lm📱 Télécommande
| 30W LED panel | 3600 lm Luminous flux | HEPA H13 Filter | UV-C Philips |

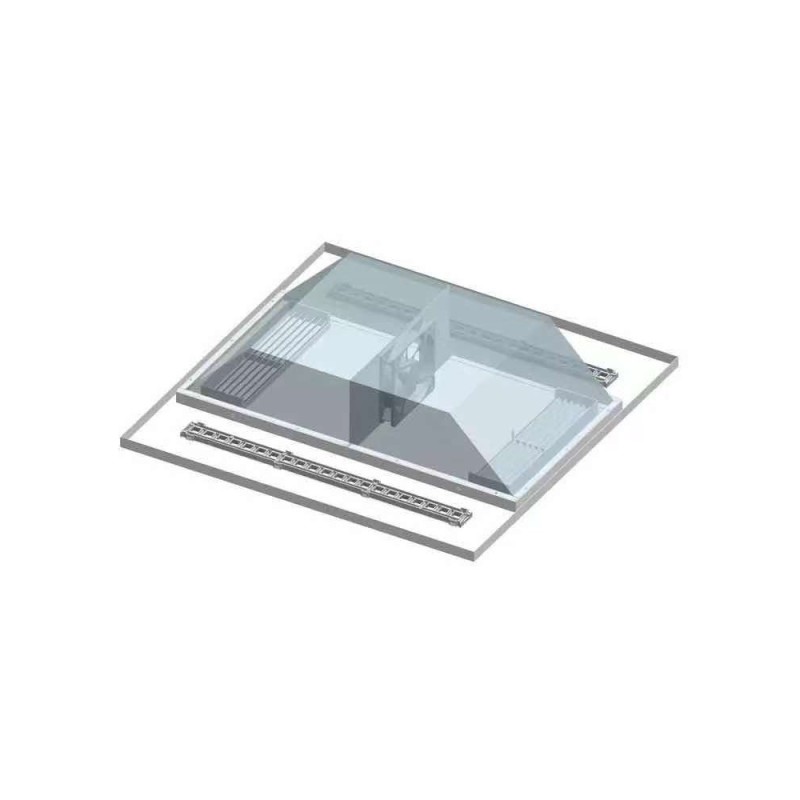

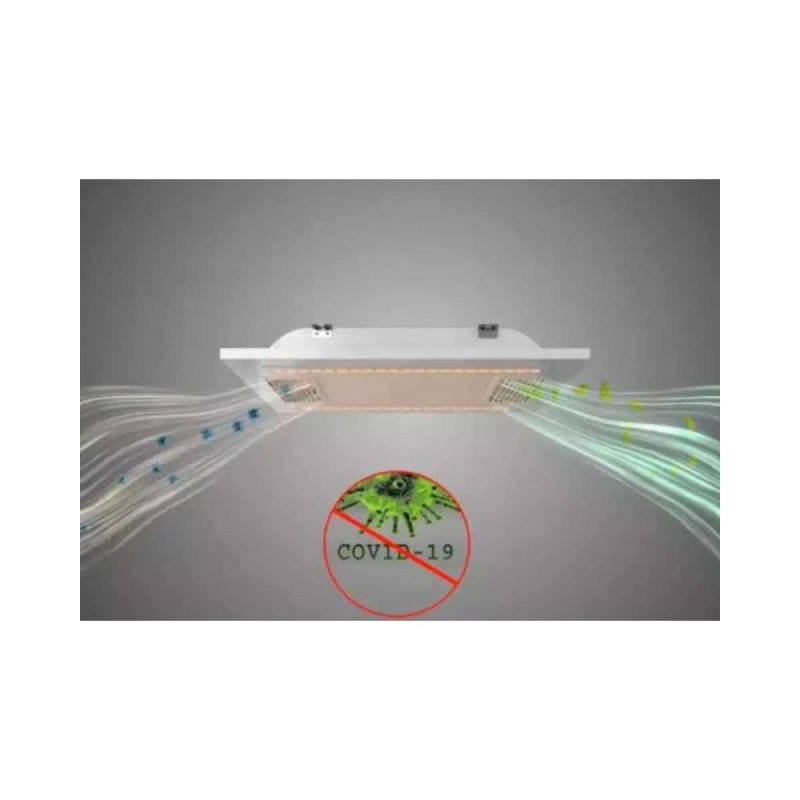

The 60x60 cm LED panel with air-purification system combines lighting and antivirus, antibacterial sanitisation in a single luminaire. It sanitises 99.92% of the air particles of a 20 m² room in 2 hours. The lighting and purification functions are independent and controlled by remote (even several panels at once).
Its total power is 45W (30W LED panel + 15W UVC lamp), for a light efficiency of 3600 lm@4000K (CRI 80). Three colour temperatures are possible: 3000K, 4000K or 6500K. It is quiet (36 dB), with an automatic shut-off timer (30 min to 12 h) and a filter-change indicator at 2160 hours. Its HEPA H13 filter traps up to 99.46% of particles down to 0.3 µm (viruses, bacteria, microbes and fungi), and its germicidal Philips UV-C lamp generates no ozone. Integrated mounting on Armstrong ceilings (other mountings available).
Why choose this product?
Traps up to 99.46% of particles (viruses, bacteria).
Eliminates viruses and bacteria, generating no ozone.
3600 lm, CCT 3000/4000/6500K, quiet (36 dB).
Available light shades
Three possible colour temperatures for the lighting function:
| 3000 K Warm white | 4000 K Neutral white | 6500 K Cool white |
Technical specifications
| Product type | 60x60 cm LED panel with air purifier |
|---|---|
| Total power | 45W (30W LED panel + 15W UVC) |
| Luminous flux | 3600 lm @ 4000K |
| CRI | 80 |
| Colour temperature | 3000K / 4000K / 6500K |
| Filter | HEPA H13 (up to 99.46% of particles < 0.3 µm) |
| Germicidal | Philips UV-C lamp (ozone-free) |
| Purification | 99.92% of air in 20 m² in 2 h |
| Noise level | 36 dB |
| Timer | 30 min to 12 h |
| Filter indicator | 2160 hours |
| Control | Remote (multi-panel) |
| Mounting | Armstrong ceiling (other options) |
Advantages
- HEPA H13 filter: up to 99.46% of particles.
- Philips UV-C germicidal: ozone-free.
- Purifies 99.92%: 20 m² in 2 hours.
- 3600 lm lighting: CCT 3000/4000/6500K.
- Quiet (36 dB): 30 min-12 h timer.
- Remote: independent functions.
Recommended applications
| 🚪 | Offices and meeting rooms — healthy air and lighting. |
| 🏠 | Clinics and surgeries — air disinfection. |
| 🏛 | Schools and nurseries — protected environments. |
| 🌿 | Shops and hotels — air quality. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Install the panel Mount the panel on an Armstrong ceiling (or other option). |
| 3 | Wire it Wire the panel to the mains per standards. |
| 4 | Configure Set the lighting (CCT), purification and timer via the remote. |
Frequently asked questions
Yes, both functions are controlled separately by remote.
No, the Philips UV-C germicidal lamp generates no ozone.
The light indicator signals a change at 2160 hours of use.
| 💧 HEPA H13 99.46% | ☢ UV-C Philips | 💡 3600 lm CCT | 📱 Remote 36 dB |
Data sheet
- Power (W)
- 45
- Power source (V)
- 220-240V
- Color temperature CCT
- 3000K
4000K
6500K
- LED
- SMD2835
- Luminous efficacy (Lm/W)
- 120
- Brightness (Lm)
- 3600
- Color rendering index (Ra):
- ≥80
- Colour
- White
- IP
- IP20
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 595x595x100mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637205535
