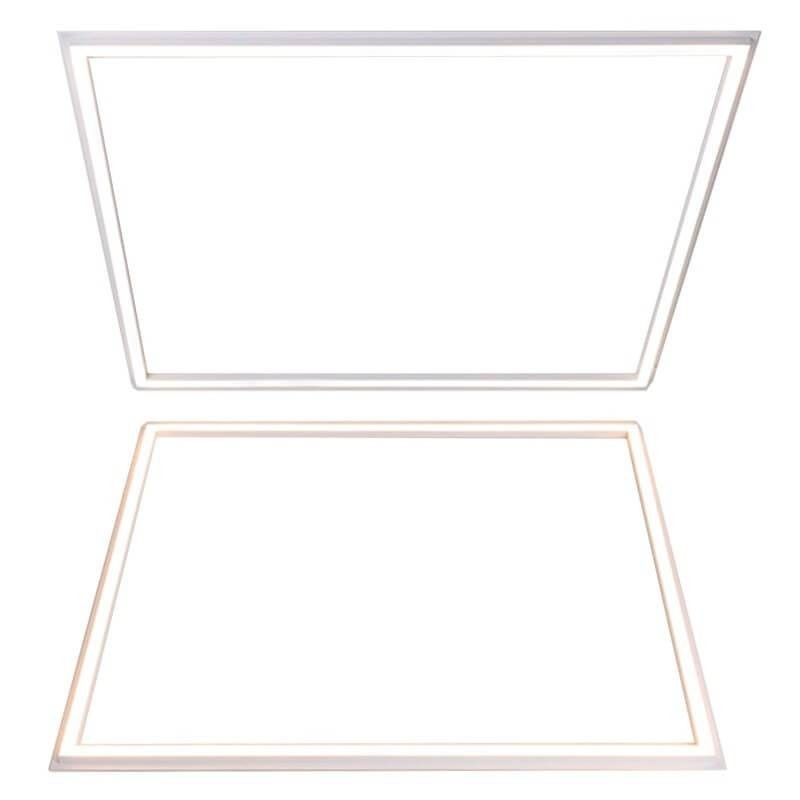

44W 60x60cm LED FIT Panel Selectable CCT 4800Lm driver LIFUD

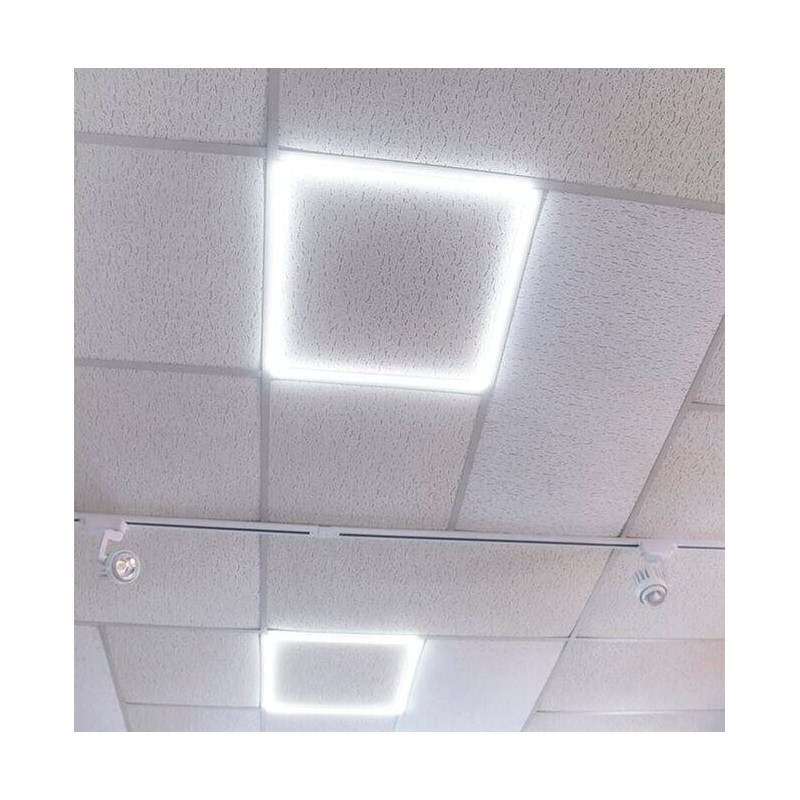

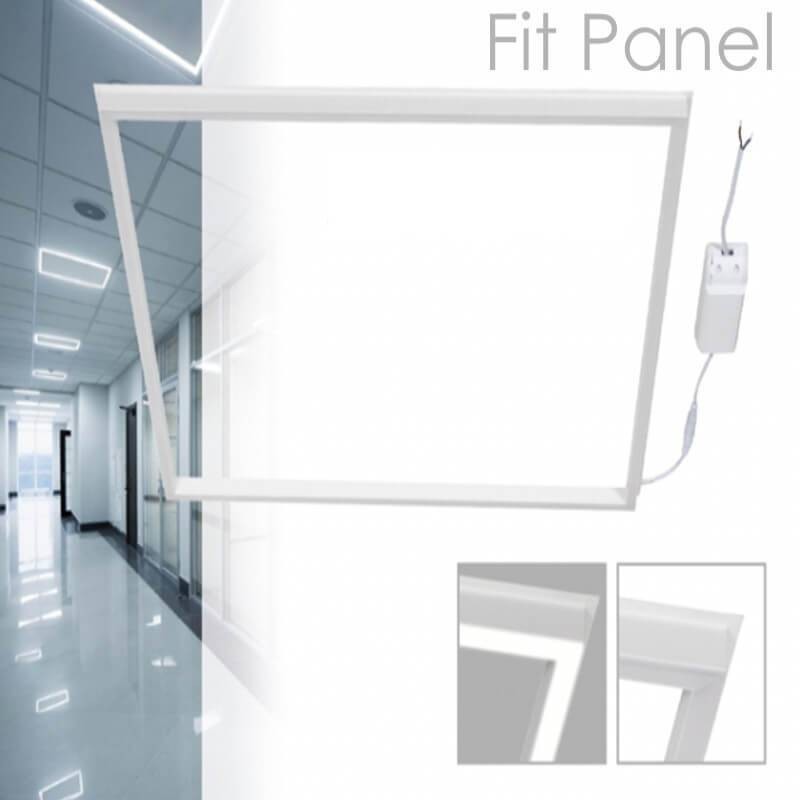

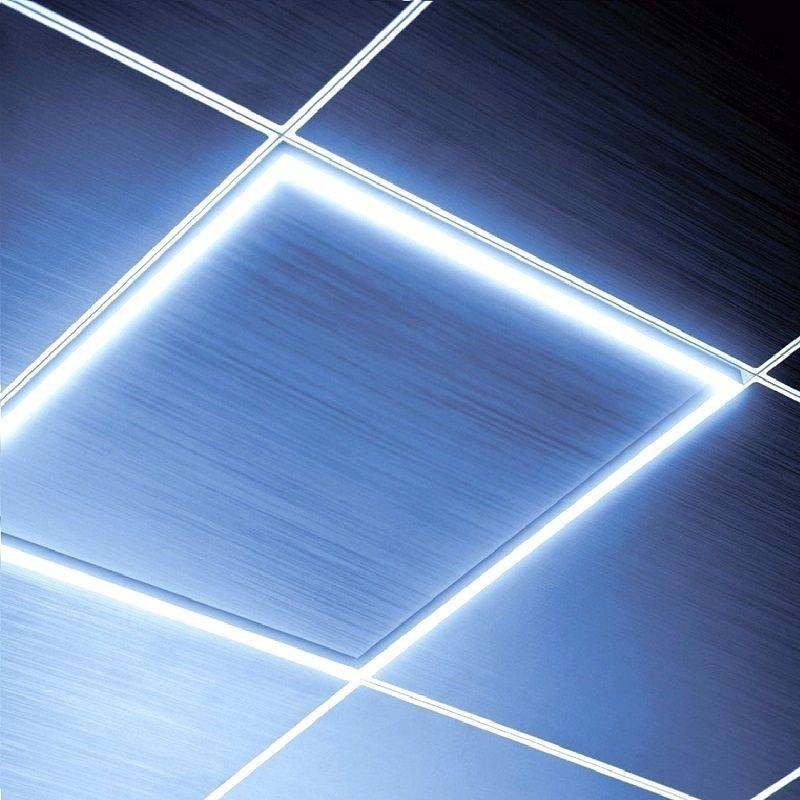

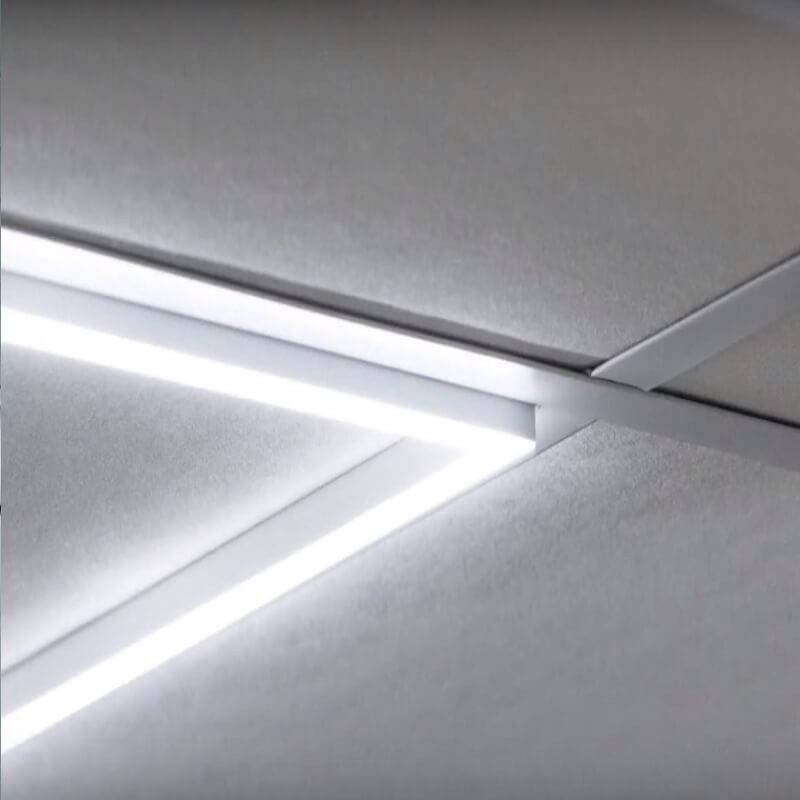

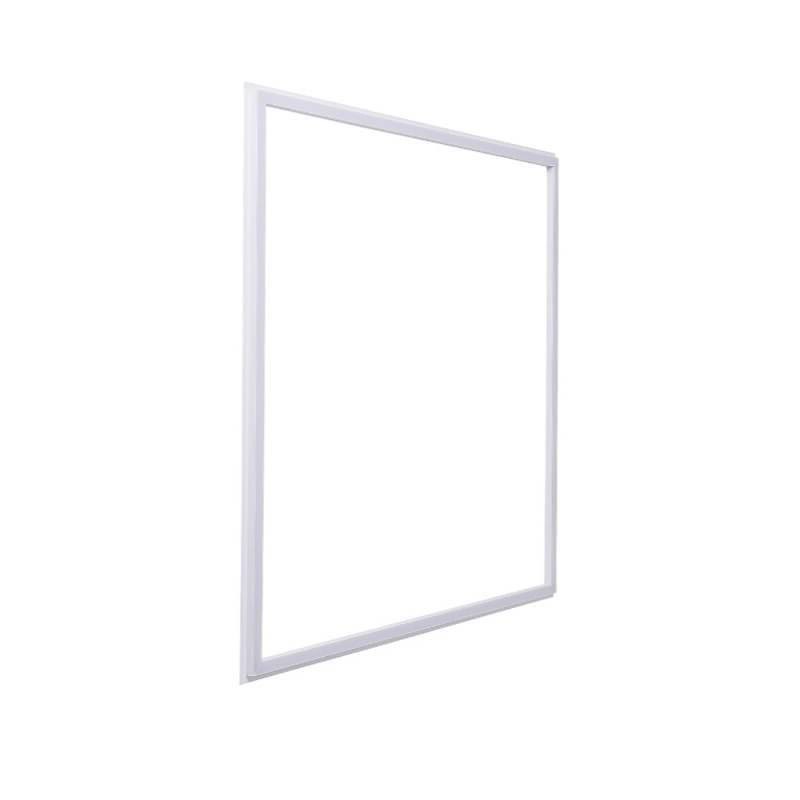

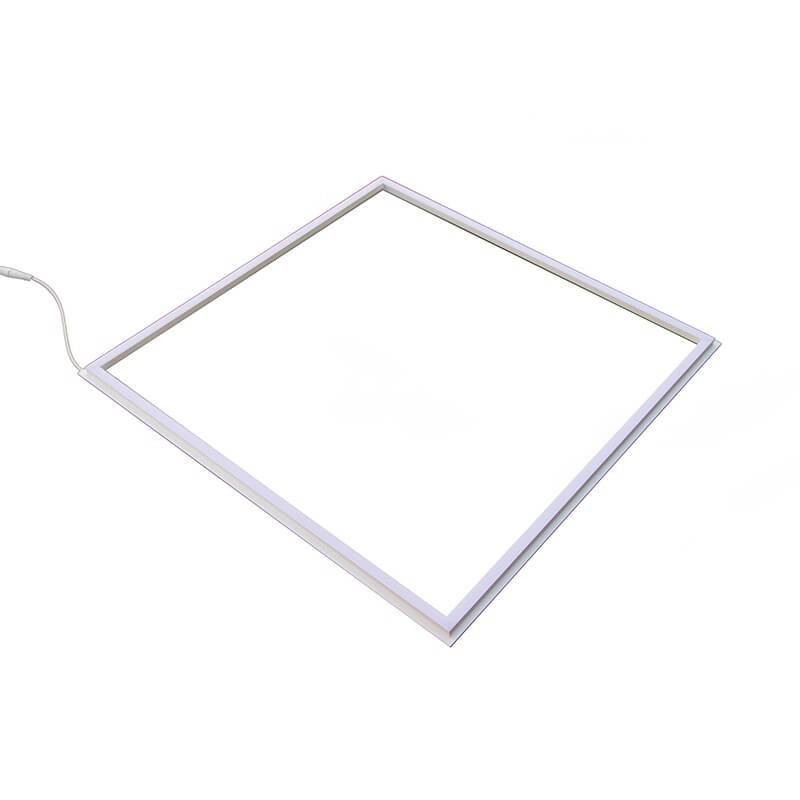

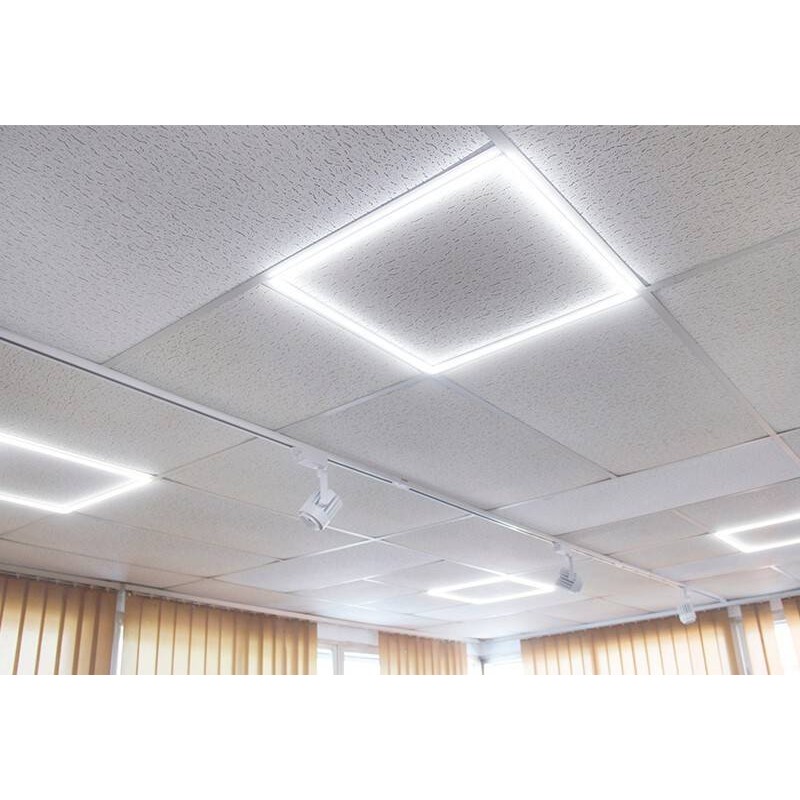

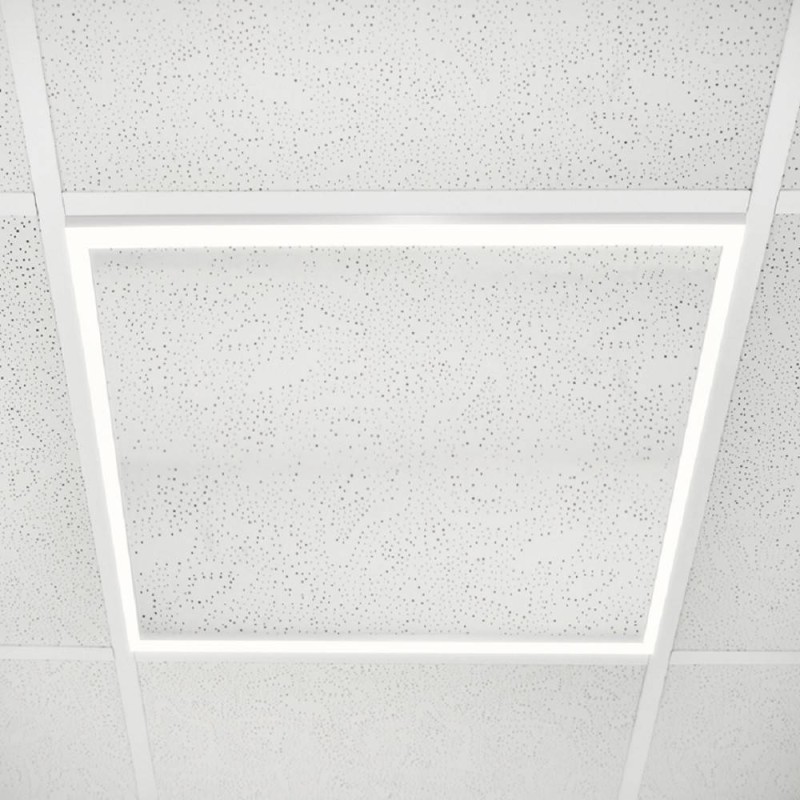

The FIT LED luminous frame has been designed for easy installation on exposed grid suspended ceilings of the 60x60cm Armstrong type. Simply remove the existing ceiling tile, place the luminous frame onto the aluminum profiles, make the electrical connection to the driver, and then replace the tile so the whole assembly remains completely concealed.

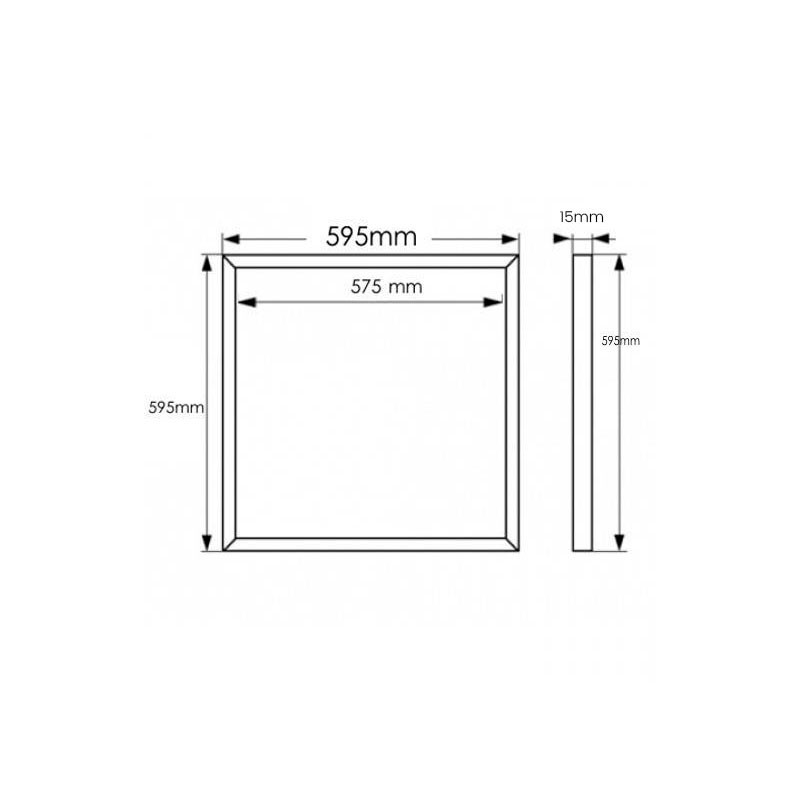

With dimensions of 595x595mm, the panel fits perfectly into standard ceiling structures without forcing the profiles, allowing for a quick, clean and precise installation.

Dimming option

The FIT LED Panel 44W is not dimmable with the supplied driver. For installations requiring dimming through TRIAC systems, compatible dimmable drivers can be used as an optional accessory.

Technical Specifications of the FIT LED Panel 44W

• Power: 44W
• Luminous Flux: 4800 lumens
• Dimensions: 595x595mm
• Light Source: SMD2835 LEDs
• Beam Angle: 120º

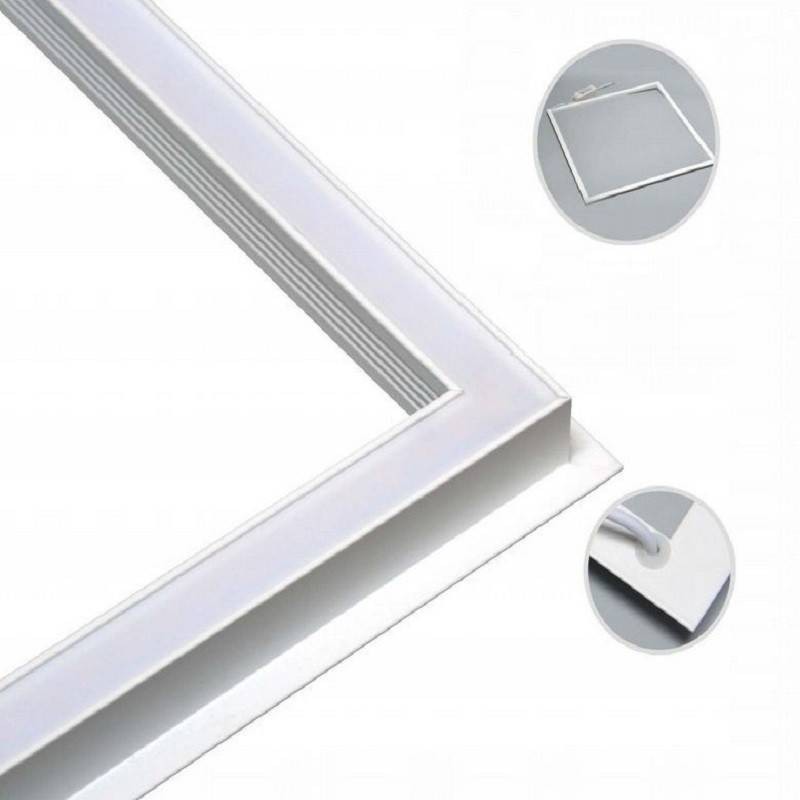

• Material: High-resistance white lacquered aluminum
• Diffuser: Opal polycarbonate
• Color Temperature: CCT 3000K / 4000K / 6500K

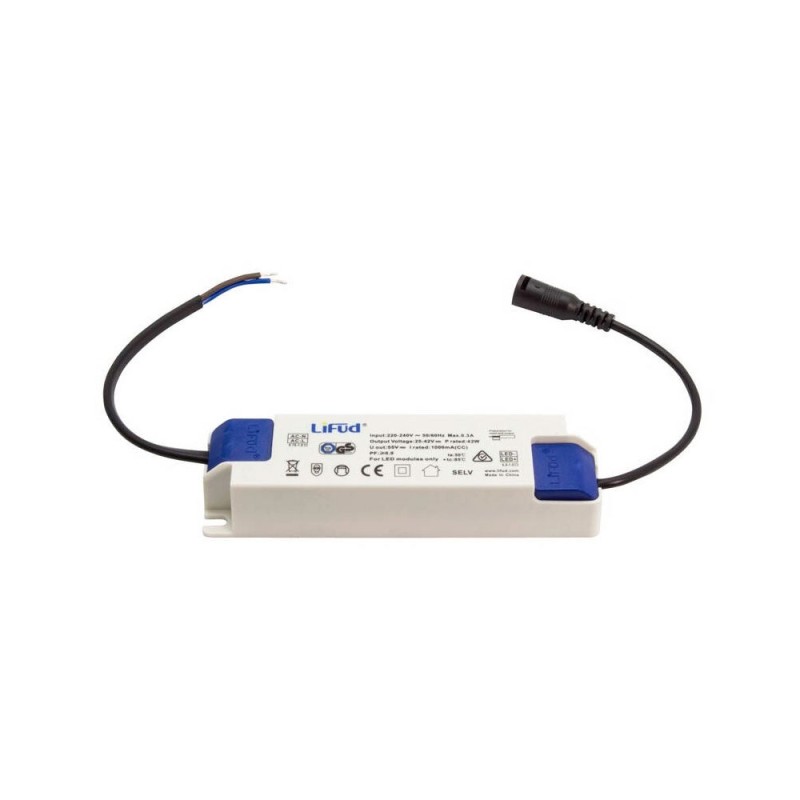

• Driver: LIFUD
• Installation: 60x60cm Armstrong suspended ceilings
• Dimming: Not dimmable with included driver

Main Features

• Decorative luminous frame: Modern and elegant design for discreet integration.
• High lighting efficiency: 4800 lumens with reduced 44W power consumption.
• CCT technology: Quick selection of light color depending on the application.
• Robust structure: High-quality white lacquered aluminum.
• Wide light distribution: 120º beam angle for uniform illumination.
• Practical installation: Designed for standard 60x60cm modular ceilings.
• Professional driver: Reliable and high-performance LIFUD power supply.
• Energy savings: Replaces traditional high-consumption fluorescent fittings.

Applications

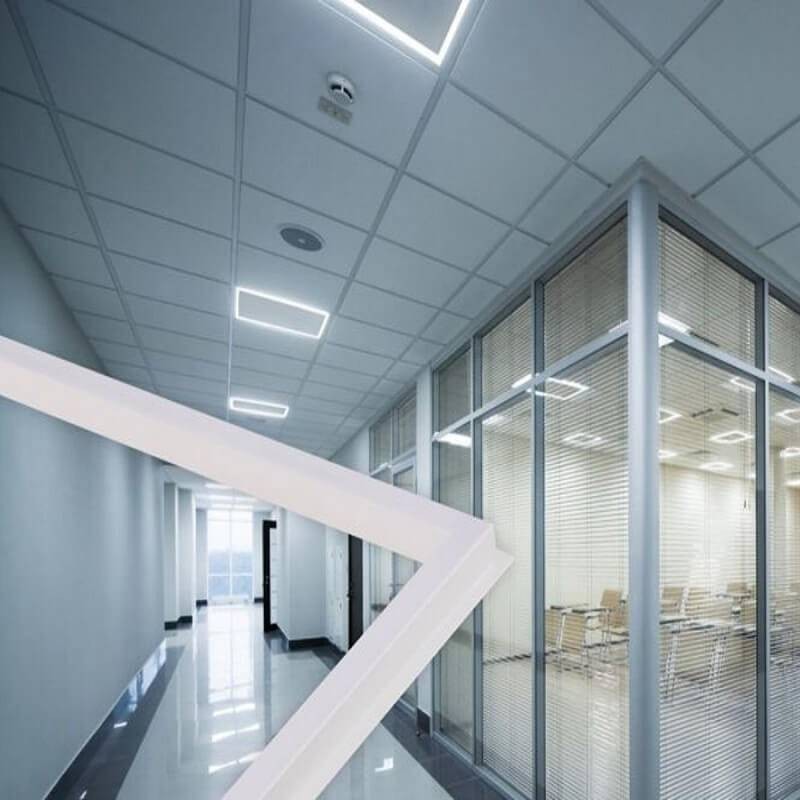

• Offices and studios: Comfortable and efficient general lighting for workspaces.
• Schools and libraries: Ideal for classrooms, study and reading areas.
• Retail spaces: Perfect for shops and commercial premises.
• Hotels and restaurants: Provides a modern and professional atmosphere.
• Administrative spaces: Reliable solution for reception areas, corridors and offices.

Important Notes

• The 44W FIT LED Panel replaces fluorescent fittings consuming more than 280W, allowing for significant energy savings.
• Installation must be carried out by qualified personnel.
• The product is not dimmable with the included driver.
• For TRIAC dimming, a compatible driver sold separately is required.
• Always check installation compatibility before final assembly.
