18W 2000Lm CCT PRO LED Downlight OSRAM chip UGR19
The 18W Slim LED Downlight is an ultra-thin luminaire, with a thickness of only 13mm and an outer diameter of 225mm, making it perfect for recessed installation in plaster ceilings with limited space. Equipped with a high-brightness and efficient OSRAM LED chip, it offers a luminous flux of 2000 lumens, providing uniform and high-quality lighting.
It includes a CCT system that allows changing the color temperature between 3000K (warm white), 4000K (neutral white), and 6500K (cool white) through the selector included in the cable. This allows you to adapt the lighting to the specific needs of each space, whether for creating warm and welcoming atmospheres or for areas that require greater clarity and focus.
The integrated microprismatic diffuser reduces glare and eye strain, achieving a UGR<19 rating. This ensures high visual comfort, ideal for spaces where tasks requiring concentration are performed and where light quality is crucial.
- Power: 18W
- Luminous Flux: 2000 lumens
- Outer Diameter: 225mm
- Thickness: 13mm
- Ceiling Cutout: Ø200/205mm
- Dimming: Optional (On/Off, TRIAC, 1-10V, DALI)
Slim Recessed LED Downlight 18W 2000 lm CCT Microprismatic Diffuser UGR<19 OSRAM
The 18W slim recessed LED downlight with an ultra-thin design (12 mm, Ø225 mm) offers 2000 lumens with a microprismatic UGR < 19 diffuser. OSRAM chip, CCT selector (3000K / 4000K / 6500K), ideal for plasterboard ceilings.
⚡ 18W💡 2000 lm🌈 CCT👀 UGR < 19
| 18W Power | 2000 lm Luminous flux | CCT Temperatures | UGR < 19 Glare |
The 18W slim recessed LED downlight is an ultra-thin fixture, with a thickness of only 12 mm and an external diameter of Ø225 mm, perfect for recessing into plasterboard ceilings and other materials with little available space (Ø205 mm cut-out).
Equipped with a high-brightness OSRAM LED chip and a microprismatic diffuser that ensures UGR < 19 visual comfort, it reduces glare for offices, shops and workspaces. Its CCT selector lets you choose between 3000K, 4000K and 6500K to adapt the atmosphere. 2000-lumen flux, even, professional lighting.
Why choose this product?
UGR < 19, low glare, visual comfort.
3000K, 4000K or 6500K, OSRAM chip.
Ø225 mm (Ø205 mm cut-out), plasterboard.
Available light shades

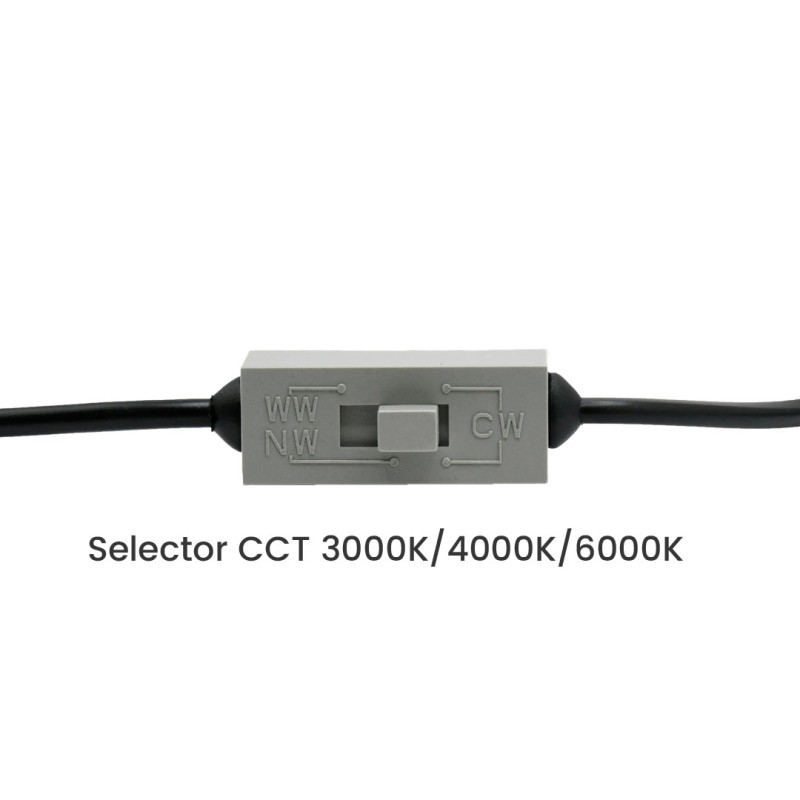

CCT selector: choose the colour temperature to suit the desired atmosphere.
| 3000 K Warm white | 4000 K Neutral white | 6500 K Cool white |
Technical specifications
| Product type | Slim recessed LED downlight |
|---|---|
| Power | 18W |
| Luminous flux | 2000 lm |
| Colour temperature | CCT 3000K / 4000K / 6500K |

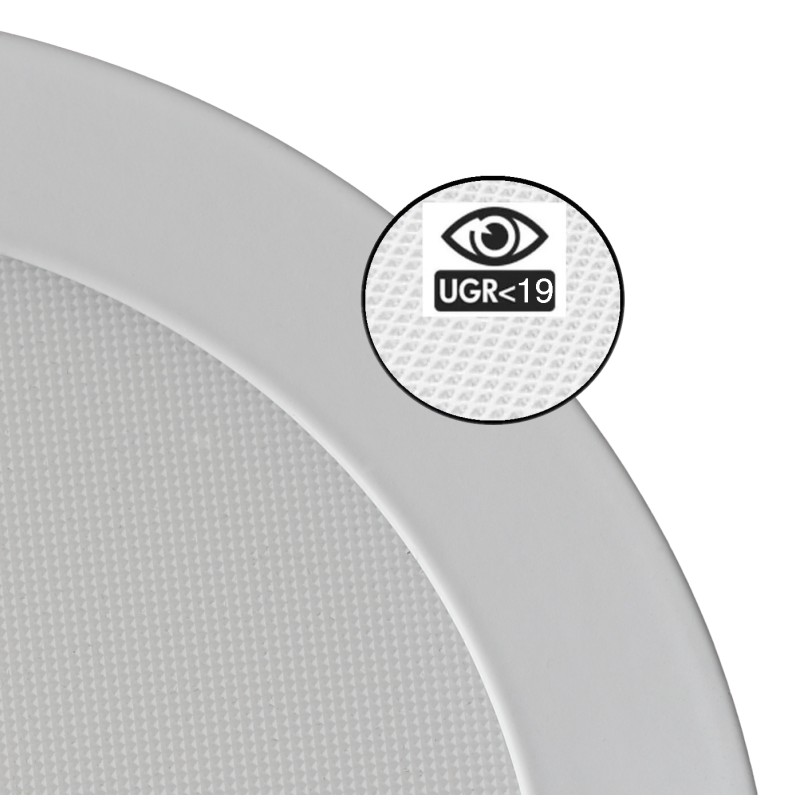

| Diffuser | Microprismatic (UGR < 19) |
| LED chip | OSRAM |
| Thickness | 12 mm |

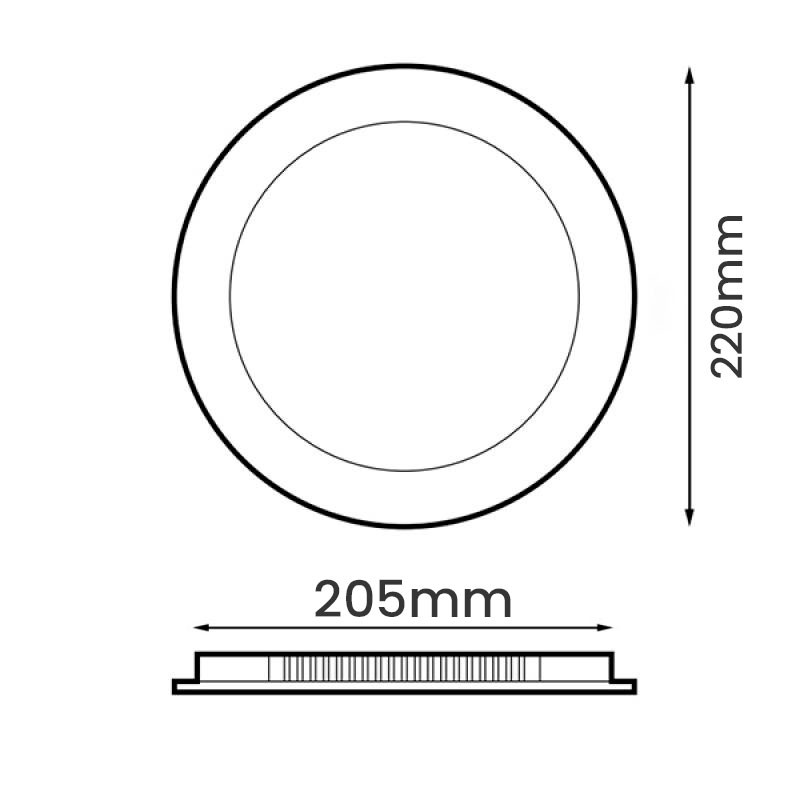

| Dimensions | Ø225 mm (Ø205 mm cut-out) |
| Use | Offices, shops, indoor |
Advantages
- CCT: 3000/4000/6500K.
- Microprismatic: UGR < 19.
- OSRAM chip: 2000 lm.
- Slim 12 mm: Ø225 mm.
- Ø205 mm cut-out: plasterboard.
- Visual comfort: offices and shops.
Recommended applications
| 🚪 | Offices and meeting rooms — UGR<19 comfort. |
| 🏠 | Shops — CCT of choice. |
| 🏛 | Hotels and halls — slim 12 mm. |
| 🌿 | Plasterboard — recessed. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Choose the temperature Set the CCT selector (3000/4000/6500K). |
| 3 | Recess Make a Ø205 mm cut-out and insert the downlight. |
| 4 | Wire and check Wire the driver and check the lighting. |
Frequently asked questions
Yes, CCT selector 3000K, 4000K or 6500K.
Yes, its microprismatic diffuser offers UGR < 19.
A Ø205 mm cut-out (Ø225 mm outer, 12 mm).
| ⚡ 18W 2000 lm | 🌈 CCT OSRAM | 👀 UGR<19 Ø225 | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 18
- Power source (V)
- 220-240V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K
- LED
- SMD2835

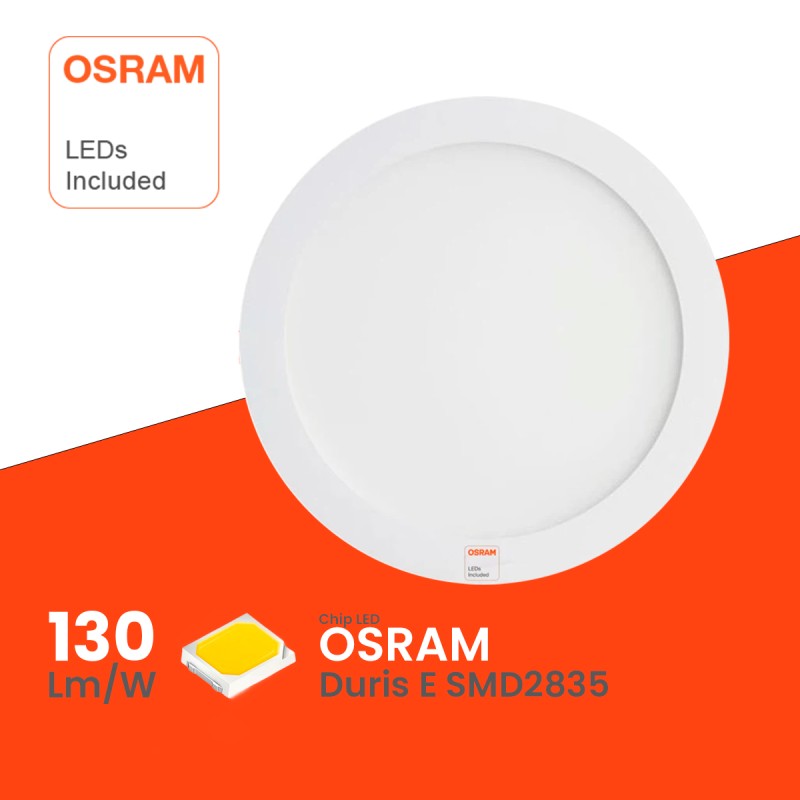

- LED chip brand
- OSRAM
- Dimmable
- 1/10V
DALI
Sí, TRIAC
- Brightness (Lm)
- 2000
- Color rendering index (Ra):
- ≥80
- Colour
- White
- IP
- IP20
- IK
- IK06
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.95
- Forma
- Redondo
- Measures (mm)
- Ø225x12mm
- Medida de corte (mm.)
- Ø205mm
- Material
- Aluminum + PC
- Driver
- Flicker-free
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
