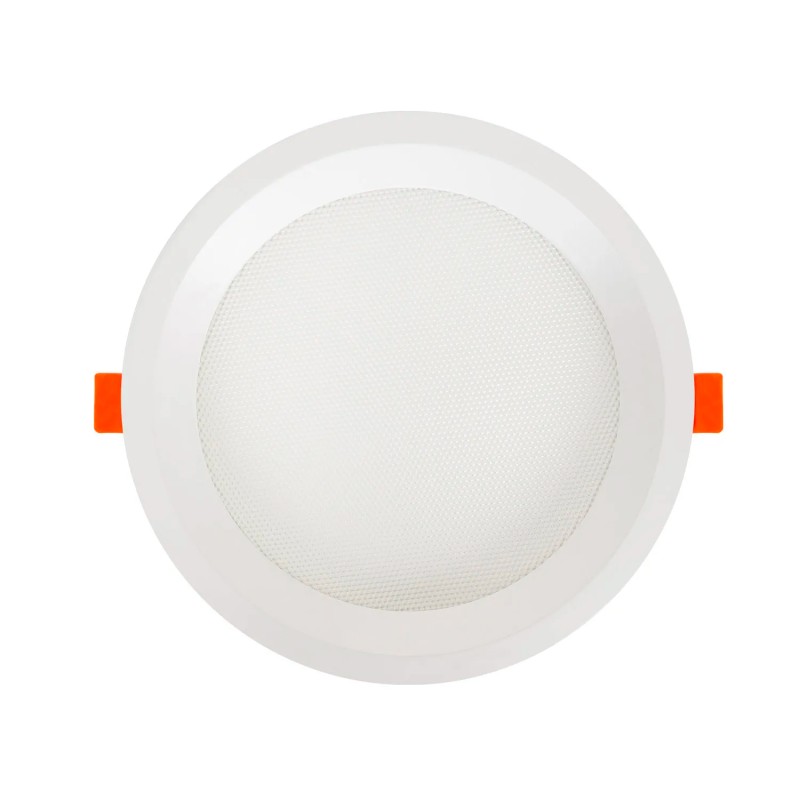

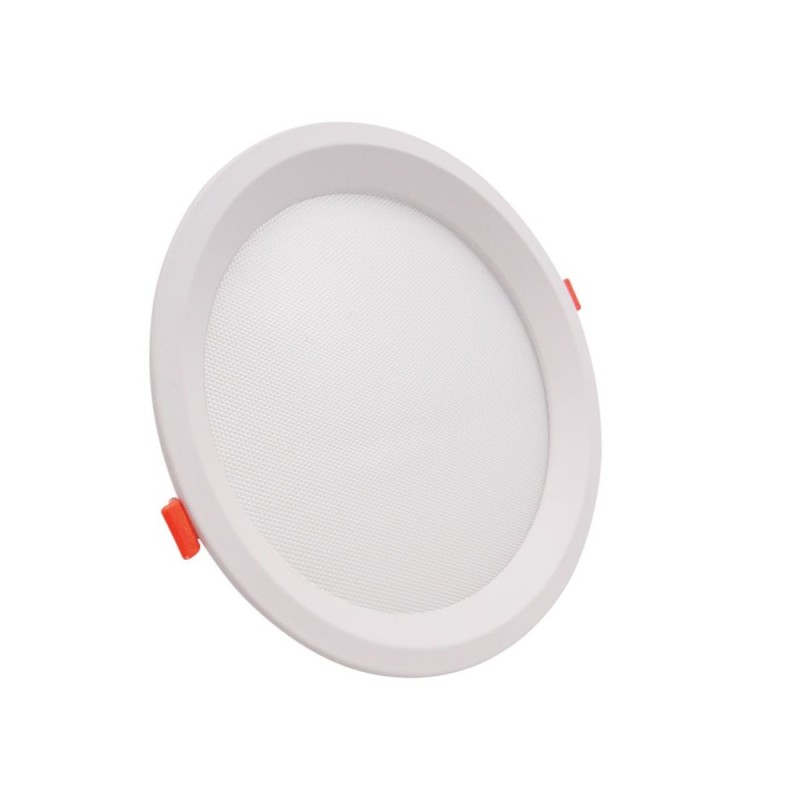

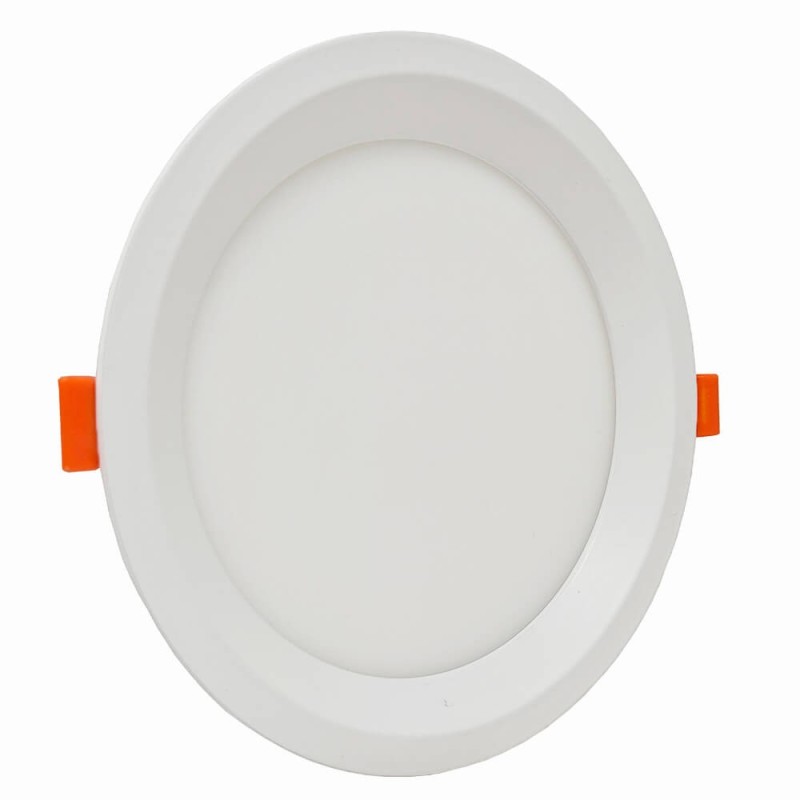

16W 1600Lm Recessed Selectable CCT LED Downlight UGR19 OSRAM Chip
The Circular Recessed LED Downlight Panel of 16W is the ideal solution for those looking for efficient and modern lighting. Made of high-quality aluminum and polycarbonate, and lacquered in white, this LED panel stands out for its flat and elegant design, which easily integrates into any space.
Equipped with an OSRAM SMD2835 LED chip, the panel offers a luminous flux of 1600 lumens, ensuring clear and uniform lighting. Additionally, its microprismatic diffuser reduces glare to a UGR<19 level, providing a visually comfortable environment.
- Power: 16W
- Luminous Flux: 1600 lumens
- LED Chip: OSRAM SMD2835
- Material: Aluminum and polycarbonate
- Color: Lacquered white

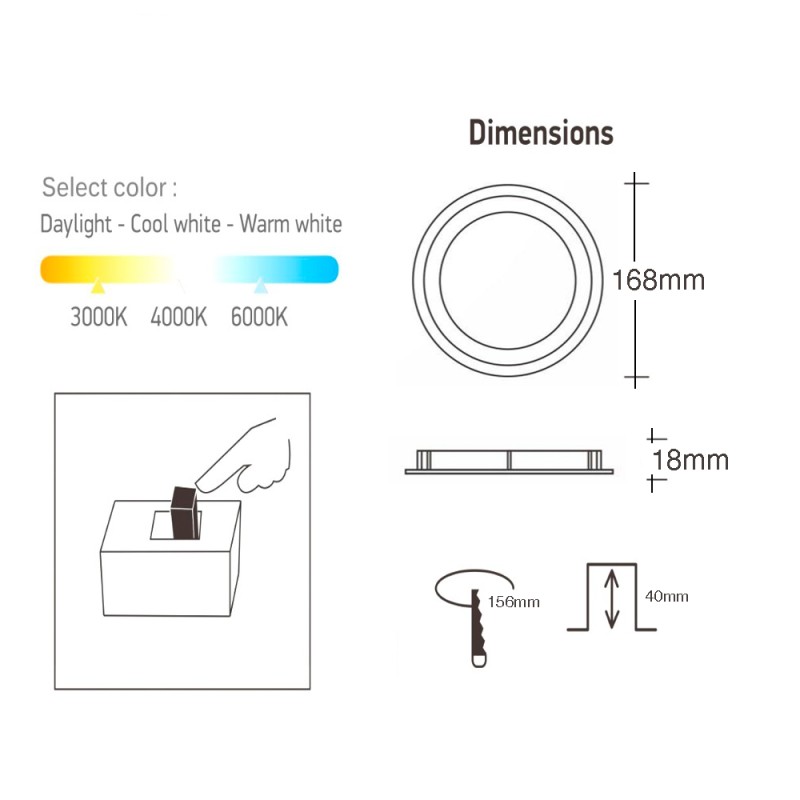

- Dimensions: Ø168x18mm
- Cutout Dimensions: Ø156mm

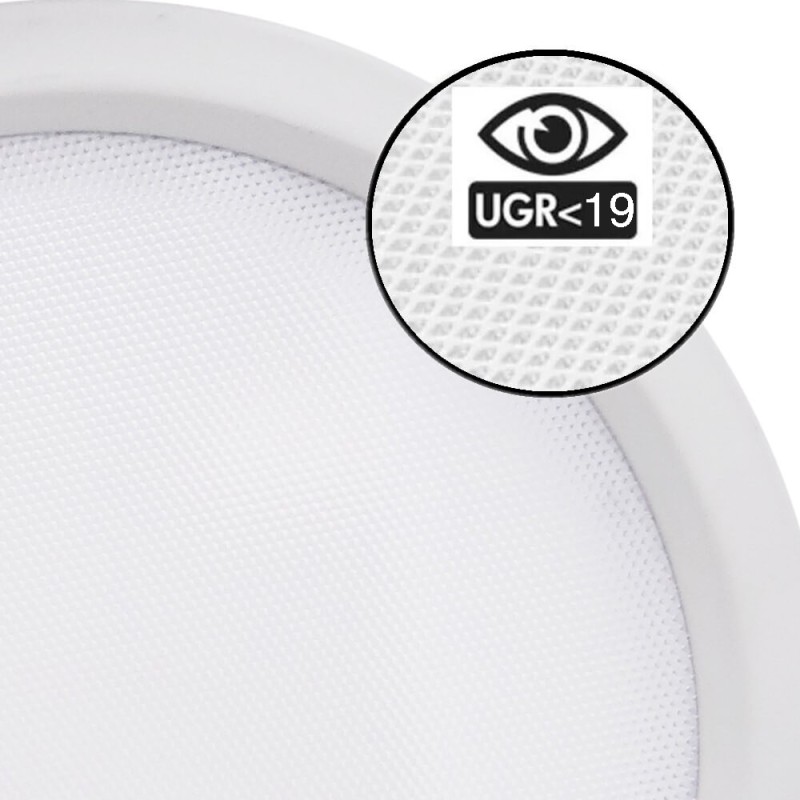

- Diffuser: Microprismatic UGR<19

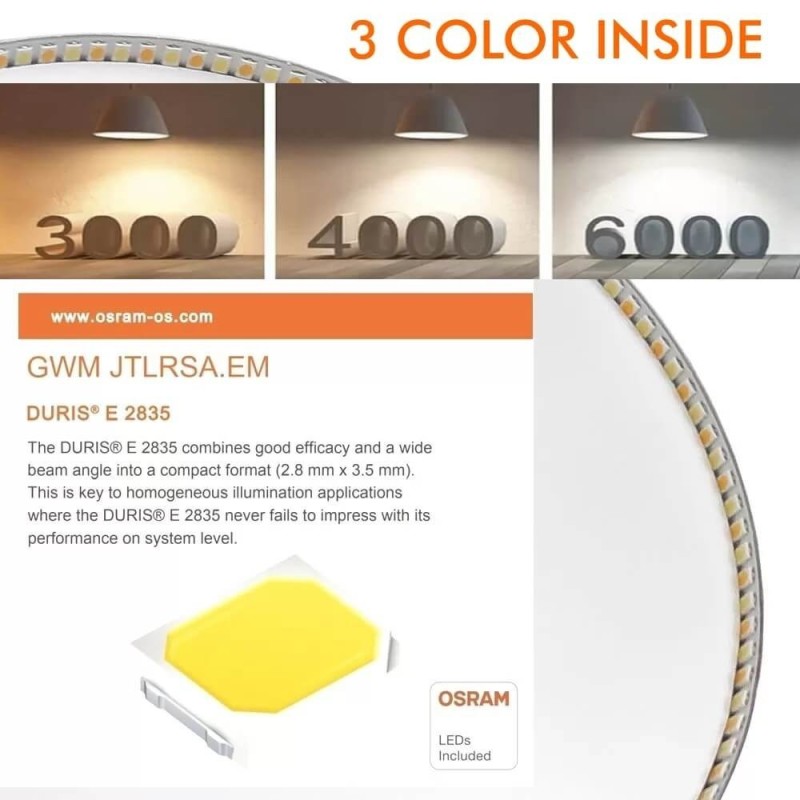

- Color Temperature: Selectable between 3000K / 4000K / 6000K

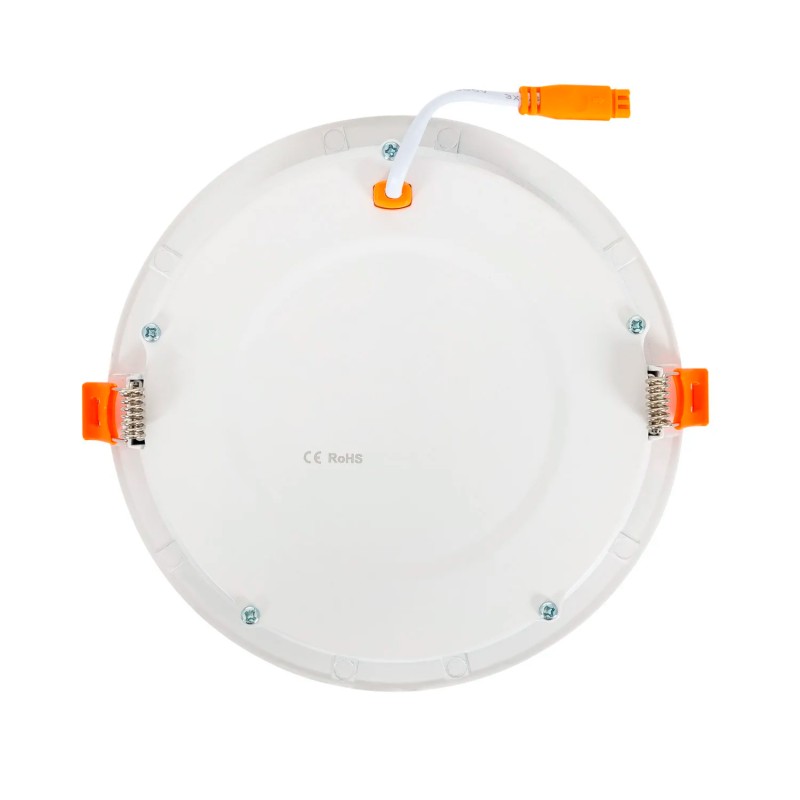

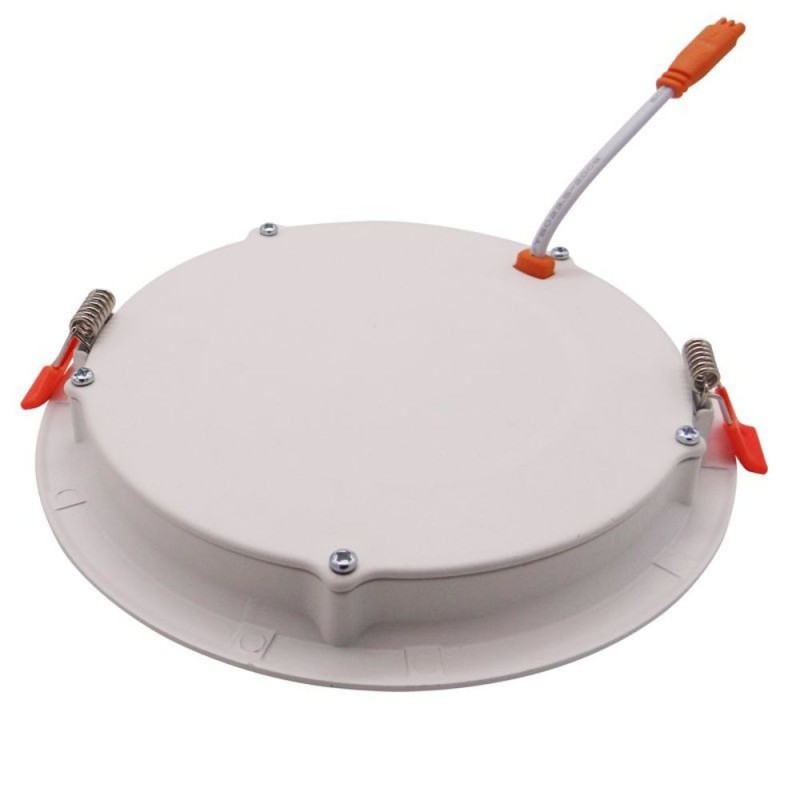

- Driver: External included
LED Downlight round 16W CCT 1600 lm UGR<19 OSRAM Chip IP20
The 16W recessed round led downlight with a OSRAM chip delivers 1600 lumens (120º), with a opal diffuser UGR < 19 that reduces glare. Selectable CCT temperature via the included driver, IP20.
⚡ 16W💡 1600 lm👀 UGR < 19🌈 CCT
| 16W Power | 1600 lm Luminous flux | UGR < 19 Glare | IP20 Protection |
The 16W recessed round led downlight, fitted with a high-performance OSRAM chip, is an efficient, durable lighting solution, perfect for commercial and residential applications. With a 120º angle, it lights any space evenly, without shadows, and provides 1600 lumens. Made of aluminium, its slim, refined design adds a modern touch.
Its opal diffuser (UGR < 19) significantly reduces glare and eye strain, for comfortable lighting. The colour temperature is selectable thanks to the included driver, letting you adapt the atmosphere to each room in a single device.
Why choose this product?
Reduces glare, comfortable lighting.
Adapt the temperature to each room (driver included).
1600 lm, 120º, aluminium.
Available light shades
Available in three selectable colour temperatures, to match the atmosphere of each space:
| 3000 K Warm white | 4000 K Neutral white | 6000 K Cool white |
Technical specifications
| Product type | Recessed round LED Downlight |
|---|---|
| Power | 16W |
| Luminous flux | 1600 lm |
| LED chip | OSRAM |
| Beam angle | 120º |
| Diffuser | Opal (UGR < 19) |
| Material | Aluminium |
| Protection | IP20 |
| Outer dimensions | Ø168x18 mm |
| Ceiling cut-out | Ø156 mm |
| Depth | 18 mm |
| Driver | Included |
Advantages
- UGR < 19: opal diffuser.
- Selectable CCT: temperature of choice.
- 1600 lm at 16W: even lighting.
- OSRAM chip: high performance.
- Driver included: CCT selector.
- IP20: indoor use.
Recommended applications
| 🚪 | Offices and shops — comfortable lighting. |
| 🏠 | Hotels and restaurants — adjustable atmosphere. |
| 🏛 | Halls and corridors — general lighting. |
| 🌿 | Homes — false ceilings. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Choose the temperature Set the CCT selector on the driver. |
| 3 | Prepare the cut-out Make a Ø156 mm cut-out and wire the driver. |
| 4 | Recess and check Insert the luminaire and check the lighting. |
Frequently asked questions
Yes, the CCT is selectable via the included driver.
Yes, its opal diffuser offers a UGR < 19.
Ø156 mm.
| ⚡ 16W 1600 lm | 👀 UGR<19 CCT | 🌈 Selectable OSRAM | ☂ IP20 Driver incl. |
Data sheet
- Power (W)
- 16
- Power source (V)
- 220-240V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 100
- Brightness (Lm)
- 1600
- Color rendering index (Ra):
- ≥85
- Colour
- White
- IP
- IP20
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Forma
- Redondo
- Measures (mm)
- Ø168x18mm
- Medida de corte (mm.)
- Ø156mm
- Material
- Aluminum + PC
- Driver
- CCT Flicker Free
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 40.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8436540806185
