230V SMD LED Strip 8W 120LED/m 800Lm/m IP65

7.95 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Warm white 2700K
  • Natural white 4000K
  • Cool white 5700K
Length
  • 1m
  • 5m
  • 6m
  • 7m
  • 8m
  • 9m
  • 10m
  • 15m
  • 20m
  • 25m
  • 50m
In stock: 500 Items
Reference:
TL8WAC-4K-1

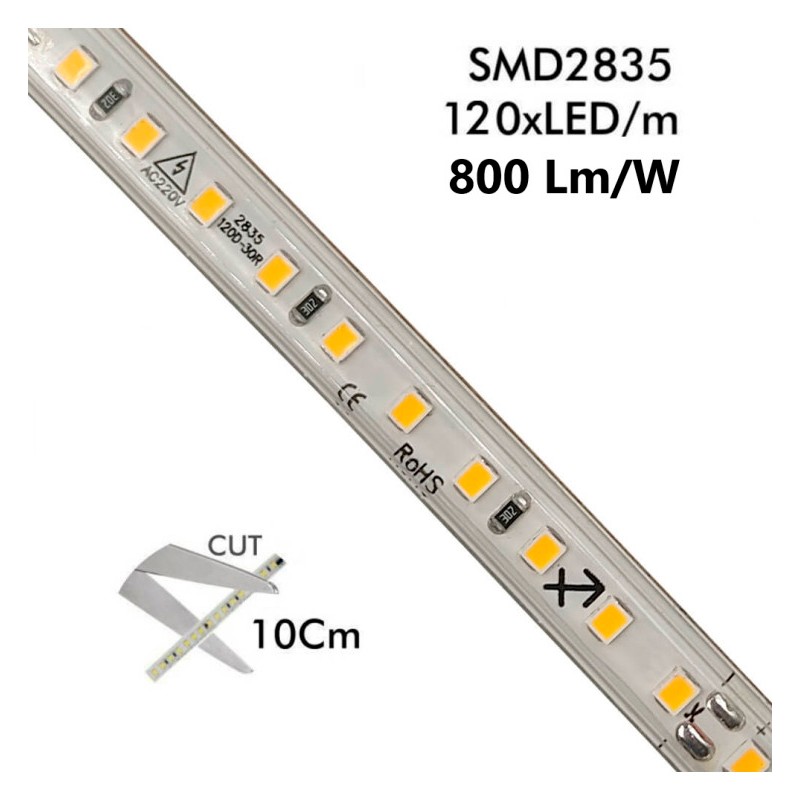

The 230V SMD2835 LED Strip is a versatile and durable lighting solution, designed for outdoor use thanks to its IP65 rating. Made of transparent PVC, this LED strip withstands weather conditions, does not crack or yellow over time, ensuring long-lasting and reliable performance. Each meter of LED strip contains 120 SMD2835 LED chips, with a power consumption of 8W/m and a luminous flux of 800 lumens/m.

  • Each cut includes start connector and end plug
  • Power: 8W/m
  • Luminous Flux: 800 lumens/m
  • LED Chips: SMD2835 - 120 LED/m
  • Cutting Interval: Every 10 cm
  • Roll Length: Up to 50 meters
  • Material: Transparent PVC
  • Dimensions: 10x4.2mm
  • IP Rating: IP65
  • Voltage: 230V

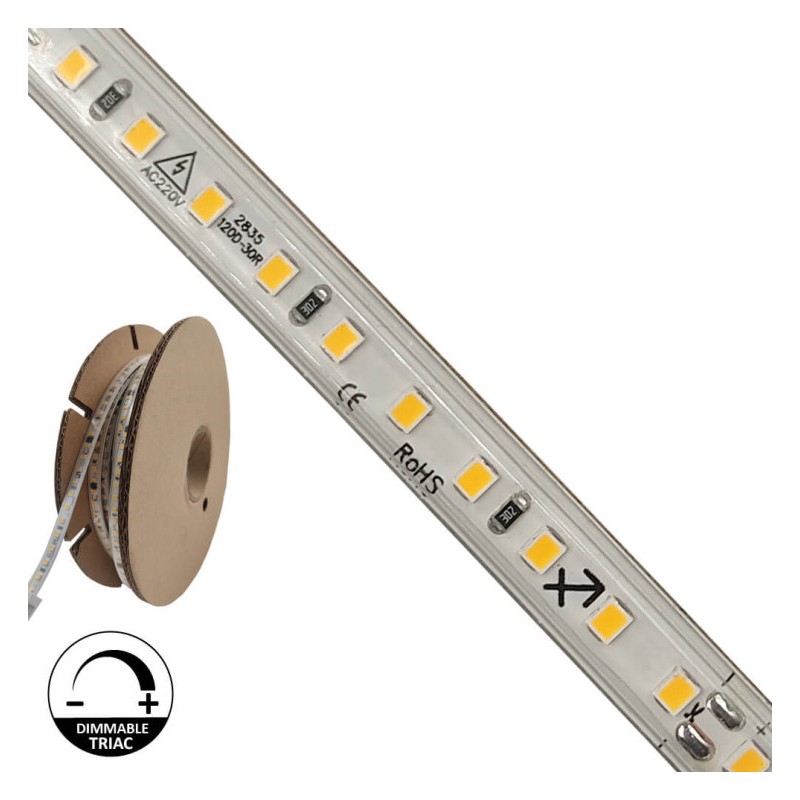

  • Dimming: TRIAC compatible
Read moreShow less
Download PDF
You may also like
Description

230V LED Strip SMD2835 120 LEDs/m 8W/m IP65


The 230V LED Strip SMD2835 is a versatile and durable lighting solution designed for outdoor use, thanks to its IP65 rating. Made from transparent PVC, this LED strip is weather-resistant, does not crack, and does not yellow over time, ensuring reliable and long-lasting performance. Each meter of LED strip contains 120 SMD2835 LED chips, with a power consumption of 8W/m and a luminous flux of 800 lumens/m.

Technical Specifications


  • Each cut includes a start connector and end cap.
  • Power: 8W/m
  • Luminous Flux: 800 lumens/m
  • LED Chips: SMD2835 - 120 LEDs/m
  • Cutting: Every 10 cm
  • Roll Length: Up to 50 meters
  • Material: Transparent PVC
  • Dimensions: 10x4.2mm
  • IP Rating: IP65
  • Voltage: 230V
  • Dimming: Compatible with TRIAC

Installation and Recommendations


The SMD 230V LED Strip is extremely easy to install, thanks to its direct connection to 230V mains power, with no need for additional power supplies or rectifiers. The strip can be cut every 10 cm, allowing it to fit perfectly into any space. For optimal heat dissipation and to extend LED lifespan, it is recommended to install it on a compatible aluminum profile. Each section requires a start connector with end cap, sold separately. Each cut includes a start connector and an end cap.

Important Note: This LED strip is not designed for immersion or installation in pools, ponds, saunas, or showers. Avoid direct sunlight exposure to preserve its optimal properties.

Product Advantages


  • High Durability: Weather-resistant, high-quality PVC.
  • Flexibility: Adapts to different spaces and applications with its 10 cm cut design.
  • Dimmable: Compatible with TRIAC systems for full lighting control.
  • Lighting Performance: 800 lumens per meter for efficient, uniform lighting.

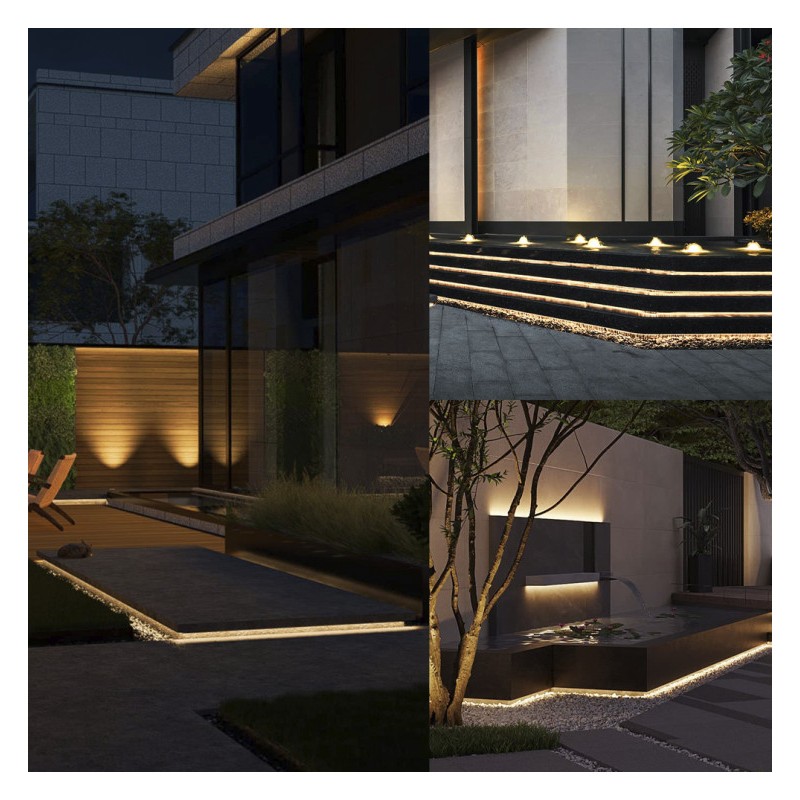

Recommended Uses and Applications


The 230V LED Strip SMD2835 is ideal for various outdoor and covered indoor applications:

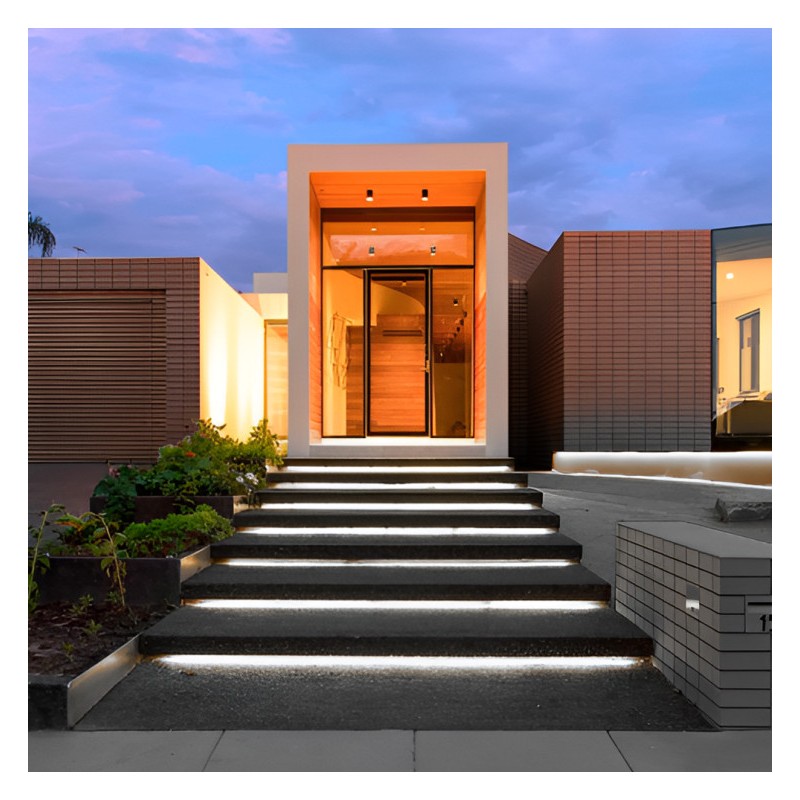

  • Facades: Highlight architectural details and enhance building aesthetics.
  • Terraces and Gardens: Create pleasant and well-lit outdoor environments.
  • Hallways and Staircases: Provides decorative and functional lighting for outdoor spaces.
  • Signs and Displays: Continuous lighting to highlight products or signage.

Package Contents


  • 1 x 50-meter Roll of 230V LED Strip SMD2835
  • Start cable and end cap (sold separately)

With the 230V LED Strip, you will achieve reliable, durable, and adaptable lighting for your design and functional needs.

Read moreShow less
Product Details
TL8WAC-4K-1

Data sheet

Power (W)
8W
Power source (V)
220-240V
Color temperature CCT
2700K
4000K
5700K
LED
SMD2835
Dimmable
Sí, TRIAC
Brightness (Lm)
800
CRI
+90
IP
IP65
Luminous angle
120º
Frequency (Hz)
50-60Hz
Measures (mm)
10x4x50000mm
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
35.000h
Certification
CE - RoHS
Warranty
3 años
