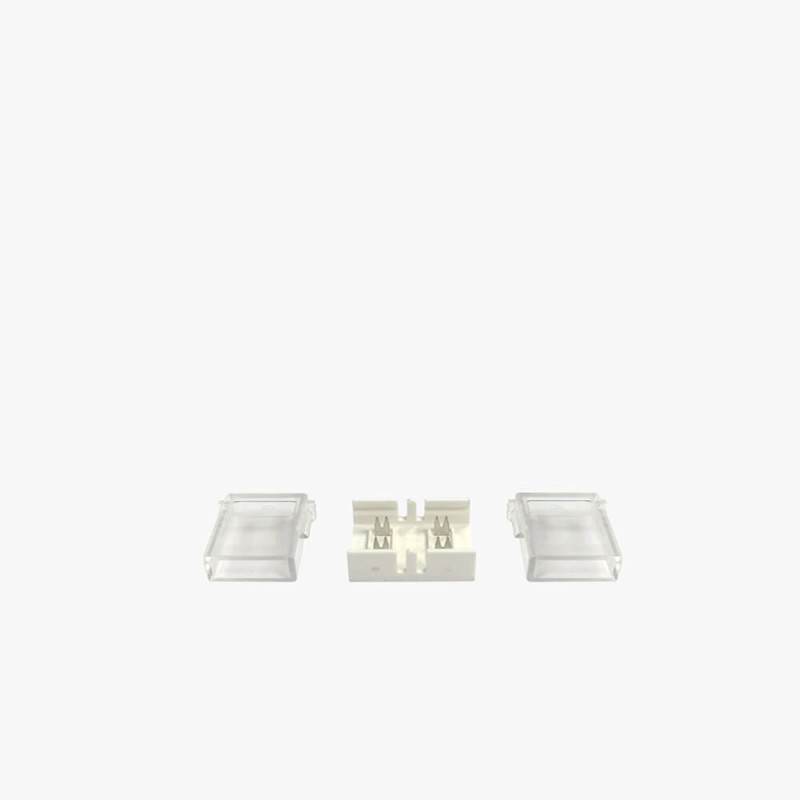

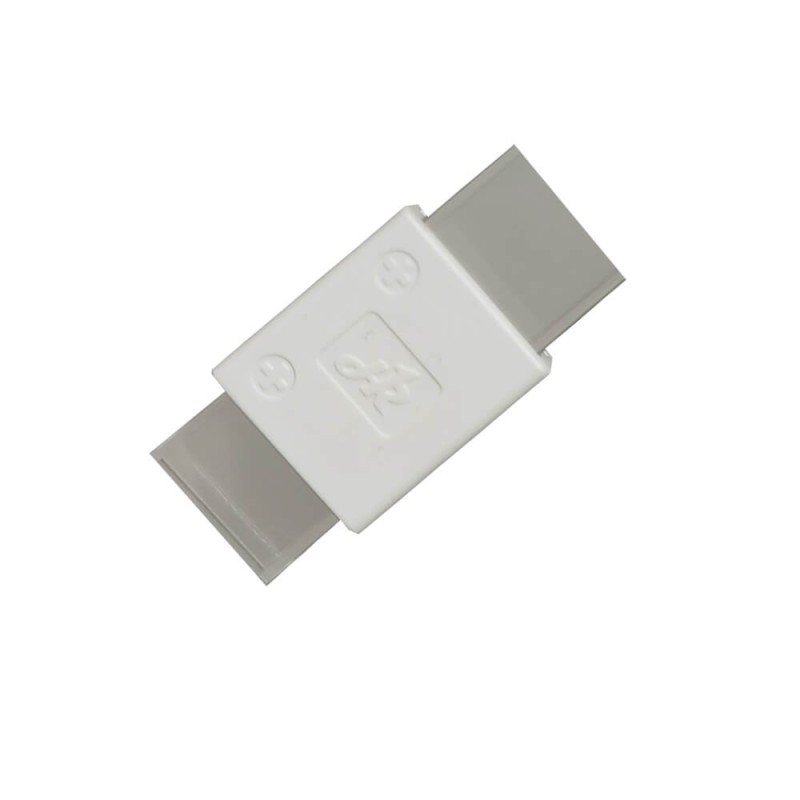

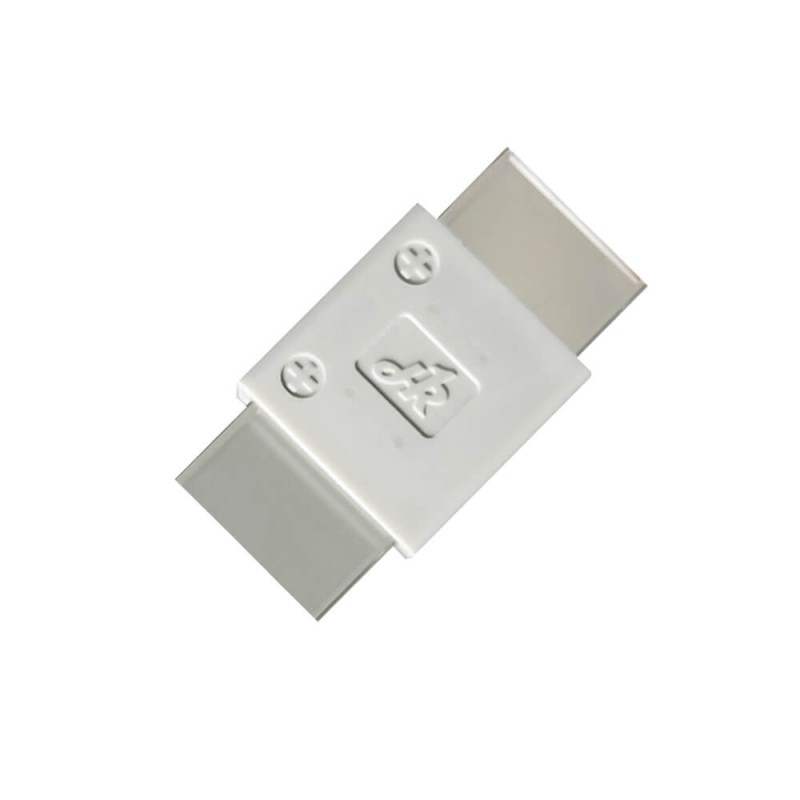

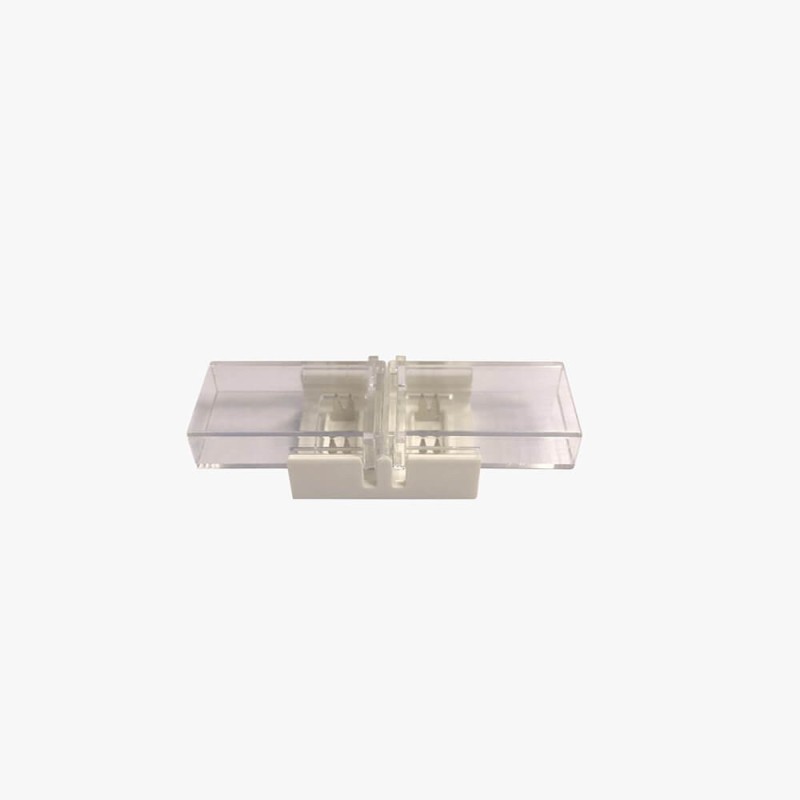

Rigid junction connector for 8mm 230V COB LED strip
Rigid junction connector for 8mm wide 230V COB LED strip, for solderless installation.

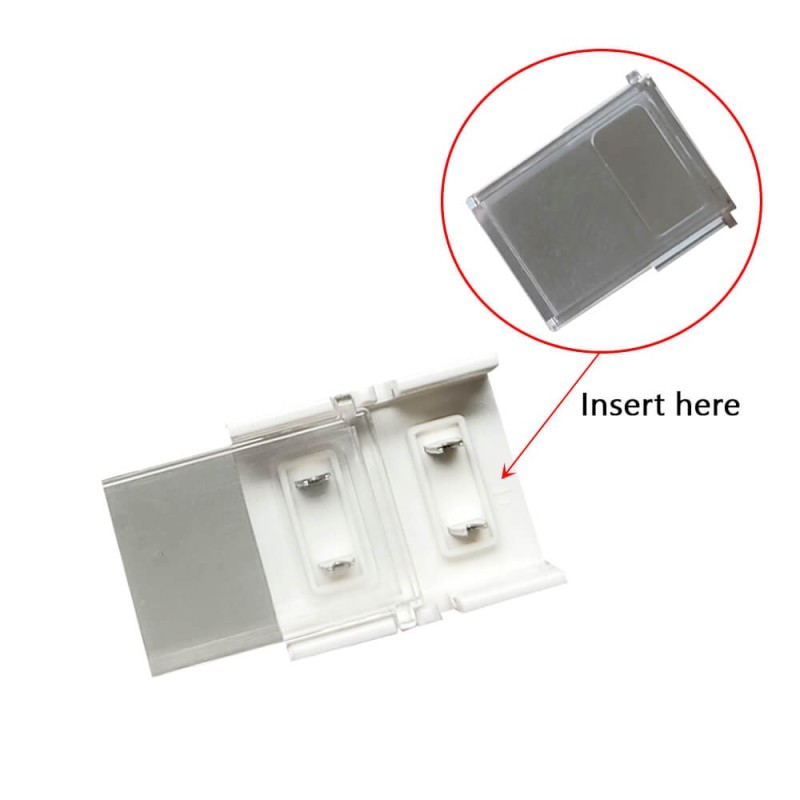

The quick connector allows connections on LED strips without the need for soldering, simply by inserting the LED strip and pressing the connector's locking clips until you hear a click.
The quick connector acquires IP65 characteristics when filled with transparent silicone.

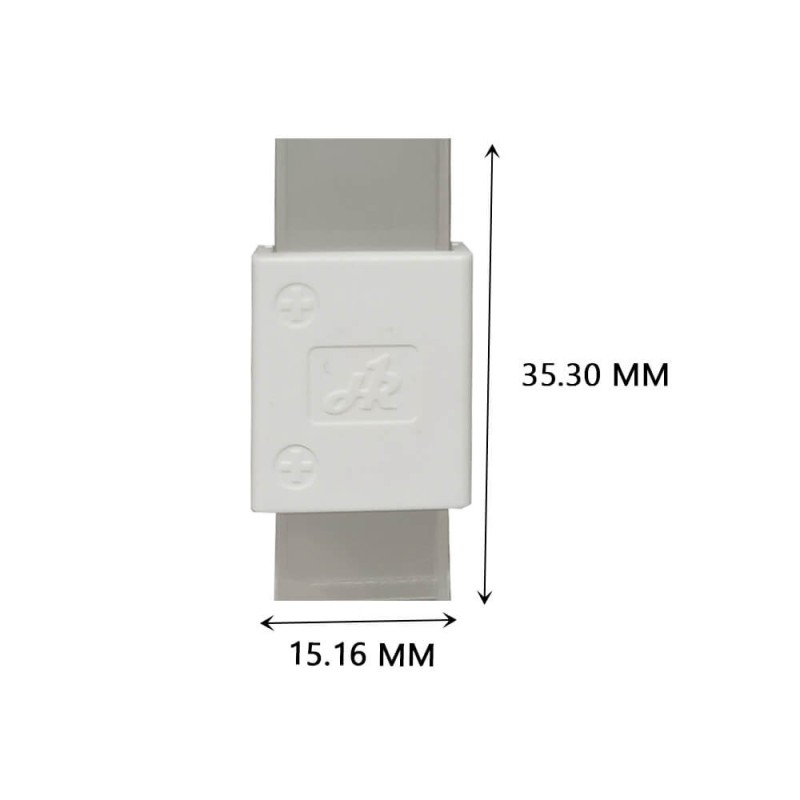

Dimensions: 15.16x35.3mm
Rigid junction connector for 8mm wide 230V COB LED strip, for solderless installation.
The quick connector allows connections on LED strips without the need for soldering, simply by inserting the LED strip and pressing the connector's locking clips until you hear a click.
The quick connector acquires IP65 characteristics when filled with transparent silicone.
Dimensions: 15.16x35.3mm
Data sheet
- Power source (V)
- 220-240V
- Colour
- White
- IP
- IP65
- Measures (mm)
- 15.16x35x3mm
- Material
- Thermoplastic
- Operating temperature
- -20ºC ~ +40ºC
- Certification
- CE - RoHS
- Warranty
- 3 años
