40W VILLA Steel LED Street light Bridgelux Chip 5400Lm

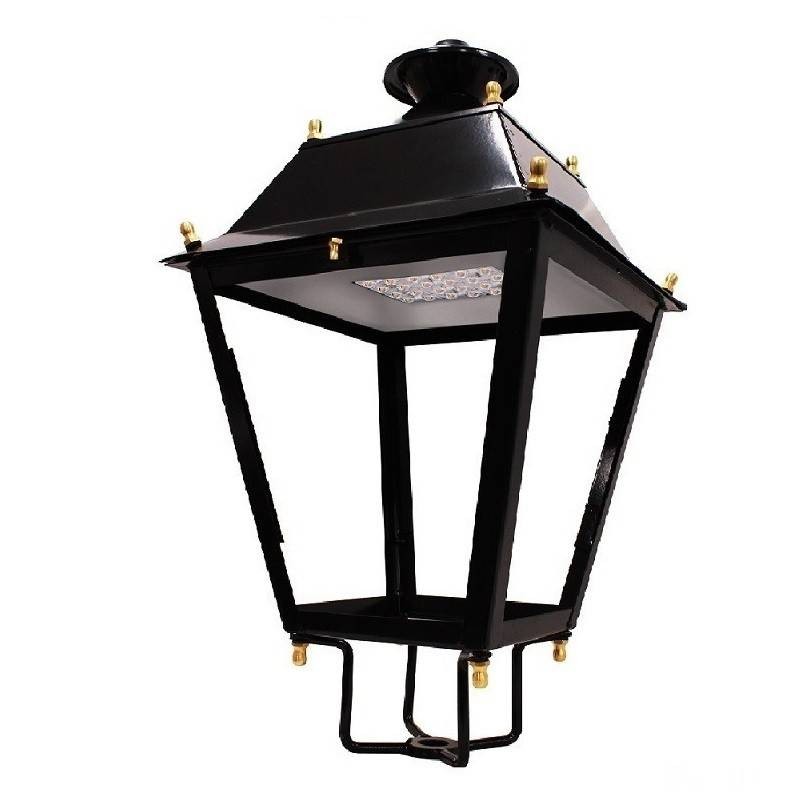

The VILLA LED Streetlight in steel is an elegant and efficient option for illuminating streets and outdoor spaces. With a classic design and robust construction in black steel, this streetlight combines style and functionality to provide optimal lighting in any urban environment.
- Power and Brightness: Equipped with a 40W BRIDGELUX SMD3030 2D LED chip module, this streetlight provides a luminous flux of 5400 lumens, ensuring excellent visibility even in larger areas.
- Energy Efficiency: With a performance of 135Lm/W, the VILLA LED Streetlight maximizes energy efficiency, significantly reducing energy consumption and operating costs.
- Resilient and Durable: With an IP65 outdoor rating, this streetlight is designed to withstand adverse weather conditions, ensuring reliable performance over time.
- Available in four color temperature options: - 2200ºK (amber), 3000ºK (warm), 4000ºK (neutral), and 5000ºK (cool) - to suit specific lighting requirements.
- Surge Protection: Includes a 10kV surge protector to ensure system safety and durability.
VILLA Steel LED Street Light 40W BridgeLUX SMD3030 2D 5400 lm IP65
The VILLA LED street light in black steel combines classic design and efficiency: 40W, 5400 lumens and an efficiency of 135 lm/W. IP65 protection for lighting streets and urban outdoor spaces.
⚡ 40W💡 5400 lm☂ IP65🔌 135 lm/W
| 40W Power | 5400 lm Luminous flux | 135 lm/W Efficiency | IP65 Protection |
The VILLA LED street light in black steel is an elegant, efficient option for lighting streets and outdoor spaces. With a classic design and a sturdy black steel construction, it combines style and function for optimal lighting in urban environments.

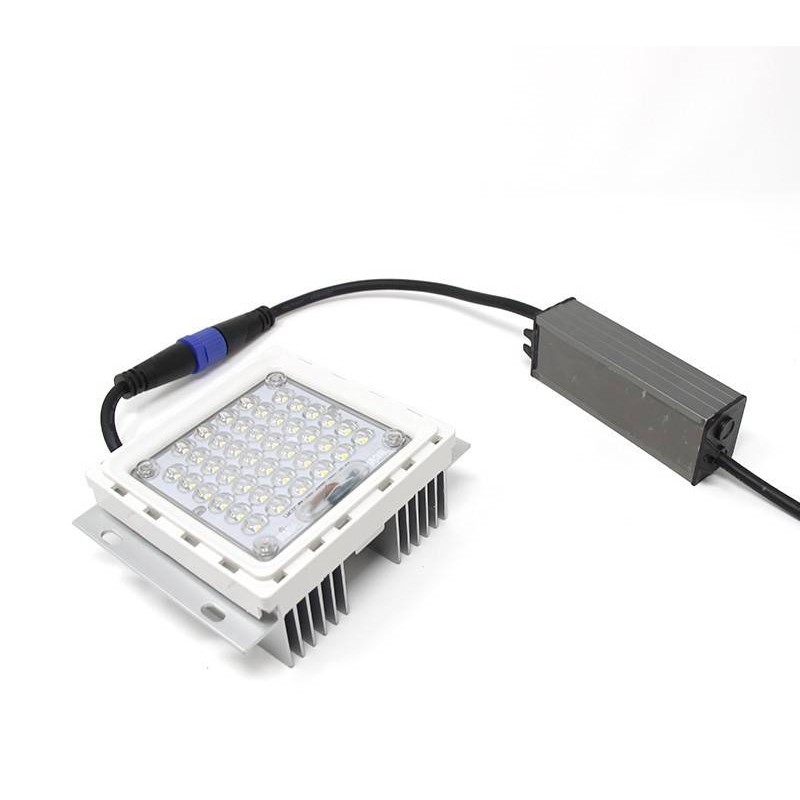

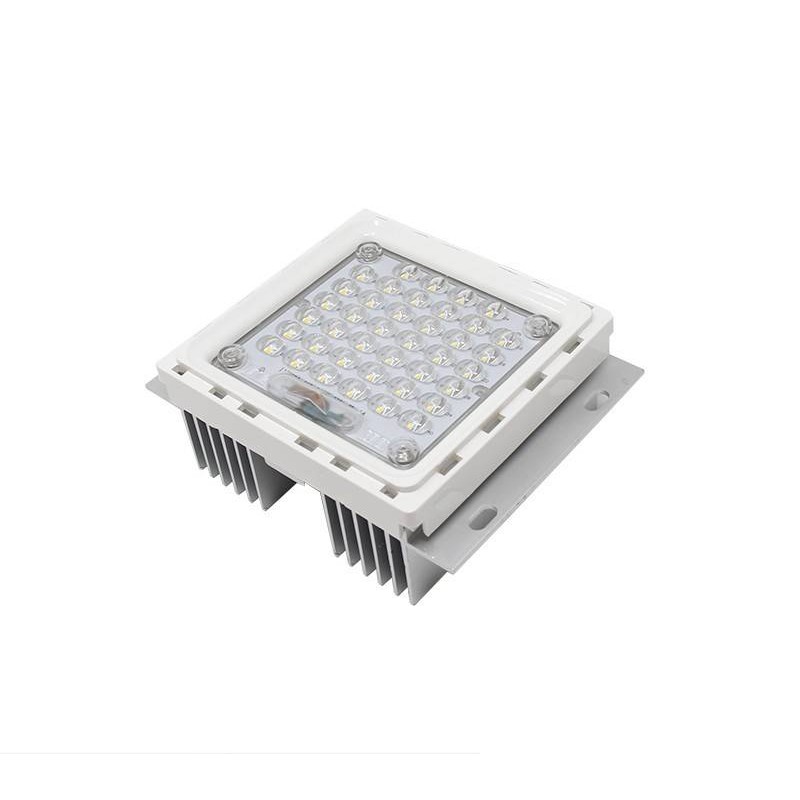

Fitted with an LED module with BridgeLUX SMD3030 2D chips of 40W, it delivers a luminous flux of 5400 lumens with an efficiency of 135 lm/W and asymétrique 70ºx150º optics. Its IP65 rating, its 10kV surge protector and its 170-270V AC supply ensure reliability and durability (lifespan of about 50 000 h) against the weather.
Why choose this product?
Powerful, energy-efficient urban lighting.
Sturdy and weather-resistant. 10kV surge protector.
Available light shades
Available in several colour temperatures:
| 2200 K Amber | 3000 K Warm white | 4000 K Neutral white | 5000 K Cool white |
Technical specifications
| Product type | Outdoor LED street light |
|---|---|
| Power | 40W |
| Luminous flux | 5400 lm |
| Efficiency | 135 lm/W |

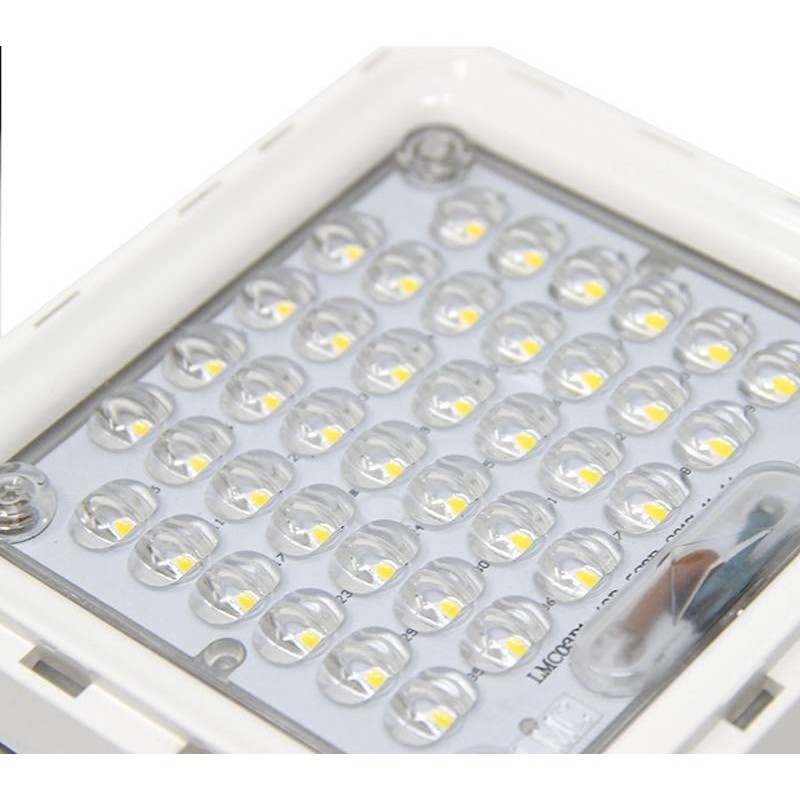

| Chip LED | BridgeLUX SMD3030 2D |

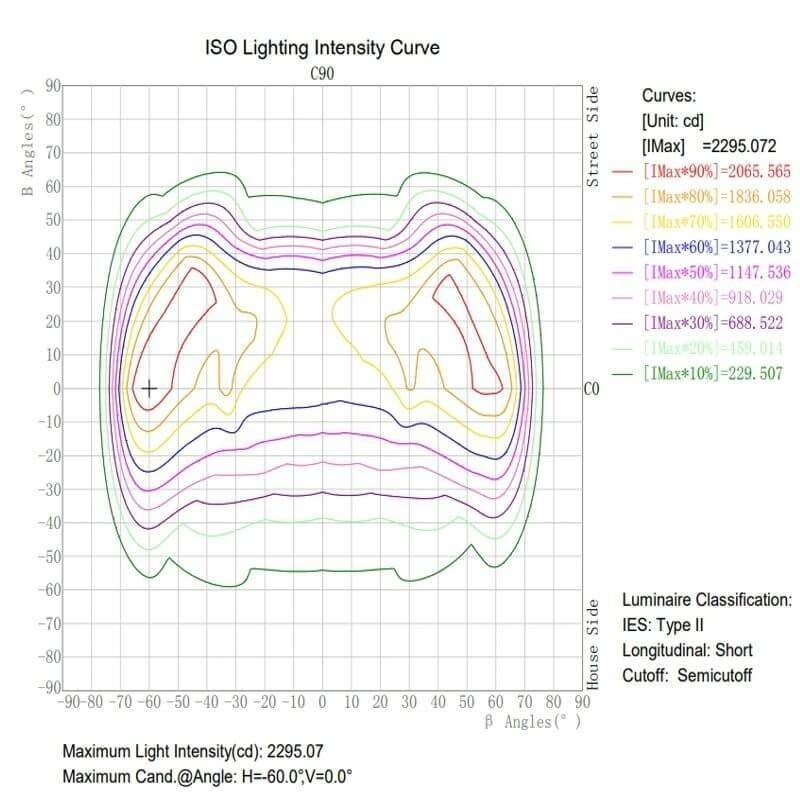

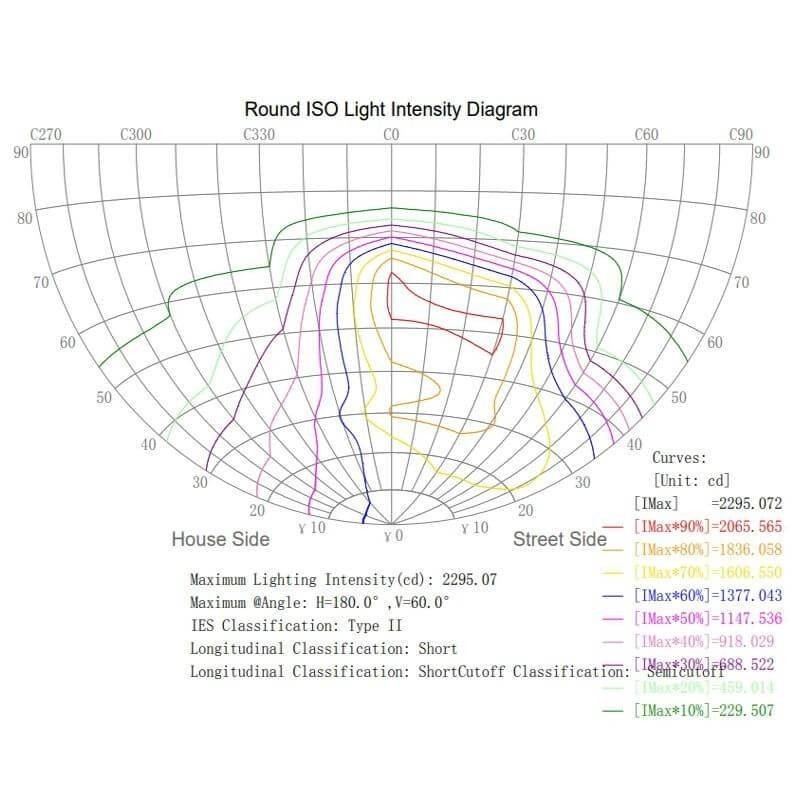

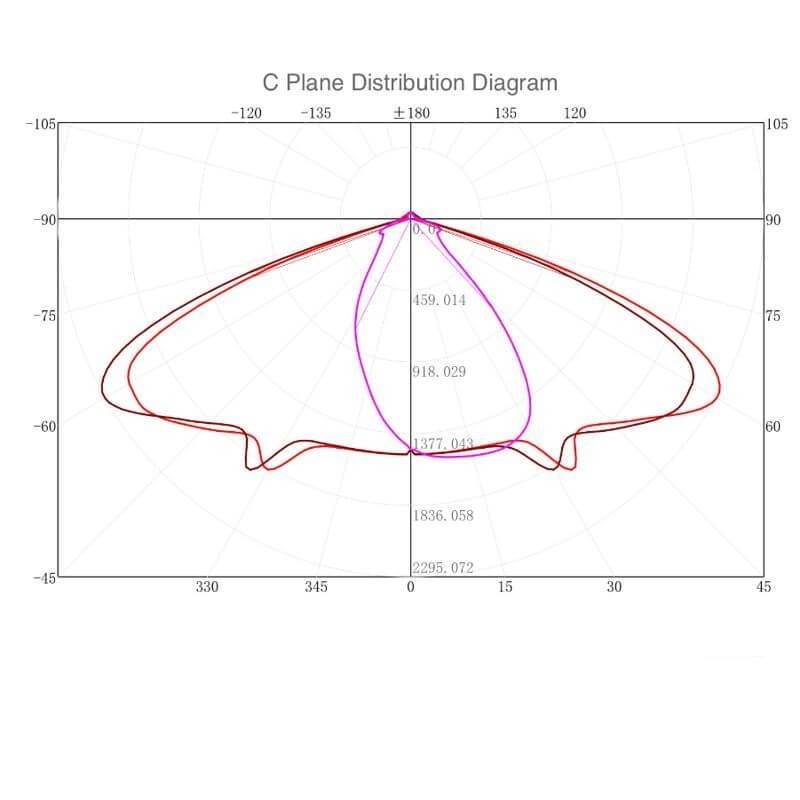

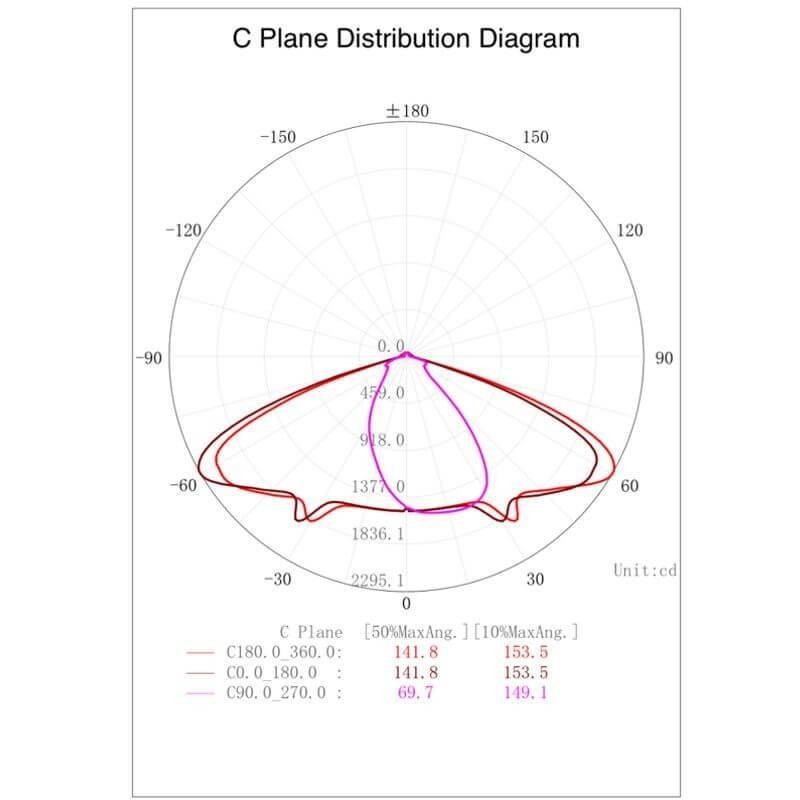

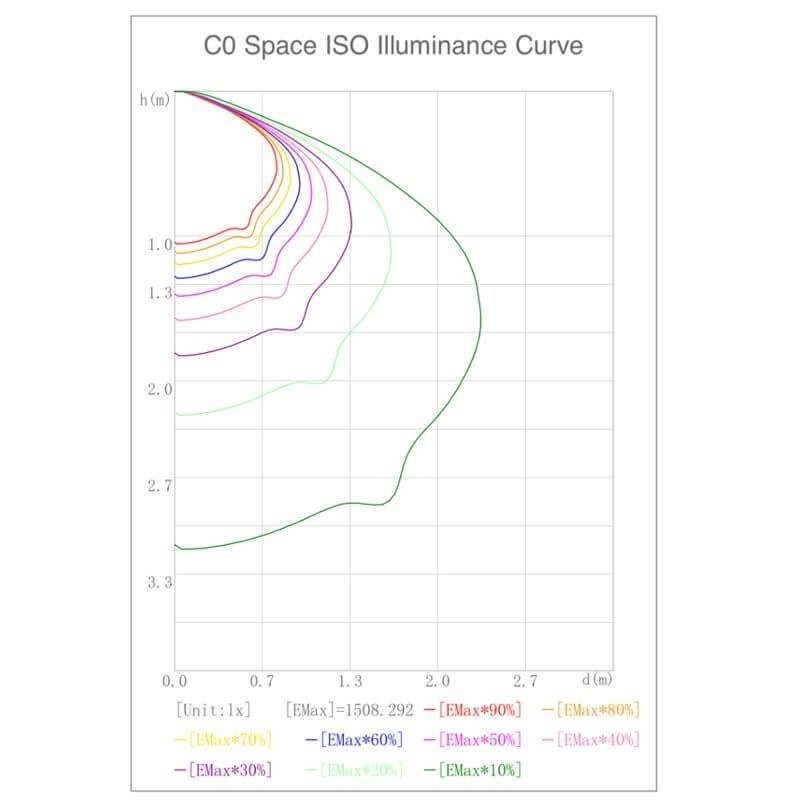

| Optics | Asymétrique 70ºx150º |
| Protection | IP65 |

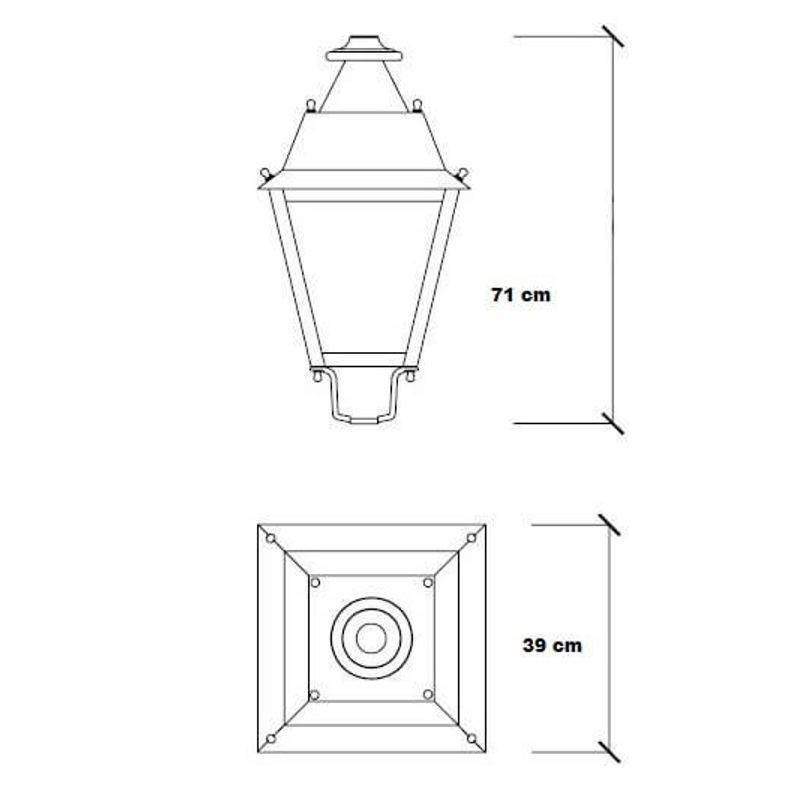

| Dimensions | 390x390x710 mm |
| Surge protection | 10kV |
| Input voltage | 170-270V AC |
| Lifespan | 50 000 h |
| Material | Black steel |
Advantages
- 5400 lumens at 135 lm/W: efficient urban lighting.
- BridgeLUX SMD3030 2D chips: quality and performance.
- IP65: weather-resistant.
- Asymétrique 70ºx150º optics: distribution suited to roads.
- 10kV surge protector: added safety.
- Long lifespan: about 50 000 h.
- Black steel: classic, sturdy design.
Recommended applications
| 🚪 | Streets and avenues — urban public lighting. |
| 🏠 | Squares and parks — outdoor spaces. |
| 🏛 | Residential areas — roads and accesses. |
| 🌿 | Outdoor car parks — rugged lighting. |
Installation guide
| 1 | Prepare the support Install the street light on a compatible column or pole. |
| 2 | Switch off the power Cut the supply before wiring. |
| 3 | Connect the module Connect the LED module to the mains 170-270V AC as per standards. |
| 4 | Check Check the fixing and ignition, then close the luminaire. |
Frequently asked questions
5400 lumens, with an efficiency of 135 lm/W.
Yes, its IP65 rating makes it suited to outdoor public lighting.
About 50 000 h.
| ☂ IP65 Black steel | 💡 5400 lm 135 lm/W | ⚡ 10kV Surge | 📦 In stock Fast shipping |
Data sheet
- Power (W)
- 40
- Power source (V)
- 175-260V
- Color temperature CCT
- 2200K
3000K
4000K
5000K
- LED
- SMD3030
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 135
- Brightness (Lm)
- 5400
- Color rendering index (Ra):
- ≥70
- IP
- IP65
- IK
- IK10
- Luminous angle
- 70ºx150º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 70ºx150º
- Measures (mm)
- 390x390x710mm
- Material
- Steel + PMMA
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- D
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
