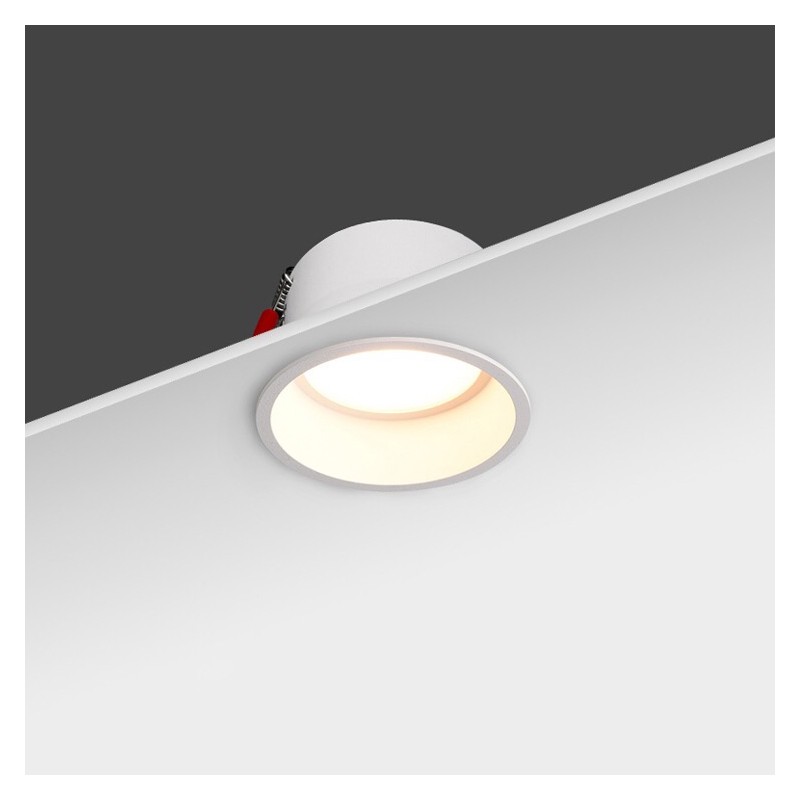

18W Recessed Selectable CCT LED Spotlight OSRAM Chip IP54 1980Lm
Recessed circular LED downlight in white, with excellent performance, featuring a low power consumption of 18W and a luminous flux of 1980 lumens. Made of aluminum and PC, the LED downlight incorporates a high-brightness OSRAM LED chip SMD2835 and an external driver with CCT color temperature selector function between 3000K / 4000K / 6000K in a single device.
The LED downlight has a high color rendering index CRI+82, which displays vivid and intense colors, true to life.
With an IP54 protection rating on the panel, it is suitable for installations in humid areas such as bathrooms, kitchens, or laundry rooms.

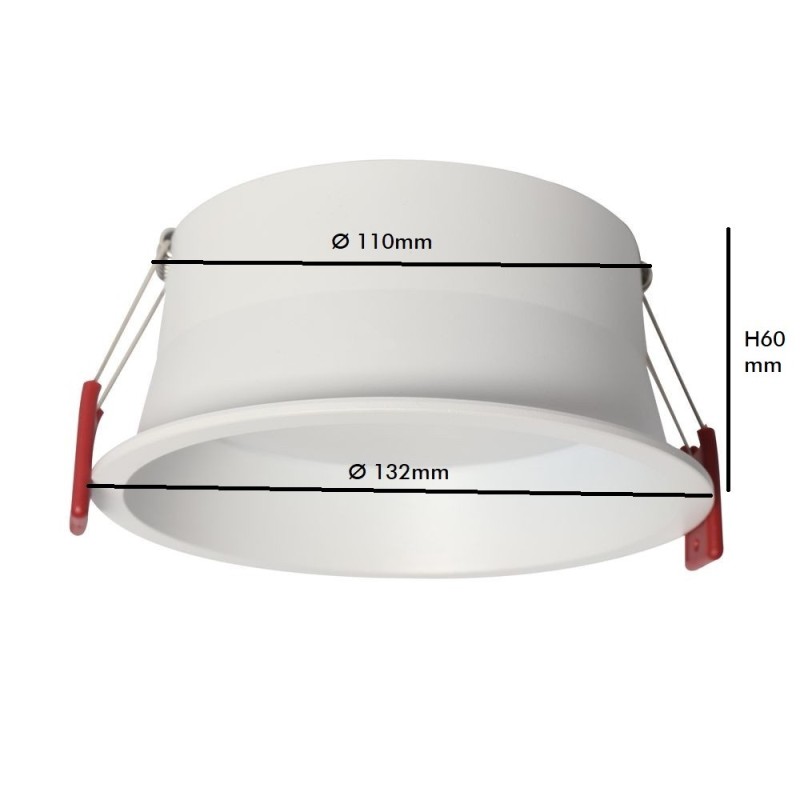

- Dimensions: Ø132x60mm
- Cut-out: Ø120mm
18W CCT OSRAM Chip LED Downlight IP54
Recessed circular LED downlight in white, with excellent performance, featuring a low power consumption of 18W and a luminous flux of 1980 lumens.

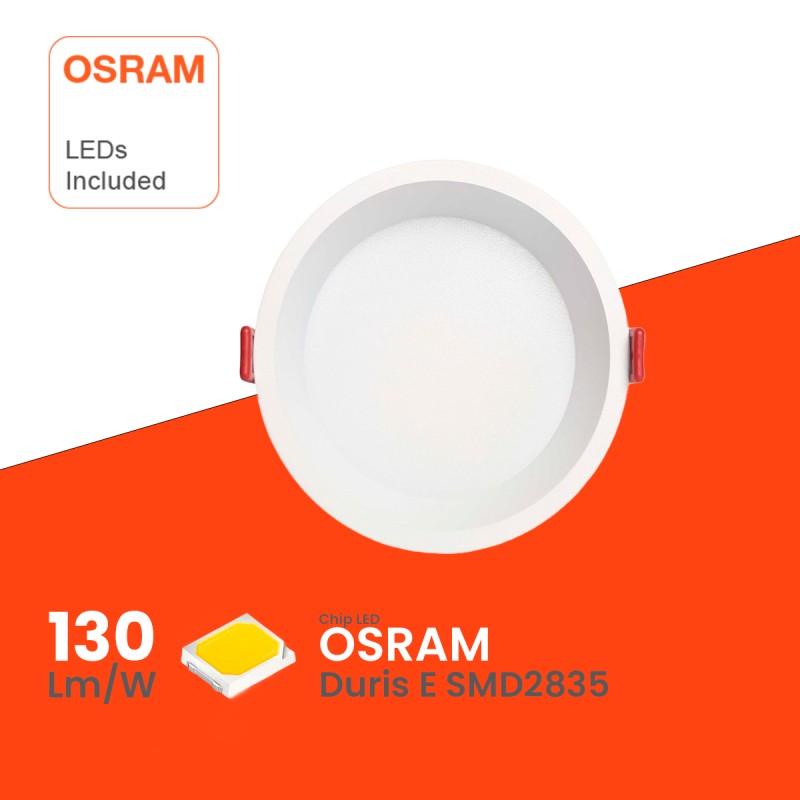

Made of aluminum and PC, the LED downlight incorporates a high-brightness OSRAM LED chip SMD2835 and an external driver with a CCT color temperature selector function between 3000K / 4000K / 6000K in a single device.
The LED downlight has a high color rendering index CRI+82, which displays vivid and intense colors, true to life.
With an IP54 protection rating on the panel, it is suitable for installations in humid areas such as bathrooms, kitchens, or laundry rooms.
- Dimensions: Ø132x60mm
Cut-out: Ø120mm
3-year warranty
Reduced Cut-Out Diameter

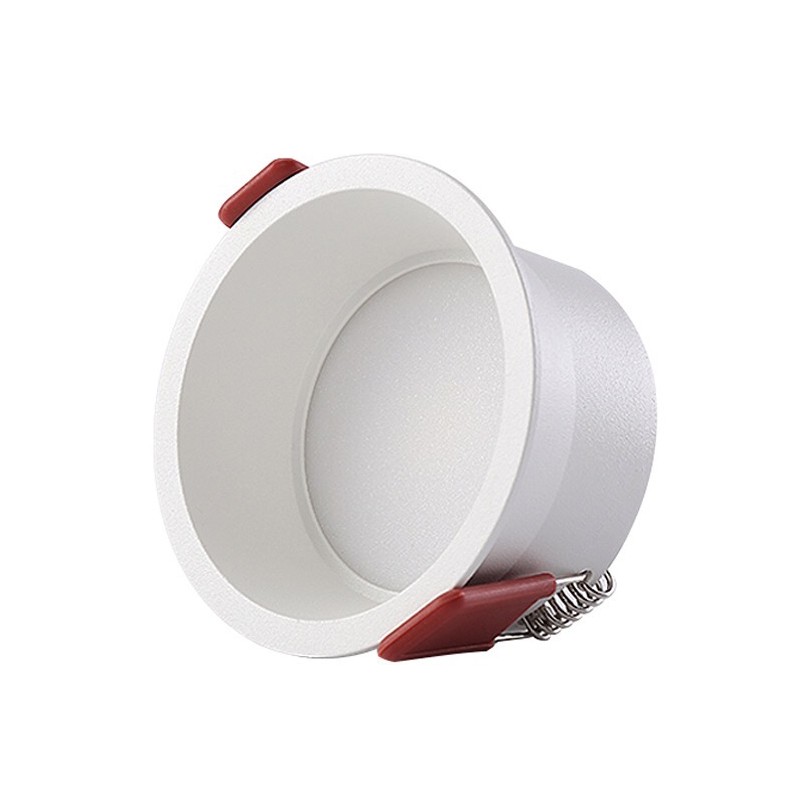

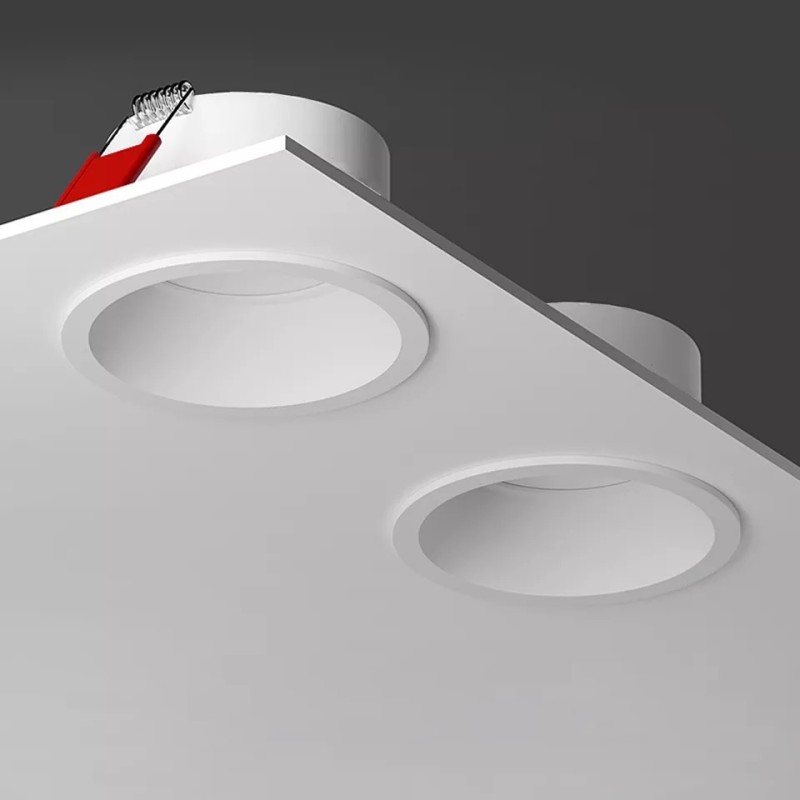

The 18W CCT recessed downlight is a compact luminaire that fits into Ø120mm cut-outs, making replacement easy and quick.
CCT Color Selection

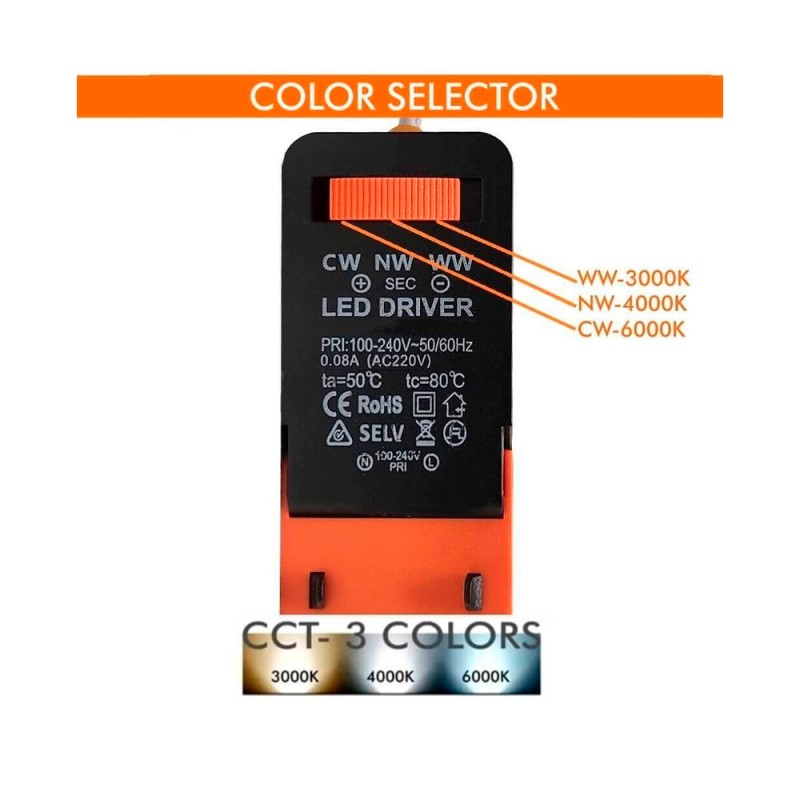

By incorporating the CCT color temperature selection system, it allows, with a single device, to select the color between warm 3000K, neutral 4000K, and cool 6000K, simply by positioning the driver's selector to the desired position.
Anti-Glare UGR<17
The UGR<17 glare index provides high visual comfort, avoiding annoying glare and generating intense, pleasant lighting.
Accurate Color Reproduction CRI+82
A high color rendering index >82 allows for colors to be reproduced faithfully to reality, perfect for highlighting vibrant and intense tones.
IP54 Protection Rating
The IP54 protection rating allows for the installation of the recessed spotlight in humid areas, bathrooms, kitchens, laundry rooms, and covered outdoor spaces.
Data sheet
- Power (W)
- 18
- Power source (V)
- 85-265V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 110
- Brightness (Lm)
- 1980
- CRI
- +82
- Colour
- White
- IP
- IP54
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- Ø132x60mm
- Medida de corte (mm.)
- Ø120mm
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 30.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637211086
