24W 30x60cm selectable CCT LED PANEL LIFUD UGR19 2640Lm

19.95 € (tax incl.)
E
Available
In stock: 394 Items
Reference:
PN24WCCT

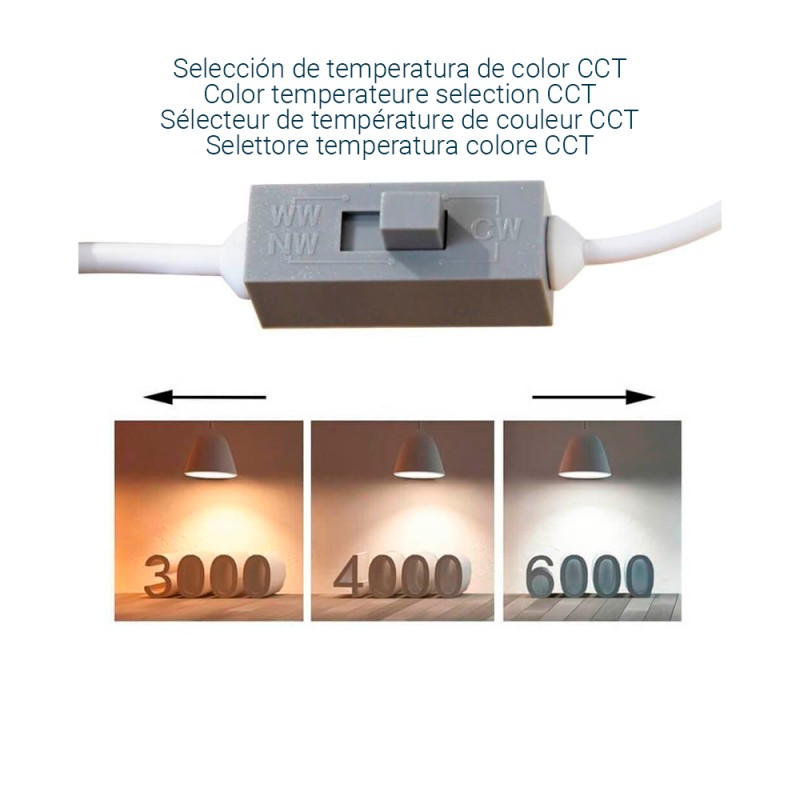

The 30x60cm 24W Recessed LED Panel is an efficient and modern lighting solution with a color temperature selector CCT 3000K-4000K-6000K, ideal for those seeking professional and high-quality lighting.

This 30x60cm LED Panel offers a luminous flux of 2640 lumens thanks to its high brightness and intensity integrated SMD2835 LED lighting system and its bright aluminum reflector. With a performance of over 110Lm/W, it is equivalent to fluorescent panels and luminaires of up to 80W, with energy savings of over 60%. The LED panel enjoys immediate startup, without flickering or noise, with a luminous angle of 160º, making it perfect for installation in areas where it is necessary to maximize the illuminated space, projecting light homogeneously and without glare.

  • Power: 24W
  • Luminous Flux: 2640 lumens
  • LED Chip: High brightness SMD2835
  • Panel Dimensions: 595x295x35mm
  • Luminous Angle: 160º
  • CRI: > 80
Read moreShow less
Download PDF
You may also like
Description

Selectable CCT 24W 30x60cm LED Panel


The 30x60cm 24W Recessed LED Panel is an efficient and modern lighting solution with a CCT 3000K-4000K-6000K color temperature selector, ideal for those seeking professional and high-quality lighting. With an elegant finish, high-quality white lacquered aluminum frame, and dimensions of 595x295x35mm.

This 30x60cm LED Panel offers a luminous flux of 2640 lumens thanks to its high brightness and intensity integrated SMD2835 LED lighting system and its bright aluminum reflector. With a performance of over 110Lm/W, it is equivalent to fluorescent panels and luminaires of up to 80W, with energy savings of over 60%. The LED panel enjoys immediate startup, without flickering or noise, with a luminous angle of 160º, making it perfect for installation in areas where it is necessary to maximize the illuminated space, projecting light homogeneously and without glare.

Mounting and Installation of the 60x30cm LED Panel

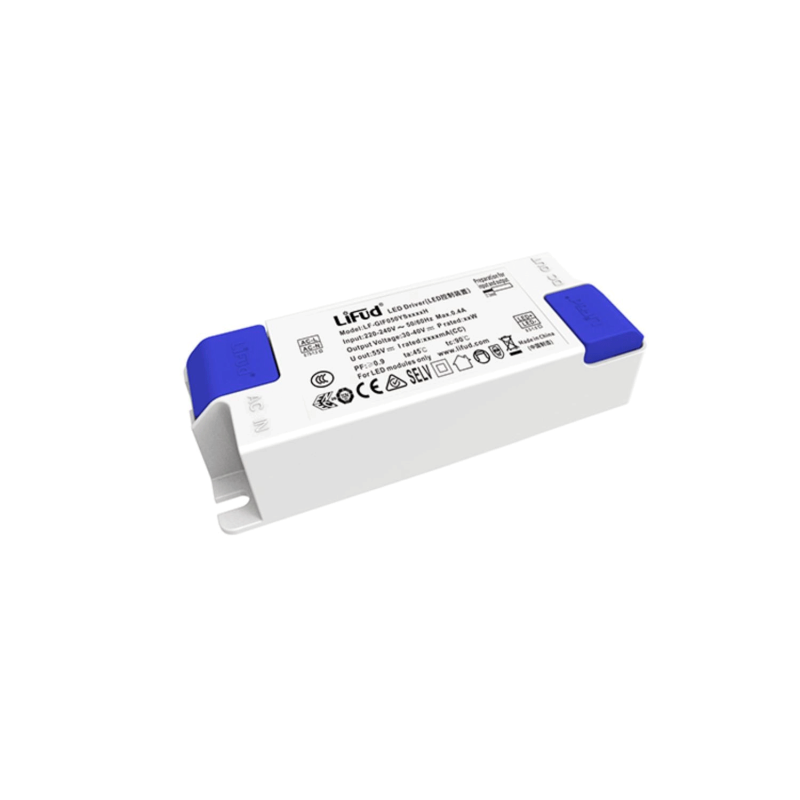

The recessed LED panel includes a high-quality and durable external LED driver to maximize the lifespan of the LED panel. The driver includes the latest insulation and protection technology, complying with all CE and RoHS standards. It also supports a wide input voltage range of 220-240V. The included driver is NOT dimmable, so if you want to dim your LED panel, contact us and we will offer alternatives such as purchasing additional TRIAC dimmable drivers.

Mounting Methods


The LED panel supports 3 mounting methods:

  • Ceiling tile mounting: The most common mounting method. Remove a plasterboard tile or the old fluorescent luminaire, connect the driver to the power supply, and place the LED panel resting on the aluminum profiles. Remember that the panel connects via the supplied driver directly to the power supply and does not require ballasts or reactors.
  • Hanging / suspended mounting: We offer additional accessories such as steel cables to hang the LED panels from the ceiling (not included in the initial supply, sold separately). This solution is perfect for illuminating specific areas, especially in those areas with very high ceilings.
  • Recessed in plasterboard ceiling: Similarly, we have downlight-type clips to place the LED panels on false plasterboard ceilings. These clips are also sold separately.

Uses and Applications of the 60x30cm 24W LED Panel


The 30x60cm 24W LED Panel is ideal for a variety of applications:

  • Kitchens and bathrooms: Intense lighting in a compact, easy-to-install luminaire
  • Offices, studios, and desks: Provides clear and uniform lighting, ideal for work environments.
  • Meeting rooms: Offers suitable lighting for meetings and presentations.
  • Restaurants and bars: Creates a pleasant and well-lit atmosphere for customers.
  • Hotels: Perfect for common areas and rooms, offering quality lighting.
  • Libraries and schools: Ensures optimal lighting in classrooms and hallways.
  • Shops and businesses: Enhances product visibility and creates a pleasant atmosphere for customers.

Technical Specifications


  • Material: Aluminum and PC
  • Power: 24W
  • Luminous Flux: 2640 lumens
  • LED Chip: High brightness SMD2835
  • Color: White
  • Panel Dimensions: 595x295x35mm
  • IP Rating: IP20
  • Luminous Angle: 160º
  • Power Factor: > 0.91
  • CRI: > 80
  • Warranty: 5 years

What is a Backlit LED Panel?


A backlit LED panel is a type of LED panel that features lighting at the base of the panel, allowing for much superior light diffusion compared to slim panels. These panels are thicker, more rigid, and robust, and their diffuser does not yellow over time. Backlighting ensures uniform and glare-free light, improving the quality of lighting in any space.

Read moreShow less
Product Details
PN24WCCT

Data sheet

Power (W)
24
Power source (V)
220-240V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
SMD2835
Luminous efficacy (Lm/W)
110
Brightness (Lm)
2640
CRI
+80
Colour
White
IP
IP20
Luminous angle
120º
Frequency (Hz)
50-60Hz
Measures (mm)
595x295x35mm
Material
Aluminum + PC
Driver
LIFUD
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
E
Lifespan
50.000h
Certification
CE - RoHS
Warranty
5 años
Frequently questions

questions Jose Miguel on 2023-12-20 20:21:07
Question:

Buenas tardes Necesitaria saber si el Panel LED 30x60cm 24W CCT 2760Lm de referencia PN24W60X3, se puede montar con un kit de superficie que teneis de 60x30cm. Un saludo, a la espera de su respuesta, gracias

Answer:

El kit de superficie con referencia PL-T30X60 es compatible con el panel PN24W60X30 para poder montar en superficie.
