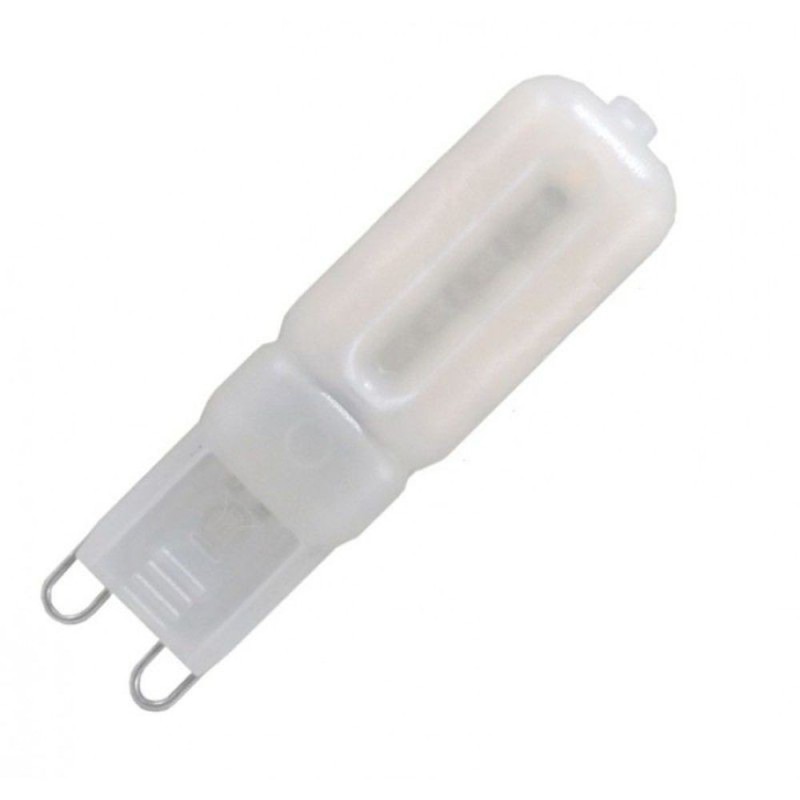

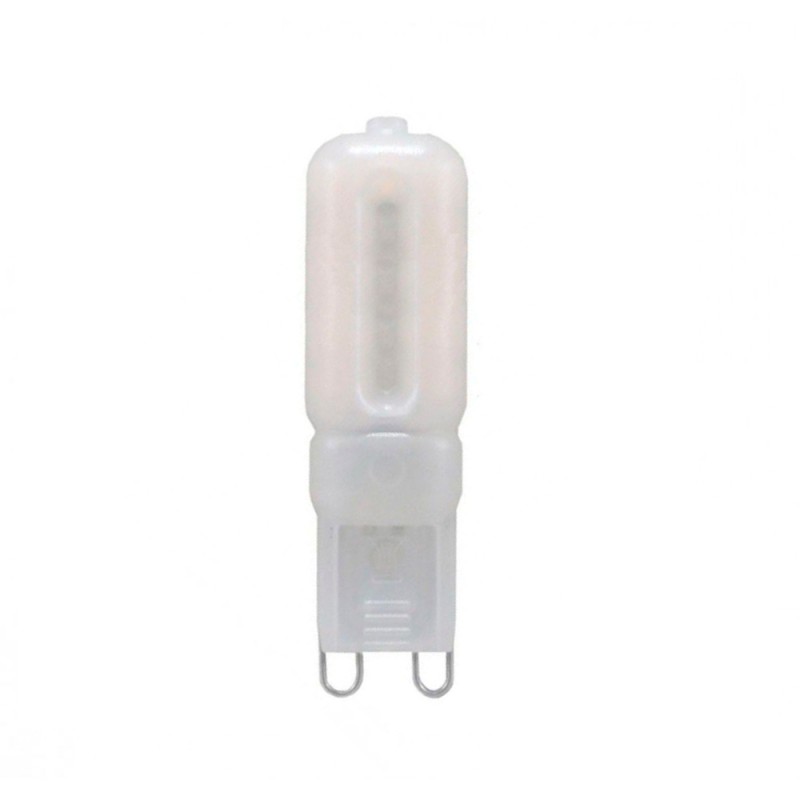

5W 230V G9 bi-pin dimmable LED Bulb 420Lm
Discover the efficiency and versatility of the 5W G9 LED bulb, perfect for decorative and bedside lamps, thanks to its high power and performance.
The G9 LED bulb is equipped with 24 SMD2835 LEDs, providing bright illumination of 420 lumens. This bulb is ideal for those looking to enhance lighting in small and detailed spaces, offering intense and focused light.
It is dimmable between 40% and 100% via TRIAC control, allowing the light intensity to be adjusted according to needs or desired ambiance. The G9 connector design, consisting of two small metallic clips, makes this bulb compatible with many modern small-sized lamps.
- Power: 5W
- Dimmable: 40% - 100% (TRIAC system)
- LED Type: SMD2835
- Luminous flux: 420 lumens
- Connector: G9 type
- Dimensions: 16x60mm
Bi-pin G9 LED Bulb 5W 230V Dimmable TRIAC 420 lm
The 5W dimmable G9 LED bulb with 24 SMD2835 LEDs emits 420 lumens of intense, targeted light. Dimmable from 40% to 100% via TRIAC control, 230V connection, compact format (Ø16x60 mm), ideal for decorative and bedside lamps.
⚡ 5W💡 420 lm🔆 Dimmable🔌 G9
| 5W Power | 420 lm Luminous flux | 40-100% Dimmable | G9 Base |
The 5W G9 LED bulb is perfect for decorative and bedside lamps, thanks to its high power and high efficiency. Fitted with 24 SMD2835 LEDs, it produces bright 420-lumen lighting, ideal for improving lighting in small, precise spaces with intense, targeted light.

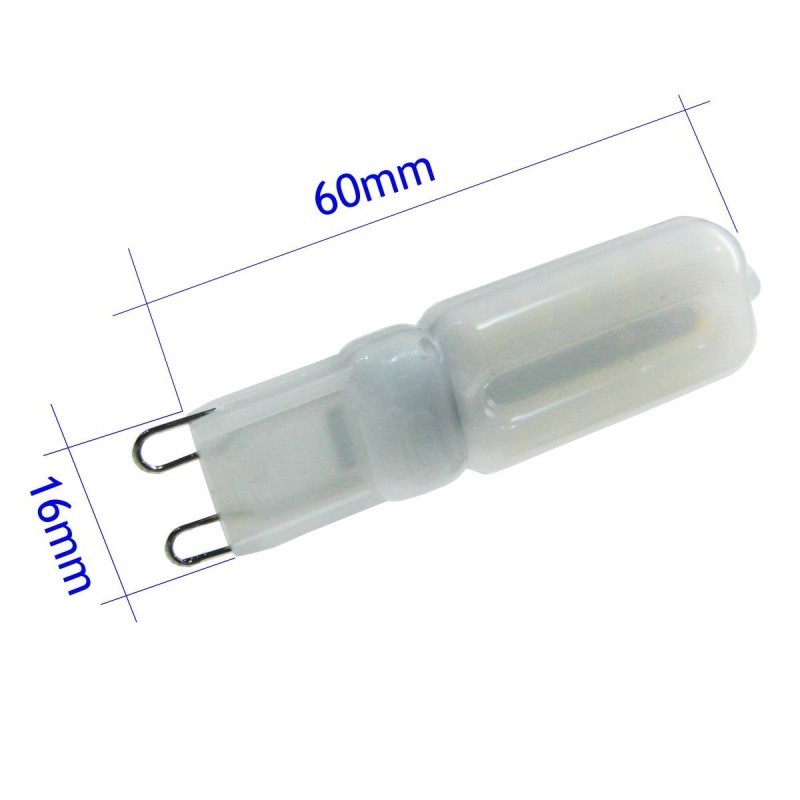

It is dimmable from 40% to 100% via TRIAC control, letting you adjust the intensity as needed or for the desired atmosphere. Its G9 connector (two small metal clips) makes it compatible with many modern small lamps. With a total length of 60 mm (connector included) and a 16 mm diameter, it combines functionality and design in a compact format.
Why choose this product?
Adjust the intensity via TRIAC control.
Intense, targeted light for small spaces.
Ø16x60 mm, compatible with modern lamps.
Technical specifications
| Product type | Dimmable bi-pin G9 LED bulb |
|---|---|
| Power | 5W |
| Luminous flux | 420 lm |
| LED | 24 SMD2835 |
| Dimming | 40% to 100% (TRIAC) |
| Connection | 230V |
| Base | G9 |
| Dimensions | Ø16x60 mm |
Advantages
- Dimmable 40-100%: TRIAC control.
- 24 LEDs, 420 lm: intense light.
- G9 base: decorative and bedside lamps.
- Compact format: Ø16x60 mm.
- 230V connection: simple installation.
- Targeted light: small precise spaces.
Recommended applications
| 🚪 | Bedside lamps — adjustable light. |
| 🏠 | Decorative lamps — compact G9 format. |
| 🏛 | Wall lights and chandeliers — ambient lighting. |
| 🌿 | Living rooms and bedrooms — adjustable intensity. |
Installation guide
| 1 | Switch off the power Cut the supply before working. |
| 2 | Remove the old bulb Remove the G9 bulb to be replaced. |
| 3 | Insert the G9 bulb Insert the clips into the G9 socket. |
| 4 | Adjust the intensity Restore power and set the dimming (40-100%) via the TRIAC dimmer. |
Frequently asked questions
Yes, from 40% to 100% with a TRIAC dimmer.
Compact: Ø16x60 mm, G9 base.
420 lumens, via 24 SMD2835 LEDs.
| ⚡ 5W 420 lm | 🔆 Dimmable 40-100% | 🔌 G9 230V | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 5
- Power source (V)
- 220-240V
- Color temperature CCT
- 3000K
4000K
- LED
- SMD2835
- Dimmable
- Sí, TRIAC
- Lampholder
- G9
- Luminous efficacy (Lm/W)
- 85
- Brightness (Lm)
- 420
- Measures (mm)
- Ø16x60mm
Specific References
- ean13
- 8435637206457
