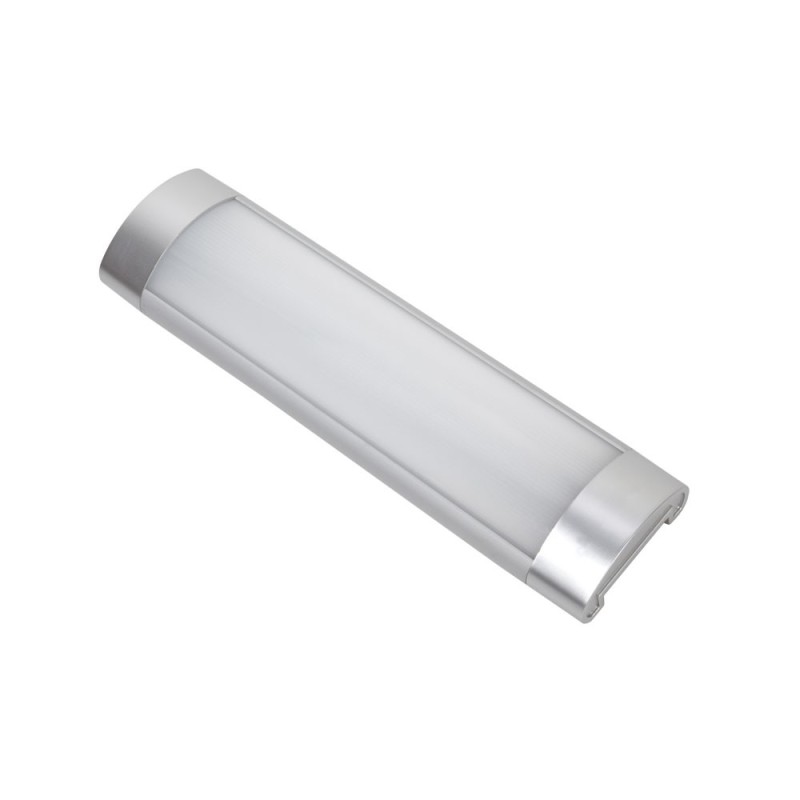

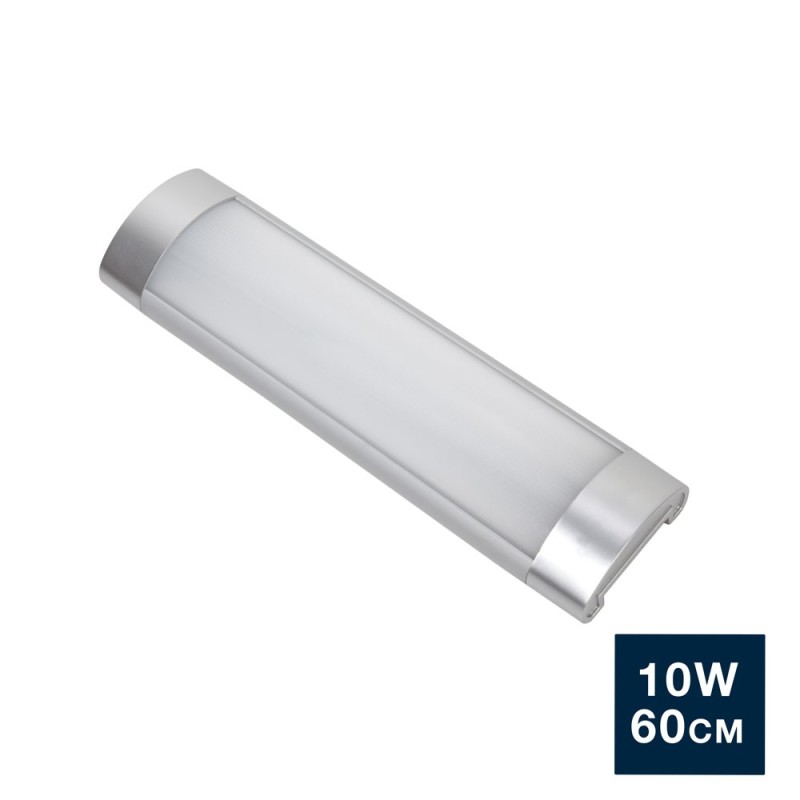

10W 60cm LED Linear Batten IP20 960Lm
The 10W LED Linear Batten is the ideal solution for efficient and discreet indoor lighting. With a length of 60cm and a design in aluminum and polycarbonate with a silver finish, this batten provides a modern and elegant touch to any space. Thanks to its SMD2835 high-brightness LED chip, it delivers a uniform, clear light of 960 lumens, with a neutral white color temperature of 4000K, ideal for any environment.
- Power: 10W
- Luminous Flux: 960 lumens
- Light Color: Neutral White 4000K
- LED Chip: High-brightness SMD2835
- IP Rating: IP20, for indoor use
- Beam Angle: 180º, uniform coverage
- Color Rendering Index (CRI): >85
- Impact Protection: IK08, impact-resistant
- Dimensions: 600x80x36mm
- Input Voltage: 100-240V
LED Linear Batten 10W 60cm - Neutral White 4000K
Efficient and Elegant Linear Lighting for Indoor Use
The 10W LED Linear Batten is the ideal solution for efficient and discreet indoor lighting. With a length of 60cm and a design in aluminum and polycarbonate with a silver finish, this batten provides a modern and elegant touch to any space. Thanks to its SMD2835 high-brightness LED chip, it delivers a uniform, clear light of 960 lumens, with a neutral white color temperature of 4000K, ideal for any environment.
Technical Specifications
- Power: 10W
- Luminous Flux: 960 lumens
- Light Color: Neutral White 4000K
- LED Chip: High-brightness SMD2835
- IP Rating: IP20, for indoor use
- Beam Angle: 180º, uniform coverage
- Color Rendering Index (CRI): >85
- Impact Protection: IK08, impact-resistant
- Dimensions: 600x80x36mm
- Input Voltage: 100-240V

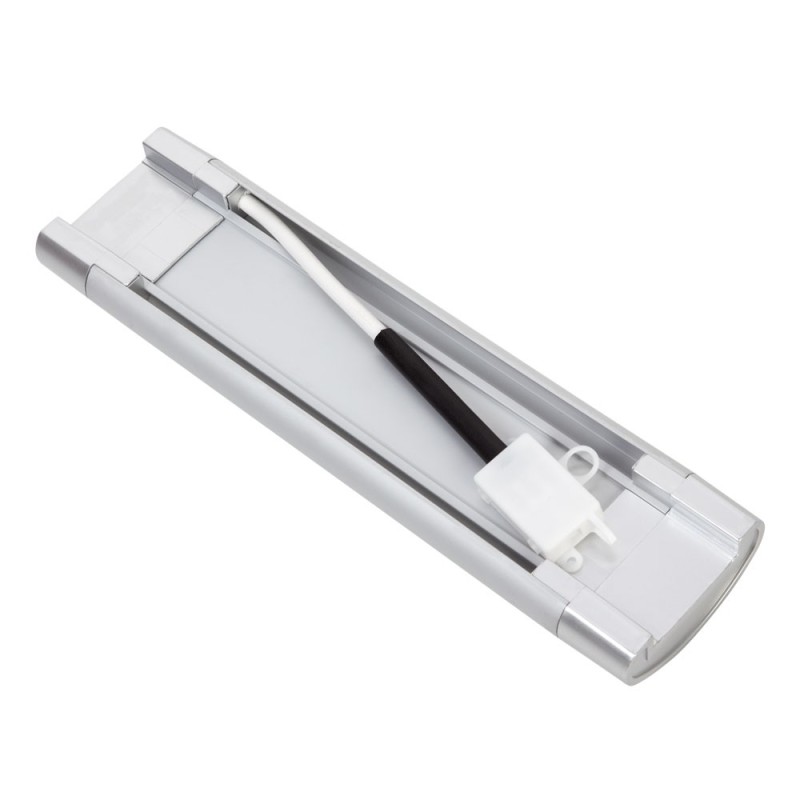

Installation and Hidden Connectivity
The LED Batten offers an easy and quick installation, with the connection cable located at the back, discreetly connected via the integrated batten, ensuring a clean finish with no visible cables. This allows for seamless integration into any space without compromising aesthetics.
Product Advantages
- High Energy Efficiency: 10W consumption with high light output, ideal for reducing energy costs.
- Elegant Finish: Aluminum and polycarbonate with a silver finish, adaptable to any style.
- Uniform Light Distribution: 180º angle for homogeneous illumination.
- Durability and Resistance: IK08 impact protection, ensuring a long life span.
Recommended Applications
Perfect for a wide range of indoor lighting applications, such as:
- Kitchens: Ideal for illuminating workspaces or under cabinets.
- Offices and Desks: Provides clear, neutral lighting for work areas.
- Hallways and Corridors: Ensures uniform and safe illumination.
- Stores and Display Cases: Effectively highlights products and merchandise.
With its high-quality construction and elegant design, the 10W LED Linear Batten is the perfect solution for those seeking efficient and discreet indoor lighting.
Data sheet
- Power (W)
- 10
- Power source (V)
- 100-240V
- Color temperature CCT
- 4000K
- LED
- SMD2835
- Brightness (Lm)
- 960
- CRI
- +85
- Colour
- Plata
- IP
- IP20
- IK
- IK08
- Luminous angle
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 600x80x36mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637204156
