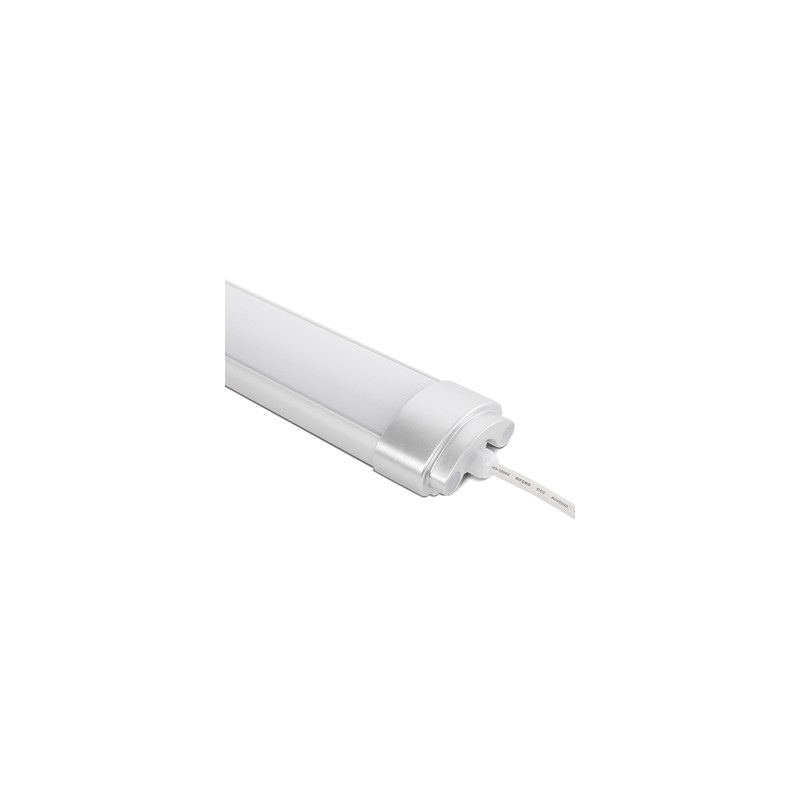

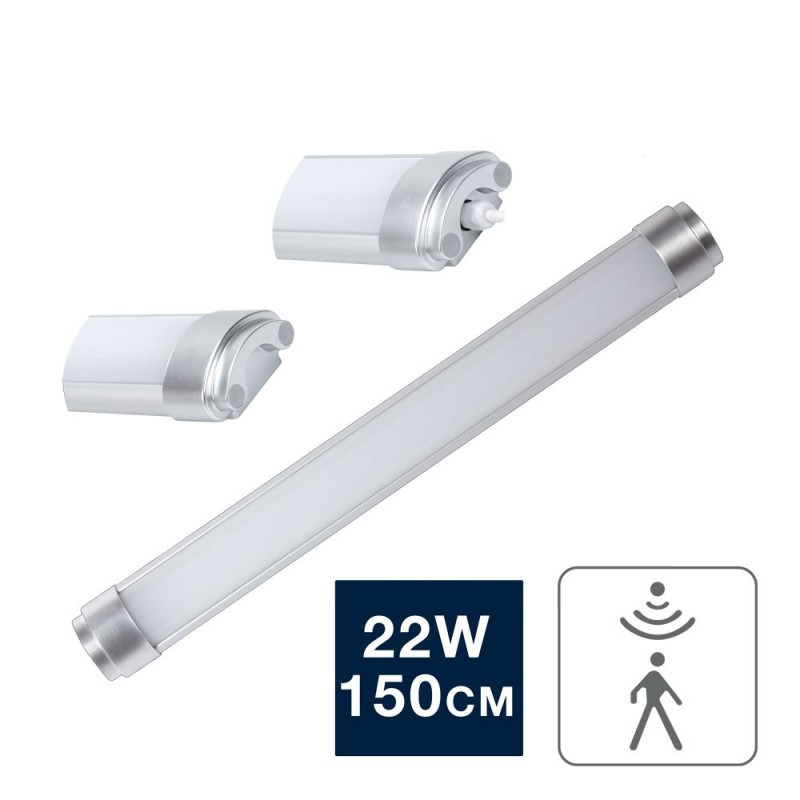

22W 150cm Waterproof LED Batten Radar Sensor + permanent light 20% 2420Lm IP65
The Waterproof LED Batten Slim 22W is a modern and efficient lighting solution, featuring an ultra-thin design in elegant silver-colored aluminum and an opal PC diffuser. This luminaire offers a luminous flux of 2420 lumens thanks to its high-brightness SMD2835 integrated LED. With a length of 150 cm, it is ideal for a wide range of applications.
The waterproof LED batten is wired at one end and features a permanent 20% power mode, which switches to 100% upon detecting presence, offering efficient and adaptable lighting. Its IP65 rating and IK08 impact resistance make it suitable for indoor and outdoor use, protecting it against dust, water jets, and impacts.
- Power: 22W
- Length: 150 cm
- Material: Silver-colored aluminum and opal PC diffuser
- Luminous Flux: 2420 lumens
- Protection Rating: IP65
- Impact Resistance: IK08
- Dimensions: 1500x80x36mm
Waterproof LED Batten 22W 150 cm Radar Sensor + 20% Permanent Light 2420 lm IP65
The slim waterproof LED batten 22W (150 cm) with an ultra-thin silver aluminium design delivers 2420 lumens. Radar presence detector: 20% permanent light that rises to 100% on detection. IP65 and IK08, indoor and outdoor.
⚡ 22W💡 2420 lm📡 Radar☂ IP65
| 22W Power | 2420 lm Luminous flux | Radar Sensor | IP65 / IK08 Protection |
The slim waterproof LED batten 22W is a modern, efficient lighting solution, with an ultra-thin design in elegant silver aluminium and an opal PC diffuser. With a length of 150 cm, it offers a luminous flux of 2420 lumens thanks to its integrated high-brightness SMD2835 LED, ideal for a wide range of applications.
It is wired at one end and features an advanced radar presence detector: the luminaire stays on at 20% permanently and rises to 100% when presence is detected, optimising consumption and improving safety. Its IP65 rating and IK08 impact resistance make it suitable for indoor and outdoor use, protecting it against dust, water jets and impacts.
Why choose this product?
20% permanently, 100% on presence detection.
Waterproof and impact-resistant, in/out.
Silver aluminium and opal diffuser, 2420 lm.
Technical specifications
| Product type | Slim waterproof LED batten with radar sensor |
|---|---|
| Power | 22W |
| Length | 150 cm |
| Luminous flux | 2420 lm |
| LED | Integrated high-brightness SMD2835 |
| Sensor | Radar presence detector |
| Mode | Permanent 20% → 100% on detection |
| Material | Silver aluminium + opal PC diffuser |
| Protection | IP65 |
| Impact resistance | IK08 |
| Installation | Wired at one end |
| Dimensions | 1500x80x36 mm |
Advantages
- Radar detector: 20% permanent, 100% on detection.
- IP65 / IK08: waterproof and impact-resistant.
- Slim design: silver aluminium, opal diffuser.
- SMD2835: high brightness and efficiency.
- Energy savings: adaptive lighting.
- Indoor/outdoor: versatile installation.
Recommended applications
| 🚪 | Garages and car parks — detection-based lighting. |
| 🏠 | Corridors and stairs — safety and savings. |
| 🏛 | Cellars and passageways — adaptive light. |
| 🌿 | Warehouses — waterproof IP65 lighting. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the batten Fix the batten to the ceiling or wall. |
| 3 | Wire at one end Make the wired connection at one end. |
| 4 | Check the sensor Restore power and test detection (20% → 100%). |
Frequently asked questions
It keeps 20% light permanently and rises to 100% on detection.
Yes, IP65 and IK08 suit indoor and outdoor use.
2420 lumens, with a high-brightness SMD2835 LED.
| ⚡ 22W 2420 lm | 📡 Radar 20%→100% | ☂ IP65 IK08 | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 22
- Power source (V)
- 100-240V
- Color temperature CCT
- 4000K
6500K
- Brightness (Lm)
- 2420
- IP
- IP65
- IK
- IK08
- Luminous angle
- 120º
- Measures (mm)
- 1500x80x36mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637203913
