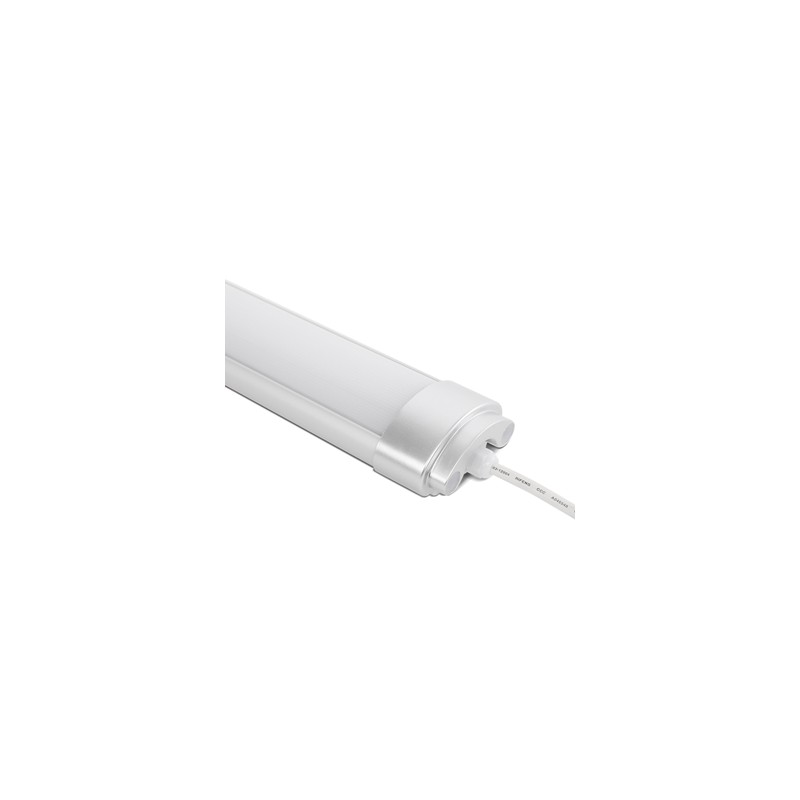

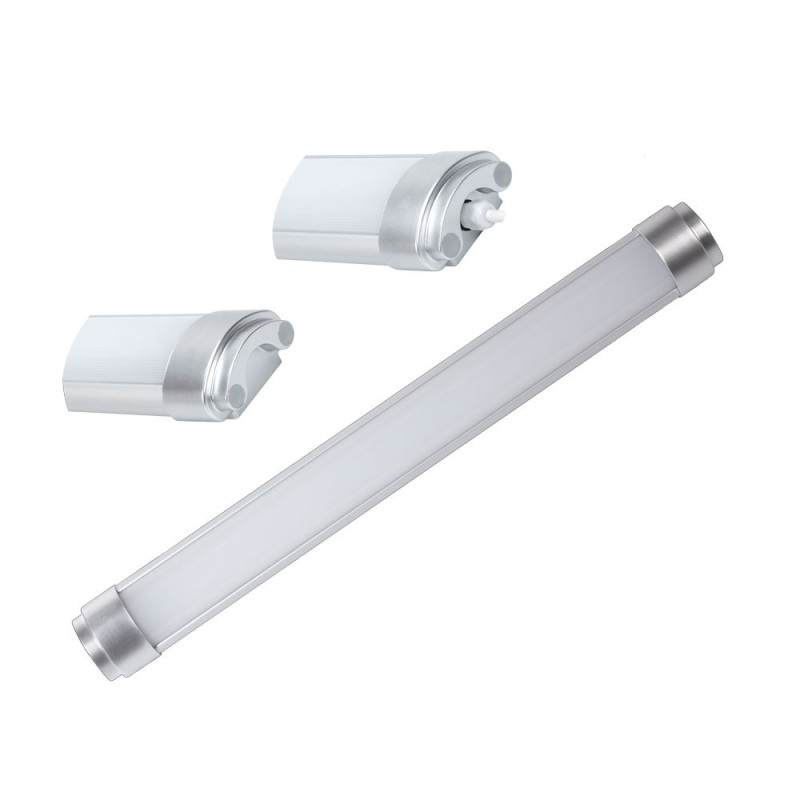

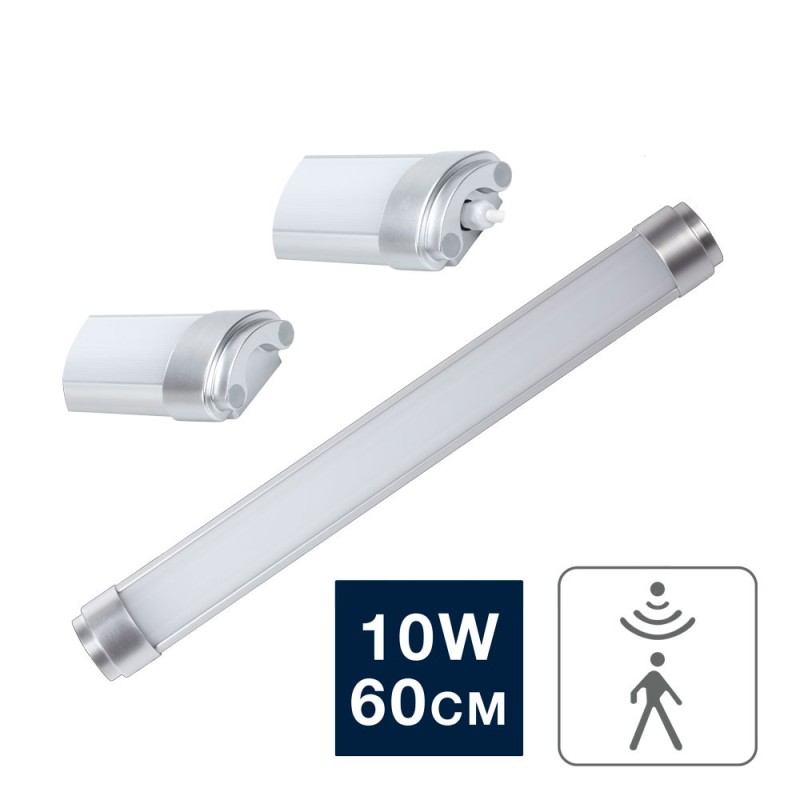

10W 60cm Waterproof LED Batten Radar Sensor + permanent light 20% 1100Lm IP65
The Waterproof LED Batten Slim 10W is a modern and efficient lighting solution, featuring an ultra-thin design in elegant silver-colored aluminum and an opal PC diffuser. This luminaire provides a luminous flux of 1100 lumens thanks to its integrated SMD2835 high-brightness LED. With a length of 60cm, it is ideal for a wide range of applications, especially as lighting for elevator doors due to its durability and sleek design.
The waterproof LED batten is wired at one end and features a system that remains permanently on at 20%, increasing to 100% when presence is detected, providing efficient and adaptive lighting. Its IP65 rating and IK08 impact resistance make it suitable for both indoor and outdoor use, protecting it from dust, water jets, and impacts.
- Power: 10W
- Length: 60cm
- Material: Silver-colored aluminum and opal PC diffuser
- Luminous Flux: 1100 lumens
- Protection Rating: IP65
- Impact Resistance: IK08
- Measures: 600x80x36mm
Waterproof LED Batten 10W 60 cm Radar Sensor + 20% Permanent Light 1100 lm IP65
The slim waterproof LED batten 10W (60 cm) with an ultra-thin silver aluminium design delivers 1100 lumens. Radar presence detector: 20% permanent light that rises to 100% on detection. IP65 and IK08, indoor and outdoor.
⚡ 10W💡 1100 lm📡 Radar☂ IP65
| 10W Power | 1100 lm Luminous flux | Radar Sensor | IP65 / IK08 Protection |
The slim waterproof LED batten 10W is a modern, efficient lighting solution, with an ultra-thin design in elegant silver aluminium and an opal PC diffuser. With a length of 60 cm, it offers a luminous flux of 1100 lumens thanks to its integrated high-brightness SMD2835 LED, ideal for a wide range of applications.
It is wired at one end and features an advanced radar presence detector: the luminaire stays on at 20% permanently and rises to 100% when presence is detected, optimising consumption and improving safety. Its IP65 rating and IK08 impact resistance make it suitable for indoor and outdoor use, protecting it against dust, water jets and impacts.
Why choose this product?
20% permanently, 100% on presence detection.
Waterproof and impact-resistant, in/out.
Silver aluminium and opal diffuser, 1100 lm.
Technical specifications
| Product type | Slim waterproof LED batten with radar sensor |
|---|---|
| Power | 10W |
| Length | 60 cm |
| Luminous flux | 1100 lm |
| LED | Integrated high-brightness SMD2835 |
| Sensor | Radar presence detector |
| Mode | Permanent 20% → 100% on detection |
| Material | Silver aluminium + opal PC diffuser |
| Protection | IP65 |
| Impact resistance | IK08 |
| Installation | Wired at one end |
Advantages
- Radar detector: 20% permanent, 100% on detection.
- IP65 / IK08: waterproof and impact-resistant.
- Slim design: silver aluminium, opal diffuser.
- SMD2835: high brightness and efficiency.
- Energy savings: adaptive lighting.
- Indoor/outdoor: versatile installation.
Recommended applications
| 🚪 | Garages and car parks — detection-based lighting. |
| 🏠 | Corridors and stairs — safety and savings. |
| 🏛 | Cellars and passageways — adaptive light. |
| 🌿 | Warehouses — waterproof IP65 lighting. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the batten Fix the batten to the ceiling or wall. |
| 3 | Wire at one end Make the wired connection at one end. |
| 4 | Check the sensor Restore power and test detection (20% → 100%). |
Frequently asked questions
It keeps 20% light permanently and rises to 100% on detection.
Yes, IP65 and IK08 suit indoor and outdoor use.
1100 lumens, with a high-brightness SMD2835 LED.
| ⚡ 10W 1100 lm | 📡 Radar 20%→100% | ☂ IP65 IK08 | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 10
- Power source (V)
- 100-240V
- Color temperature CCT
- 4000K
6500K
- Brightness (Lm)
- 1100
- IP
- IP65
- IK
- IK08
- Luminous angle
- 120º
- Measures (mm)
- 600x80x36mm
- Material
- ABS
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637203845
