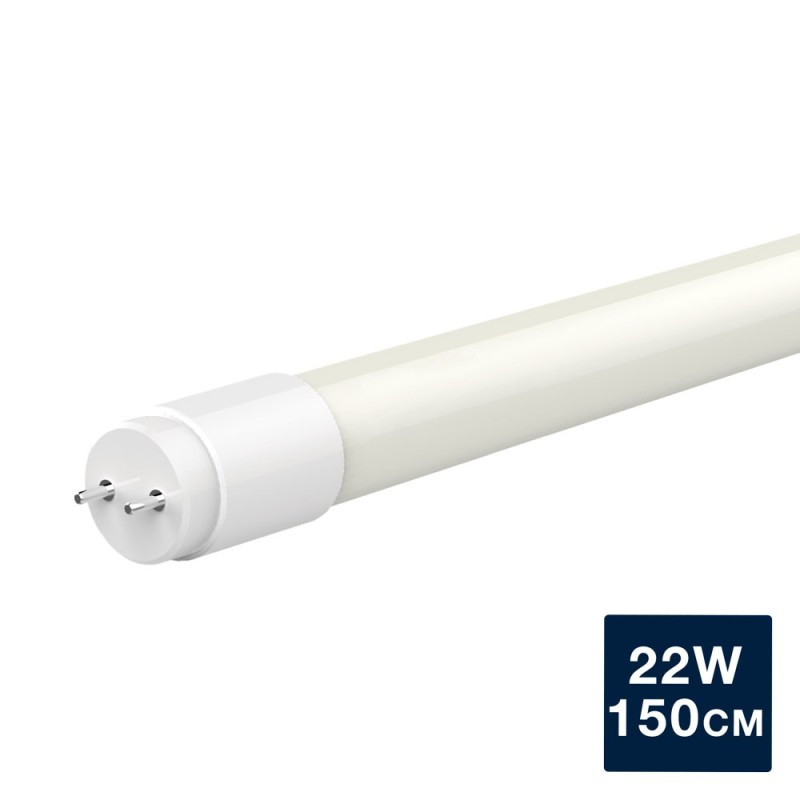

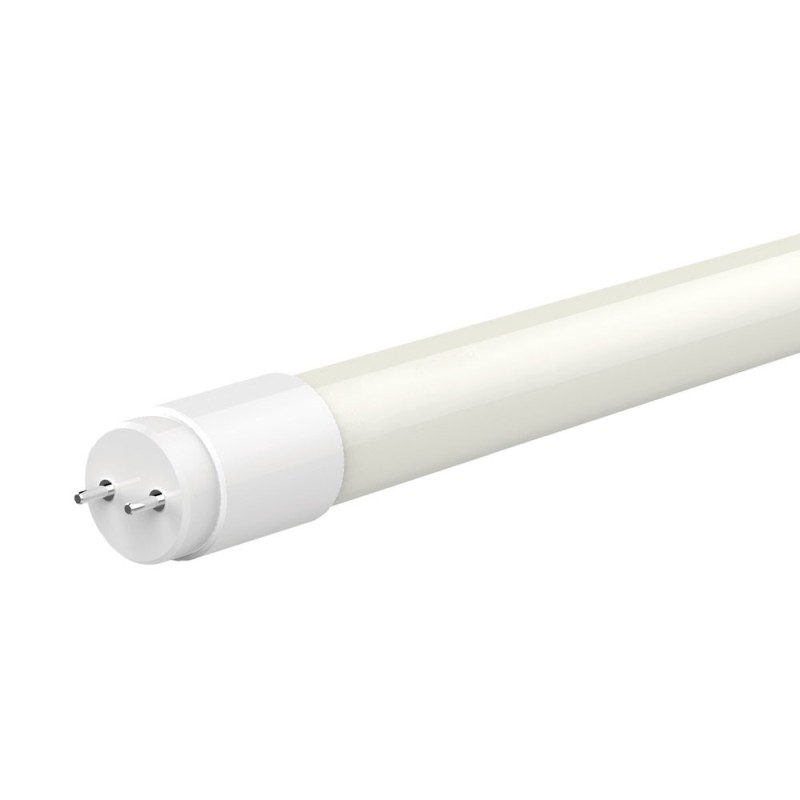

150cm 22W T8 PC LED Tube 2180Lm 1-Side Connection

Limited special offer
2.89 € (tax incl.) 4.82 €
Available
Color temperature CCT (ºK)
  • Natural white 4000K
In stock: 528 Items
The minimum purchase order quantity for the product is 2.
Reference:
TLPLUS22W/840

The 150cm T8 LED Tube with 22W power is designed to offer a quick, simple, and safe replacement solution for luminaires with fluorescent tubes. Made from aluminum and opal PC, it provides a luminous flux of 2180 lumens with a 270º beam angle, ensuring uniform light distribution in any space.

The T8 LED Tube is compatible with existing installations that use magnetic ballasts, making installation easy without the need for electrical modifications. Unlike other tubes, it maintains its long lifespan without being affected by the ballast, making it an ideal option for quickly replacing conventional fluorescent tubes.

This T8 LED tube model offers a 1-end connection, enhancing safety during installation and use, reducing the risk of incorrect connections. You only need to connect the phase and neutral on one side, simplifying the installation process.

  • Power: 22W
  • Luminous Flux: 2180 lumens
  • Beam Angle: 270º
  • Connection: 1-end
  • Material: Aluminum + Opal PC
  • Length: 150cm
Read moreShow less
Download PDF
You may also like
No items
Description

T8 LED Tube 150cm 22W Aluminum + Opal PC - 1-End Connection


Quick and Safe Replacement with High Efficiency

The 150cm T8 LED Tube with 22W power is designed to offer a quick, simple, and safe replacement solution for luminaires with fluorescent tubes. Made from aluminum and opal PC, it provides a luminous flux of 2180 lumens with a 270º beam angle, ensuring uniform light distribution in any space.

Installation with Magnetic Ballast

The T8 LED Tube is compatible with existing installations that use magnetic ballasts, making installation easy without the need for electrical modifications. Unlike other tubes, it maintains its long lifespan without being affected by the ballast, making it an ideal option for quickly replacing conventional fluorescent tubes.

1-End Connection for Increased Safety

This T8 LED tube model offers a 1-end connection, enhancing safety during installation and use, reducing the risk of incorrect connections. You only need to connect the phase and neutral on one side, simplifying the installation process.

Technical Specifications


  • Power: 22W
  • Luminous Flux: 2180 lumens
  • Beam Angle: 270º
  • Connection: 1-end
  • Material: Aluminum + Opal PC
  • Length: 150cm
  • Diameter: Ø26mm
  • Compatibility: Magnetic ballast

Advantages of the 150cm 22W T8 LED Tube


  • Easy installation with 1-end connection for enhanced safety.
  • Compatible with magnetic ballasts, maintaining its long lifespan.
  • Uniform light distribution with a 270º beam angle.
  • Made from high-quality materials: Aluminum and Opal PC.

Applications of the 150cm 22W T8 LED Tube


The 150cm T8 LED Tube is ideal for a wide variety of commercial and industrial applications, such as:

  • Warehouses
  • Offices
  • Workshops
  • Garages
  • Supermarkets
  • Common areas in residential buildings
Read moreShow less
Product Details
TLPLUS22W/840

Data sheet

Power (W)
22
Power source (V)
100-240V
Color temperature CCT
4000K
LED
SMD2835
Lampholder
G13
Brightness (Lm)
2180
CRI
+80
IP
IP20
Luminous angle
270º
Measures (mm)
Ø28x1500mm
Material
Aluminum + PC
Operating temperature
-20ºC ~ +40ºC
Energy efficiency 2021
A+
Certification
CE - RoHS
Warranty
3 años

Specific References

ean13
8435637204040
