5W 30cm Selectable CCT Undercabinet T5 LED batten with switch

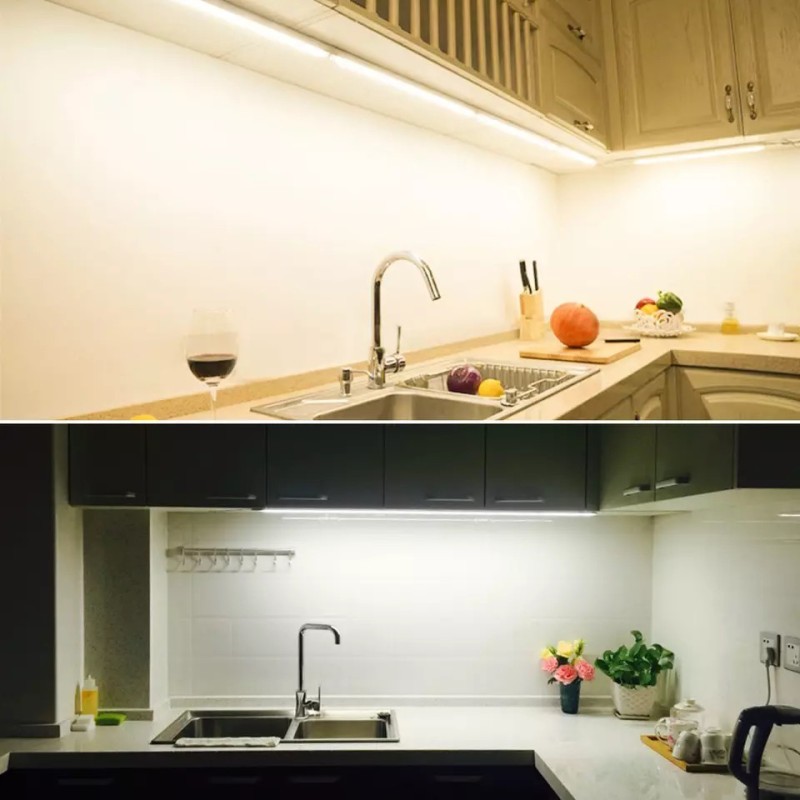

The 5W T5 LED Batten is an efficient, compact lighting solution, perfect for installing under kitchen cabinets, shelves, counters, and bookcases. With a length of 295mm and a luminous flux of 472 lumens, this batten provides uniform lighting with no shadows or dark spots, ideal for highlighting specific areas and adding a modern touch to any setting.

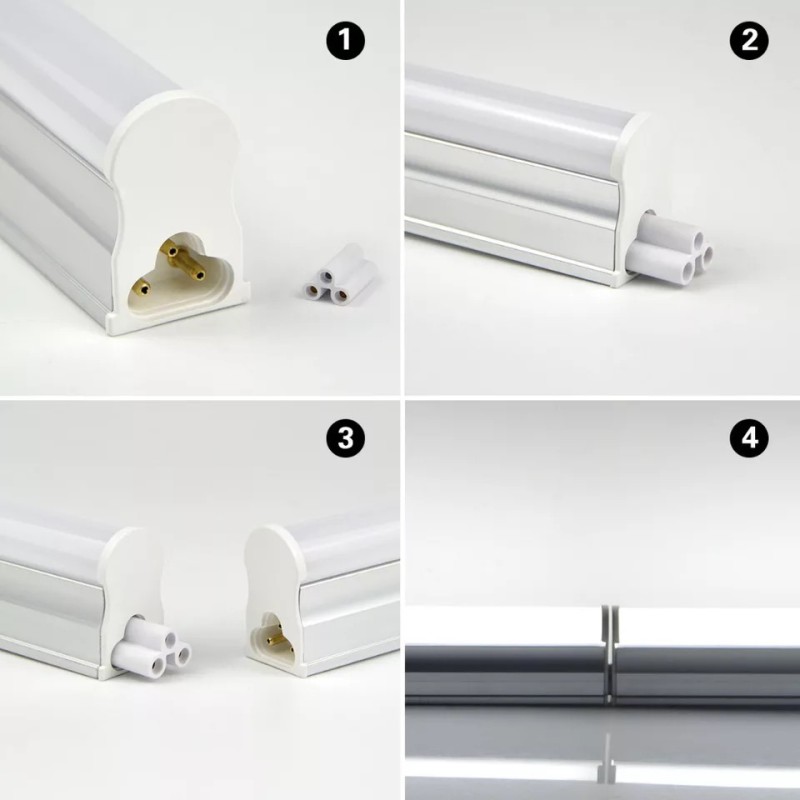

Thanks to its modular and connectable design, it is possible to interconnect up to 10 T5 battens with a single power source, allowing large areas to be illuminated continuously without light interruptions. Additionally, the 30cm LED T5 batten can be combined with battens of different lengths to adapt to any space, offering completeee flexibility during installation.
- Power: 5W
- Luminous Flux: 472 lumens
- Dimensions: 295x22x34mm
- Connection: Direct to 230V
- Protection Rating: IP20 (for indoor use)
- Interconnection: Up to 10 battens with a single power point
T5 LED Batten 5W 30 cm Selectable CCT 472 lm IP20 with switch
The T5 LED batten 5W 30 cm offers 472 lumens with a CCT selector (3000K / 4000K / 6500K). Compact and modular, ideal under kitchen units, shelves and countertops. IP20, linkable with switch.
⚡ 5W💡 472 lm🌈 CCT📐 30 cm
| 5W Power | 472 lm Luminous flux | CCT 3000-6500K | 30 cm Length |
The T5 LED batten 5W, 30 cm is a compact, modular lighting solution, perfect for installing under kitchen units, shelves, countertops and bookcases. With a luminous flux of 472 lumens and a CCT selector (3000K, 4000K, 6500K), it adapts to any atmosphere.
Thin (22x34 mm) and IP20-rated, it integrates discreetly into any furniture and indoor space. It has a built-in switch for independent on/off. Several battens can be linked together to cover greater lengths with a single supply.
Why choose this product?
3000K, 4000K or 6500K to suit the atmosphere.
472 lm, thin (22x34 mm), discreet.

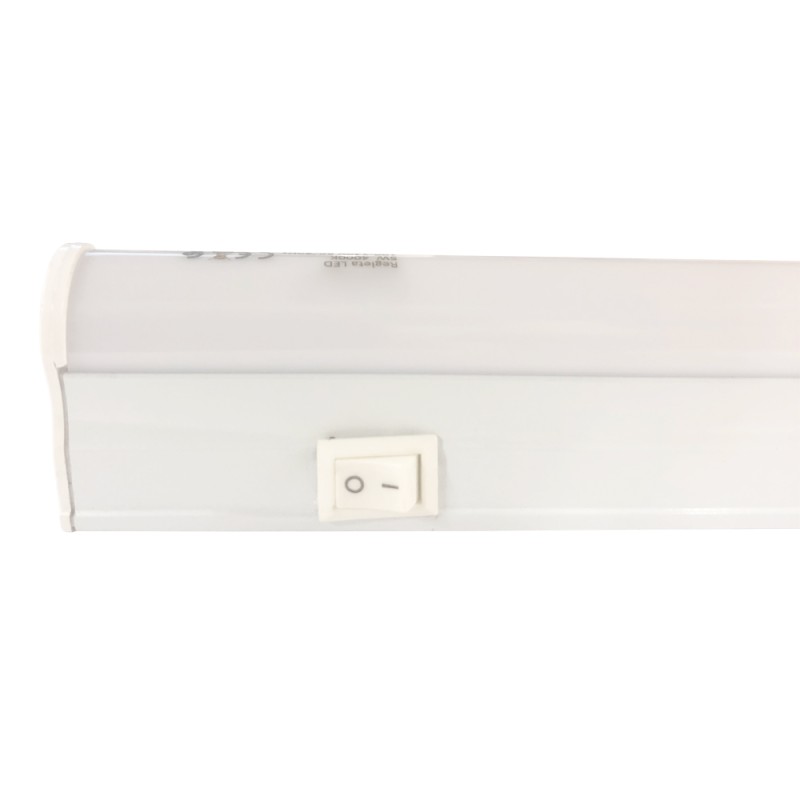

Built-in independent on/off.
Available light shades
CCT selector: choose the colour temperature to suit the desired atmosphere.
| 3000 K Warm white | 4000 K Neutral white | 6500 K Cool white |
Technical specifications
| Product type | T5 LED batten |
|---|---|
| Power | 5W |
| Luminous flux | 472 lm |
| Colour temperature | CCT 3000K / 4000K / 6500K |
| Length | 30 cm |
| Thickness | 22x34 mm |
| Switch | Yes |
| Protection | IP20 |
| Use | Indoor (furniture, shelves) |
Advantages
- CCT selector: 3000/4000/6500K.
- 5W, 472 lm: 30 cm, compact.
- Thin: 22x34 mm, discreet.
- Linkable: on a single supply.
- With switch: independent on/off.
- Furniture and shelves: modular lighting.
Recommended applications
| 🚪 | Kitchens — under-units and worktops. |
| 🏠 | Shelves and bookcases — modular lighting. |
| 🏛 | Windows and shops — highlighting. |
| 🌿 | Offices and cupboards — discreet light. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Choose the temperature Set the CCT selector (3000/4000/6500K). |
| 3 | Fix the batten Fix it under the unit or shelf. |
| 4 | Wire and link Wire it (and link other battens if needed). |
Frequently asked questions
Yes, CCT 3000K, 4000K or 6500K via the selector.
Yes, to cover greater lengths with a single supply.
Yes, a built-in switch for independent on/off.
| ⚡ 5W 472 lm | 🌈 CCT 30 cm | 📐 T5 Switch | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 5
- Power source (V)
- 100-240V
- Color temperature CCT
- Seleccionable 3000K-4000K-6000K

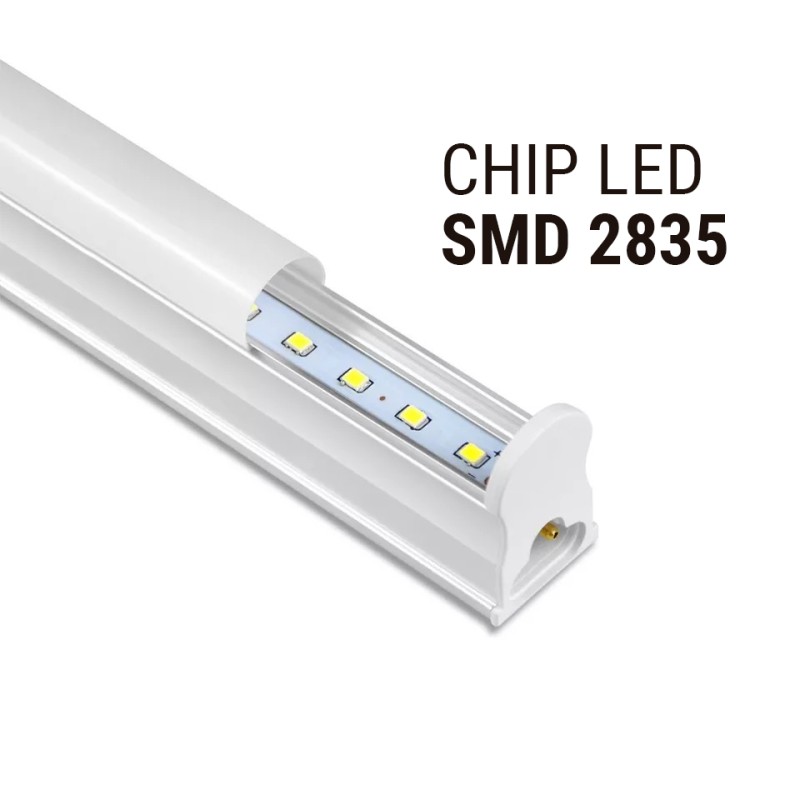

- LED
- SMD2835
- LED chip brand
- SAN'AN
- Brightness (Lm)
- 472
- Color rendering index (Ra):
- ≥80
- Colour
- White
- IP
- IP20
- Luminous angle
- 0.90
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.90
- Measures (mm)
- 295x22x34mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 25.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
