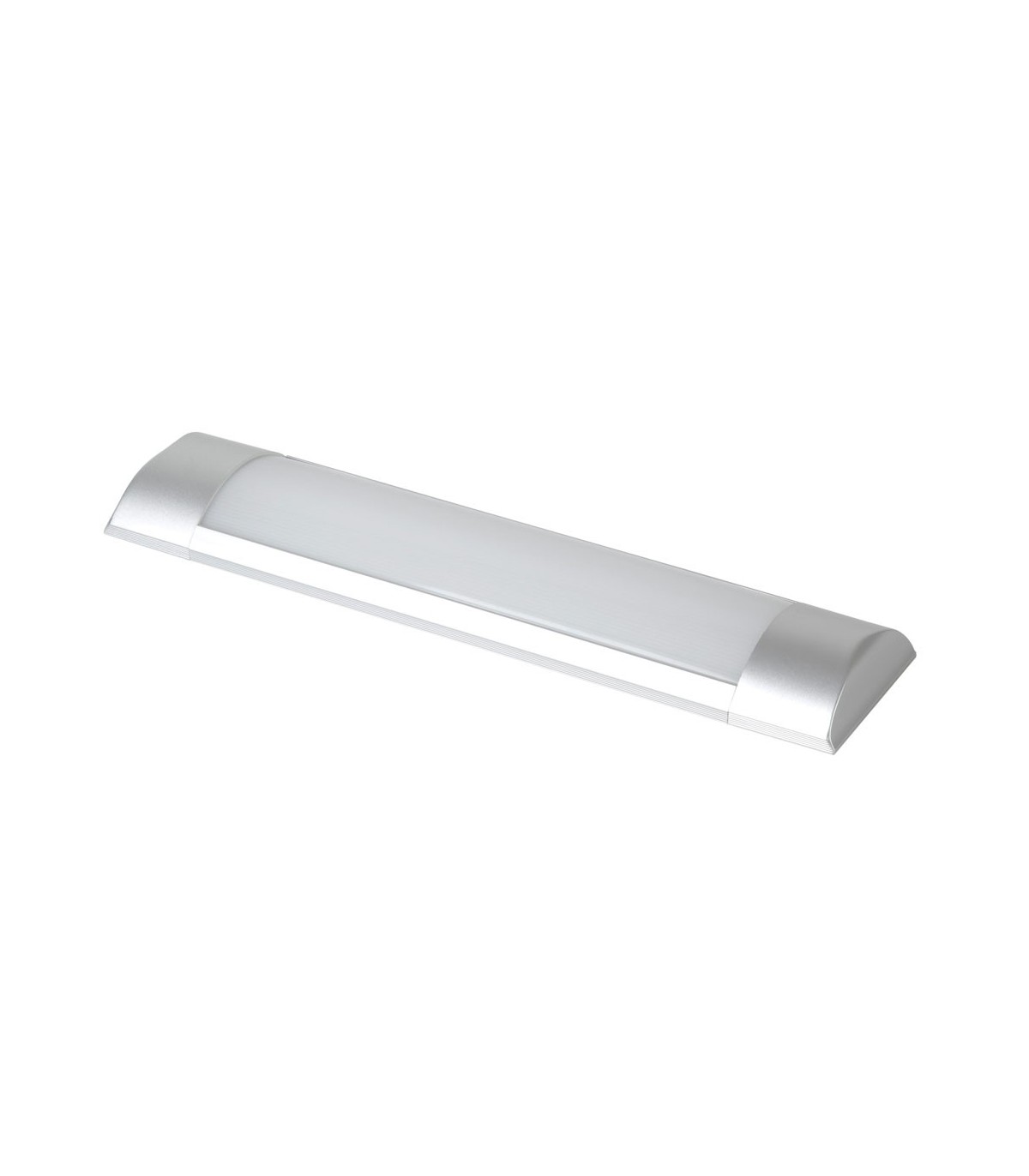

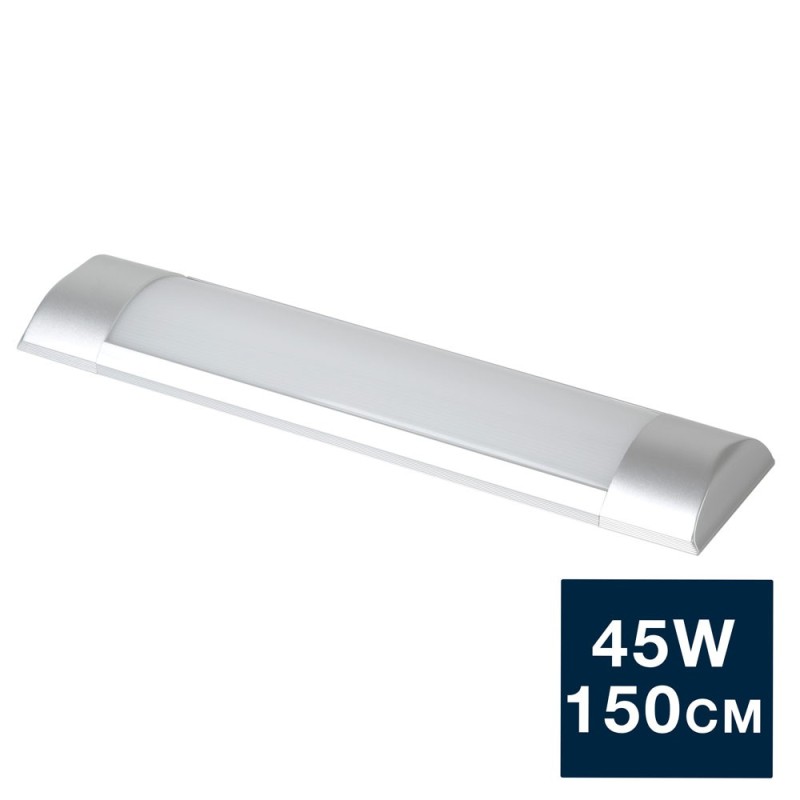

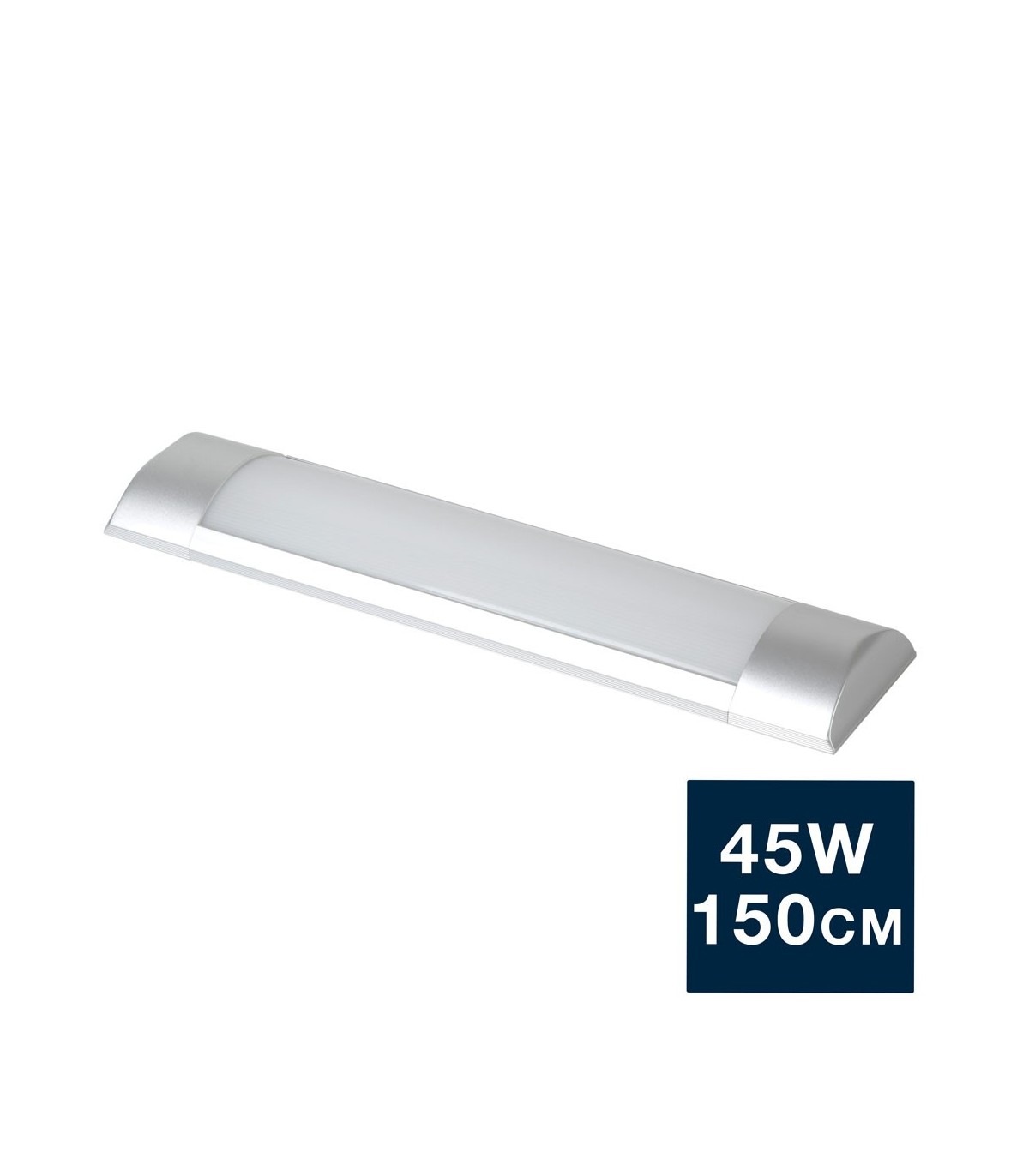

45W 150cm IP20 LED Batten 4320Lm
The 45W LED Batten is a high-efficiency light fixture designed to provide powerful, uniform lighting, offering 4320 lumens over a length of 150cm. With its construction in aluminum and polycarbonate (PC), this LED batten is robust and durable, ideal for indoor wall or ceiling installations.
- Power: 45W
- Luminous Flux: 4320 lumens
- Dimensions: 1510x75x25mm
- Beam Angle: 180º for even illumination
- Input Voltage: 100-240V
- Power Factor: >0.90
- Material: Aluminum + PC
- Protection Rating: IP20, suitable for indoor use
- Impact Protection: IK08
Linear LED Batten 45W 150 cm 4320 lm IP20
The linear LED batten 45W (150 cm) in aluminium and polycarbonate delivers 4320 lumens with a 180º angle. High-brightness SMD2835 chip, IP20, IK08, for efficient, elegant linear indoor lighting.
⚡ 45W💡 4320 lm🌡 180º☂ IP20
| 45W Power | 4320 lm Luminous flux | 180º Angle | IP20 / IK08 Protection |
The linear LED batten 45W is the ideal solution for efficient, discreet indoor lighting. With a length of 150 cm and an aluminium-and-polycarbonate design with a silver finish, it adds a modern, elegant touch to any space. Its high-brightness SMD2835 LED chip provides even, clear light of 4320 lumens, with a 180º angle for homogeneous coverage.
Sturdy and impact-resistant (IK08) and IP20-rated for indoors, it allows surface mounting (wall or ceiling), accessories included. Its slim design fits perfectly into offices, shops, corridors and residential spaces, powered at 100-240V.
Why choose this product?
4320 lumens, SMD2835 chip, 180º angle.
Aluminium + PC, elegant silver finish.
Sturdy, impact-resistant, for indoors.
Technical specifications
| Product type | Linear LED batten |
|---|---|
| Power | 45W |
| Length | 150 cm |
| Luminous flux | 4320 lm |
| LED chip | High-brightness SMD2835 |
| Beam angle | 180º |
| Material | Aluminium + PC |
| Input voltage | 100-240V |
| Power factor | > 0.90 |
| Protection | IP20 (indoor) |
| Impact resistance | IK08 |
| Dimensions | 1510x75x25 mm |
Advantages
- 4320 lm at 45W: high efficiency.
- 180º angle: homogeneous coverage.
- Aluminium + PC: slim silver design.
- IP20 / IK08: sturdy and impact-resistant.
- 100-240V: simple installation.
- Indoor: offices, shops, corridors.
Recommended applications
| 🚪 | Offices — efficient linear lighting. |
| 🏠 | Shops and showrooms — even light. |
| 🏛 | Corridors and halls — discreet design. |
| 🌿 | Residential spaces — kitchens, garages. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the batten Fix the batten to the wall or ceiling. |
| 3 | Wire it Connect the connection cable (100-240V). |
| 4 | Check Restore power and check the lighting. |
Frequently asked questions
4320 lumens at 45W, with an SMD2835 chip.
180º, for homogeneous coverage.
No, it is designed for indoors (IP20).
| ⚡ 45W 4320 lm | 🌡 180º 150 cm | ☂ IP20 IK08 | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 45
- Power source (V)
- 100-240V
- Color temperature CCT
- 2700K
4000K
6500K
- LED
- SMD2835
- Brightness (Lm)
- 4320
- Color rendering index (Ra):
- ≥80
- Colour
- Plata
- IP
- IP20
- IK
- IK08
- Luminous angle
- 180º
- Frequency (Hz)
- 50-60Hz
- Measures (mm)
- 1510x75x25mm
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
 Laura on 2021-05-12 13:49:48 | Question: Incluye el driver? Quiero saber si además de la pantalla led tengo que comprar algo más para instalarlo, gracias |
Answer: El driver está integrado en su interior, no necesita ningún elemento más para su montaje. Bastará con conectar los cables de corriente a la regleta de conexión de la parte posterior. | |
