16W 100cm Selectable CCT Undercabinet T5 LED batten
The T5 Linear LED Batten 16W is an efficient and compact lighting solution, perfect for installation under kitchen cabinets, shelves, counters, and bookshelves. With a length of 998mm and a luminous flux of 1536 lumens, this batten provides uniform lighting without shadows or dark spots, ideal for highlighting specific areas and adding a modern touch to any space.
The T5 LED Batten is designed for simple and quick installation. With direct connection to 230V, it requires no transformers or additional drivers, simplifying the setup. This model does not include a switch, so it must be turned on and off via an external switch or mechanism on the power line. Additionally, it features a CCT color temperature selector on the side, allowing you to choose between warm white (3000K), neutral white (4000K), and cool white (6500K), adapting to the lighting needs of any space.
- Power: 16W
- Luminous Flux: 1536 lumens
- Dimensions: 998x22x34mm
- Beam Angle: 120º
- Material: Aluminum and PC
- Light Color: CCT Selectable (3000K, 4000K, 6500K)
- Color Selector: Side selector
- Connection: Direct to 230V
- IP Rating: IP20 (indoor use)
T5 LED Batten 16W 100 cm Selectable CCT 1536 lm IP20 without switch
The T5 LED batten 16W 100 cm offers 1536 lumens with a CCT selector (3000K / 4000K / 6500K). Compact and modular, ideal under kitchen units, shelves and countertops. IP20, linkable without switch.
⚡ 16W💡 1536 lm🌈 CCT📐 100 cm
| 16W Power | 1536 lm Luminous flux | CCT 3000-6500K | 100 cm Length |
The T5 LED batten 16W, 100 cm is a compact, modular lighting solution, perfect for installing under kitchen units, shelves, countertops and bookcases. With a luminous flux of 1536 lumens and a CCT selector (3000K, 4000K, 6500K), it adapts to any atmosphere.

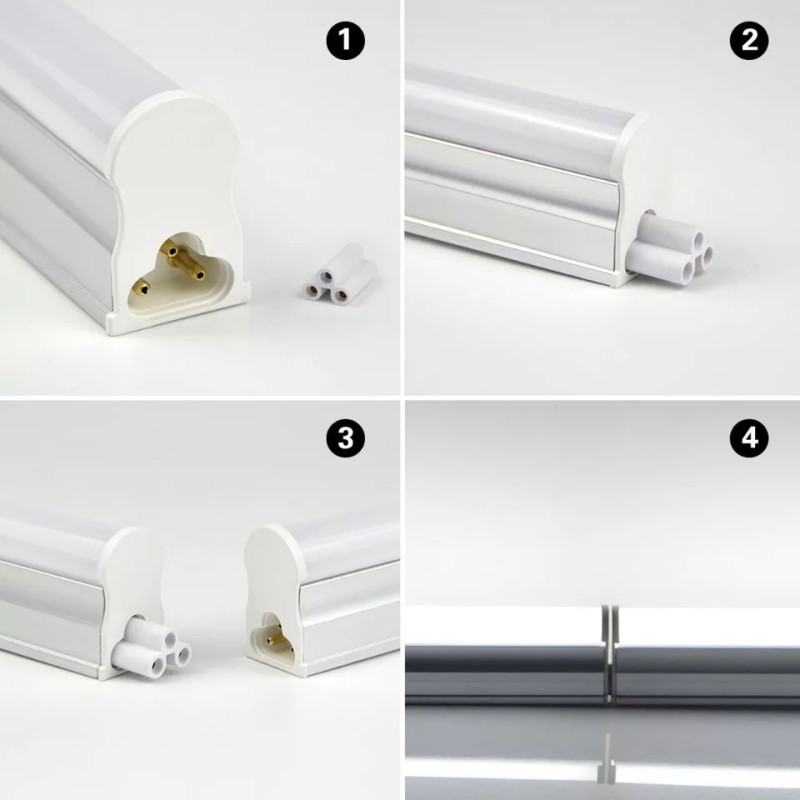

Thin (22x34 mm) and IP20-rated, it integrates discreetly into any furniture and indoor space. It connects easily and can be linked with other battens. Several battens can be linked together to cover greater lengths with a single supply.
Why choose this product?
3000K, 4000K or 6500K to suit the atmosphere.
1536 lm, thin (22x34 mm), discreet.
Several battens on a single supply.
Available light shades
CCT selector: choose the colour temperature to suit the desired atmosphere.
| 3000 K Warm white | 4000 K Neutral white | 6500 K Cool white |
Technical specifications
| Product type | T5 LED batten |
|---|---|
| Power | 16W |
| Luminous flux | 1536 lm |
| Colour temperature | CCT 3000K / 4000K / 6500K |
| Length | 100 cm |
| Thickness | 22x34 mm |
| Switch | No |
| Protection | IP20 |
| Use | Indoor (furniture, shelves) |
Advantages
- CCT selector: 3000/4000/6500K.
- 16W, 1536 lm: 100 cm, compact.
- Thin: 22x34 mm, discreet.
- Linkable: on a single supply.
- Without switch: simple connection.
- Furniture and shelves: modular lighting.
Recommended applications

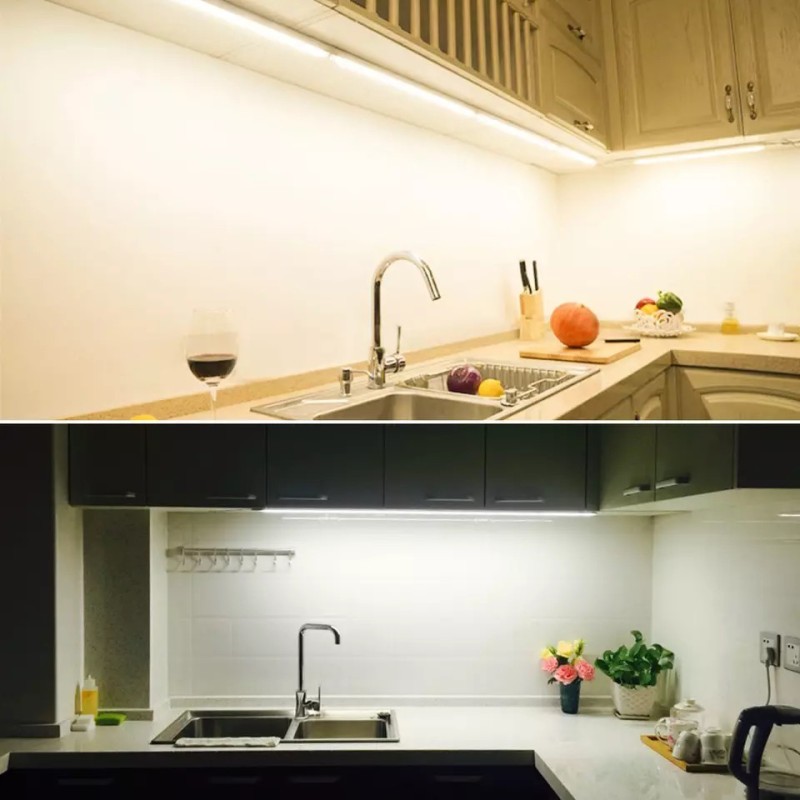

| 🚪 | Kitchens — under-units and worktops. |
| 🏠 | Shelves and bookcases — modular lighting. |
| 🏛 | Windows and shops — highlighting. |
| 🌿 | Offices and cupboards — discreet light. |

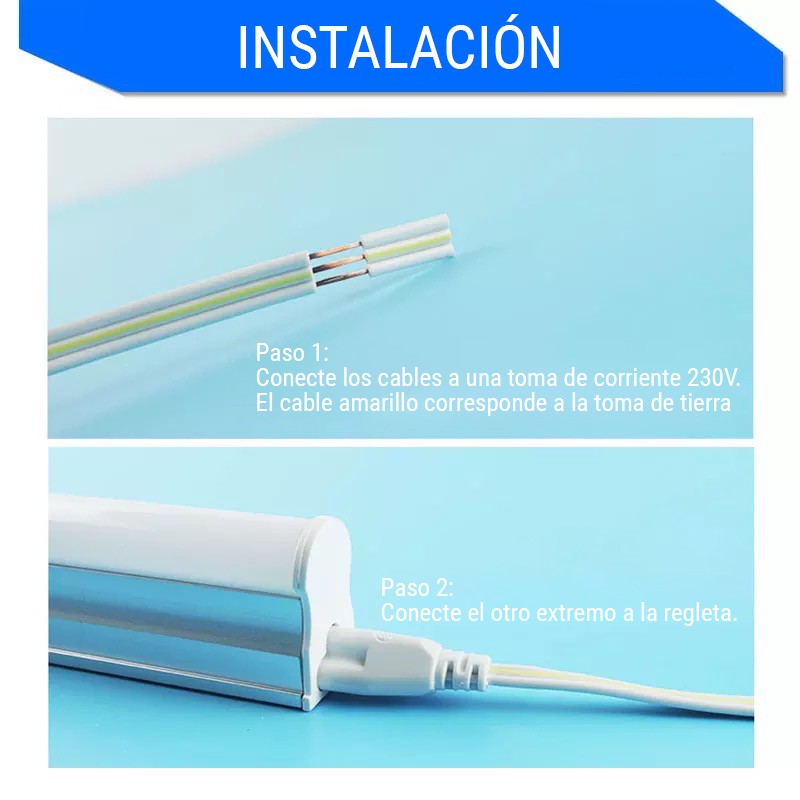

Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Choose the temperature Set the CCT selector (3000/4000/6500K). |
| 3 | Fix the batten Fix it under the unit or shelf. |
| 4 | Wire and link Wire it (and link other battens if needed). |
Frequently asked questions
Yes, CCT 3000K, 4000K or 6500K via the selector.
Yes, to cover greater lengths with a single supply.
100 cm, with a thickness of 22x34 mm.
| ⚡ 16W 1536 lm | 🌈 CCT 100 cm | 📐 T5 Linkable | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 16
- Power source (V)
- 100-240V
- Color temperature CCT
- 4000K
6500K

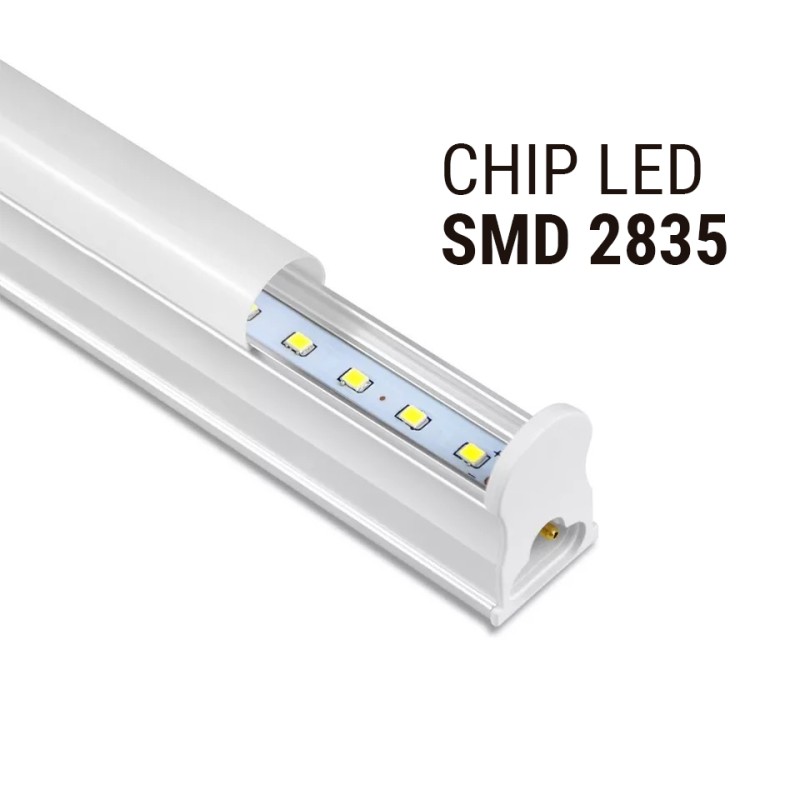

- LED
- SMD2835
- LED chip brand
- SAN'AN
- Brightness (Lm)
- 1536
- Color rendering index (Ra):
- ≥80
- Colour
- White
- IP
- IP20
- Luminous angle
- 180º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.90
- Measures (mm)
- 998x22x34mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 25.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
