24W Selectable CCT Surface LED Ceiling Light OSRAM Chip Motion Sensor 2640Lm

25.95 € (tax incl.)
Coming soon
Color temperature CCT (ºK)
  • Selectable CCT (3000K-4000K-6000K)
Notify me when available
Reference:
90812-CCT-24W

Circular surface LED ceiling light, designed to provide efficient and flexible lighting, made of aluminum and PC, lacquered in high-quality white. This ceiling light incorporates a motion sensor and CCT technology, allowing for the selection of different color temperatures.

The LED ceiling light has a maximum power of 24W, equipped with an OSRAM chip, providing brightness up to 2640 lumens (110 Lm/W). Thanks to its CCT selector in the driver, it is possible to choose between 2700K (warm white), 4000K (neutral white), or 6000K (cool white) in a single fixture. This makes it easier to adapt the lighting to the type of room without the need to purchase multiple ceiling lights.

Additionally, it features a multi-power selector that allows adjusting the power of the ceiling light between 18W, 20W, 22W, and 24W, depending on the lighting needs of each space.

The LED ceiling light is also equipped with a motion sensor, with a detection range of up to 6 meters. The detection time is adjustable between 30, 45, and 300 seconds, automatically activating when movement is detected. It also offers 3 brightness detection options, adjustable to suit specific needs.

Read moreShow less
Download PDF
You may also like
No items
Description

Surface 18W/20W/22W/24W Circular LED Ceiling Light with OSRAM Chip and Motion Sensor - CCT

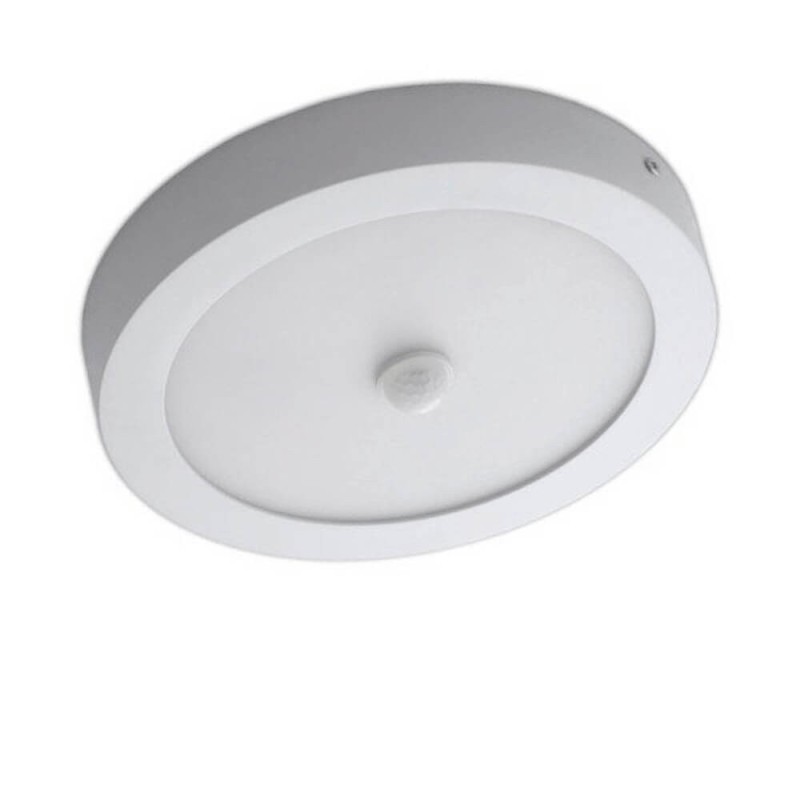

Circular surface LED ceiling light, designed to provide efficient and flexible lighting, made of aluminum and PC, lacquered in high-quality white. This ceiling light incorporates a motion sensor and CCT technology, allowing for the selection of different color temperatures.

Adjustable Power and CCT Color Selection


The LED ceiling light has a maximum power of 24W, equipped with an OSRAM chip, providing brightness up to 2640 lumens (110 Lm/W). Thanks to its CCT selector in the driver, it is possible to choose between 2700K (warm white), 4000K (neutral white), or 6000K (cool white) in a single fixture. This makes it easier to adapt the lighting to the type of room without the need to purchase multiple ceiling lights.

Additionally, it features a multi-power selector that allows adjusting the power of the ceiling light between 18W, 20W, 22W, and 24W, depending on the lighting needs of each space.

Integrated Motion Sensor

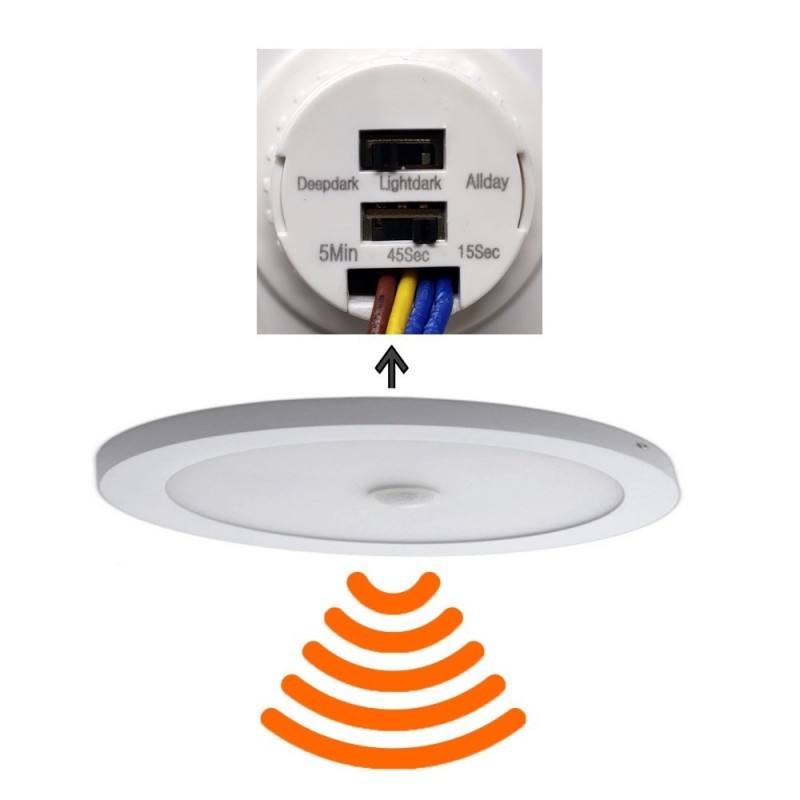

The LED ceiling light is also equipped with a motion sensor, with a detection range of up to 6 meters. The detection time is adjustable between 30, 45, and 300 seconds, automatically activating when movement is detected. It also offers 3 brightness detection options, adjustable to suit specific needs.

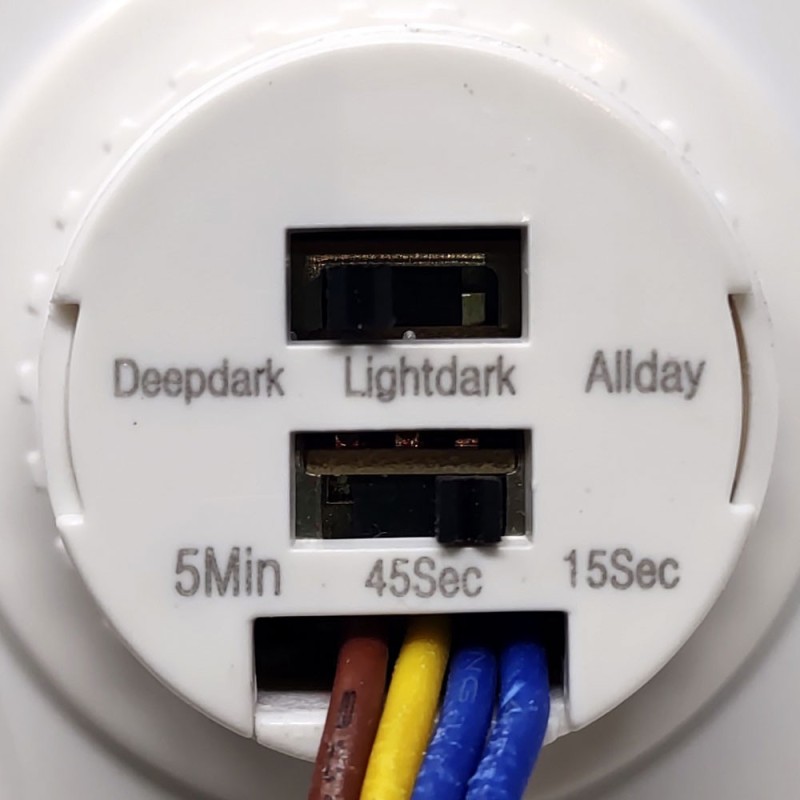

The sensor allows 3 time settings for turning off the light after a period without detecting movement: 15 seconds, 45 seconds, or 5 minutes.

Design and Construction

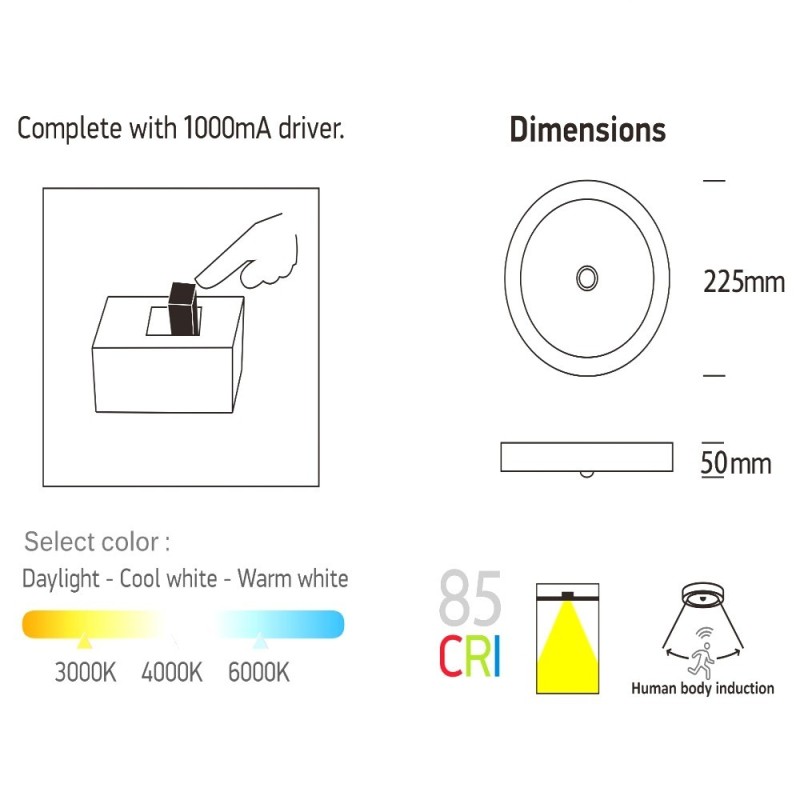

This ceiling light is designed with standard dimensions, with a diameter of Ø225mm, making it easy to install on the ceiling of any room. It is made with a high-brightness OSRAM LED chip, guaranteeing quality lighting, superior durability (<100,000 cycles), and considerable energy savings.

Technical Specifications


  • Power: Adjustable between 18W - 20W - 22W - 24W
  • Luminous Flux: 2640 lumens (110Lm/W)
  • Color Temperature: Selectable 2700K / 4000K / 6000K
  • Motion Sensor: Detection range up to 6 meters, with adjustable time (30s / 45s / 300s)
  • Diameter: Ø225mm
  • Light Angle: 120º
  • Material: Aluminum + white lacquered PC
  • Protection: IP20, for indoor use
  • Lifespan: More than 100,000 cycles
  • Warranty: 3 years

Advantages and Applications


This LED ceiling light is perfect for a wide range of indoor spaces, thanks to its versatility and easy installation:

  • Offices: Provides efficient and uniform lighting in work areas.
  • Hallways and Entrances: The motion sensor provides automatic and convenient lighting.
  • Living Rooms and Bedrooms: Adjust the color temperature to create the desired ambiance.
  • Stores and Shops: Versatile lighting to suit different needs.
Read moreShow less
Product Details
90812-CCT-24W

Data sheet

Power (W)
24
Power source (V)
85-265V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
Luminous efficacy (Lm/W)
140
Brightness (Lm)
2640
CRI
+80
Colour
White
IP
IP20
Luminous angle
120°
Frequency (Hz)
50-60Hz
Measures (mm)
Ø225x50mm
Material
Aluminum + PC
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
40.000h
Certification
CE - RoHS
Warranty
3 años

Specific References

EAN13
8435637210416
