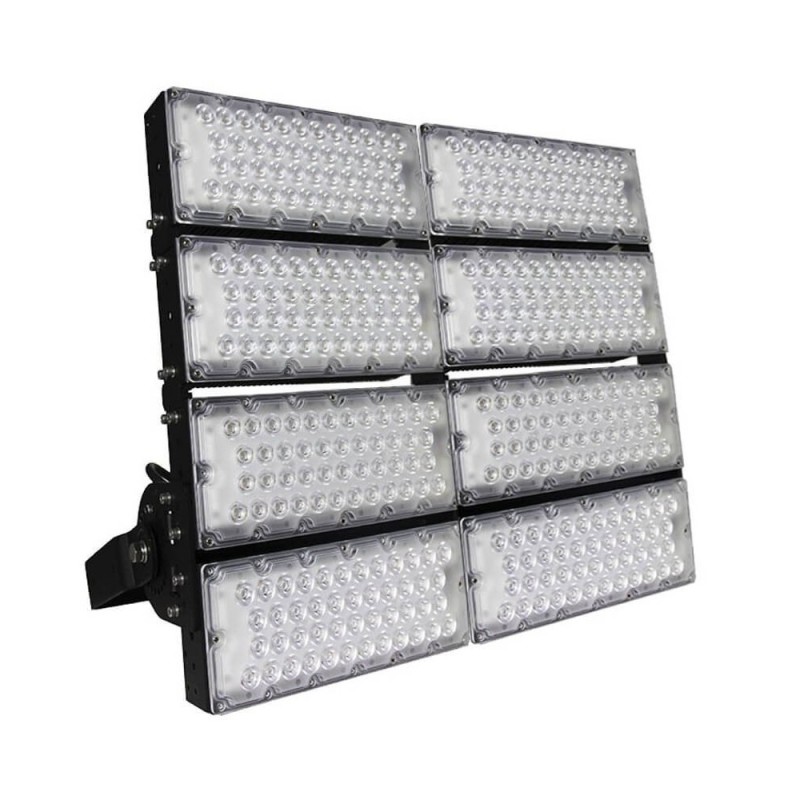

960W MATRIX LED Floodlight Bridgelux chip XITANIUM driver 153600Lm
The 960W MATRIX LED Floodlight is a high-power lighting solution designed to effectively illuminate any type of large space. This floodlight is composed of 8 modules of 120W each, powered by a high-quality PHILIPS XITANIUM Driver, ensuring superior performance and exceptional durability.
The MATRIX LED Floodlight stands out for using SMD 5050 chips with 12 cores and Bridgelux (USA) technology, offering an efficiency of 240Lm/W, making it ideal for covering large areas with powerful and uniform lighting. Thanks to its different optics via concentrating lenses, the floodlight is available in different beam angles: 20º, 40º, and 90º, ensuring that light is focused exactly where it's needed, achieving the required lux levels for any application.
- Power: 960W (8 modules of 120W each)
- Luminous Flux: 153,600 lumens
- LED Chip Efficiency: 240Lm/W
- LED Chip: BridgeLUX SMD 5050 with 12 cores
- Beam Angle: 20º, 40º, 90º
- Material: Aluminum 6063 with anti-corrosion coating

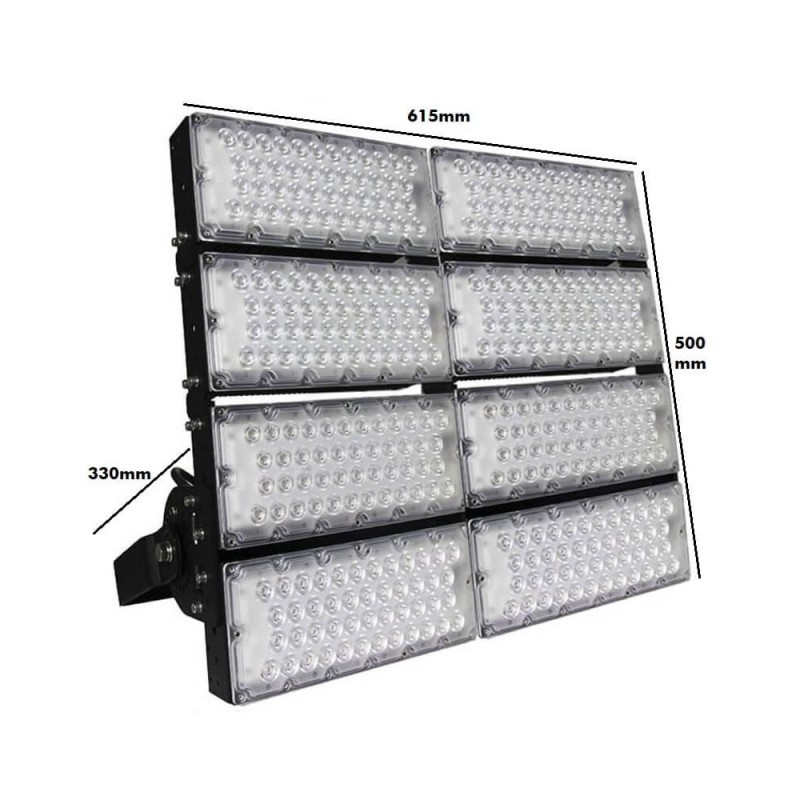

- Dimensions: 615x500x330mm
LED Floodlight 960W MATRIX Bridgelux Chip 153600 lm XITANIUM Driver IP65
The 960W MATRIX LED floodlight combines 8 120W modules with a 12-core BRIDGELUX SMD5050 chip (240 lm/W) and a PHILIPS XITANIUM driver, for 153,600 lumens. 20º/40º/90º optics, 100% 6063 aluminium, orientable, IP65, 5-year warranty.
⚡ 960W💡 153600 lm⚡ 240 lm/W☂ IP65
| 960W Power | 153600 lm Luminous flux | 240 lm/W Diode efficiency | IP65 Protection |

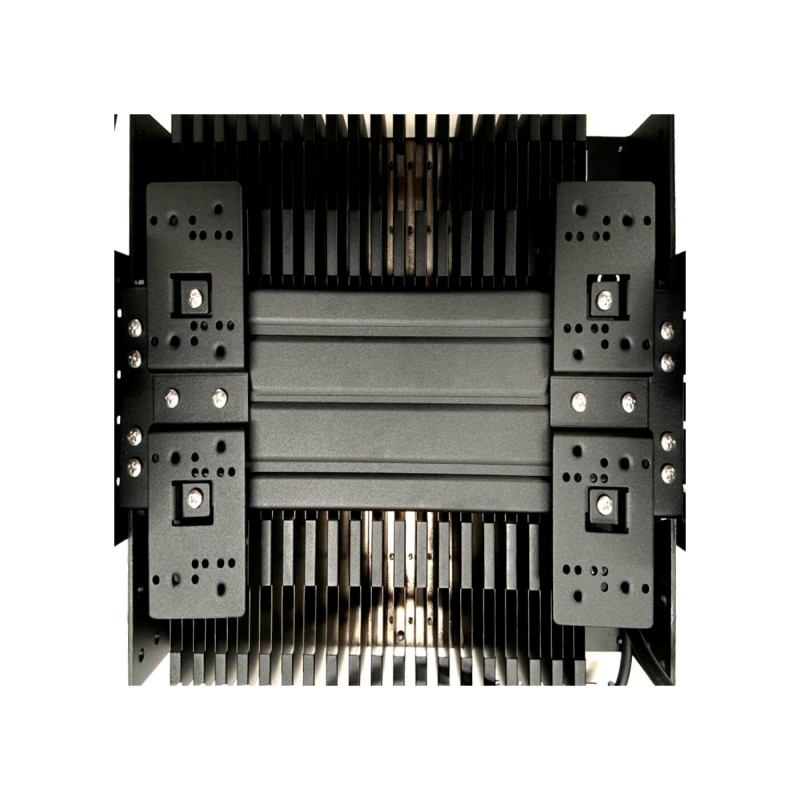

The 960W MATRIX LED floodlight is a fixture capable of efficiently lighting any large space. It consists of 8 120W modules and a PHILIPS XITANIUM driver to power them. To increase power, modules are bought 2 by 2 (the driver is prepared for this), allowing 240W, 480W or 960W configurations. It also includes the driver mounting plate and the fixing bracket, and it is orientable.
The MATRIX floodlight stands out for its 12-core SMD5050 diode with a BRIDGELUX (USA) chip, offering the efficiency and reliability outdoor lighting demands. Thanks to its concentrating lens, you choose the beam angle (20º, 40º or 90º) to get the required lux exactly where needed. Its 5050 diode reaches 240 lm/W. Made 100% of 6063 aluminium (light), with anticorrosion paint, it allows up to 80% energy savings. 5-year warranty.
Why choose this product?
8 120W modules, expandable 2 by 2 (240/480/960W).
Concentrating lens, BRIDGELUX SMD5050 240 lm/W.
Light 6063 aluminium, PHILIPS XITANIUM driver, 5-year warranty.
Technical specifications
| Product type | High-power modular MATRIX LED floodlight |
|---|---|
| Power | 960W (8 120W modules) |
| Luminous flux | 153,600 lm |
| LED diode | BRIDGELUX SMD5050 12-core |
| Diode efficiency | 240 lm/W |
| Driver | PHILIPS XITANIUM |
| Optics | 20º / 40º / 90º |
| Configurations | 240W / 480W / 960W (modules 2 by 2) |
| Orientation | Orientable (fixing bracket) |
| Material | 6063 aluminium |
| Protection | IP65 |
| Energy savings | Up to 80% |
| Warranty | 5 years |
Advantages
- 153,600 lm: lighting for very large spaces.
- Modular: 8 120W modules, expandable 2 by 2.
- 20/40/90º optics: concentrating lens.
- BRIDGELUX SMD5050: 12-core, 240 lm/W.
- PHILIPS XITANIUM driver: reliability and durability.
- IP65, 5-year warranty: light 6063 aluminium.
Recommended applications
| 🚪 | Port areas — very high-power lighting. |
| 🏠 | Stadiums and football pitches — sports lighting. |
| 🏛 | Airports — large surfaces. |
| 🌿 | Large car parks and factories — strong brightness. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the floodlight Mount the floodlight via its fixing bracket on the structure. |

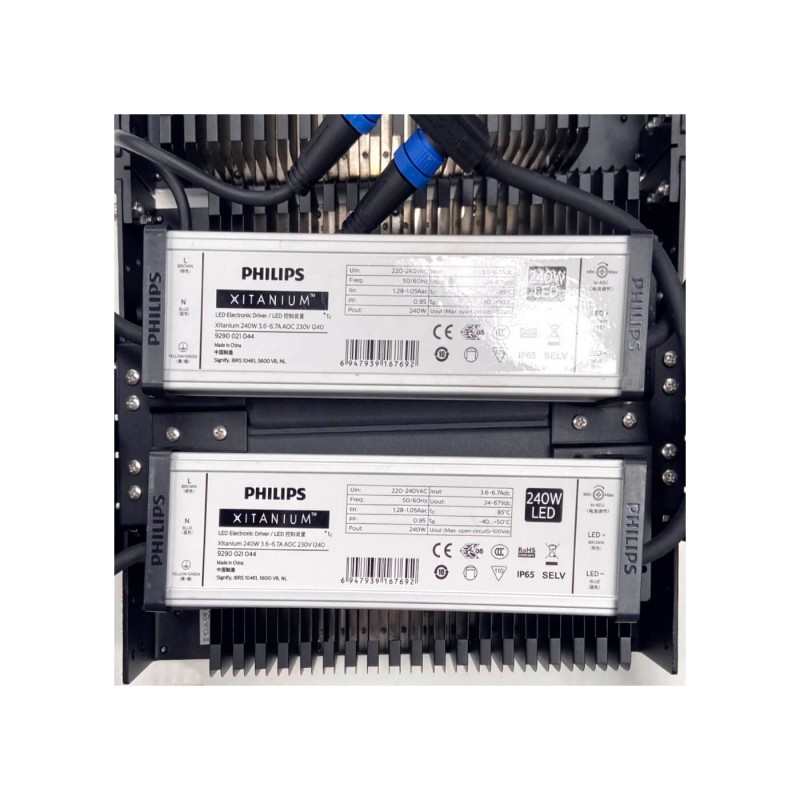

| 3 | Wire the driver Connect the PHILIPS XITANIUM driver to the modules and the mains. |
| 4 | Aim and choose the optic Set the tilt and the angle (20º, 40º or 90º). |
Frequently asked questions
Yes, modules are added 2 by 2 (240W, 480W, 960W).
20º, 40º or 90º thanks to the concentrating lens.
153,600 lumens, with a 240 lm/W SMD5050 diode.
| ⚡ 960W 153600 lm | 🎯 20/40/90º Modular | ☂ IP65 6063 alu | 🛡 Warranty 5 years |
Data sheet
- Power (W)
- 960
- Power source (V)
- 85-265V
- Color temperature CCT
- 5000K
- LED
- SMD5050
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 240
- Brightness (Lm)
- 153600
- Color rendering index (Ra):
- ≥70
- Colour
- Black
- IP
- IP65
- IK
- IK10
- Luminous angle
- 20º
40º
90º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.94
- Measures (mm)
- 615x500x330mm
- Material
- Aluminum + PC
- Driver
- Philips XITANIUM
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- C
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
