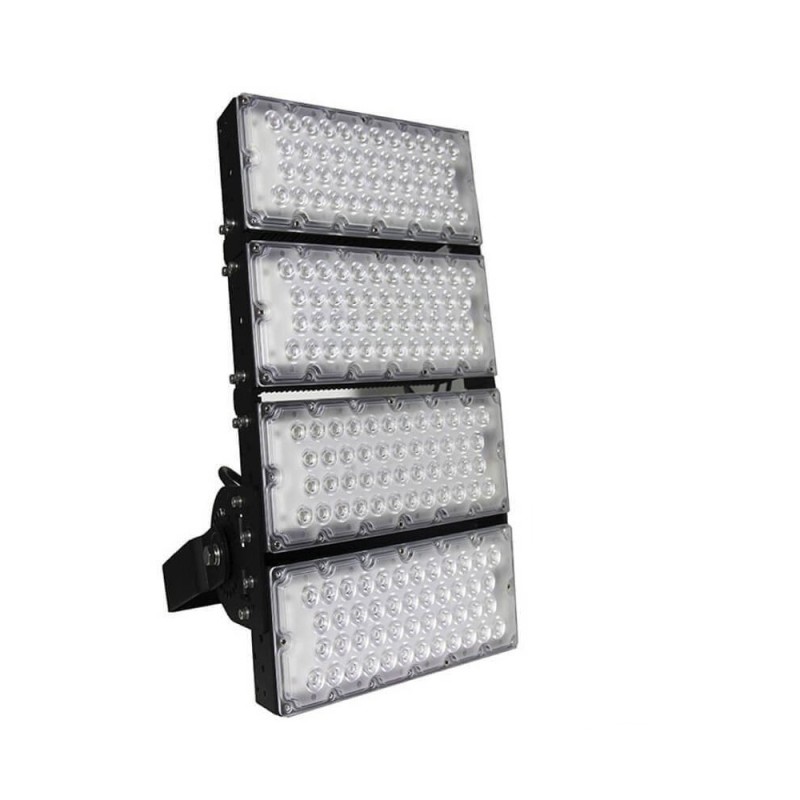

480W MATRIX LED Floodlight Bridgelux chip XITANIUM DRIVER 76800Lm
The 480W MATRIX LED Floodlight is a high-power lighting solution designed to effectively illuminate any large space. This floodlight consists of 4 modules of 120W each, powered by a high-quality PHILIPS XITANIUM Driver, ensuring superior performance and exceptional durability.

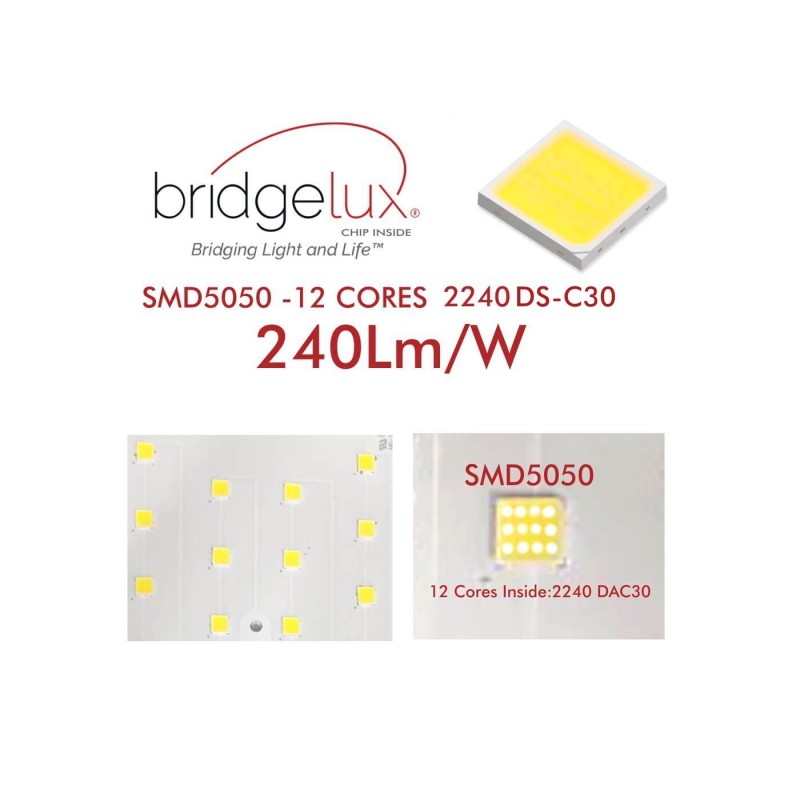

The MATRIX LED Floodlight stands out for using SMD 5050 chips with 12 cores and Bridgelux (USA) technology, offering an efficiency of 240Lm/W, ideal for covering large areas with powerful and uniform lighting. Thanks to its various optics with focus lens, the floodlight is available with different beam angles: 20º, 40º, and 90º, ensuring the light is concentrated exactly where it is needed, achieving the required lux levels for any application.
- Power: 480W
- Luminous Flux: 76,800 lumens
- LED Chip Efficiency: 240Lm/W
- LED Chip: BRIDGELUX SMD 5050 with 12 cores
- Beam Angle: 20º, 40º, 90º

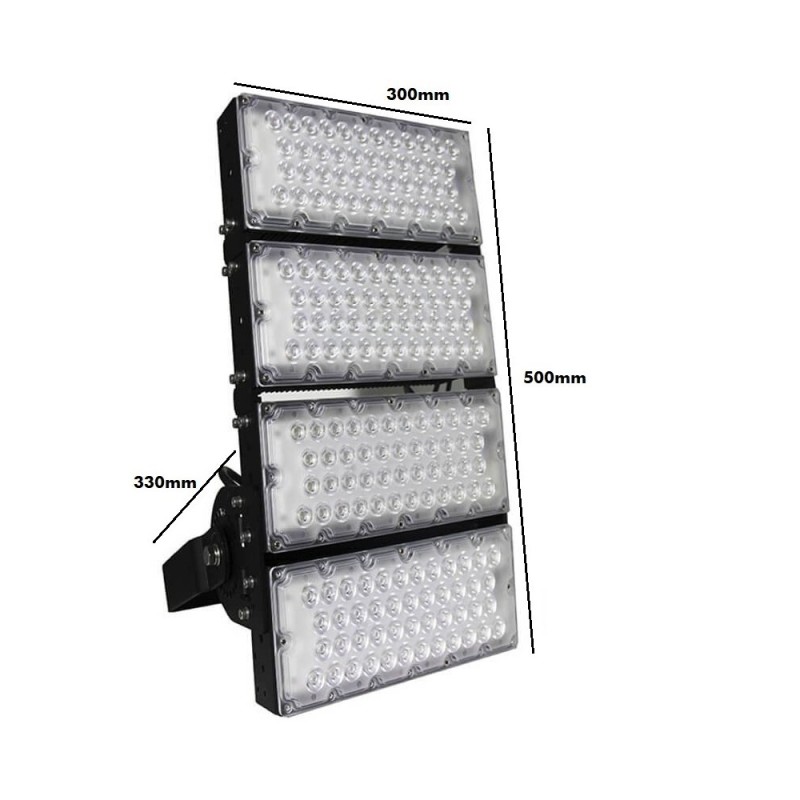

- Dimensions: 300x500x330mm
LED Floodlight 480W MATRIX Bridgelux Chip 76800 lm XITANIUM Driver IP65
The 480W MATRIX LED floodlight combines 4 120W modules with a 12-core BRIDGELUX SMD5050 chip (240 lm/W) and a PHILIPS XITANIUM driver, for 76800 lumens. 20º/40º/90º optics, 100% 6063 aluminium, orientable, IP65, expandable in pairs up to 960W, 5-year warranty.
⚡ 480W💡 76800 lm⚡ 240 lm/W☂ IP65
| 480W Power | 76800 lm Luminous flux | 240 lm/W Diode efficiency | IP65 Protection |

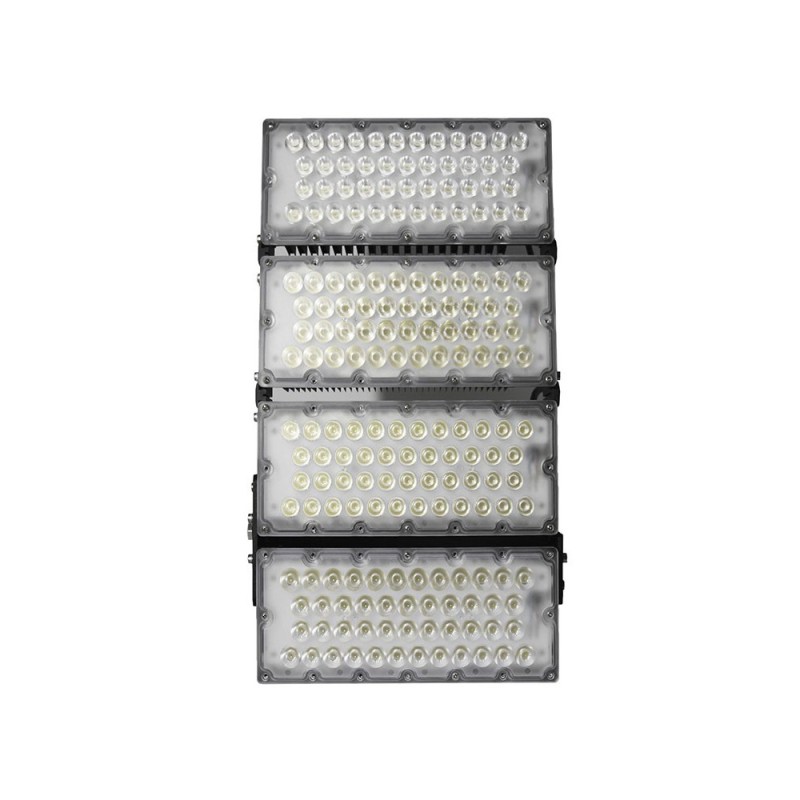

The 480W MATRIX LED floodlight is a high-power lighting solution designed to efficiently light any large space. It consists of 4 120W modules, powered by a high-quality PHILIPS XITANIUM driver. To increase power, modules are bought in pairs, allowing 240W, 480W up to 960W configurations depending on the project.

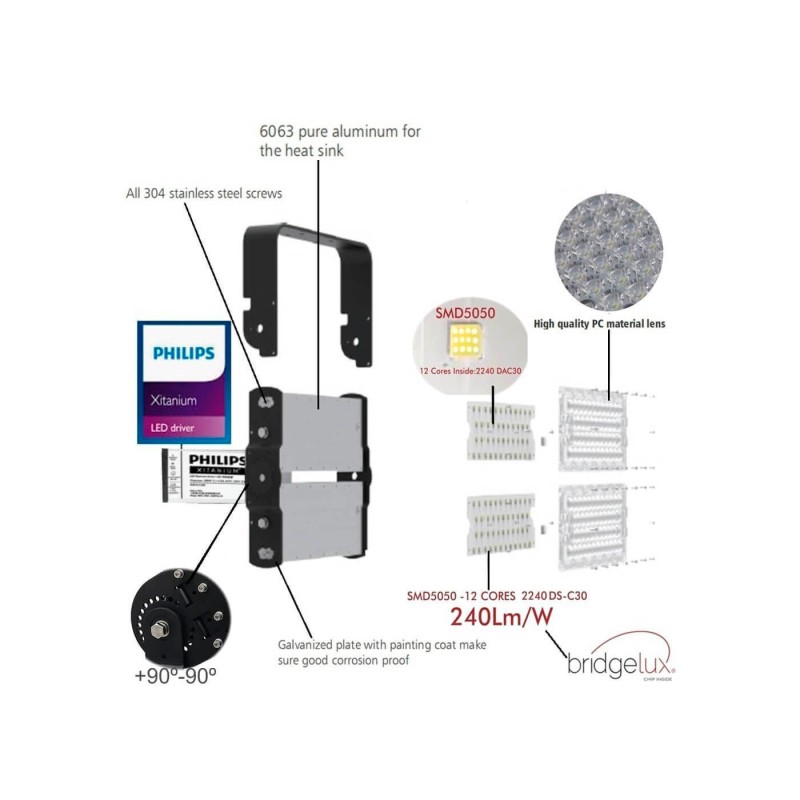

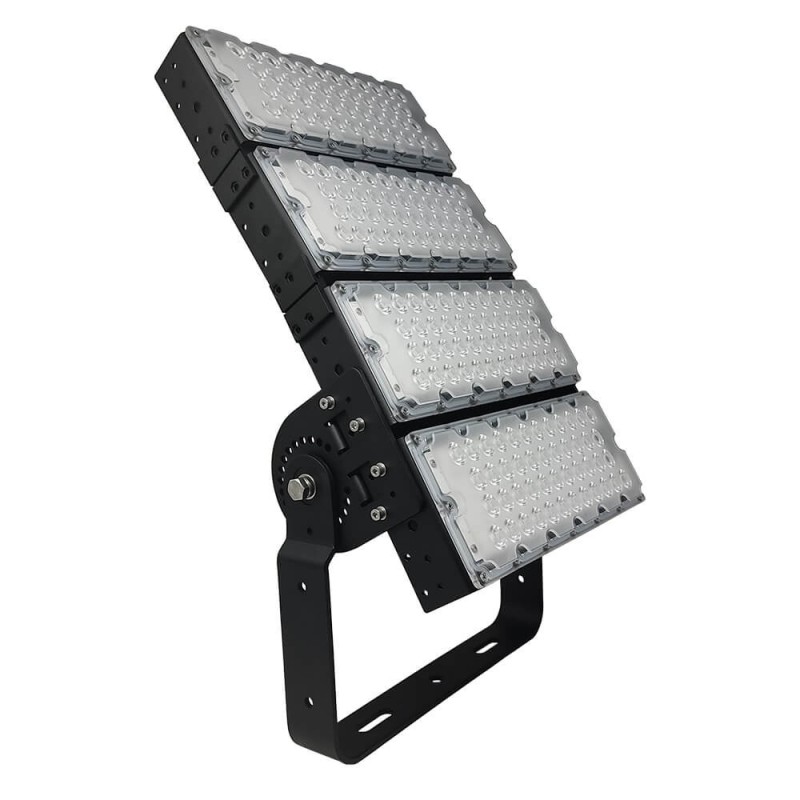

It includes the driver mounting plate and the adjustable bracket to fix it to the desired surface and aim the light. The floodlight stands out for its 12-core SMD5050 BRIDGELUX (USA) chips, offering 240 lm/W, and for its concentrating lens available in 20º, 40º and 90º optics, to focus the light exactly where needed. Made 100% of 6063 aluminium (light), with anticorrosion paint, IP65 and 5-year warranty.
Why choose this product?
4 120W modules, expandable in pairs up to 960W.
Concentrating lens, 12-core BRIDGELUX SMD5050.
6063 aluminium, PHILIPS XITANIUM driver, 5-year warranty.
Technical specifications
| Product type | Modular MATRIX LED floodlight |
|---|---|
| Power | 480W |
| Modules | 4 x 120W |
| Luminous flux | 76800 lm |
| LED diode | BRIDGELUX SMD5050 12-core |
| Diode efficiency | 240 lm/W |

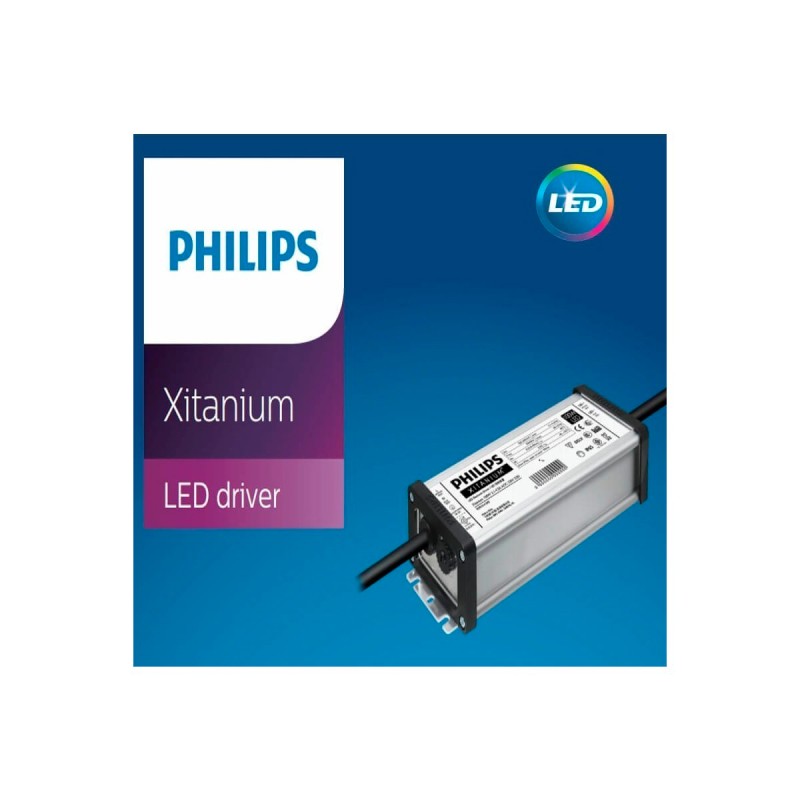

| Driver | PHILIPS XITANIUM |
| Optics | 20º / 40º / 90º |
| Expandability | In pairs up to 960W |
| Orientation | Adjustable bracket |
| Material | 6063 aluminium |
| Protection | IP65 |
| Warranty | 5 years |
Advantages
- 76800 lm modular: 4 120W modules.
- Expandable in pairs: up to 960W.
- 20/40/90º optics: concentrating lens.
- BRIDGELUX SMD5050: 12-core, 240 lm/W.
- PHILIPS XITANIUM driver: reliability and durability.
- IP65, 5-year warranty: light 6063 aluminium.
Recommended applications

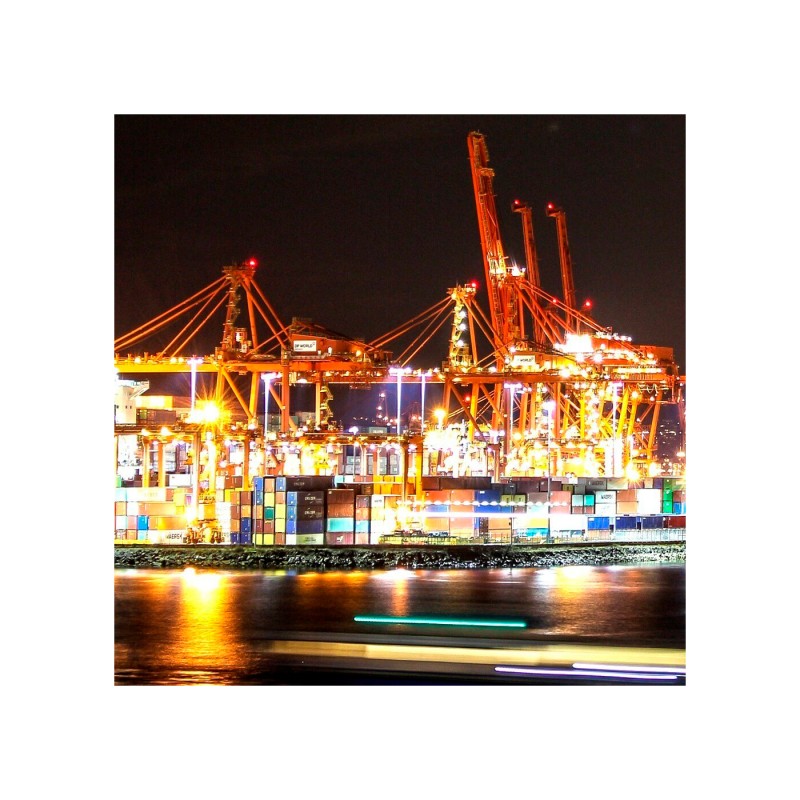

| 🚪 | Port areas — very high-power lighting. |

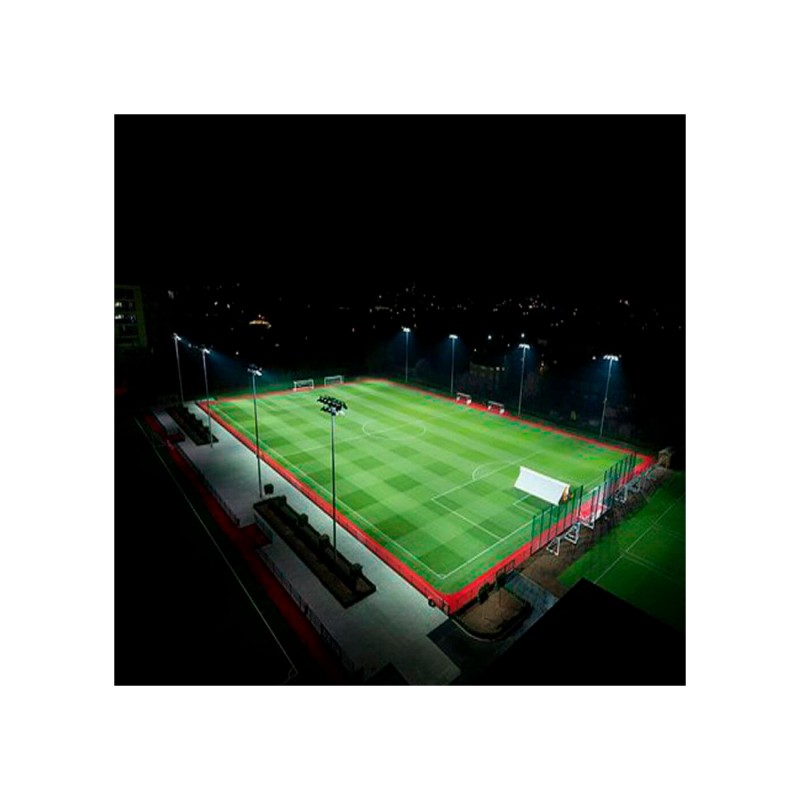

| 🏠 | Stadiums and pitches — sports lighting. |
| 🏛 | Airports — large surfaces. |
| 🌿 | Large car parks and factories — strong brightness. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix the floodlight Mount the floodlight via its adjustable bracket on the structure. |
| 3 | Wire the driver Connect the PHILIPS XITANIUM driver to the modules and the mains. |
| 4 | Aim and choose the optic Set the tilt and the angle (20º, 40º or 90º). |
Frequently asked questions
Yes, modules are added in pairs (up to 960W).
20º, 40º or 90º thanks to the concentrating lens.
76800 lumens, with a 240 lm/W SMD5050 diode.
| ⚡ 480W 76800 lm | 🎯 20/40/90º Modular | ☂ IP65 6063 alu | 🛡 Warranty 5 years |
Data sheet
- Power (W)
- 480
- Power source (V)
- 85-265V
- Color temperature CCT
- 5000K
- LED
- SMD5050
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 240
- Brightness (Lm)
- 76800

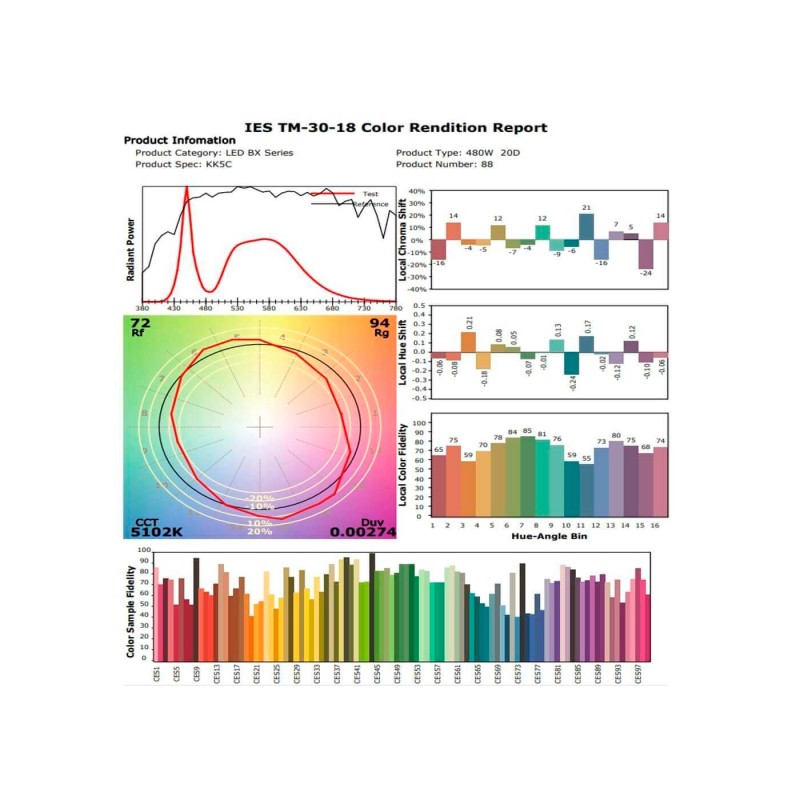

- Color rendering index (Ra):
- ≥70
- Colour
- Black
- IP
- IP65
- IK
- IK10
- Luminous angle
- 20º
40º
90º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.94
- Measures (mm)
- 500x300x330mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- C
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 5 años
