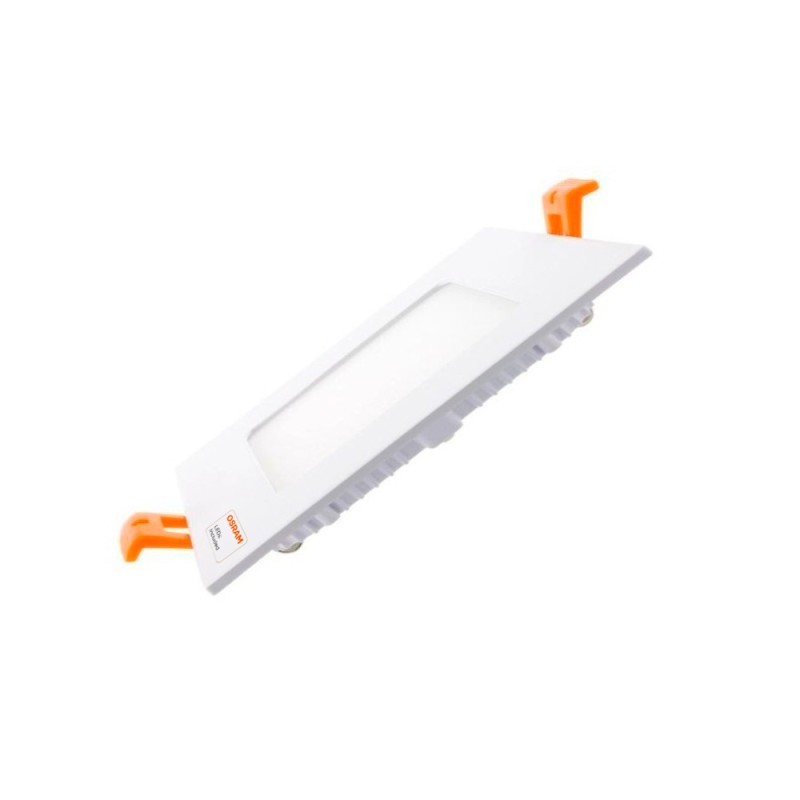

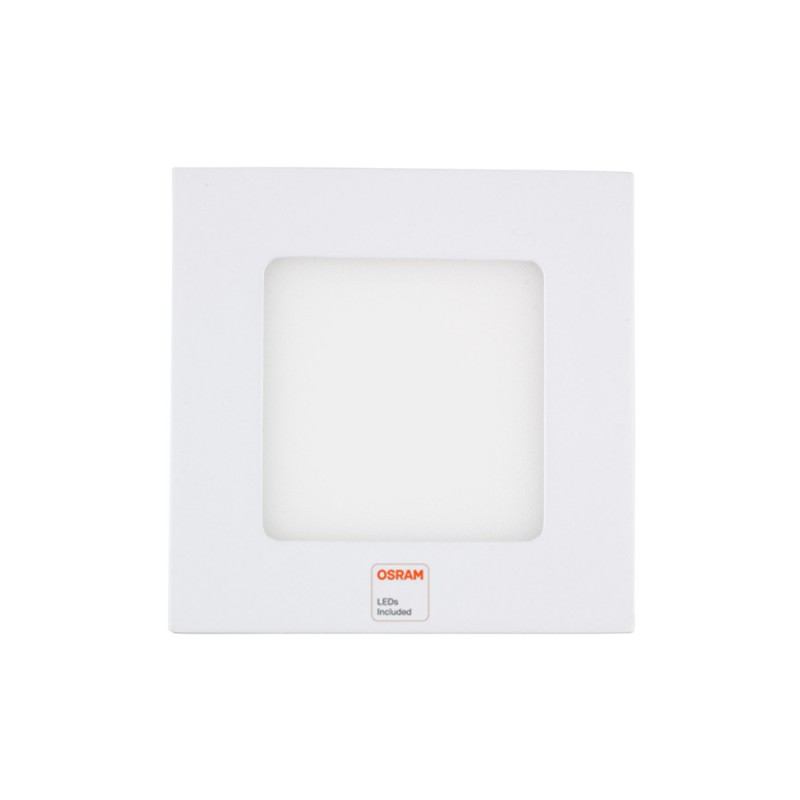

8W Square Slim LED Downlight OSRAM Chip 880Lm IP20
The Square LED Downlight with OSRAM SMD2835 Chip and 8W power is the ideal choice for those seeking efficient and durable lighting, both for personal and professional use. With a 120º beam angle, it's perfect for illuminating all types of commercial establishments, offices, homes, and more.
Made of aluminum, this downlight stands out for its great durability and resistance. Additionally, its modern and attractive design allows it to integrate elegantly into any environment, offering a high level of color rendering with a CRI>80, ensuring excellent light quality.
- Power: 8W
- LED Chip: OSRAM SMD2835
- Luminous Flux: 880 lumens
- Beam Angle: 120º
- Material: Aluminum

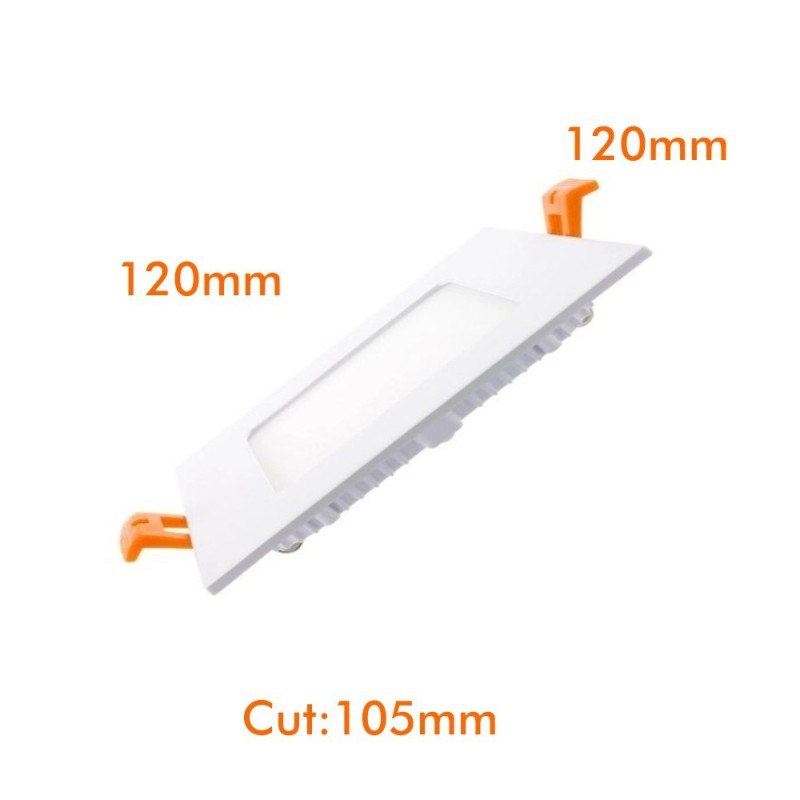

- Dimensions: 120x120mm
- Cutout Dimensions: 105x105mm

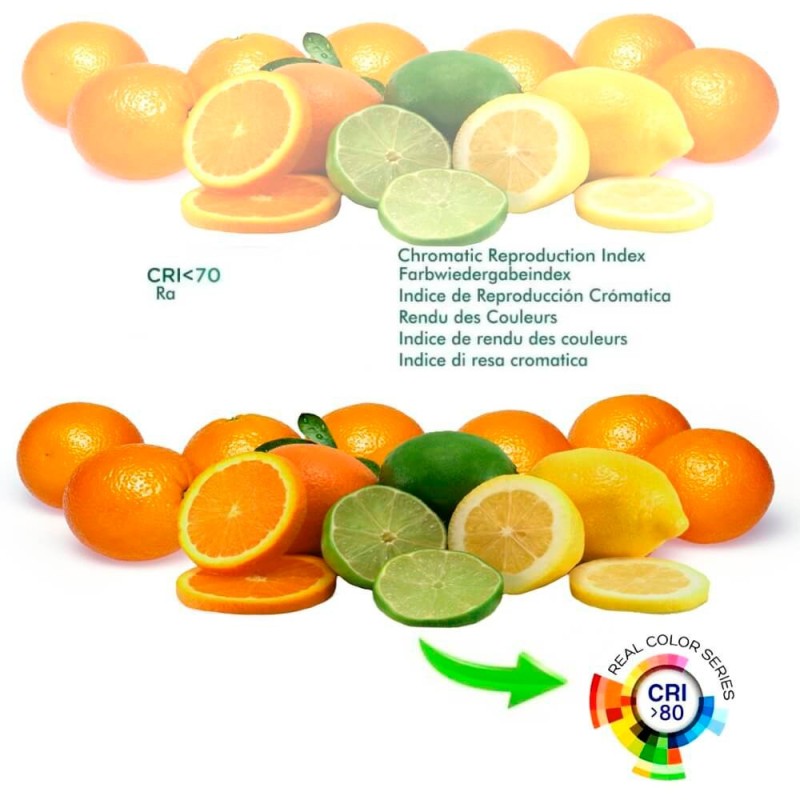

- CRI: >80
Slim Square LED Downlight 8W OSRAM Chip 880 lm IP20
The 8W slim square LED downlight with an OSRAM SMD2835 chip delivers 880 lumens (120º, CRI > 80). Aluminium, ultra-thin design, fixing tabs, instant start-up, IP20, white light.
⚡ 8W💡 880 lm🌡 120º☂ IP20
| 8W Power | 880 lm Luminous flux | 120º Beam | CRI > 80 Colour rendering |
The 8W square LED downlight with an OSRAM SMD2835 chip is the ideal choice for those seeking efficient, durable lighting, for private or professional use. With a 120º beam angle, it is perfect for lighting shops, offices and homes. It provides 880 lumens with a CRI > 80 for faithful colours.
Made of aluminium, it stands out for its durability and strength, and its modern design blends in elegantly everywhere. All slim downlights switch on instantly; their ultra-thin design eases installation on shallow surfaces and the integrated fixing tabs save time. Available with white light. Dimensions 120x120 mm, cut-out 105x105 mm, IP20 for indoors.
Why choose this product?
880 lm, CRI > 80, 120º beam.
Shallow surfaces, fixing tabs.
Durable aluminium, IP20 for indoors.
Technical specifications
| Product type | OSRAM slim square LED downlight |
|---|---|
| Power | 8W |
| LED chip | OSRAM SMD2835 |
| Luminous flux | 880 lm |
| Beam angle | 120º |
| CRI | > 80 |
| Material | Aluminium |
| Dimensions | 120x120 mm |
| Cut-out | 105x105 mm |
| Colour temperature | White |
| Protection | IP20 |
| Start-up | Instant |
Advantages
- OSRAM chip: 880 lm, CRI > 80.
- Ultra-thin design: shallow surfaces.
- Fixing tabs: quick installation.
- 120º beam: even light.
- Instant start-up: durable aluminium.
- IP20: indoor use.

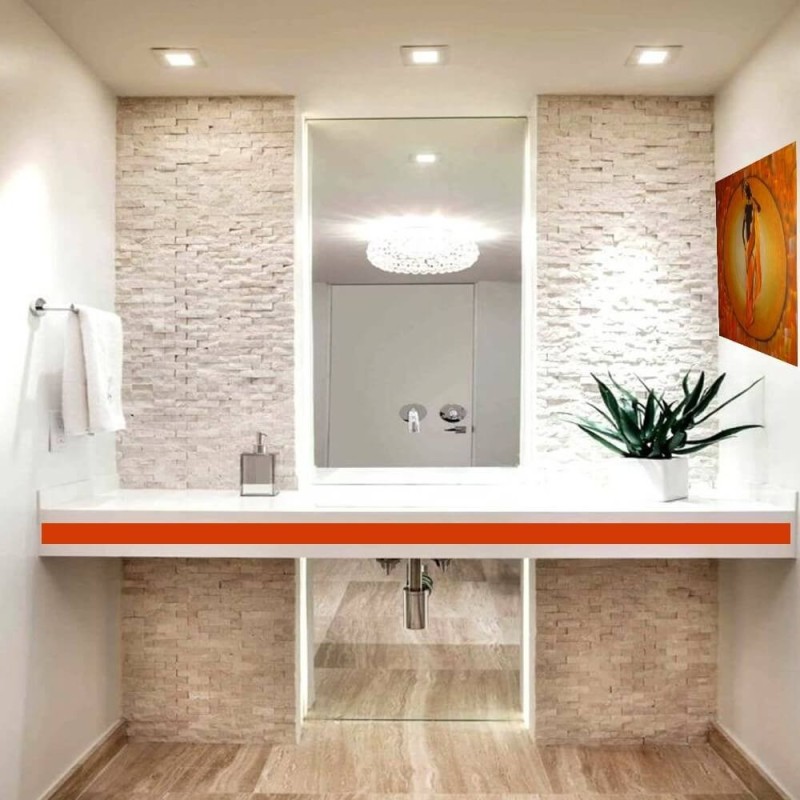

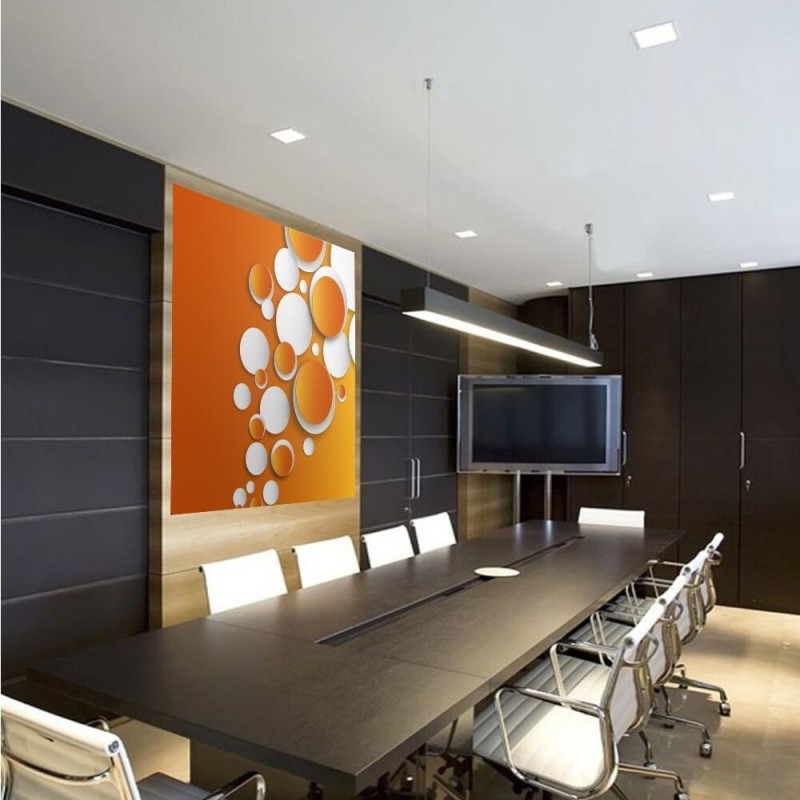

Recommended applications
| 🚪 | Shops and stores — general lighting. |
| 🏠 | Offices and hotels — even light. |
| 🏛 | Homes — false ceilings. |
| 🌿 | Corridors and halls — recessed lighting. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Prepare the cut-out Make a 105x105 mm cut-out. |

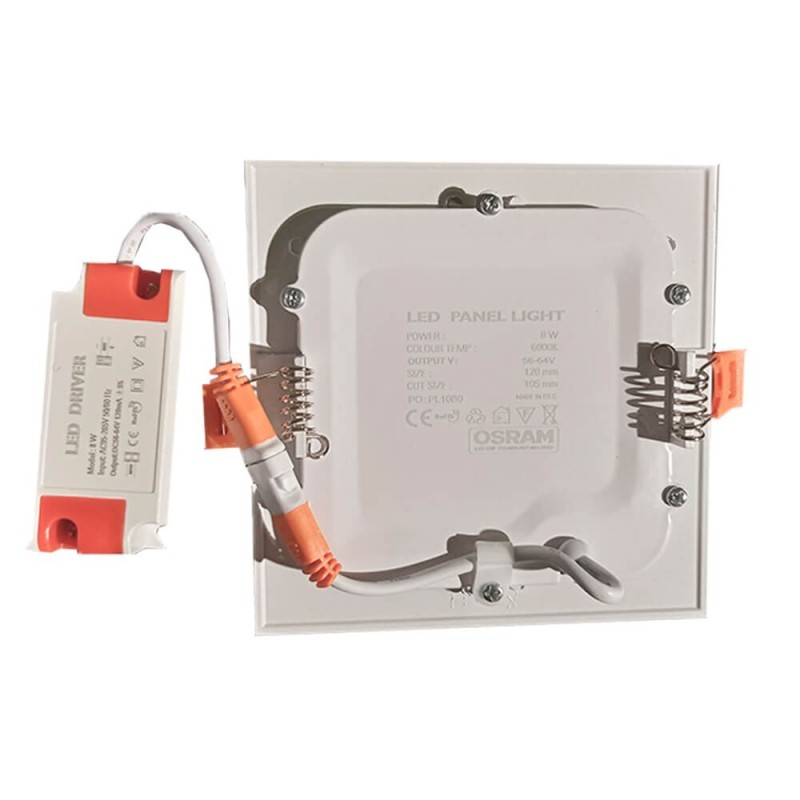

| 3 | Wire it Wire the downlight to the mains (driver depending on model). |
| 4 | Recess it Insert the downlight via its tabs and check the lighting. |
Frequently asked questions
An OSRAM SMD2835 chip, for 880 lm and CRI > 80.
105x105 mm (dimensions 120x120 mm).
No, fixed white light.
| ⚡ 8W 880 lm | 🌡 120º CRI > 80 | 📏 Slim OSRAM | ☂ IP20 Indoor |
Data sheet
- Power (W)
- 8
- Power source (V)
- 220-240V
- Color temperature CCT
- 3000K
4000K
6000K
- LED
- SMD2835
- LED chip brand
- OSRAM
- Luminous efficacy (Lm/W)
- 110
- LED diode efficiency (Lm/W)
- 140
- Brightness (Lm)
- 880
- Color rendering index (Ra):
- ≥80
- Colour
- White
- IP
- IP20
- Luminous angle
- 120°
- Frequency (Hz)
- 50-60Hz
- Forma
- Cuadrado
- Measures (mm)
- 120x120mm
- Medida de corte (mm.)
- 105x105mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +40ºC
- Energy efficiency 2021
- A+
- Lifespan
- 40.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8435637205078
