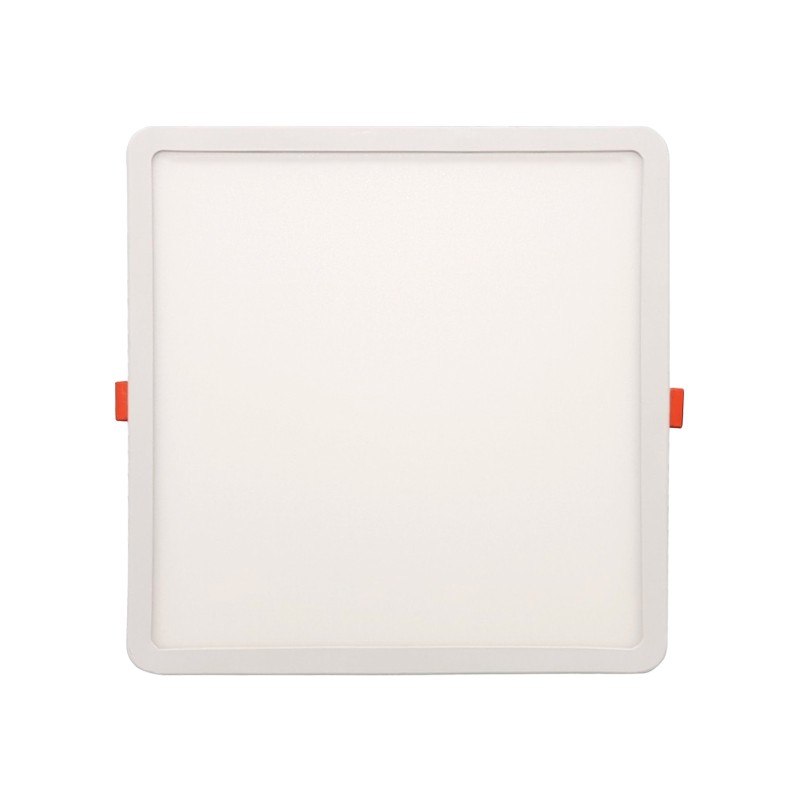

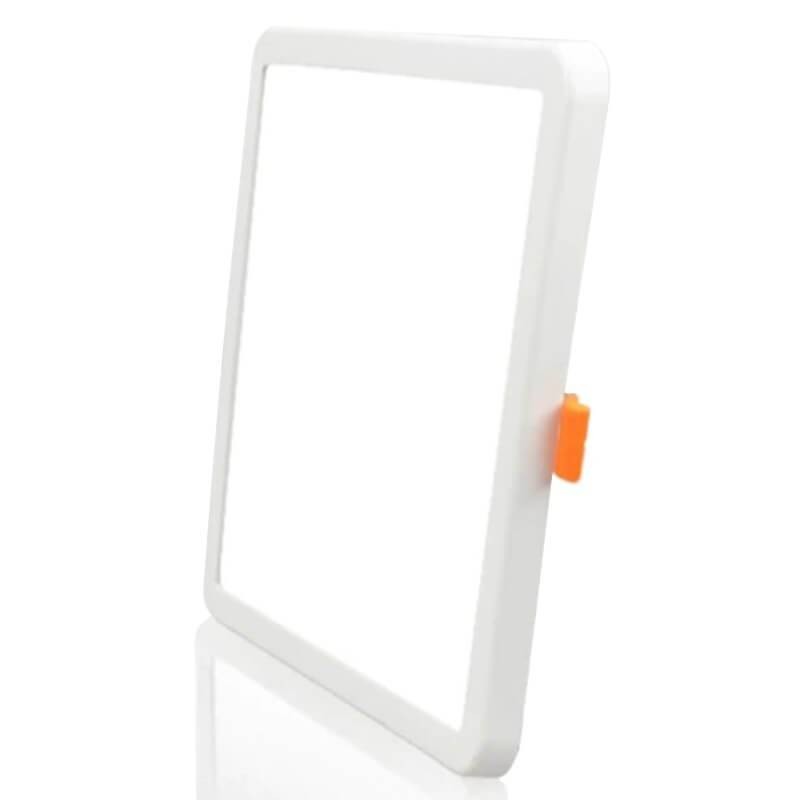

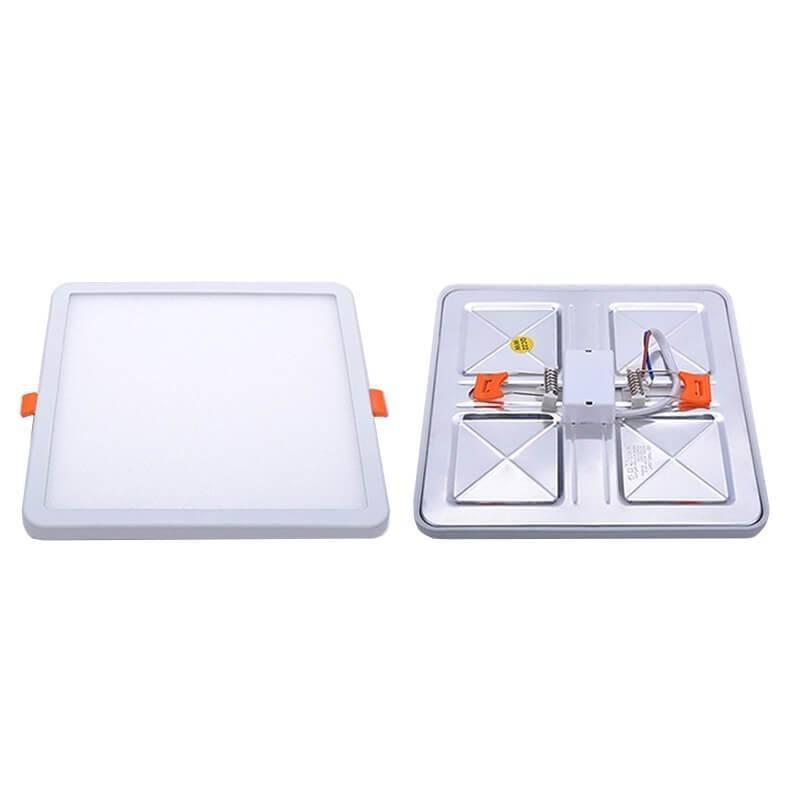

20W Adjustable Cutout Square LED Downlight 1600Lm IP20
The Recessed Square LED Downlight with an ultra-thin slim design is a perfect solution for those seeking efficient and versatile lighting. With a power consumption of 20W, this LED downlight is equivalent to recessed low-consumption and CFL lamps of 2x26W, reducing energy consumption by more than half.
Thanks to its construction with high-brightness SMD2835 LEDs, an aluminum reflector housing, and an opal polycarbonate diffuser, this downlight emits a luminous flux of 2000 lumens in a homogeneous, intense manner without shadows or dark spots.

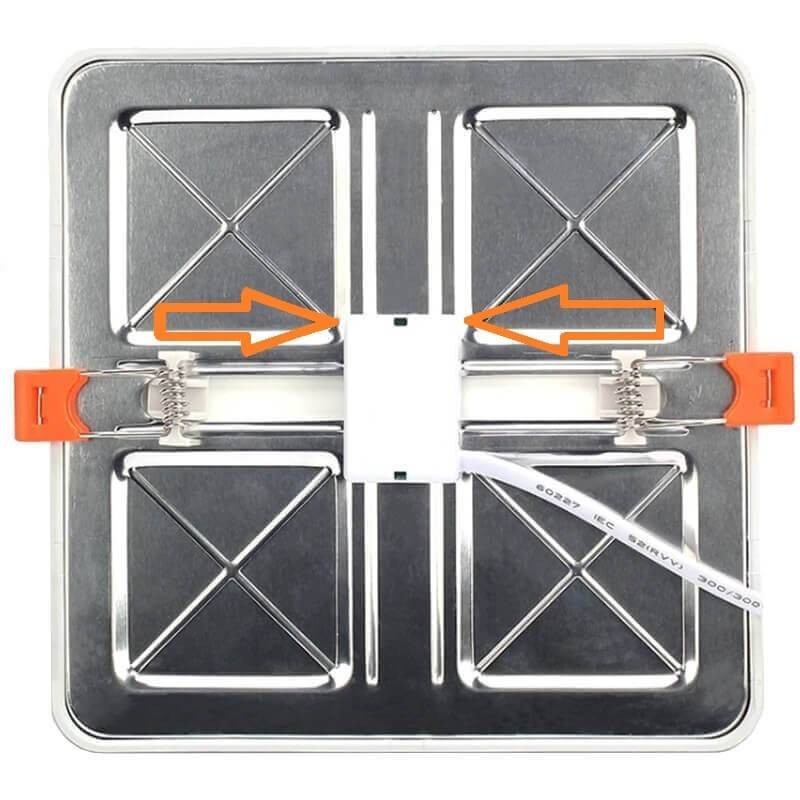

The adjustable LED downlight panel is designed in a semi-recessed format, meaning the adjustable clips can adapt to any hole with a diameter between 40 and 220mm. This allows the downlight to sit flush against the wall, protruding less than 10mm with an ultra-thin design. In this way, any hole or imperfection in the cut is concealed, providing a perfect and elegant finish.
- Power: 20W
- Luminous Flux: 1600 lumens
- Outer Dimensions: 230x230x25mm
- Cut-out Size: 40⇄220mm
- Protection: IP20, suitable for indoor use
Square LED Downlight 20W 1600 lm, Adjustable Diameter
An ultra-slim, versatile 20W square LED downlight. With 1600 lumens, a 120º angle and an adjustable cut-out (40-220 mm), it replaces 2x26W downlights with over 50% savings.
⚡ 20W💡 1600 lm🔄 120º📐 Adj. Ø
| 20W Power | 1600 lm Luminous flux | 120º Beam angle | 40-220 mm Cut-out |
The ultra-slim square recessed LED downlight is a perfect solution for efficient, versatile lighting. With a power of 20W, it is equivalent to 2x26W low-energy and CFL downlights, cutting consumption by more than half.
Built with high-brightness SMD2835 LEDs, an aluminium reflective shell and an opal polycarbonate diffuser, it emits a flux of 1600 lumens evenly, with no shadows or dark spots. Its 120º angle optimises the lit space, and its adjustable cut-out (40-220 mm) eases semi-recessed installation. Outer dimensions 230x230x25 mm, IP20 protection.
Why choose this product?
Fits many openings, ideal for renovation.
Even light with no shadows or dark spots.
Replaces 2x26W downlights with 1600 lm.
Technical specifications
| Product type | Square recessed LED downlight |
|---|---|
| Power | 20W |
| Luminous flux | 1600 lm |
| Beam angle | 120º |
| LED type | SMD2835 |
| Material | Lacquered aluminium and opal polycarbonate |
| Cut-out size | 40-220 mm (adjustable) |
| Outer dimensions | 230 x 230 x 25 mm |
| Protection | IP20 (indoor) |
Advantages
- Adjustable cut-out 40-220 mm: fits many openings.
- 1600 lumens: even light with no shadows.
- 120º angle: optimises the lit space.
- Ultra-slim: discreet slim design.
- Over 50% savings: replaces 2x26W downlights.
- Aluminium reflector: intense, uniform lighting.
Recommended applications

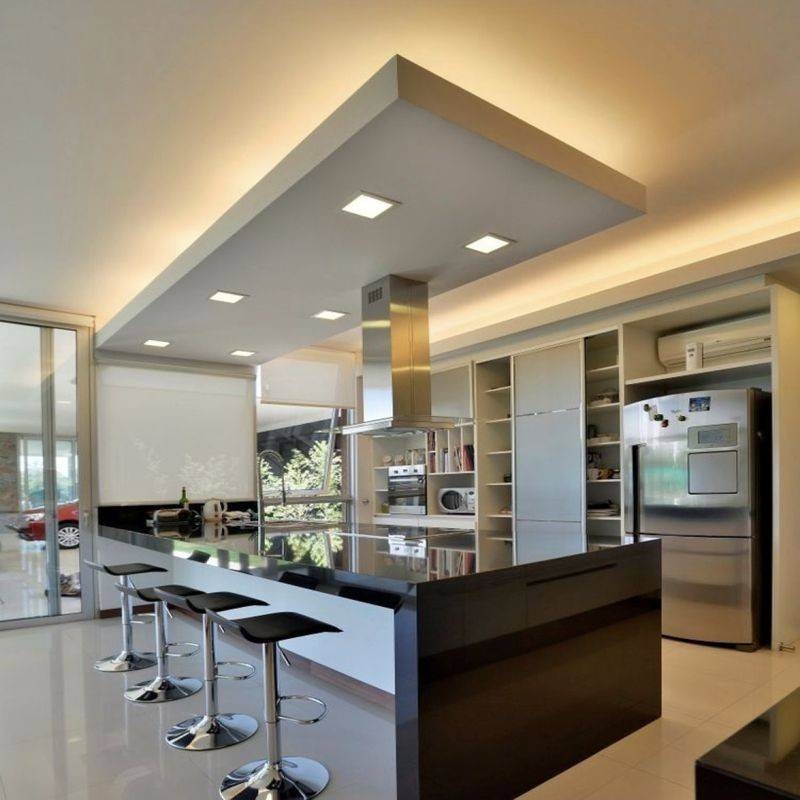

| 🚪 | Kitchens — bright, even lighting. |
| 🏠 | Living and dining rooms — pleasant atmospheres. |
| 🏛 | Hotels, bars and restaurants — quality lighting. |
| 🌿 | Shops — highlighting products. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Set the cut-out Adjust the cut-out size (40-220 mm) to the ceiling opening. |
| 3 | Wire it Wire the downlight to the mains as per standards. |
| 4 | Recess it Insert the downlight into the semi-recessed cut-out and restore power. |
Frequently asked questions
No, it is adjustable from 40 to 220 mm, easing installation and renovation.
2x26W low-energy and CFL downlights, with over 50% savings.
No, its IP20 rating means it is for indoor use.
| 📐 Adj. Ø 40-220 mm | 🔄 120º No shadows | ⚡ 1600 lm +50% saving | 📦 In stock Fast shipping |
Data sheet
- Power (W)
- 20
- Power source (V)
- 220-240V
- Color temperature CCT
- 4000K
- LED
- SMD2835
- LED diode efficiency (Lm/W)
- 80
- Brightness (Lm)
- 1600
- Color rendering index (Ra):
- ≥80
- IP
- IP20
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Forma
- Cuadrado
- Measures (mm)
- 230x230mm
- Medida de corte (mm.)
- Ajustable 40-220mm
- Material
- Aluminum + glass
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- G
- Lifespan
- 35.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- ean13
- 8436540803474
