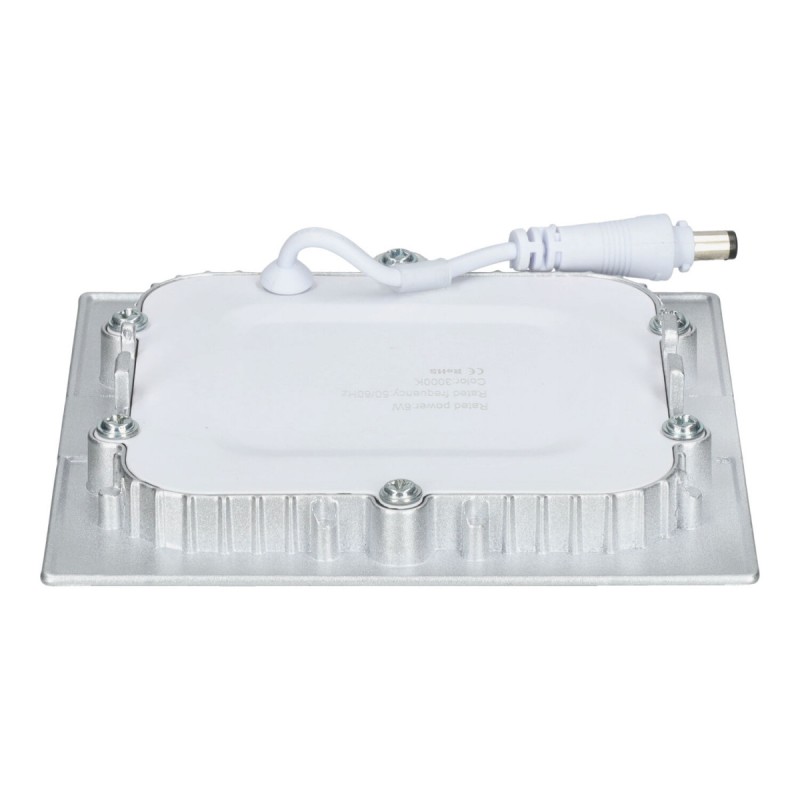

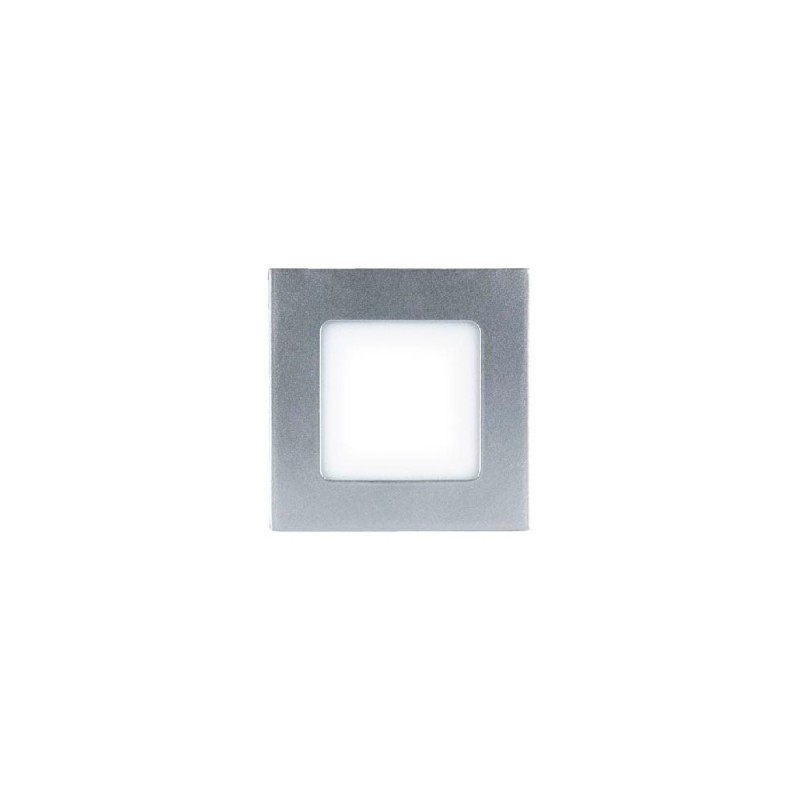

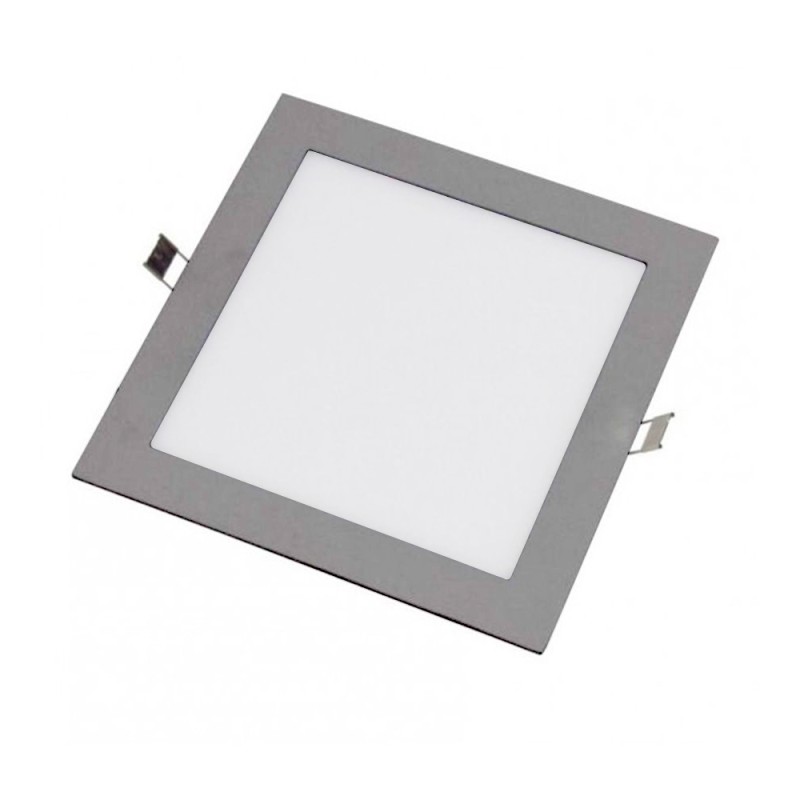

6W Recessed Square LED Downlight 6W 117x117mm Silver Grey IP20

Square LED Downlight 6W Silver Grey IP20

The slim square LED downlight with 6W power is an ultra-thin luminaire that combines elegance and functionality. With a luminous flux of 600 lumens, it is perfect for efficiently illuminating indoor spaces. It is made of silver grey lacquered aluminum, giving it a modern and durable finish.

The downlight is designed for 100x100mm square recesses and installs easily thanks to the built-in clamps, ensuring a solid fixation. It includes an external driver for direct connection to the electrical network. It is suitable for plasterboard ceilings and other interior materials.

Features of the 6W Silver Grey Square LED Downlight

• External dimensions: 117x117mm
• Cut-out dimensions: 100x100mm
• Depth: 11mm
• Luminous flux: 600 lumens
• Average consumption: 6W
• Equivalence: Replaces conventional 40W luminaires / 22W low consumption luminaires
• Energy savings: 90% compared to traditional luminaires
• Dimmerability: Not dimmable. Dimmable driver option available on request
• Driver connection: Direct to 230V mains
• Ingress protection rating: IP20, suitable for indoor use. Not recommended for outdoor use
• Luminous angle: 120º
• Color rendering index (CRI): >80

Installation of the 6W Recessed Square Silver Grey LED Downlight

Installing this recessed LED downlight is simple and can be done in a few steps:

1. Necessary tools: Drill, screwdriver, pliers, and cutter.
2. Turn off the electricity: Turn off the electricity at the fuse box before starting.
3. Marking and cutting: Mark the location on the ceiling and make the necessary cuts using the drill and cutter.
4. Electrical connection: Connect the power cables to the downlight ensuring they are securely connected.
5. Fixing the downlight: Insert the downlight into the hole and secure it with the provided clips or supports.
6. Verification: Turn the electricity back on and check that the downlight is working correctly.

If you are not comfortable installing it yourself, it is recommended to hire a qualified electrician.

Technical Data of the 6W Recessed Square LED Downlight 117x117mm

• External dimensions: 117x117mm
• Ceiling cut-out: 100x100mm
• Depth: 11mm
• Average consumption: 6W
• Luminous flux: 600 lumens
• Equivalence: Replaces 40W conventional luminaires or 22W low consumption luminaires
• Energy savings: 90%
• Dimmerability: Not dimmable
• Driver connection: Direct to 230V mains
• Ingress protection rating: IP20, suitable for indoor use
• Luminous angle: 120º
• Glare level: Low
• Color rendering index (CRI): >80
