60x60cm 52W UGR19 Slim PRO LED Panel LiFUD driver 4940Lm

31.90 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Natural white 4000K
In stock: 26 Items
Reference:
PL-TL52W/840

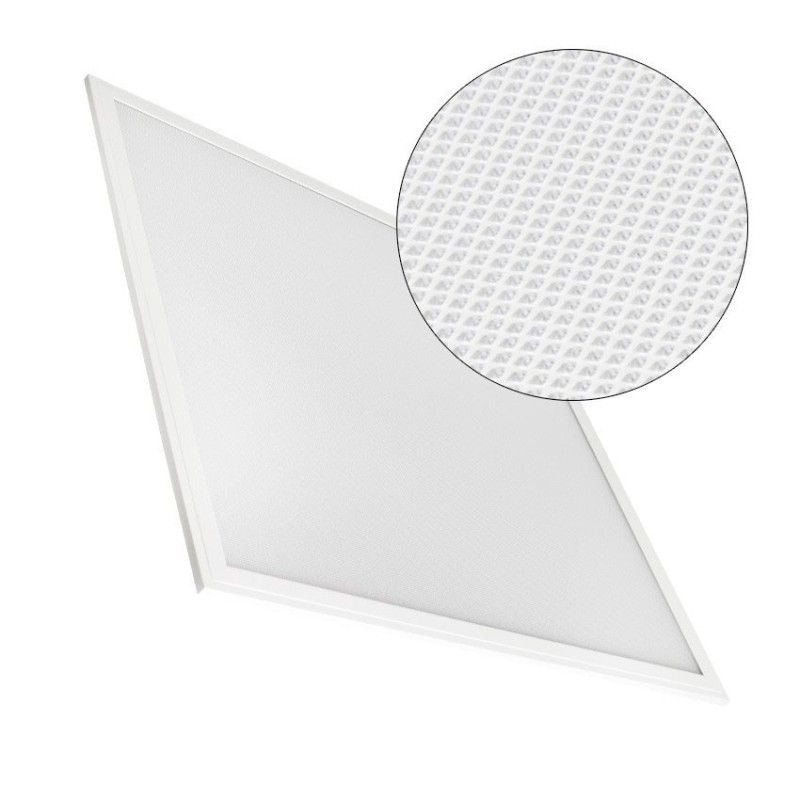

The 60x60cm Slim PRO LED Panel offers a power of 52W and a brightness of 4940 lumens, with a high CRI>80. Equipped with high-brightness EPISTAR SMD2835 LED chips, it features an ultra-thin 10mm profile, made of aluminum with a white frame and a low-glare microprismatic PMMA diffuser UGR<19. Includes a LIFUD external driver, flicker-free, of high quality and durability.

  • Dimensions: 595x595x10mm
  • Power: 52W
  • Brightness: 4940 lumens
  • LED Chip: EPISTAR SMD2835
  • CRI: >80
  • Diffuser: PMMA microprismatic UGR<19
  • Profile: Ultra-thin, 10mm thick
  • Material: Aluminum with white frame
  • Driver: External LIFUD, flicker-free
  • IP Rating: IP20
  • Lifespan: 35000 hours
Read moreShow less
Download PDF
You may also like
No items
Description

Slim PRO LED Panel 60x60cm 4940Lm LIFUD Driver


Slim PRO LED Panel, 60x60cm, 52W power, high-brightness EPISTAR SMD2835 LED chip, high CRI>80, 4940 lumens

The 60x60cm Slim PRO LED Panel offers a power of 52W and a brightness of 4940 lumens, with a high CRI>80. Equipped with high-brightness EPISTAR SMD2835 LED chips, it features an ultra-thin 10mm profile, made of aluminum with a white frame and a low-glare microprismatic PMMA diffuser UGR<19. Panel dimensions: 595x595x10mm. Includes an external LIFUD driver, flicker-free, of high quality and durability.

Technical Specifications


  • Dimensions: 595x595x10mm
  • Power: 52W
  • Brightness: 4940 lumens
  • LED Chip: EPISTAR SMD2835
  • CRI: >80
  • Diffuser: PMMA microprismatic UGR<19
  • Profile: Ultra-thin, 10mm thick
  • Material: Aluminum with white frame
  • Driver: External LIFUD, flicker-free, power factor >0.9
  • IP Rating: IP20
  • Warranty: 3 years
  • Lifespan: 35000 hours

Advantages of the Slim PRO LED Panel


The Slim PRO LED Panel offers numerous advantages, such as its high luminous efficiency and ultra-thin design, allowing for discreet integration into any space. Its PMMA microprismatic diffuser reduces glare, providing comfortable and uniform lighting. Additionally, the flicker-free LIFUD driver ensures constant, flicker-free lighting, protecting eyesight and enhancing well-being in the workplace.

Installation Instructions


  1. Preparation: Ensure you have a clean and suitable surface for panel installation.
  2. Mounting: The panel can be recessed into standard 60x60cm ceiling tiles, and can also be surface-mounted or recessed into plasterboard using the corresponding accessories (sold separately).
  3. Connection: Connect the external LIFUD driver to the LED panel and to the electrical network, following the manufacturer's instructions.
  4. Testing: Turn on the system and verify that the panel is functioning correctly.

Recommended Applications


The Slim PRO LED Panel is ideal for a variety of indoor applications, such as:

  • Offices: Provides efficient and comfortable lighting for work environments.
  • Conference Rooms: Offers uniform and high-quality lighting.
  • Retail Stores: Enhances product visibility and creates a pleasant atmosphere for customers.
  • Educational Spaces: Ensures adequate lighting for classrooms and libraries.
  • Hospitals and Clinics: Provides clear, glare-free lighting, crucial for medical environments.
Read moreShow less
Product Details
PL-TL52W/840

Data sheet

Power (W)
52
Power source (V)
220-240V
Color temperature CCT
4000K
LED
SMD2835
LED chip brand
EPISTAR
Brightness (Lm)
CRI
+80
IP
IP20
Luminous angle
120
Power factor
Measures (mm)
595x595x10mm.
Material
Aluminum + PMMA
Driver
Operating temperature
-20ºC ~ +40ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
35.000h
Certification
CE - RoHS
Warranty
3 años

Specific References

ean13
8435637220927
