16W Recessed Square LED Downlight 1664Lm IP20
The 16W square recessed LED downlight is the perfect solution to illuminate interiors efficiently and with style. Equipped with a high-performance SMD2835 LED chip, this spotlight offers a luminous flux of 1664 lumens, providing clear and uniform light in any space.
This downlight is specifically designed for installation in false ceilings with aluminum slats, thanks to its cut-out dimensions that facilitate mounting in this type of structure. Its opal PC diffuser ensures even light distribution, reducing glare and creating a pleasant atmosphere.
- External dimensions: 200x200mm
- Ceiling cut-out dimensions: 180x180mm

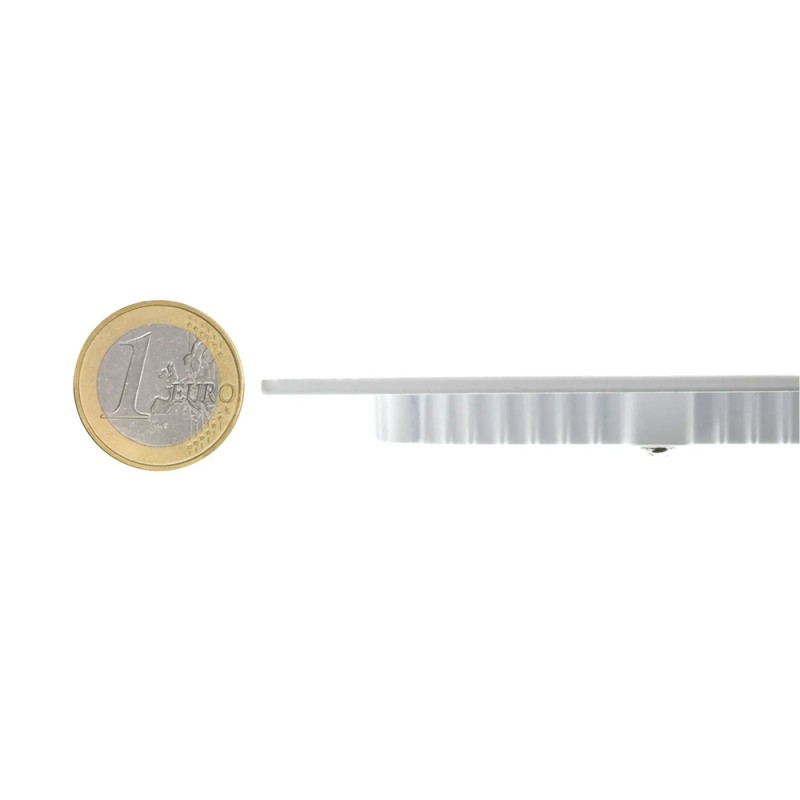

- Depth: 11mm
- Power consumption: 16W
- Energy saving: 90% compared to traditional luminaires
- Driver connection: Direct to 230V mains
- Panel protection rating: IP20, suitable for indoor use
Square Recessed LED Downlight 16W 1664 lm IP20 Slat Ceilings Opal Diffuser
The 16W square recessed LED downlight with an SMD2835 chip offers 1664 lumens with an opal PC diffuser for even light. Designed for aluminium slat ceilings, 180x180 mm cut-out (200x200 mm outer), IP20 rating, CRI > 85.
⚡ 16W💡 1664 lm⬜ Carré☂ IP20
| 16W Power | 1664 lm Luminous flux | 180x180 Cut-out | IP20 Protection |
The 16W square recessed LED downlight is the perfect solution for lighting interiors efficiently and with style. Equipped with a high-performance SMD2835 LED chip, it offers a luminous flux of 1664 lumens, providing clear, even light throughout the space, with a 120º angle and CRI > 85.
It is specially designed to be installed in aluminium slat ceilings, thanks to its cut-out dimensions (180x180 mm, 200x200 mm outer) which make fitting easier. Its opal PC diffuser ensures even light distribution while reducing glare. Direct connection to 230V, non-dimmable, IP20 rating, 3-year warranty.
Why choose this product?
180x180 mm cut-out (200x200 mm outer), aluminium.
SMD2835, opal diffuser, even light.
No external driver, non-dimmable, IP20.
Technical specifications
| Product type | Square recessed LED downlight |
|---|---|
| Power | 16W |
| Luminous flux | 1664 lm |
| LED | SMD2835 |
| Angle | 120º |
| CRI | > 85 |
| Cut-out | 180x180 mm (ext. 200x200 mm) |
| Diffuser | Opal PC |
| Dimming | Non-dimmable |
| Protection | IP20 |
| Warranty | 3 years |
Advantages
- 16W square: 1664 lm, SMD2835.
- Slat ceilings: 180x180 mm cut-out.
- Opal diffuser: even light.
- CRI > 85: 120º angle.
- Direct 230V: no external driver.
- IP20: indoor, 3-year warranty.
Recommended applications
| 🚪 | Offices — work areas. |
| 🏠 | Shops — well-lit atmosphere. |
| 🏛 | Homes — kitchens, living rooms, corridors. |
| 🌿 | Hotels and restaurants — slat ceilings. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Make the cut-out Prepare a 180x180 mm cut-out in the ceiling. |
| 3 | Recess and wire Insert the downlight and wire to 230V. |
| 4 | Check Restore power and check the lighting. |
Frequently asked questions
180x180 mm (external dimensions 200x200 mm).
No, direct connection to 230V.
Ideal for aluminium slat ceilings.
| ⚡ 16W 1664 lm | ⬜ 180x180 IP20 | 💡 CRI>85 120º | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 16
- Power source (V)
- 100-240V
- Color temperature CCT
- 6500K
- LED
- SMD2835
- LED chip brand
- EPISTAR
- Brightness (Lm)
- 1664
- Color rendering index (Ra):
- ≥85
- Colour
- White
- IP
- IP54
- Luminous angle
- 120º
- Frequency (Hz)
- 50-60Hz
- Forma
- Cuadrado
- Measures (mm)
- 200x200x11mm
- Medida de corte (mm.)
- 180x180mm
- Material
- Aluminum + PC
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 40.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637210867
