20W 2200LmRecessed Selectable CCT LED Downlight OSRAM Chip

LED Downlight Panel 20W OSRAM 3CCT Chip

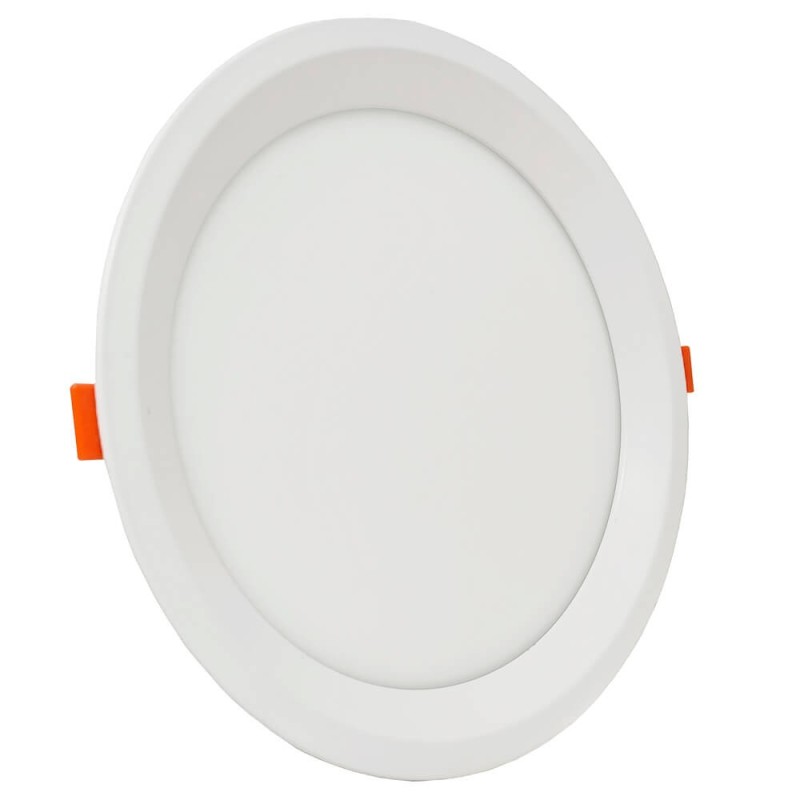

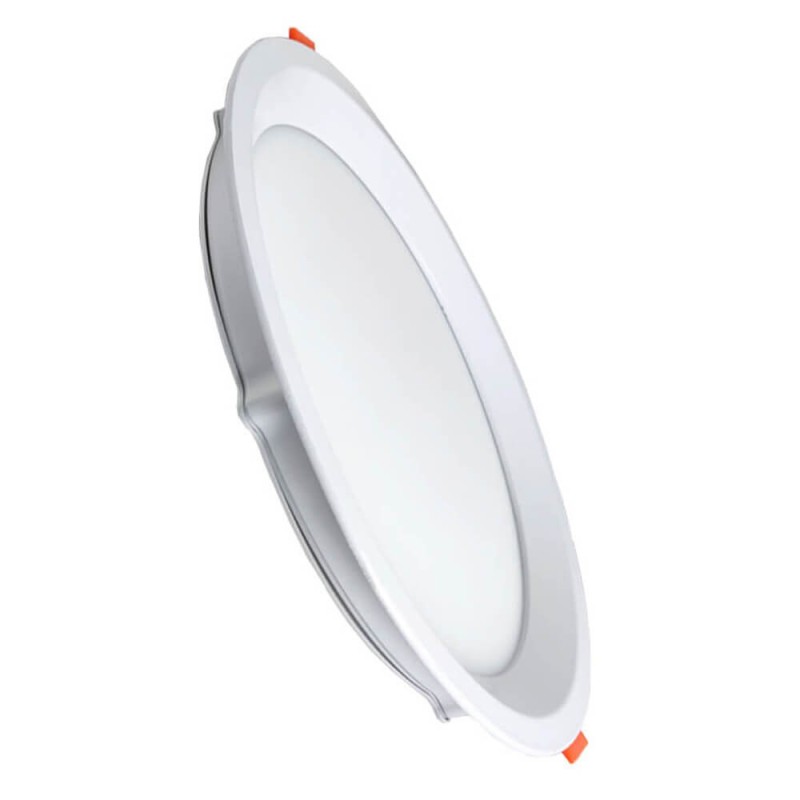

The 20W Circular LED Downlight Panel offers a versatile and efficient lighting solution for a wide range of spaces. With OSRAM SMD2835 DURIS E chip technology, 3CCT color temperature selection, it provides customizable, high-quality lighting with a compact and discreet design.

The 20W Circular LED Downlight Panel with OSRAM SMD2835 DURIS E chip is an ideal choice for uniform and efficient lighting in various areas, from commercial to residential spaces. Its 3CCT color temperature selector allows you to adapt the lighting to different environments and needs.

With a diameter of 220mm and a thickness of 18mm, this LED panel features a compact design that makes it suitable for ceiling installation. The cutout size is Ø200mm. The microprismatic PC diffuser with a low UGR<19 level reduces glare and visual fatigue, providing comfortable and safe lighting. Additionally, its CRI>85 level ensures accurate color reproduction, enhancing the visual quality of the environment.

Technical Data:

• Power: 20W
• LED Chip: OSRAM SMD2835 DURIS E
• Color Temperature: 3000K / 4000K / 5700K (3CCT)
• Luminous Flux: 2200lm
• Dimensions: Ø220x18mm
• Cutout Size: Ø200mm
• Flicker-Free External Driver

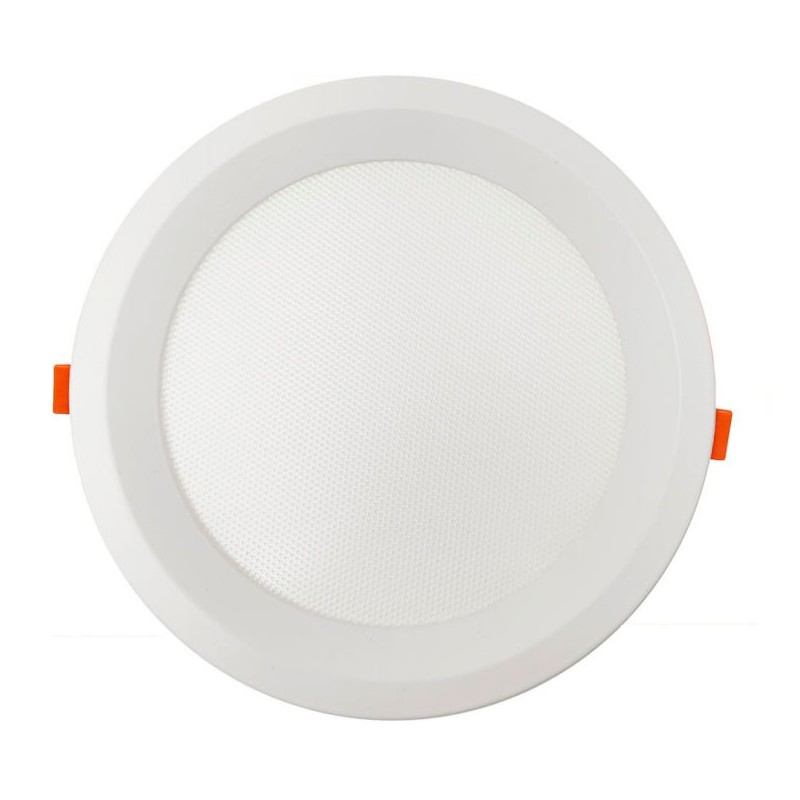

• Diffuser: Microprismatic PC

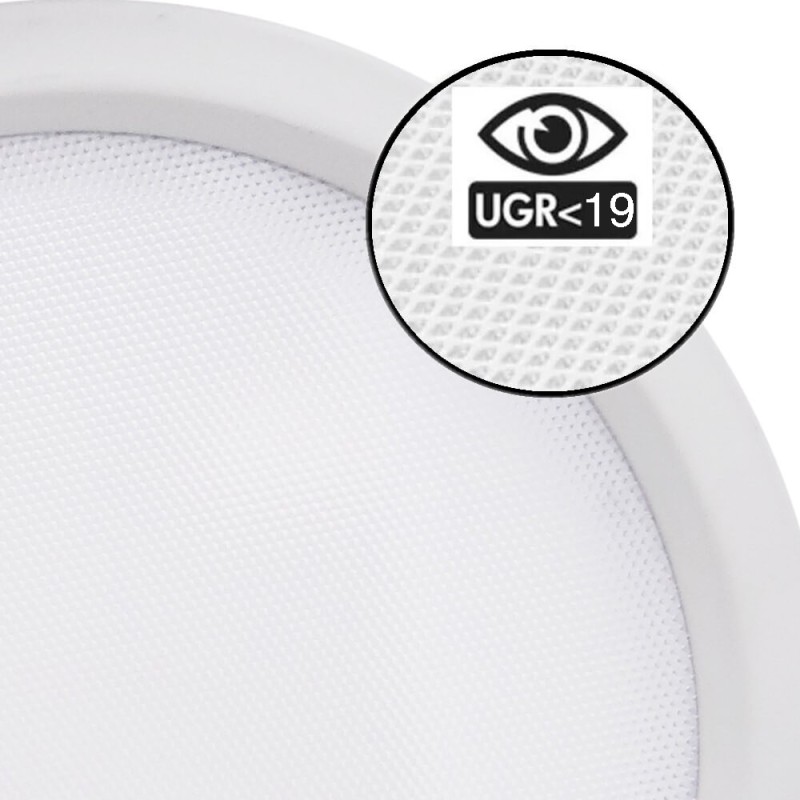

• UGR Level: <19
• Color Rendering Index (CRI): >85

Installation and Mounting:

1. Turn off the electrical power before installing the LED Downlight Panel.
2. Make the necessary adjustments to select the desired color temperature and power.
3. Secure the external driver in an accessible and well-ventilated location.
4. Connect the electrical wires according to the manufacturer's instructions.

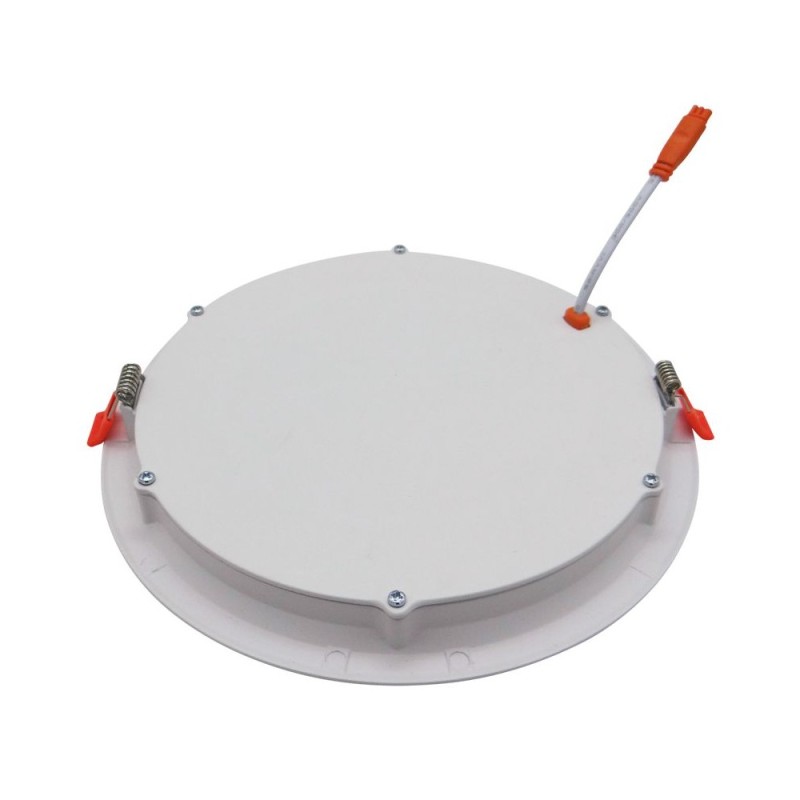

5. Mount the LED panel on the ceiling using the provided mounting elements.

Recommended Uses:

• Lighting for offices and commercial spaces.
• Residential lighting in living rooms, bedrooms, and kitchens.
• Workspaces such as workshops and garages.
• Reception areas and passageways in hotels and restaurants.
