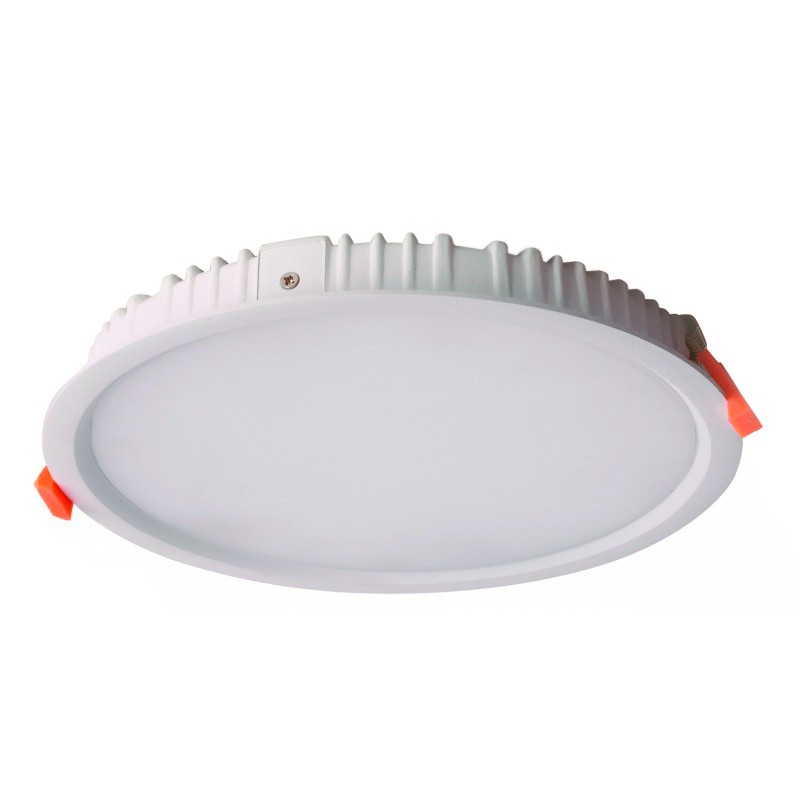

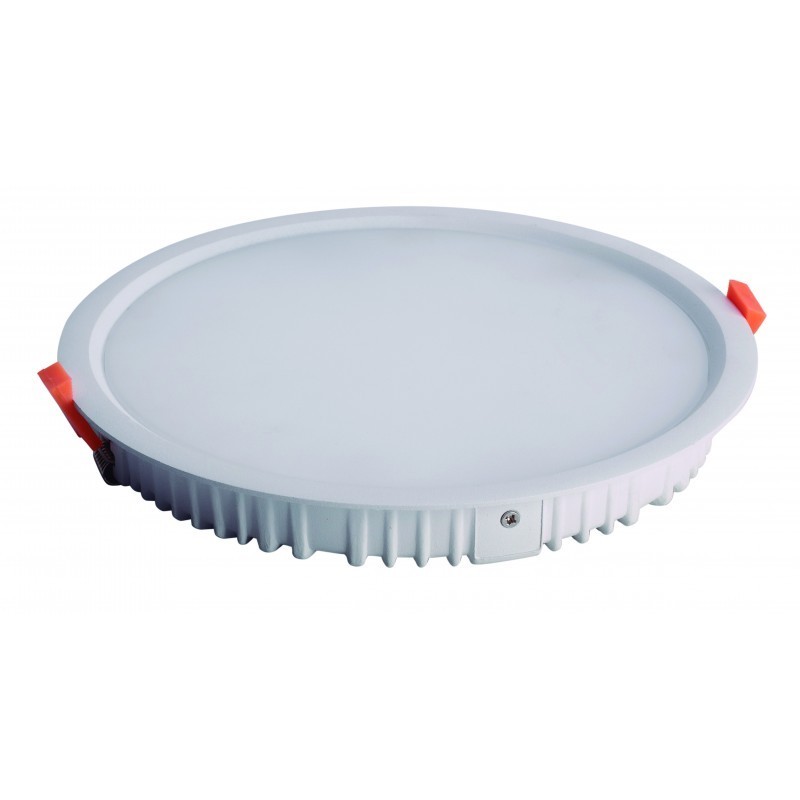

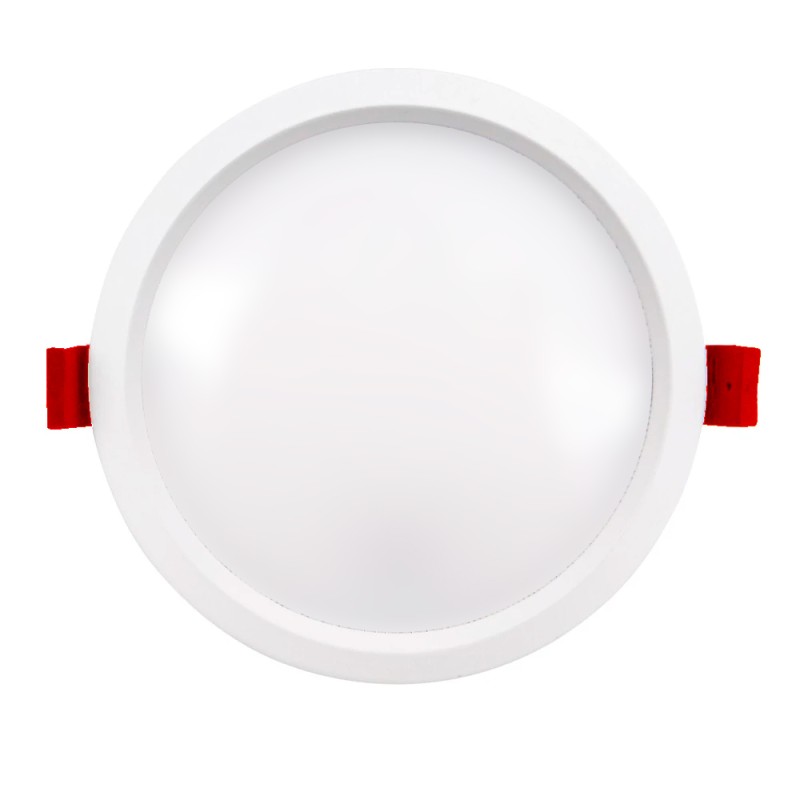

18W PREMIUM round PREMIUM LED downlight panel Ø172mm 1720Lm

14.90 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Warm white 2700K
  • Natural white 4000K
  • Cool white 6500K
In stock: 559 Items
Reference:
PL-DLRG18W-4K

Recessed circular LED downlight with an ultra-slim design, featuring a power of 18W, excellent luminous performance, and a luminous flux of 1720 lumens. With a beam angle of 120º. Constructed with a white aluminum housing and frame, with a visible thickness of less than 5mm, an outer diameter of Ø172mm, and a cutout diameter of Ø150mm. With an EXTERNAL driver, the LED downlight is wired and ready to connect to the power supply. The LED downlight is available in warm white 2700K, neutral white 4000K, and cool white 6500K. Suitable for indoor use, both for domestic and professional purposes.

  • ☀ 1720Lm
  • ⊘ 172mm
  • ✄ 150mm
  • ☂ IP20
  • 3-year warranty
Read moreShow less
Download PDF
You may also like
No items
Description

Recessed 18W LED Downlight Ø172mm


Slim ultra-thin design LED downlight with a visible thickness of less than 5mm, consuming 18W, equivalent to low-consumption recessed lamps, halogen spotlights, and CFLs, reducing energy consumption by up to 80%. Constructed with high-brightness SMD2835 LEDs, aluminum reflective housing, and opal PMMA diffuser, the recessed LED downlight has excellent luminous performance and emits a luminous flux of 1720 lumens, evenly, intensely, and without shadows or dark spots. Additionally, thanks to its 120º beam angle, you'll get intense illumination while reducing the number of light points.

  • Outer diameter: Ø172mm
  • Cutout diameter: Ø150mm

The LED downlight has an IP20 rating, making it suitable for indoor use only.

External driver included


The recessed LED downlight includes a high-quality and durable internal driver to maximize the LED board's lifespan. The driver incorporates the latest insulation and protection technology, complying with all CE and RoHS standards. Additionally, it supports a wide input voltage range of 100-240V. The included driver is not dimmable.

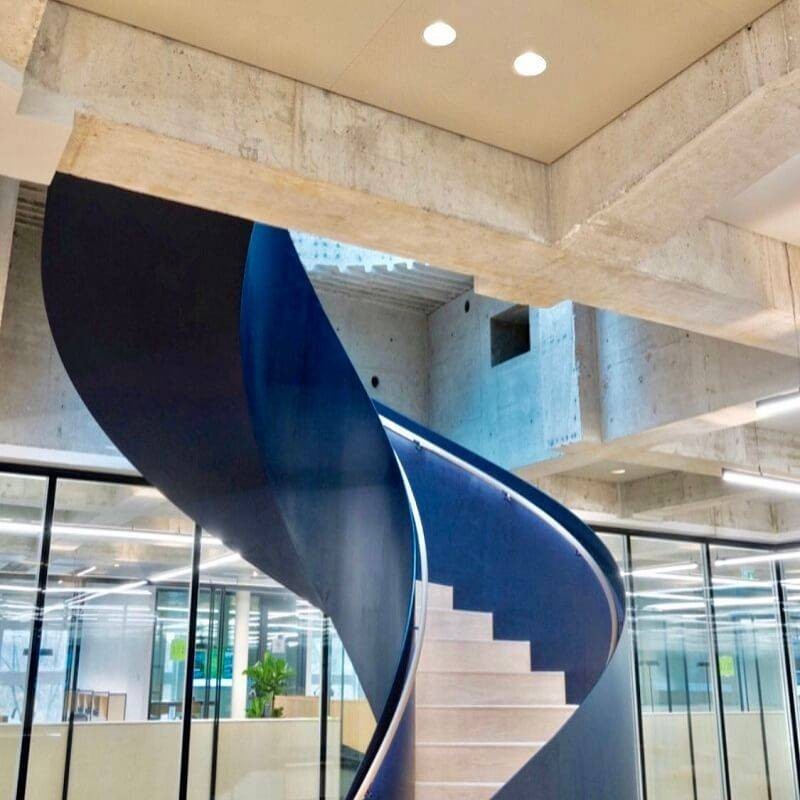

Uses and applications of the 18W recessed LED downlight


You can install the 18W recessed LED downlight in circular openings in the ceiling with a diameter of Ø150mm. Therefore, you can install it as a replacement for CFL downlights and spotlights. Use it in:

  • Kitchens
  • Bedrooms
  • Living rooms and dining rooms
  • Hotels, bars, and restaurants
  • Retail stores and shopping malls
Read moreShow less
Product Details
PL-DLRG18W-4K

Data sheet

Power (W)
18
Power source (V)
100-240V
Color temperature CCT
2700K
4000K
6500K
Brightness (Lm)
1720
CRI
+80
Colour
White
Luminous angle
120°
Frequency (Hz)
50-60Hz
Power factor
0,90
Forma
Redondo
Measures (mm)
Ø172x30mm
Medida de corte (mm.)
Ø150mm
Material
Aluminum + PMMA
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Certification
CE - RoHS
Warranty
3 años
