24x15mm Recessed Aluminum Black Profile for LED Strips - 2m

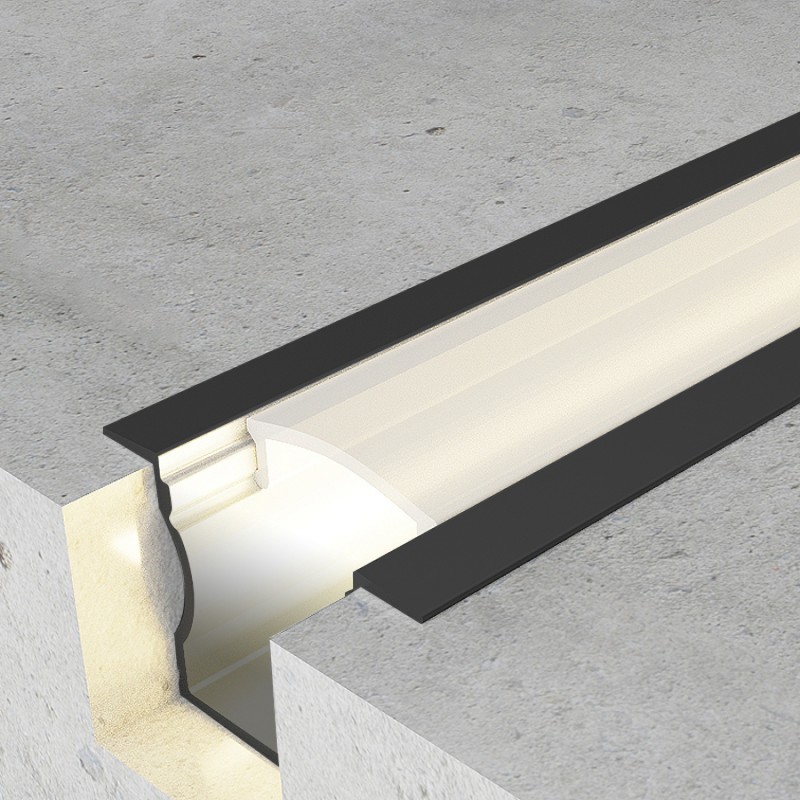

The black lacquered aluminum profileee is the perfect solution for integrating LED strips in dark or elegant spaces, such as black wooden furniture or walls painted in dark tones. Thanks to its recessed design, the profileee easily adapts to any surface, providing a clean and modern finish.
Opal White Diffuser: Delivers maximum brightness from the installed LED strip, ideal for spaces that require intense and uniform lighting.
The black aluminum profileee for LED strips includes everything needed for installation:
- 2 Mounting clips
- 2 End caps

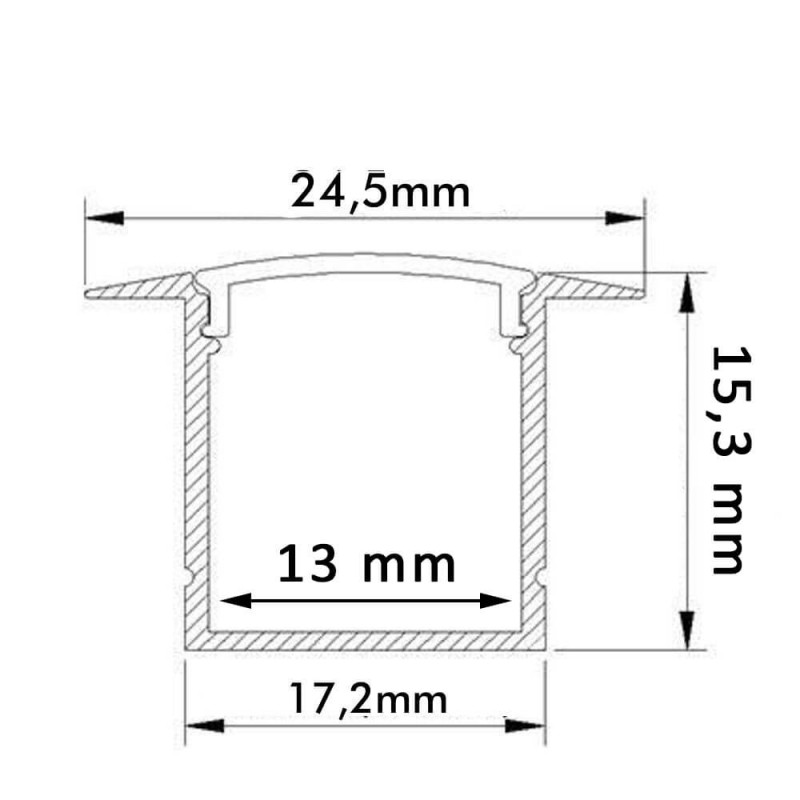

- Dimensions: 24x15x2000mm
- Cut-out Dimensions: 17.2mm
- Material: Black lacquered aluminum
- Diffuser: Opal White
- IP Rating: IP20, suitable for indoor use
Recessed black Aluminium Profile 24x15 mm for LED Strip - 2 m kit with opal diffuser
The black lacquered aluminium recessed profile (24x15 mm) elegantly integrates your LED strips, with better heat dissipation and a clean finish. opal white diffuser, compatible with strips up to 12 mm wide. Complete 2-metre kit with accessories. 17 mm wide cut-out.
📐 24x15 mm🌏 Noir🧼 Diffuseur opale📦 Kit 2 m
| 24x15 mm Dimensions | black Colour | 12 mm Max. strip | 2 m Length |
The black lacquered aluminium recessed profile is the ideal solution for integrating LED strips elegantly and functionally. Its refined design allows a clean installation in walls, ceilings or furniture, while optimising the strip's heat dissipation, which extends its lifespan. Dimensions 24x15 mm.
It is fitted with a opal white diffuser that spreads the light evenly and hides the LED dots. Compatible with LED strips up to 12 mm wide. 17 mm wide cut-out. The complete 2-metre kit includes the profile, the diffuser, the end caps and the fixing accessories needed for easy installation.
Why choose this product?
Elegant recessed finish, optimised heat dissipation.
Even light, hides the LED dots.
Profile, diffuser, end caps and accessories included, strips ≤ 12 mm.
Technical specifications
| Product type | Recessed aluminium profile for LED strip |
|---|---|
| Mounting | Recessed |
| Colour | black |
| Material | Lacquered aluminium |
| Dimensions | 24x15 mm |
| Diffuser | Opal white |
| Max. strip width | 12 mm |
| Cut-out | 17 mm |
| Length | 2 metres (kit) |
Advantages
- black lacquered aluminium: elegant recessed finish.
- Opal diffuser: even light.
- Heat dissipation: extends the strip's life.
- Strips ≤ 12 mm: wide compatibility.
- 2 m kit: diffuser, end caps and accessories included.
- Dimensions 24x15 mm: clean installation.
Recommended applications
| 🚪 | Furniture and shelves — integrated lighting. |
| 🏠 | Walls and ceilings — light lines. |
| 🏛 | Kitchens and cupboards — clean finish. |
| 🌿 | Shops and offices — professional install. |
Installation guide
| 1 | Measure and cut Cut the profile to the desired length. |
| 2 | Prepare the strip Insert the LED strip into the profile. |
| 3 | Fit the diffuser Clip on the opal diffuser and the end caps. |
| 4 | Fix and wire Fix the profile and wire the strip to the supply. |
Frequently asked questions
LED strips up to 12 mm wide.
The 2 m profile, the opal diffuser, the end caps and the accessories.
Yes, the aluminium optimises heat dissipation.
| 📐 24x15 mm black | 🧼 Diffuser Opal | 📦 Kit 2 m | 🔌 In stock Fast shipping |
Data sheet
- Colour
- Black
- IP
- IP20
- Measures (mm)
- Material
- Aluminum + PC
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637211789
