40W 60x60cm DALI-2 Dimmable + Selectable CCT UGR19 LED Panel 4600Lm

48.95 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Selectable CCT (3000K-4000K-6000K)
In stock: 96 Items
Reference:
IL-PB40WCCT-DALI

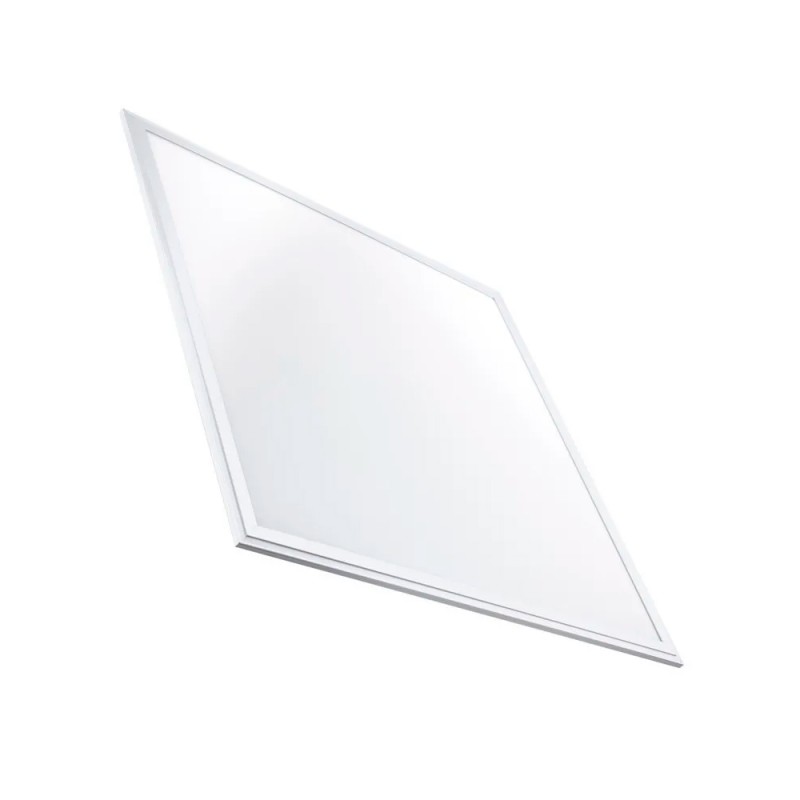

The 60x60cm LED Panel is a high-performance lighting solution, designed to offer an excellent quality/price ratio. With a power of 40W and a luminous flux of 4600 lumens, this LED panel guarantees efficient and durable lighting.

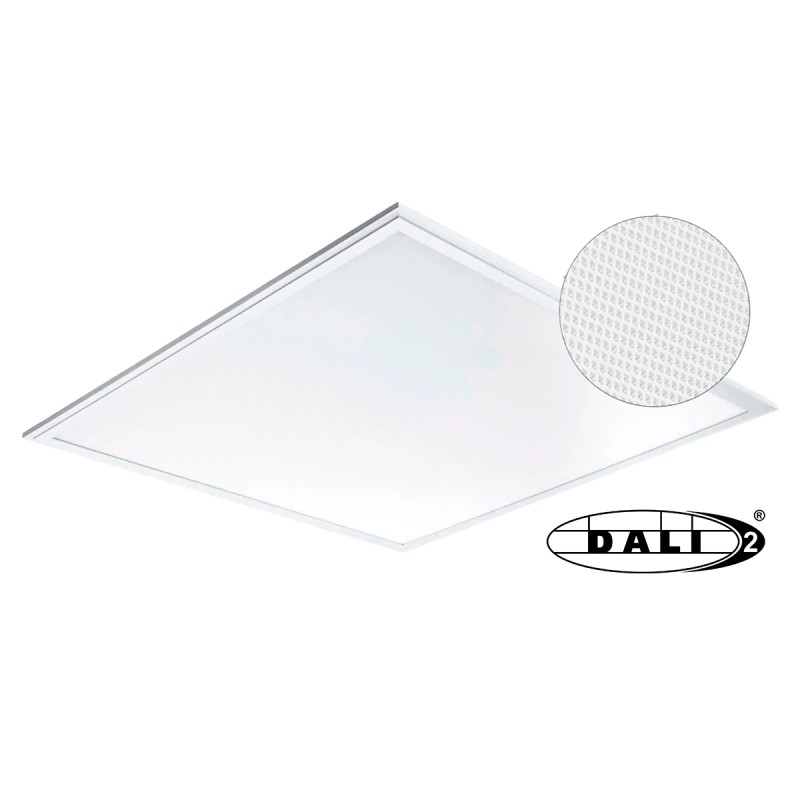

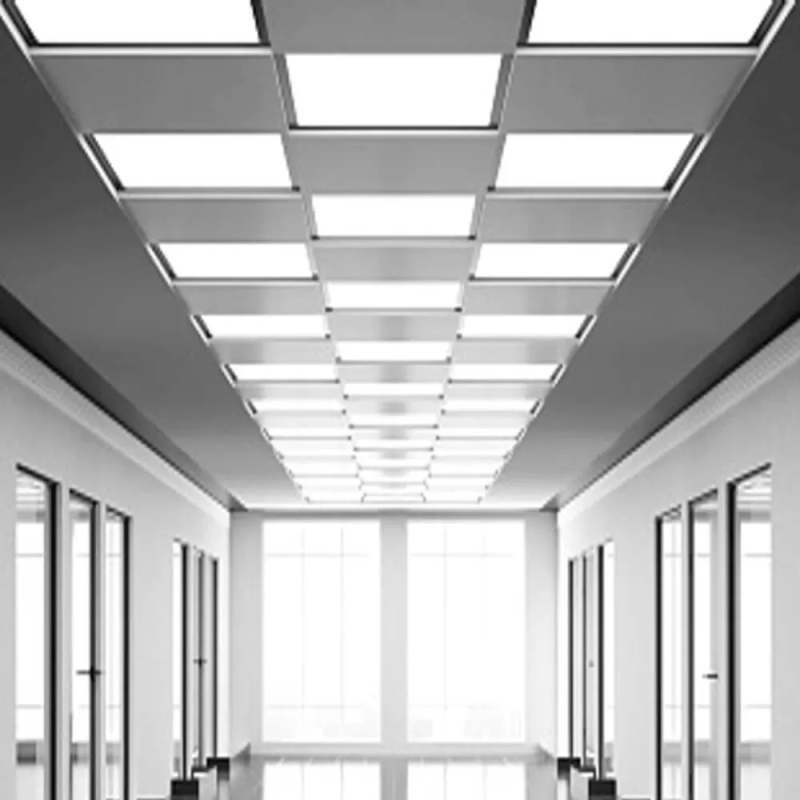

Equipped with a microprismatic diffuser, the LED panel offers a low glare index UGR<19, making it ideal for environments where optimal visual comfort is required, such as offices, classrooms, and other workspaces.

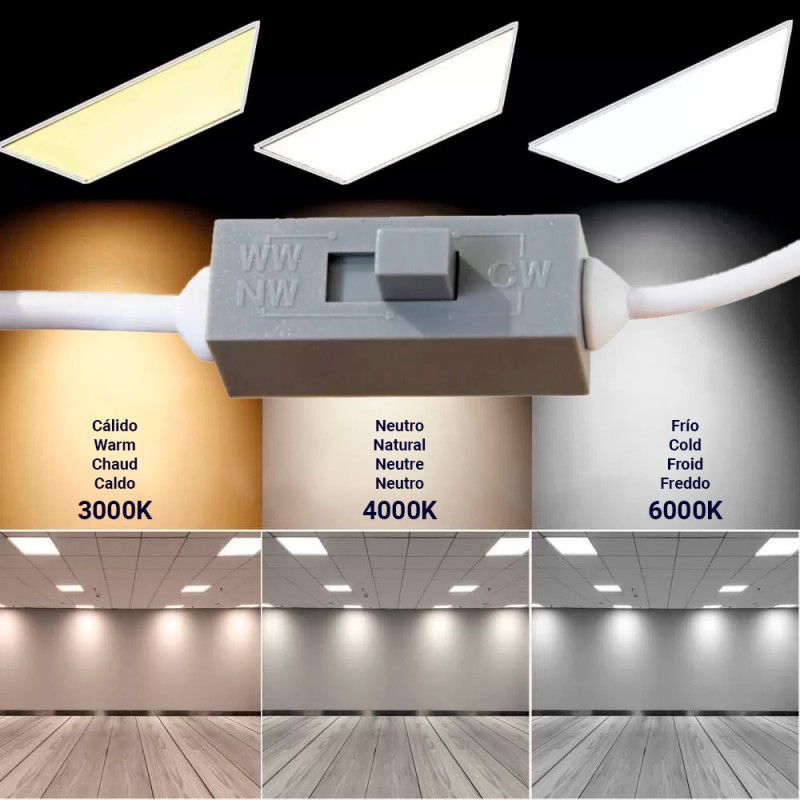

The 60x60cm LED Panel incorporates CCT technology, allowing the selection of the desired light color between 3000K, 4000K, and 6000K, adapting the lighting to the specific needs of each project.

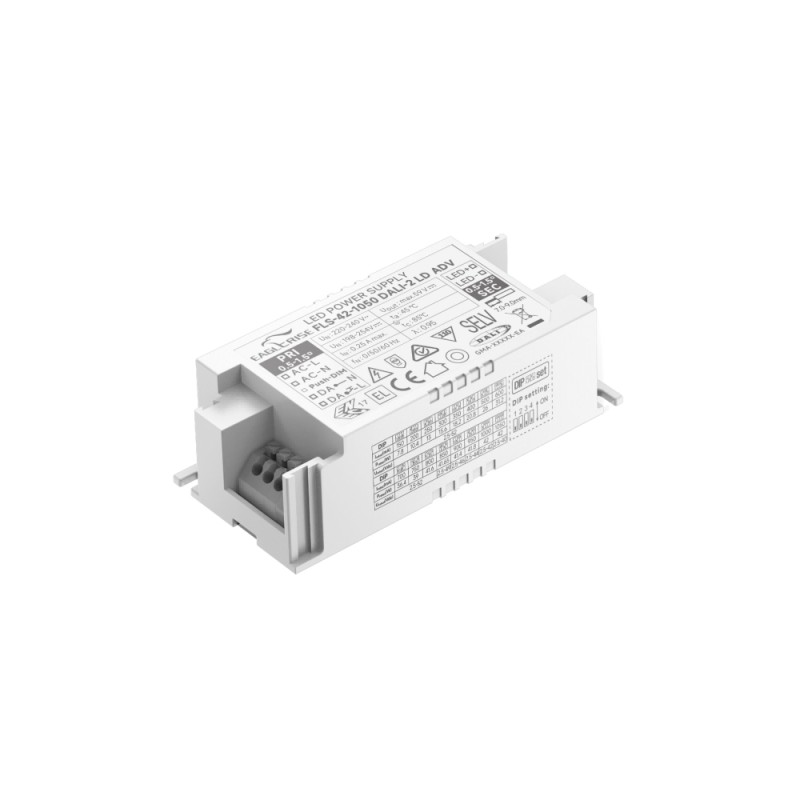

The panel includes a Dimmable EAGLERISE Driver compatible with the DALI-2 protocol, ensuring flicker-free lighting and allowing programmable dimming through a DALI control unit. This ensures adjustable and optimized lighting for any environment.

  • Power: 40W
  • Luminous Flux: 4600 lumens
  • Dimming: DALI-2 Protocol

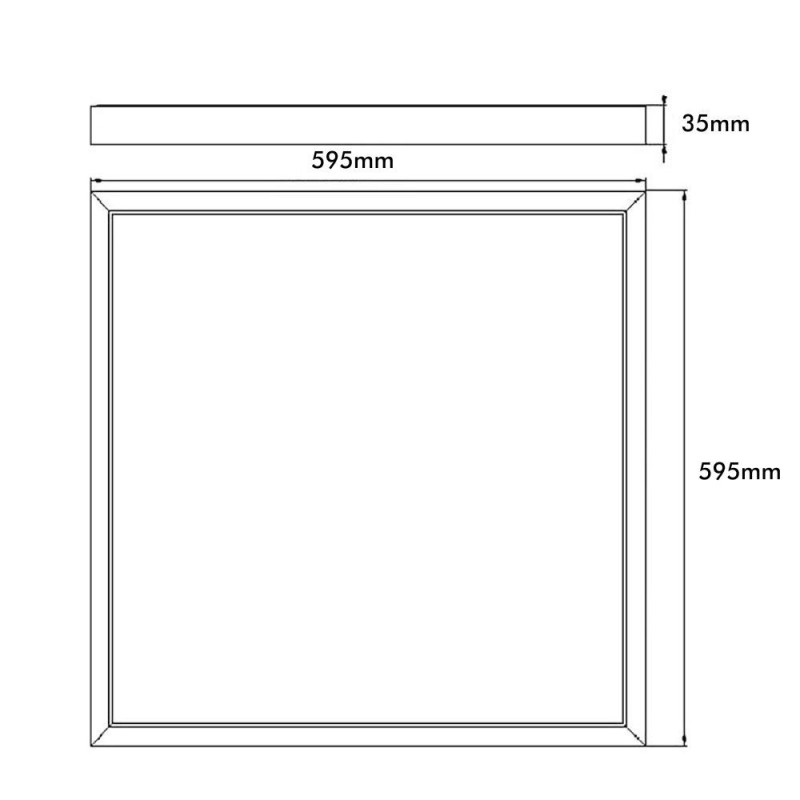

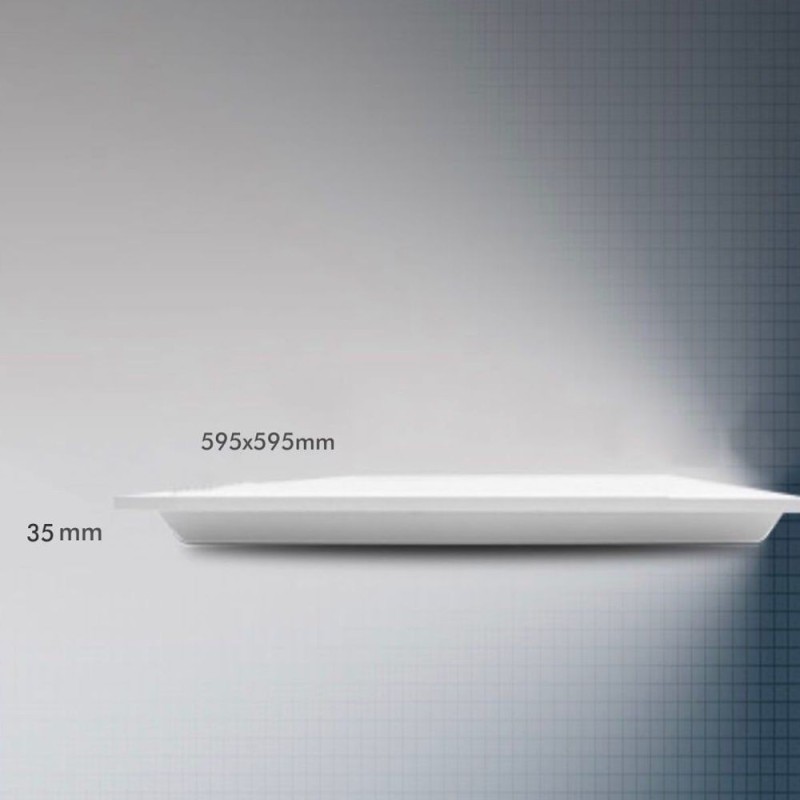

  • Dimensions: 595x595x35mm
  • Diffuser: Microprismatic PC with UGR<19
  • CCT Technology
  • Driver: EAGLERISE DALI-2
  • Protection Rating: IP20
Read moreShow less
Download PDF
You may also like
Description

60x60cm LED Panel 40W Selectable CCT - Dimmable DALI-2


The 60x60cm LED Panel is a high-performance lighting option, designed to offer an excellent quality/price ratio. With a power of 40W and a luminous flux of 4600 lumens, this LED panel guarantees efficient and durable lighting, backed by a 5-year warranty.

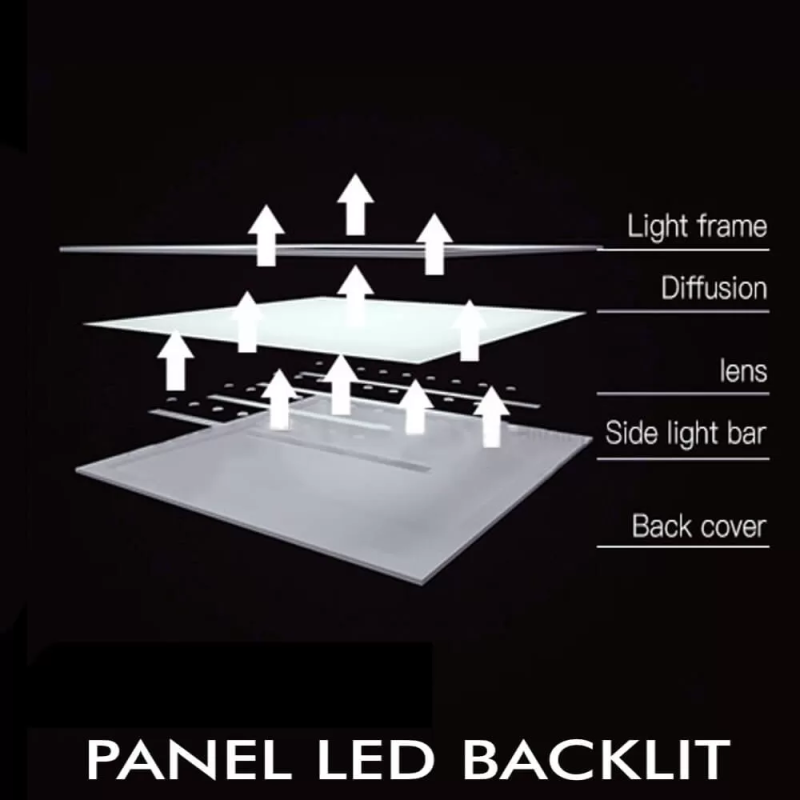

Optimal Visual Comfort with Microprismatic Diffuser


Equipped with a microprismatic diffuser, the LED panel provides a low glare index UGR<19. This makes it the ideal choice for environments where optimal visual comfort is required, such as offices, classrooms, and other workspaces.

CCT Technology for Customizable Lighting


The 60x60cm LED Panel incorporates CCT technology, allowing the selection of the desired light color between 3000K, 4000K, and 6000K. This offers the flexibility to adapt the lighting to the specific needs of each project, creating warm, neutral, or cool environments as required.

EAGLERISE Driver with DALI-2 Dimming


The panel includes an EAGLERISE dimmable driver compatible with the DALI-2 protocol, ensuring flicker-free lighting and allowing programmable dimming through a DALI control unit. This ensures adjustable and optimized lighting for any environment.

Technical Specifications of the 60x60cm LED Panel


  • Power: 40W
  • Luminous Flux: 4600 lumens
  • Dimming: DALI-2 Protocol
  • Dimensions: 595x595x35mm
  • Diffuser: PC microprismatic with UGR<19
  • CCT Technology: Selectable color between 3000K / 4000K / 6000K
  • Driver: EAGLERISE DALI-2
  • Protection Rating: IP20

What is the DALI-2 Dimming Protocol?


The DALI-2 protocol (Digital Addressable Lighting Interface) is an international standard for communication in lighting systems. This improved version of DALI offers greater interoperability and functionality, allowing different lighting devices, such as LED panels, controllers, and sensors, to communicate more efficiently.

Advantages of DALI-2 include precise light intensity control, centralized programming and control of luminaires, and the ability to monitor the status and energy consumption of each device connected to the system.

Thanks to DALI-2 compatibility, the 60x60cm LED Panel allows users to adjust the light intensity according to the needs of the space, improving visual comfort and saving energy.

Read moreShow less
Product Details
IL-PB40WCCT-DALI

Data sheet

Power (W)
40
Power source (V)
220-240V
Color temperature CCT
Seleccionable 3000K-4000K-6000K
LED
SMD2835
Dimmable
DALI
Brightness (Lm)
4600
CRI
+82
Colour
White
IP
IP20
Luminous angle
120º
Frequency (Hz)
50-60Hz
Power factor
0.95
Measures (mm)
595x595x35mm
Material
Aluminum + PC
Driver
Eaglerise DALI-2 Flicker free
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
E
Lifespan
50.000h
Certification
CE - RoHS
Warranty
5 años

Specific References

EAN13
8435637211420
