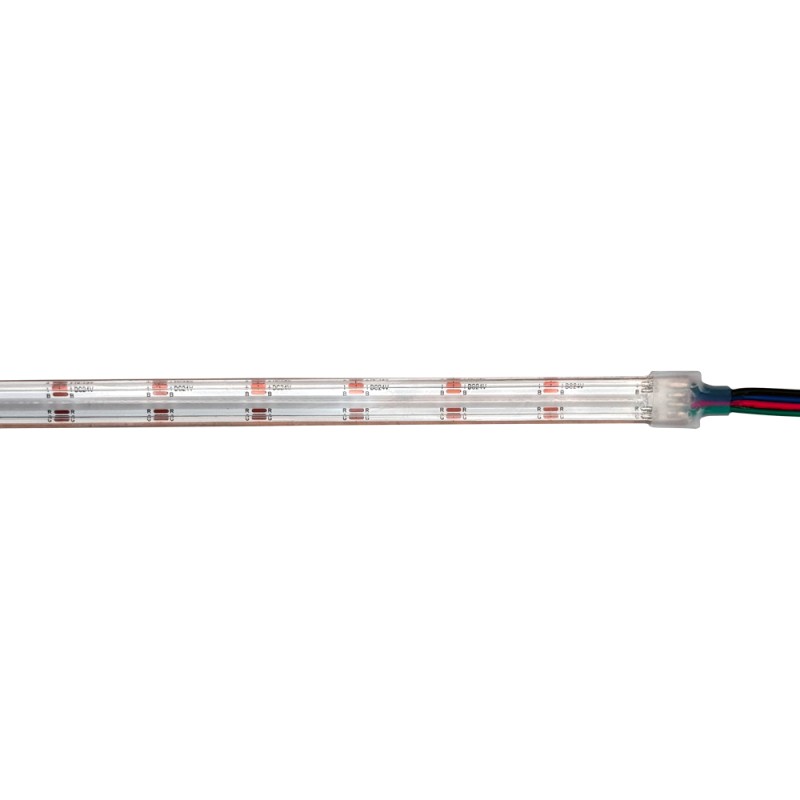

24V 15W/m IP67 RGB COB 840 LED/m LED Strip
The 24VDC COB RGB LED Strip is an advanced lighting solution designed to provide a seamless visual effect thanks to its 840 LED chips per meter, surpassing standard SMD LED strips. With a power consumption of 15W/m, it can be cut every 25mm, allowing for maximum customization during installation.
The COB RGB LED strip is encapsulated in a transparent silicone sleeve, granting it an IP67 protection rating, making it suitable for outdoor and damp environments.
The COB LED strip delivers a luminous flux of 1500Lm/m, ensuring powerful and uniform lighting. Its flexible and moldable design makes it easy to adapt to any surface, making it a versatile option for various lighting applications. The strip also includes 3M adhesive on the back.
The COB LED strip is dimmable, allowing the brightness to be adjusted according to the environment’s needs. It is recommended to use specific dimmable controllers compatible with RGB LED strips.
- Voltage: 24VDC
- Power Consumption: 15W/m

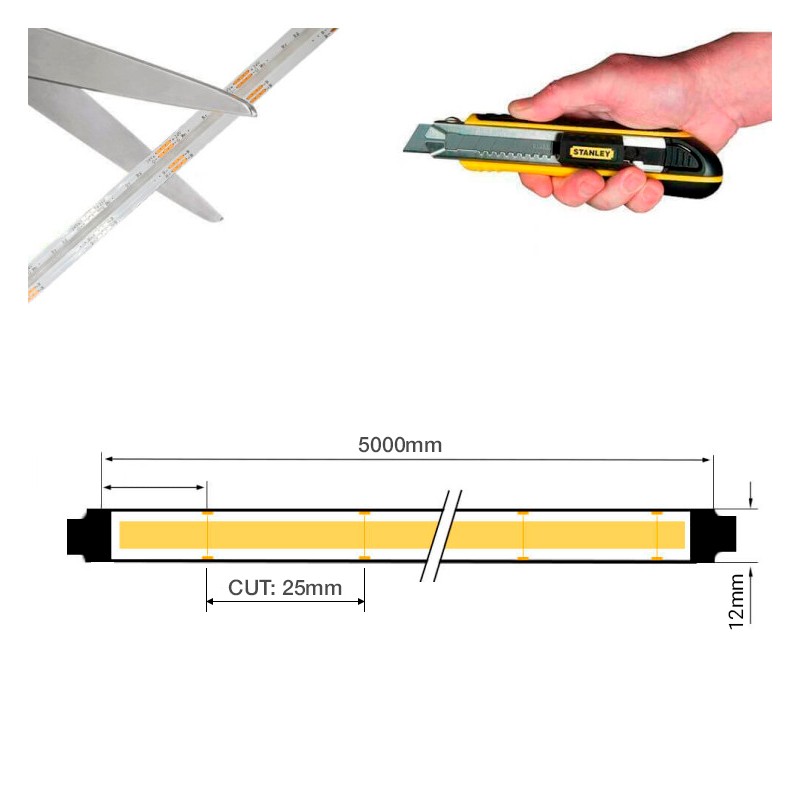

- Cutting Interval: Every 25mm
- Protection Rating: IP67
- Strip Width: 12mm
- Dimming: Dimmable with compatible controllers

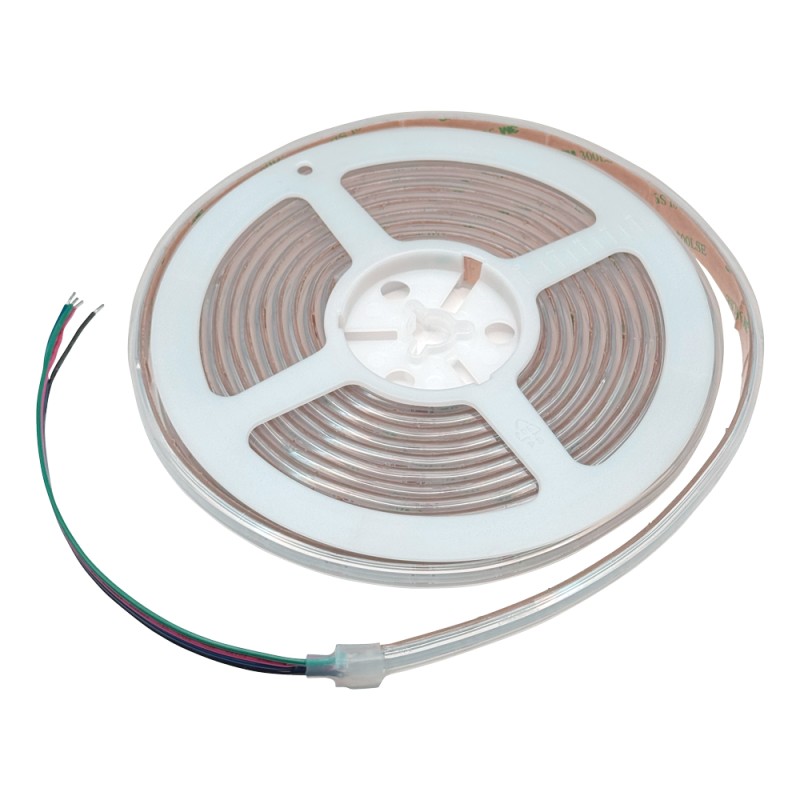

COB LED Strip 24V Dimmable RGB 840 chips/m - 5-meter Roll
The 24VDC COB RGB LED Strip is an advanced lighting solution designed to provide a continuous visual effect thanks to its 840 LED chips per meter, surpassing standard SMD LED strips. With a consumption of 15W/m, this LED strip comes in 5-meter rolls and offers the possibility of cutting every 25mm, allowing maximum customization during installation.
High Brightness and Flexibility
This COB LED strip offers a luminous flux of 1500 lumens per meter, ensuring powerful and uniform lighting. Additionally, its flexible and moldable design makes it easy to adapt to any surface, making it a versatile option for various lighting applications. The COB LED strip comes with 3M adhesive on the back, simplifying installation.
High Color Rendering Index
With a CRI>90, the COB RGB LED strip excels in its ability to reproduce colors vividly and accurately, making it ideal for applications where color quality is crucial, such as shop windows, showcases, and decoration projects.
Dimming and Installation Suggestions
The COB LED strip is dimmable, allowing you to adjust the brightness according to the needs of the environment. It is recommended to use specific RGB LED strip controllers for this purpose.
For optimal installation, it is recommended to place the LED strip on an aluminum profile, which will help dissipate heat efficiently, thus extending the life of the LED strip.
Technical Specifications of the COB 24V RGB LED Strip
- Voltage: 24VDC
- Consumption: 15W/m
- Roll Length: 5 meters
- Luminous Flux: 1500 lumens per meter
- LED Chips: 840 chips/m
- Cut: Every 25mm
- Strip Width: 10mm
- Dimming: Dimmable with compatible controllers
- CRI: >90
- Adhesive: 3M on the back
Take advantage of the 24V Dimmable RGB COB LED Strip for your lighting projects, offering continuous, bright light with unparalleled color rendering.
Data sheet
- Power (W)
- 15
- Power source (V)
- 24V-DC
- Color temperature CCT
- RGB
- LED
- COB Flip chip
- Dimmable
- Sí
- Brightness (Lm)
- 1500
- CRI
- +90
- IP
- IP67
- Luminous angle
- 180°
- Measures (mm)
- 10x5000mm
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- F
- Lifespan
- 50.000h
- Certification
- CE - RoHS
- Warranty
- 3 años
Specific References
- EAN13
- 8435637211543
