NEW VILLA 10-100W programmable Philips Driver LED Street Light 15000Lm

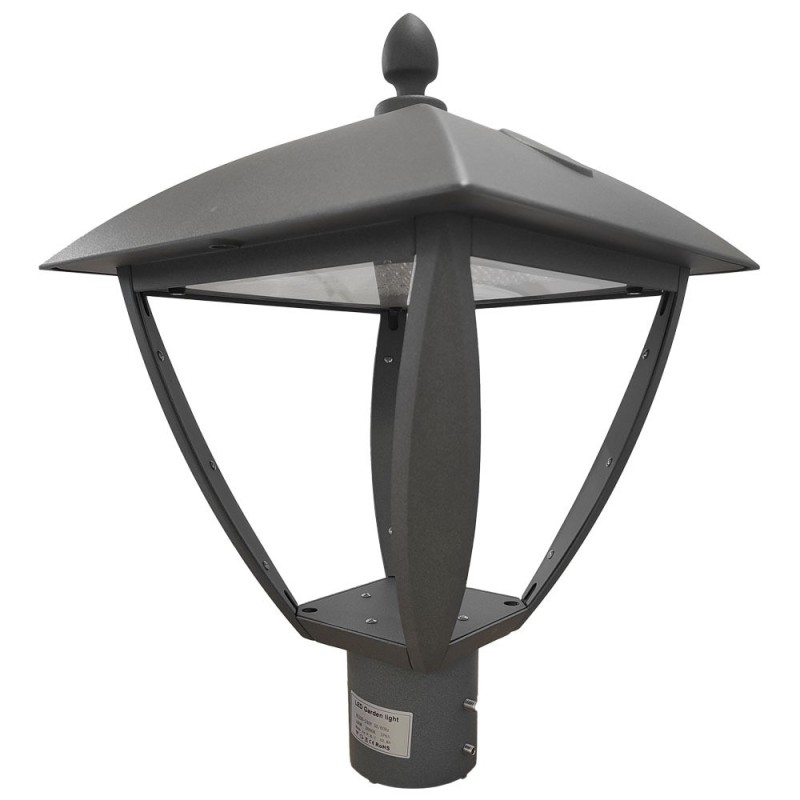

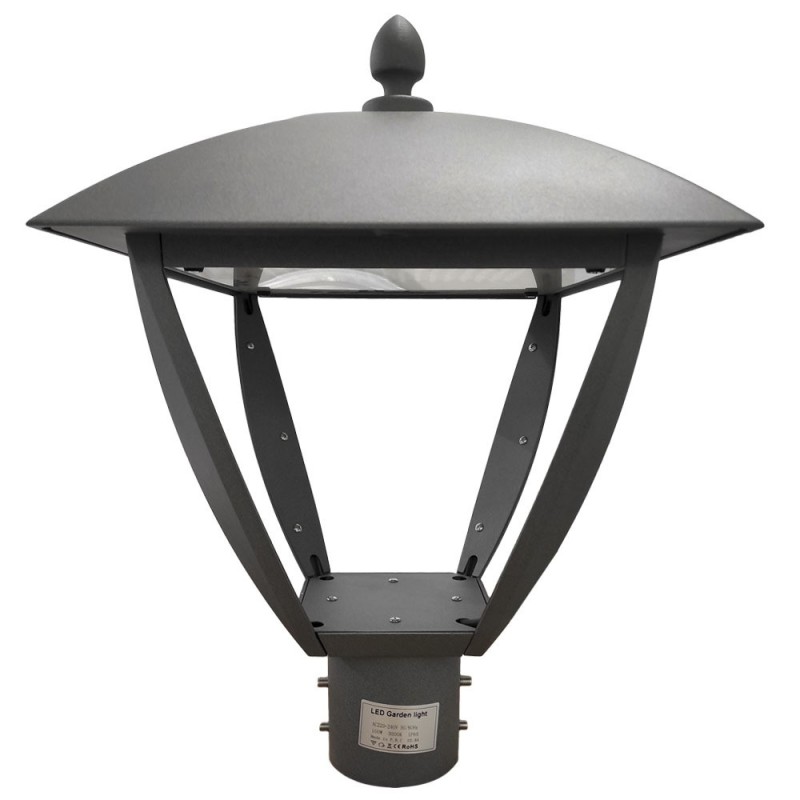

The NEW VILLA LED street light, made of aluminum and lacquered in dark gray, is equipped with a high-performance BRIDGELUX SMD5050 LED chip, providing a maximum luminous flux of 15000 lumens. Its asymmetric optic of 120ºx50º allows for increased interdistance between street lights and reduces the number of luminaires to be installed.

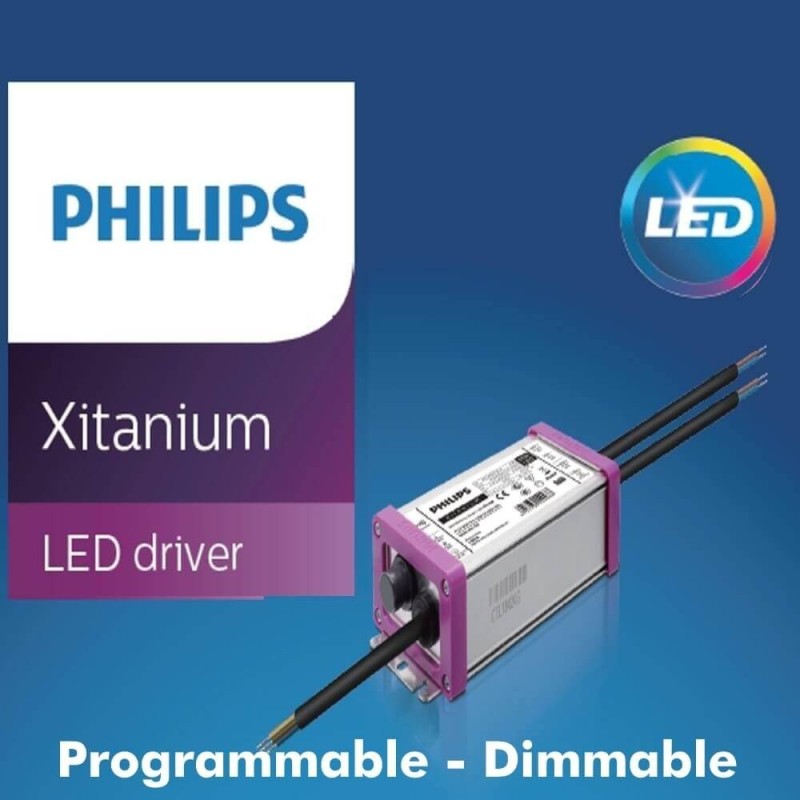

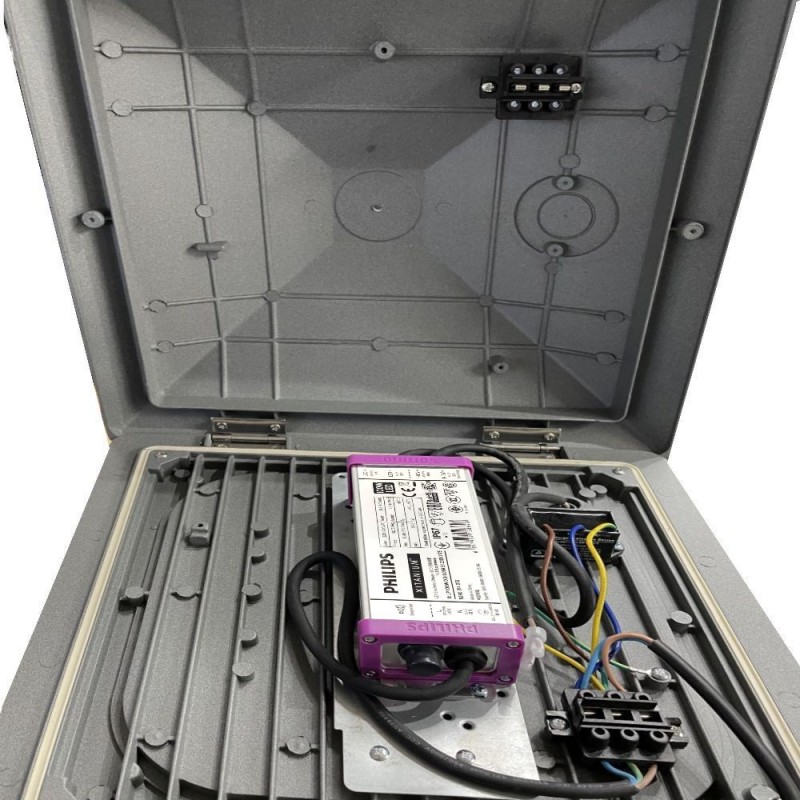

It incorporates a programmable Philips XITANIUM driver, with a power factor >0.95, flicker-free and noise-free, and with instant-on. The programmable driver from 10W to 100W allows for adjusting the lighting to each case, height, and installation area, always achieving maximum efficiency in each project. The driver is preconfigured to its maximum power of 100W, and if you want another power, you must indicate it in the order as PHILIPS programmers are required to perform the electronic power configuration in the factory.
- Power: Programmable from 10W to 100W (preconfigured to 100W)

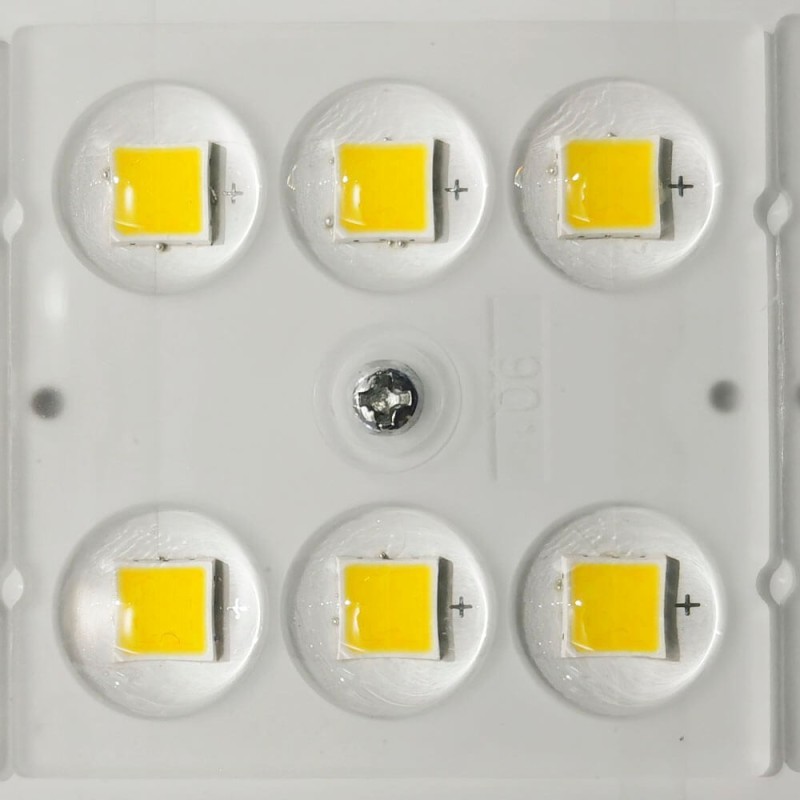

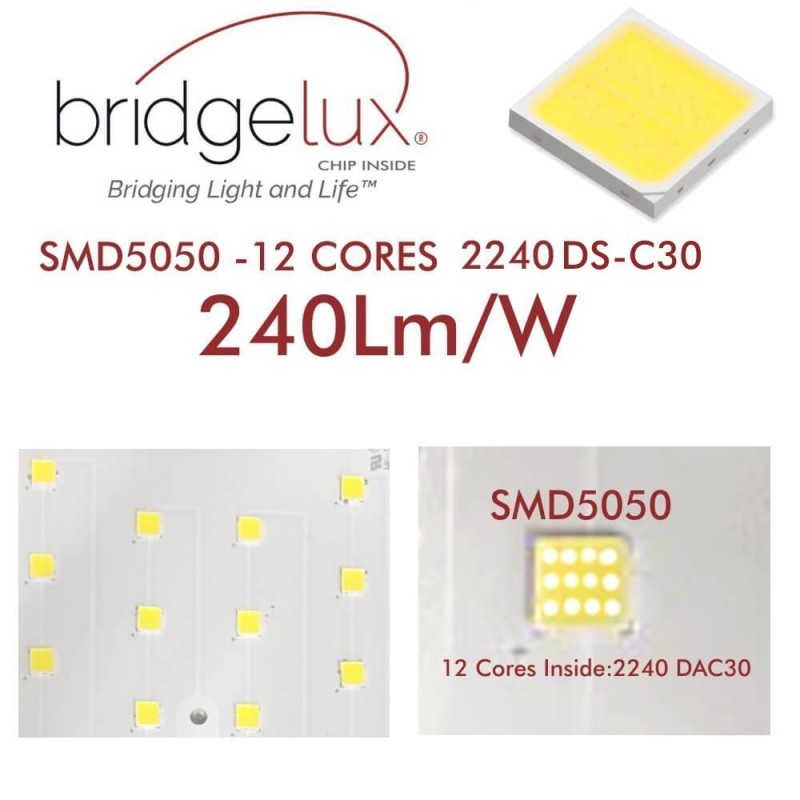

- LED Chip: BRIDGELUX SMD5050
- Luminous Flux: Maximum of 15000 lumens
- Optics: Asymmetric 120ºx50º
- Surge Protector: 10kV

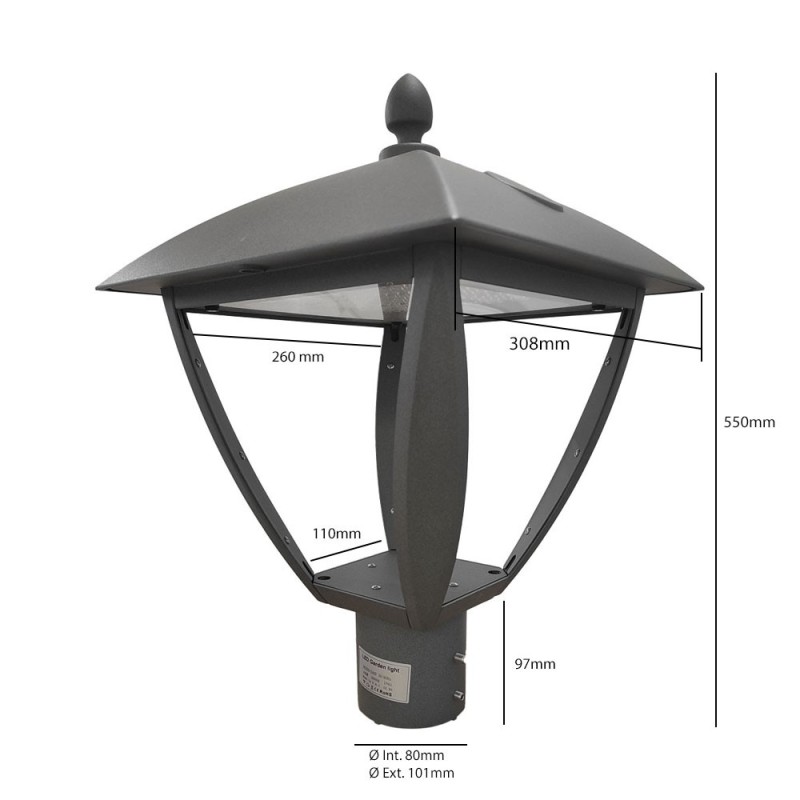

- Dimensions: 380x380x500mm

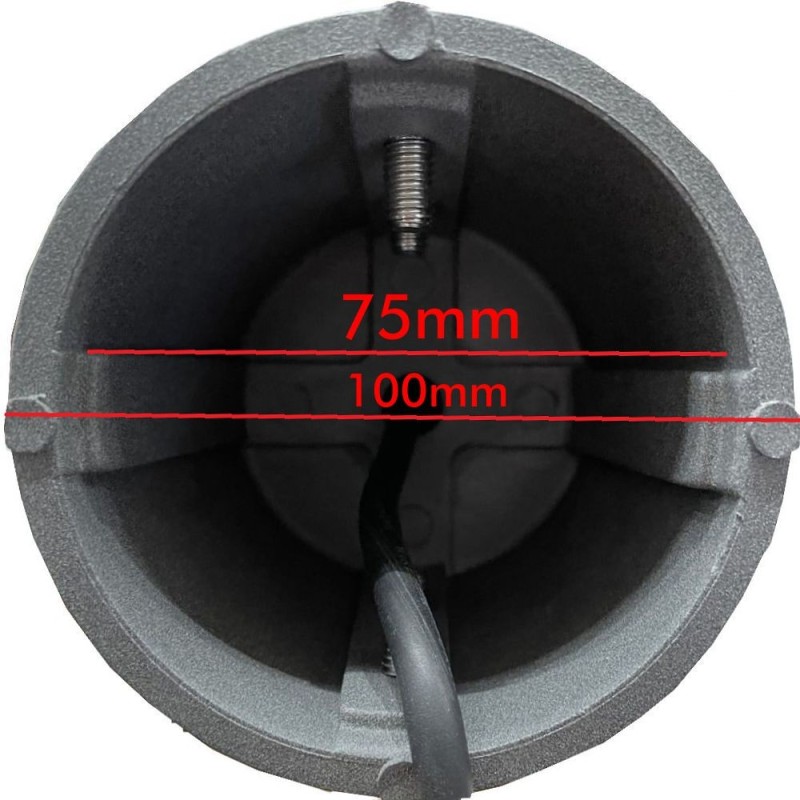

- Mounting: Suitable for columns up to Ø75mm
NEW VILLA Programmable LED Street Light 10-100W Philips XITANIUM Driver 15000 lm
The NEW VILLA LED street light in dark grey aluminium features a BRIDGELUX SMD5050 chip up to 15000 lumens and a Philips XITANIUM driver programmable from 10 to 100W. 120x50º asymmetric optic, PF 0.95, 10kV surge protector, 5-year warranty. For columns up to Ø75 mm.
⚡ 10-100W💡 15000 lm🌡 120x50º🛡 10 kV
| 10-100W Programmable | 15000 lm Max flux | 120x50º Optic | 0.95 Power factor |
The NEW VILLA LED street light, made of aluminium and lacquered in dark grey, features a high-efficiency BRIDGELUX SMD5050 LED chip delivering a maximum luminous flux of 15000 lumens. Its 120ºx50º asymmetric optic increases the spacing between street lights and reduces the number of luminaires to install.
It integrates a Philips XITANIUM driver programmable from 10W to 100W, with a 0.95 power factor, no flicker or noise and instant start-up. The driver is preset to its maximum 100W power; for another power, it must be indicated on the order (factory programming). It includes a 10kV surge protector, 380x380x500 mm dimensions, fits columns up to Ø75 mm and comes with a 5-year warranty.
Why choose this product?
XITANIUM 10-100W, suited to each height and area.
Up to 15000 lm, 120x50º asymmetric optic.
PF 0.95, flicker-free, instant start-up.
Technical specifications
| Product type | Programmable urban LED street light |
|---|---|
| Power | Programmable from 10W to 100W (preset to 100W) |
| LED chip | BRIDGELUX SMD5050 |
| Luminous flux | Maximum 15000 lm |
| Optic | Asymmetric 120ºx50º |
| Driver | Philips XITANIUM programmable |
| Power factor | 0.95 |
| Surge protector | 10 kV |
| Material | Dark grey lacquered aluminium |
| Dimensions | 380x380x500 mm |
| Mounting | Columns up to Ø75 mm |

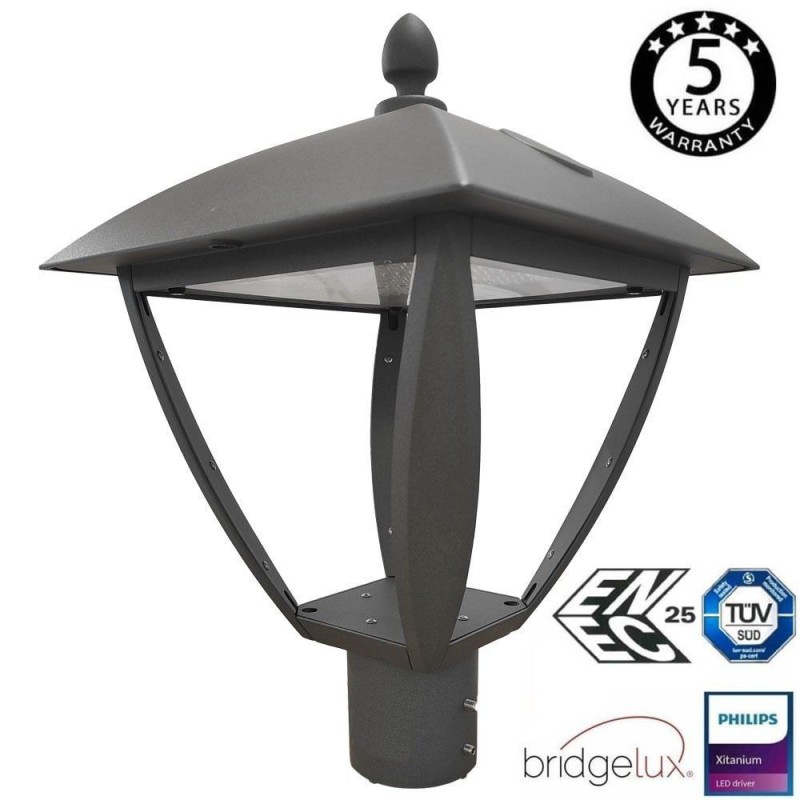

| Warranty | 5 years |
Advantages
- Philips XITANIUM driver: programmable 10-100W.
- BRIDGELUX SMD5050: up to 15000 lm.
- 120x50º optic: more spacing, fewer luminaires.
- 10kV protector: against surges.
- PF 0.95: flicker-free, instant start-up.
- 5-year warranty: dark grey aluminium, Ø75 mm.
Recommended applications
| 🚪 | Streets and avenues — programmable road lighting. |
| 🏠 | Major urban roads — asymmetric optic. |
| 🏛 | Residential areas — adaptable power. |
| 🌿 | Parks and squares — efficient lighting. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Specify the power Preset to 100W; specify another power on the order. |
| 3 | Fix on the column Mount the luminaire on a column up to Ø75 mm. |
| 4 | Wire and check Wire to the mains (230V) and check the lighting. |
Frequently asked questions
Yes, the Philips driver is programmable from 10W to 100W (preset to 100W; other value to be indicated on the order).
Up to 15000 lumens with the BRIDGELUX SMD5050 chip.
5 years, with a 10kV surge protector.
| ⚡ 10-100W 15000 lm | 🌡 120x50º PF 0.95 | 🛡 10 kV 5-year warranty | 🔌 In stock Fast shipping |
Data sheet
- Power (W)
- 100
- Power source (V)
- 175-260V
- Color temperature CCT
- 3000K
4000K
- LED
- SMD5050
- LED chip brand
- BRIDGELUX
- Brightness (Lm)
- 15000
- Color rendering index (Ra):
- ≥70
- IP
- IP66
- IK
- IK09
- Luminous angle
- 120ºx50º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0.95
- Measures (mm)
- 380x380x500mm
- Material
- Aluminum
- Driver
- Philips XITANIUM
- Operating temperature
- -15ºC ~ +70ºC
- Energy efficiency 2021
- A+
- Energy efficiency 2023
- E
- Lifespan
- 100.000h
- Certification
- CE - RoHS
ENEC
TÜV
- Warranty
- 5 años
Specific References
- ean13
- 8435637207409
