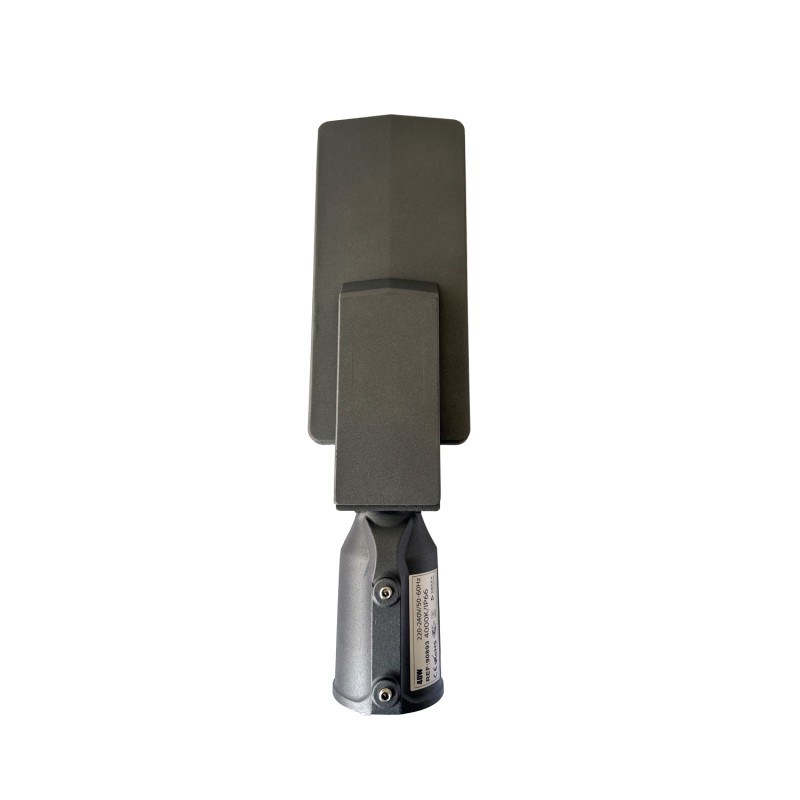

60W LED Street Light HALLEY BRIDGELUX Chip 9000Lm
The HALLEY BRIDGELUX 60W LED Street Light stands out for its power and efficiency, thanks to the BRIDGELUX SMD3030 LED chip that offers a powerful luminous flux of 9000 lumens. Made of high-quality aluminum and PMMA, it provides a durable luminaire with optimal protection against impacts (IK10) and adverse weather conditions (IP65).
The ultrathin design of the street light prevents dirt accumulation and minimizes its visual impact. With instant-on and a lifespan of over 50,000 hours, this LED street light guarantees efficient and quality lighting for years.
- Power: 60W

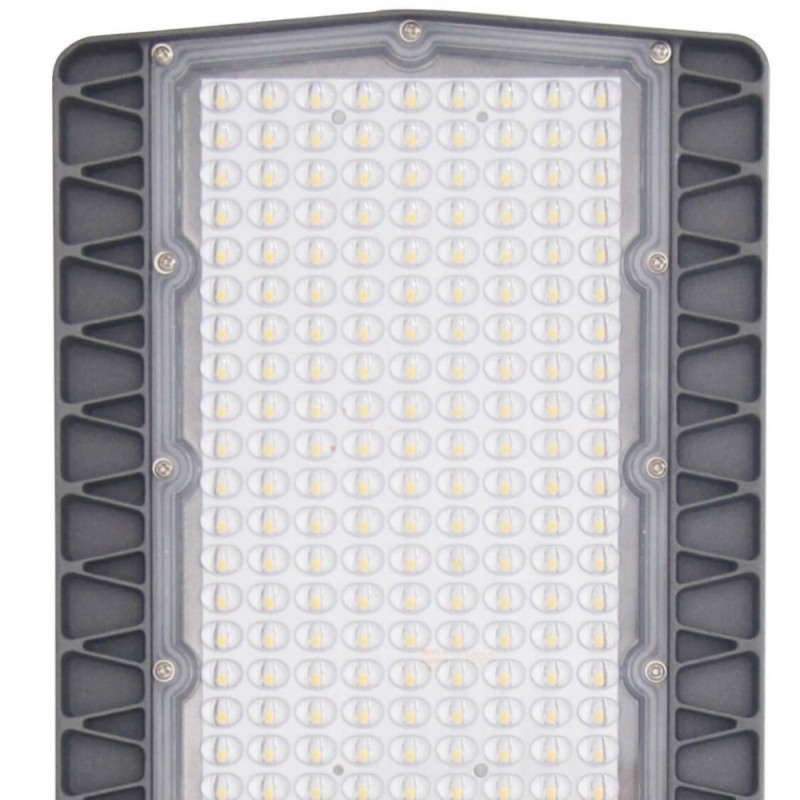

- LED Chip: BridgeLux SMD3030
- Luminous Flux: 9000 lumens
- Optics: Asymmetric 140ºx80º
- Protection: IK10, IP65

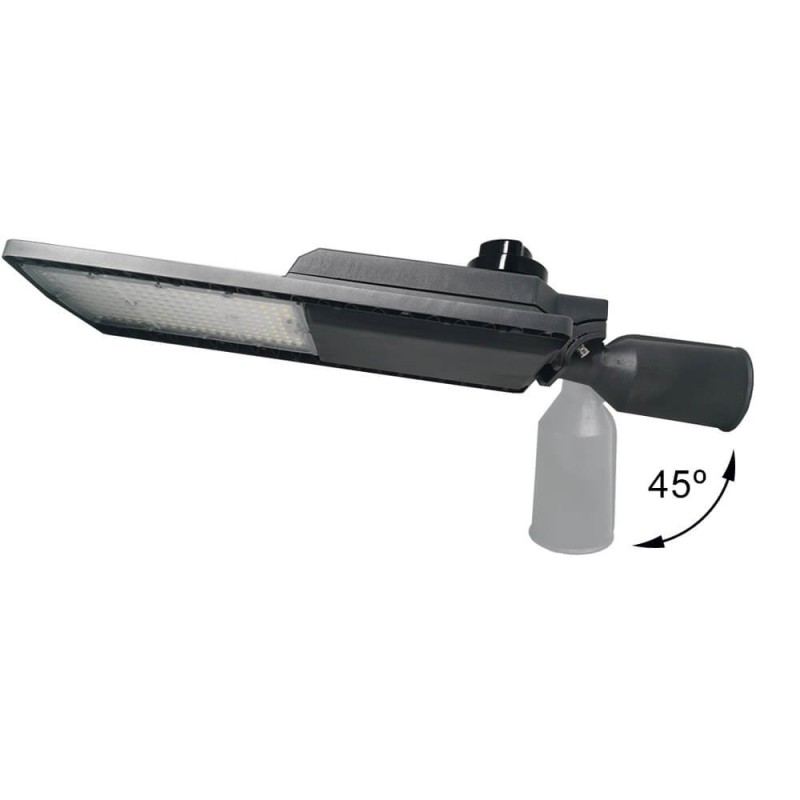

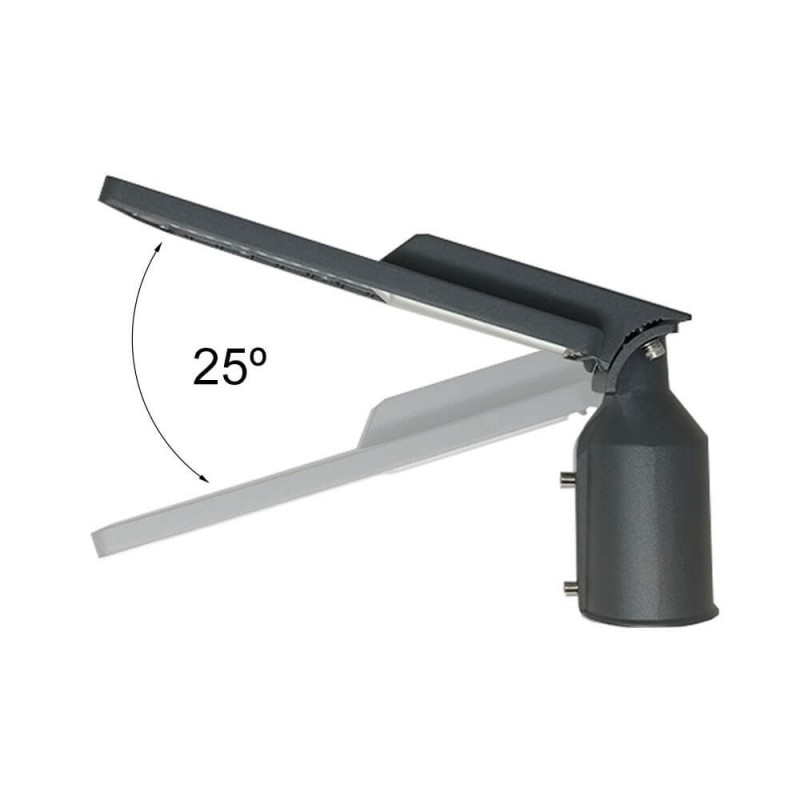

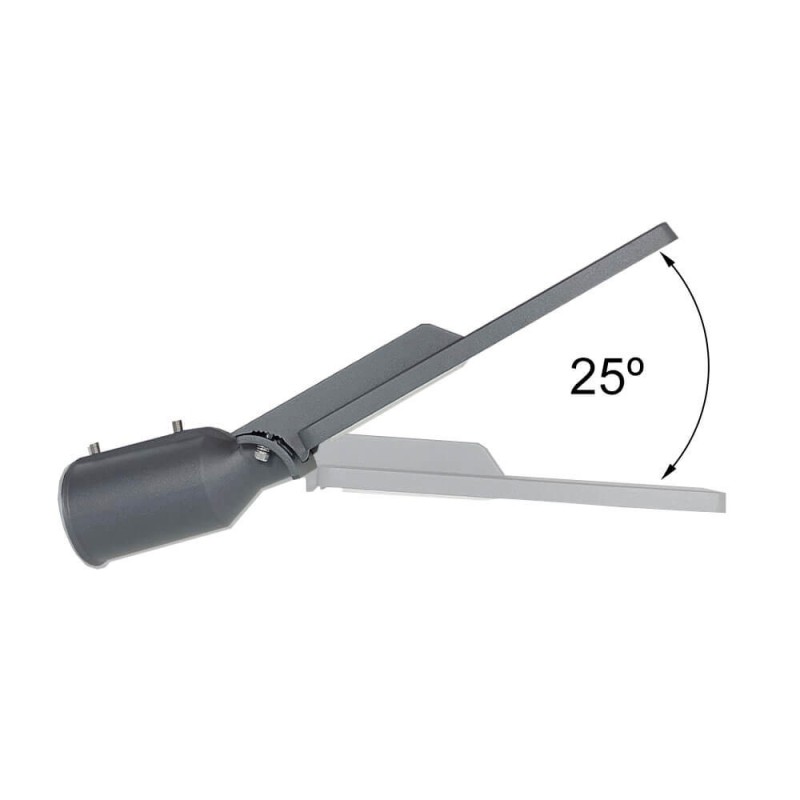

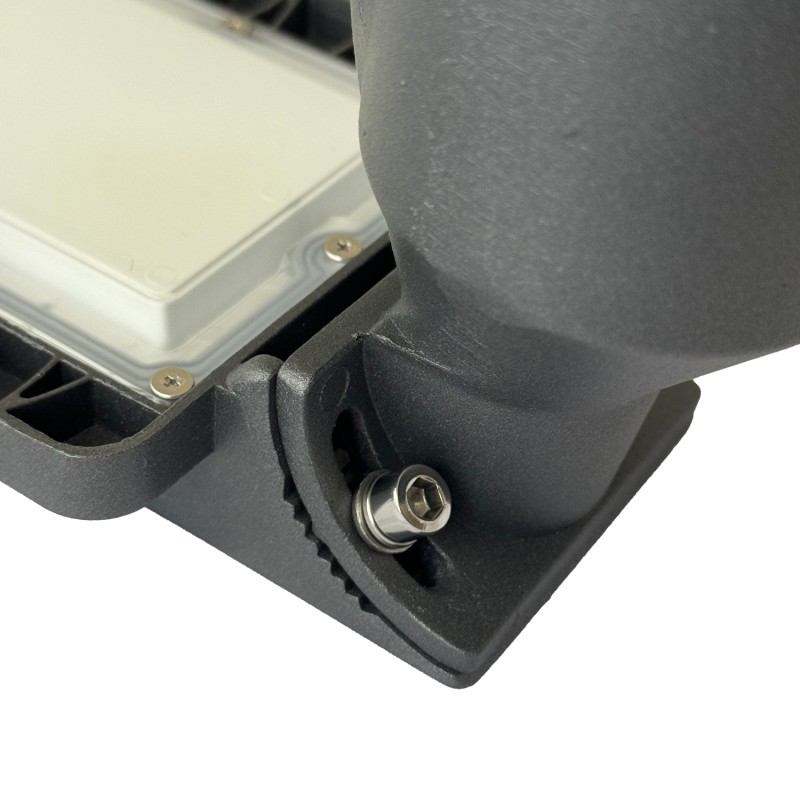

- Tilt Head up to 90º

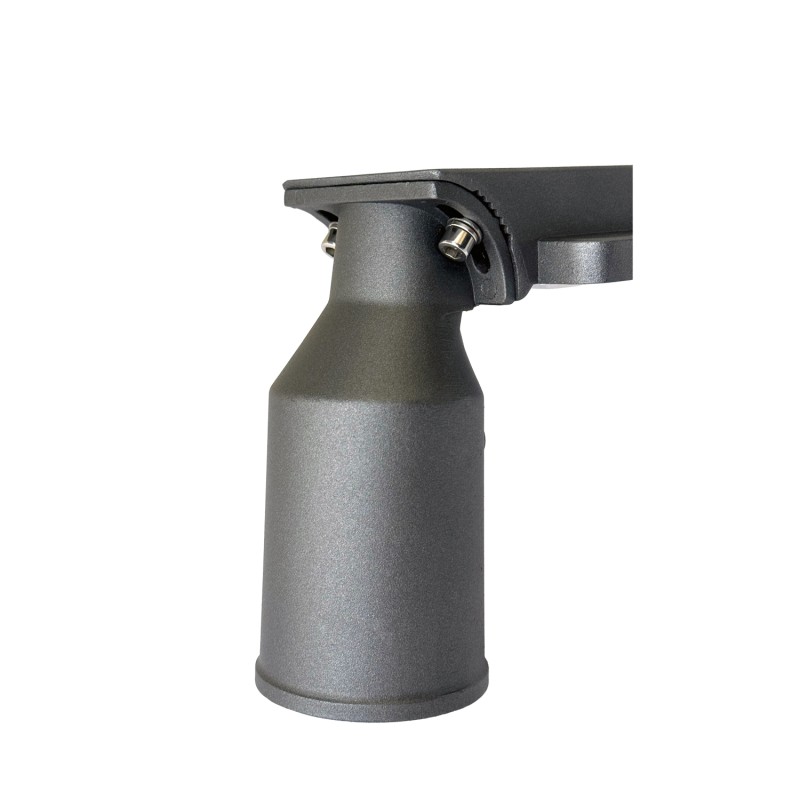

- Designed for mounting on columns or arms with Ø60mm tips
- Warranty: 5 years
- Certifications: CE, RoHS, TÜV, ENEC05
HALLEY LED Street Light 60W BRIDGELUX Chip 9000 lm IP65 IK10
The HALLEY 60W LED street light with a BridgeLUX SMD3030 chip delivers 9000 lumens (150 lm/W). Aluminium and PMMA, asymmetric 140ºx80º optic, IP65 and IK10, head adjustable up to 90º, over 50,000 h, 5-year warranty (CE, RoHS, TÜV, ENEC05).
⚡ 60W💡 9000 lm☂ IP65 / IK10🛡 5 ans
| 60W Power | 9000 lm Luminous flux | 150 lm/W Efficiency | IP65 / IK10 Protection |
The HALLEY 60W LED street light stands out for its power and efficiency thanks to the BridgeLUX SMD3030 LED chip, delivering a powerful flux of 9000 lumens (150 lm/W). Made of high-quality aluminium and PMMA, it offers a durable lighting solution with optimal protection against impacts (IK10) and weather (IP65).
Its ultra-thin design prevents dirt build-up and reduces visual impact. Fitted with an asymmetric 140ºx80º optic, instant start-up and a head adjustable up to 90º, it mounts on columns or arms with Ø60 mm tips. With a lifespan over 50,000 hours and a 5-year warranty (CE, RoHS, TÜV, ENEC05 certifications), it guarantees quality street lighting for years. Dimensions 494x155x12 mm.
Why choose this product?
9000 lm, 150 lm/W, instant start-up.
Aluminium and PMMA, impact- and weather-resistant.
Asymmetric 140ºx80º optic, Ø60 mm mounting.
Technical specifications
| Product type | HALLEY LED street light |
|---|---|
| Power | 60W |
| LED chip | BridgeLUX SMD3030 |
| Luminous flux | 9000 lm |
| Efficiency | 150 lm/W |
| Optic | Asymmetric 140ºx80º |
| Material | Aluminium and PMMA |
| Protection | IP65, IK10 |
| Adjustable head | Up to 90º |
| Mounting | Columns/arms, Ø60 mm tips |

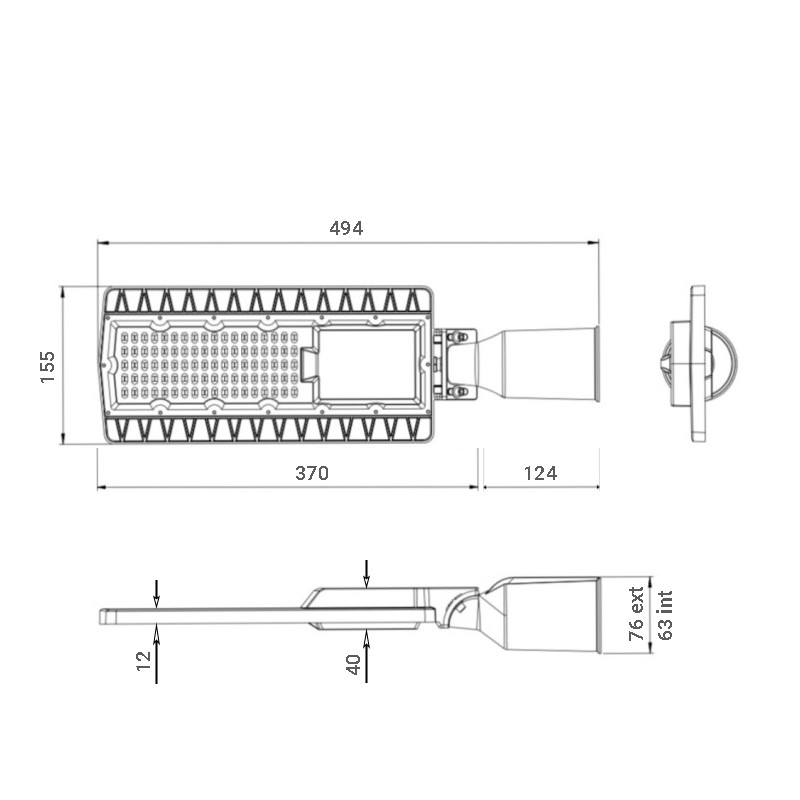

| Dimensions | 494x155x12 mm |
| Lifespan | > 50,000 hours |
| Certifications | CE, RoHS, TÜV, ENEC05 |
| Warranty | 5 years |
Advantages
- BridgeLUX SMD3030: 9000 lm, 150 lm/W.
- IP65 / IK10: impact- and weather-resistant.
- 90º adjustable head: directable lighting.
- Asymmetric 140ºx80º optic: no light pollution.
- +50,000 h, 5-year warranty: CE, RoHS, TÜV, ENEC05.
- Ultra-thin: low visual impact.

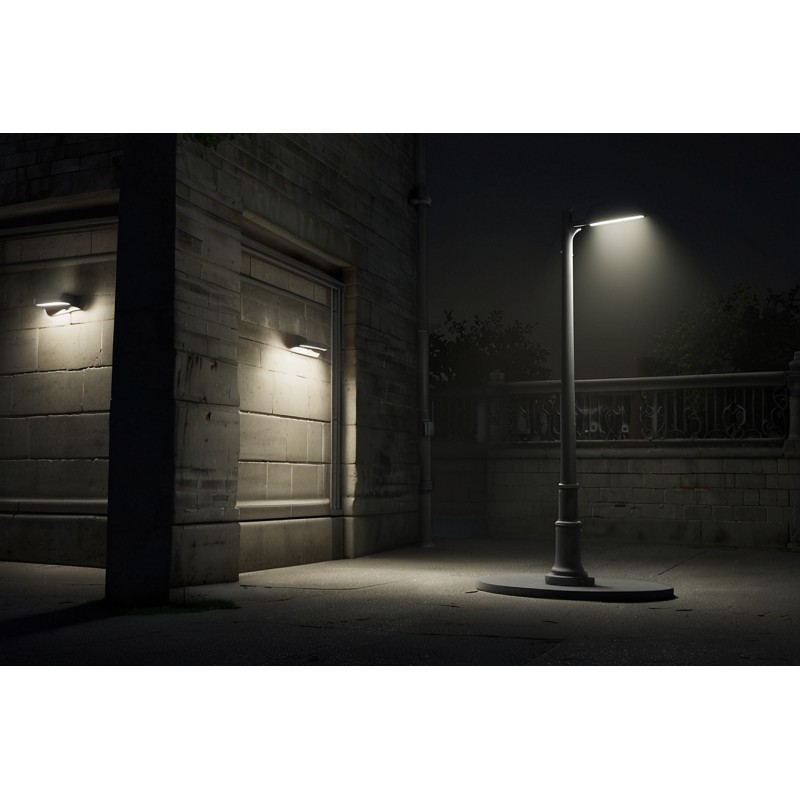

Recommended applications

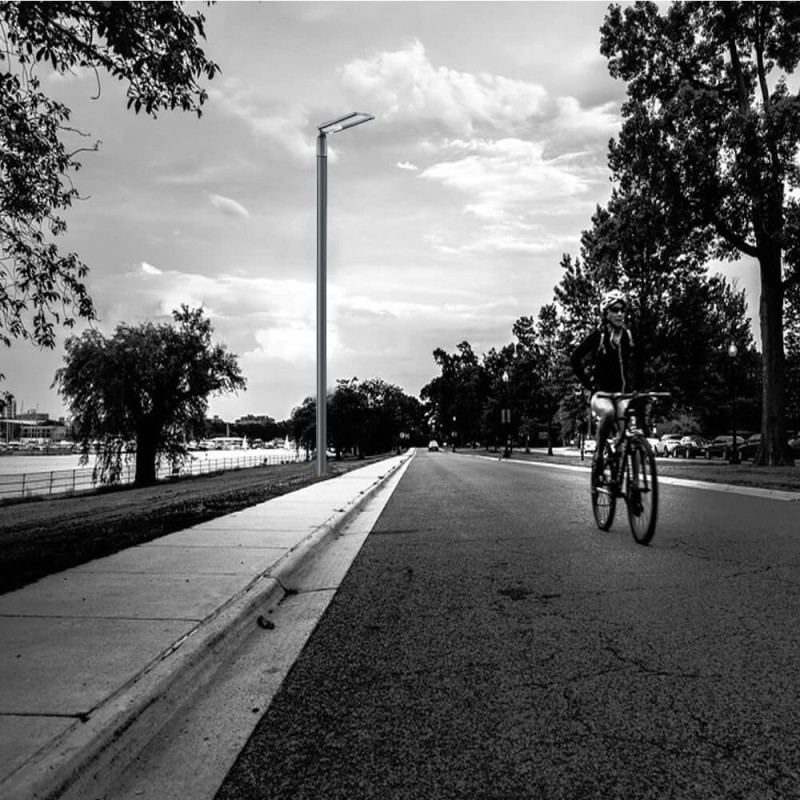

| 🚪 | Streets and avenues — street lighting. |
| 🏠 | Car parks and industrial areas — large surfaces. |
| 🏛 | Parks and squares — uniform urban lighting. |
| 🌿 | Residential areas — night safety. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix on the tip Mount the street light on a column or arm (Ø60 mm). |
| 3 | Aim the head Set the head tilt (up to 90º). |
| 4 | Wire and check Wire per standards and check the lighting. |
Frequently asked questions
150 lm/W, i.e. 9000 lumens at 60W.
Yes, up to 90º, for mounting on a column or arm (Ø60 mm).
5 years, with CE, RoHS, TÜV and ENEC05 certifications.
| ⚡ 60W 9000 lm | ☂ IP65 IK10 | 🔄 90º 150 lm/W | 🛡 Warranty 5 years |
Data sheet
- Power (W)
- 60
- Power source (V)
- 85-265V
- Color temperature CCT
- 2000K
3000K
4000K
- LED
- SMD3030
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 140
- LED diode efficiency (Lm/W)
- 165
- Brightness (Lm)
- 9000
- Color rendering index (Ra):
- ≥70
- IP
- IP65
- IK
- IK10
- Luminous angle
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0,95
- Measures (mm)
- 494x155mm
- Material
- Aluminum
- Operating temperature
- -20ºC ~ +55ºC
- Energy efficiency 2021
- A+
- Lifespan
- 100.000h
- Certification
- CE - RoHS
ENEC
TÜV
- Warranty
- 5 años
Specific References
- ean13
- 8435637204606
 tomas on 2023-12-19 08:21:07 | Question: cuantos Amperios tiene la bateria? |
Answer: La farola LED HALLEY no es solar, por lo que no incluye batería. | |
