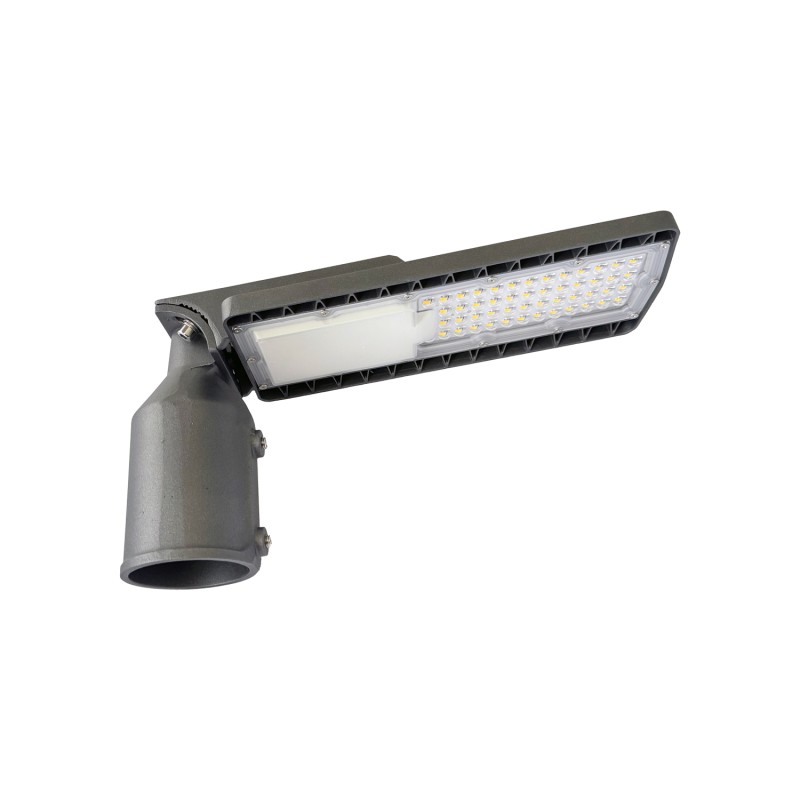

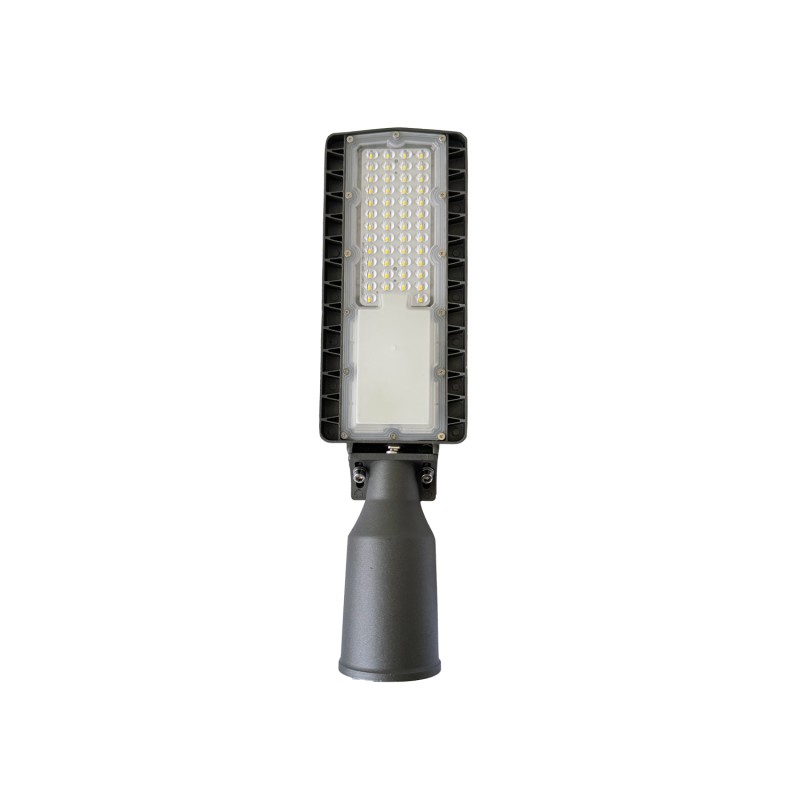

40W LED Street Light HALLEY BRIDGELUX Chip 5600Lm
The HALLEY BRIDGELUX 40W LED luminaire stands out for its power and efficiency, thanks to the BRIDGELUX SMD3030 LED chip that offers a powerful luminous flux of 5600 lumens. Made of high-quality aluminum and PMMA, it provides a durable lighting solution with optimal protection against impacts (IK10) and adverse weather conditions (IP65).
The ultrathin design of the luminaire prevents dirt accumulation and reduces its visual impact. With instant-on and a lifespan of over 50,000 hours, this LED luminaire guarantees efficient and quality lighting for years.
- Power: 40W

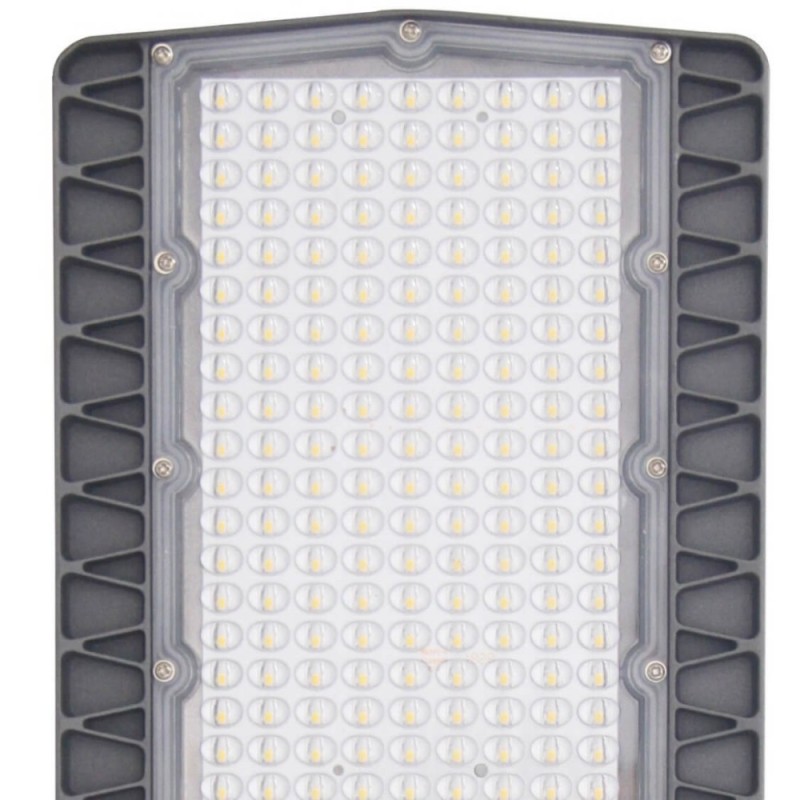

- LED Chip: BridgeLux SMD3030
- Luminous Flux: 5600 lumens
- Optics: Asymmetric 150ºx90º
- Protection: IK10, IP65

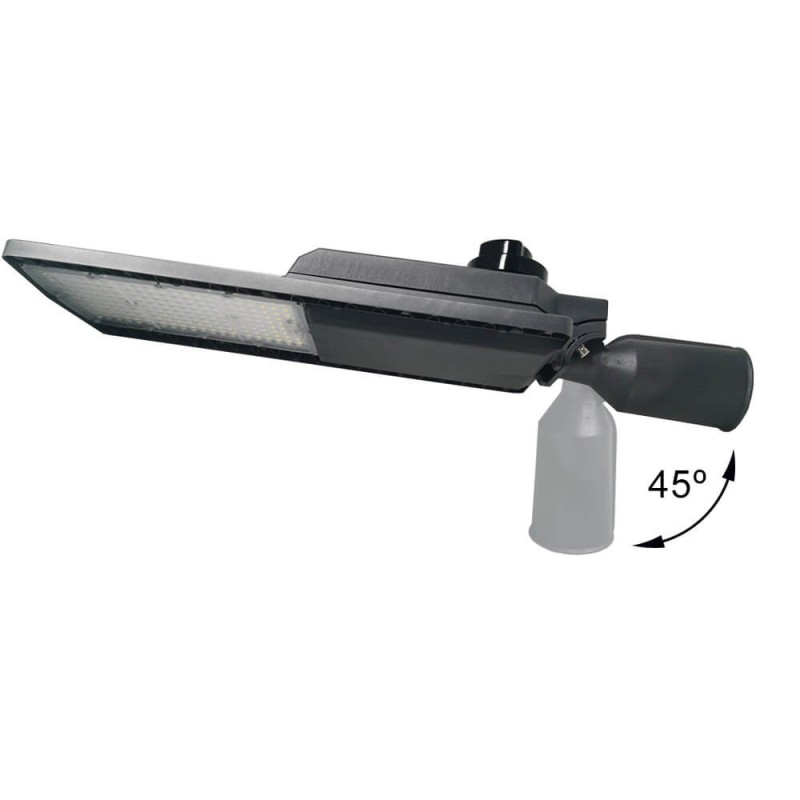

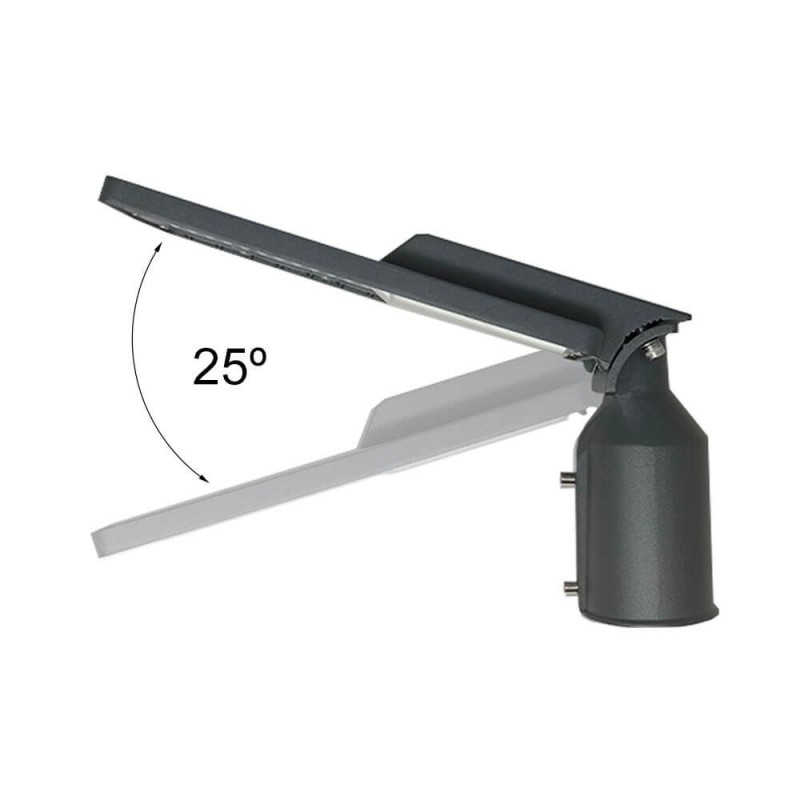

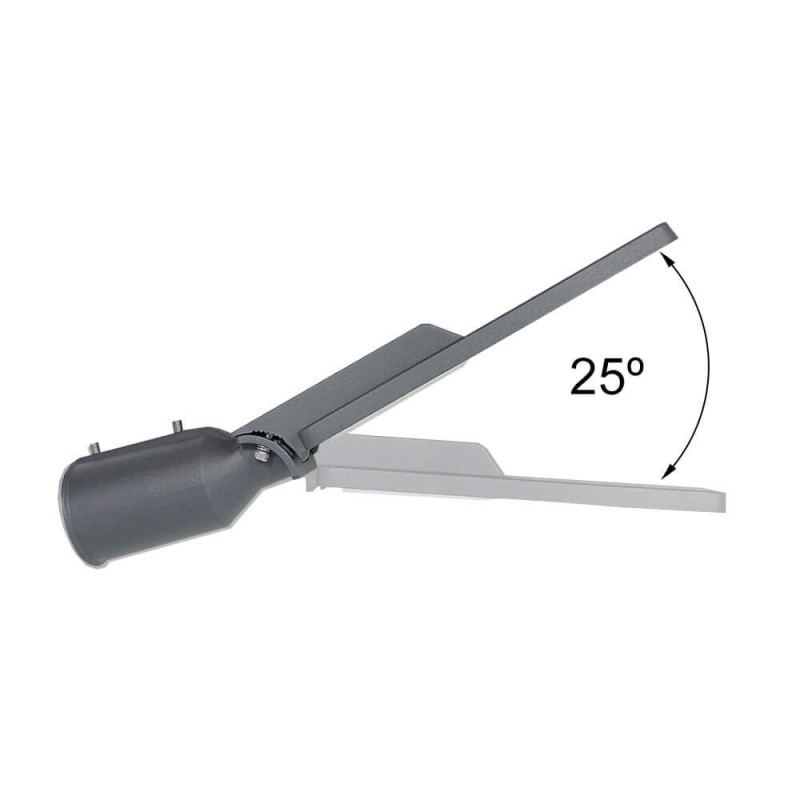

- Adjustable Head up to 90º

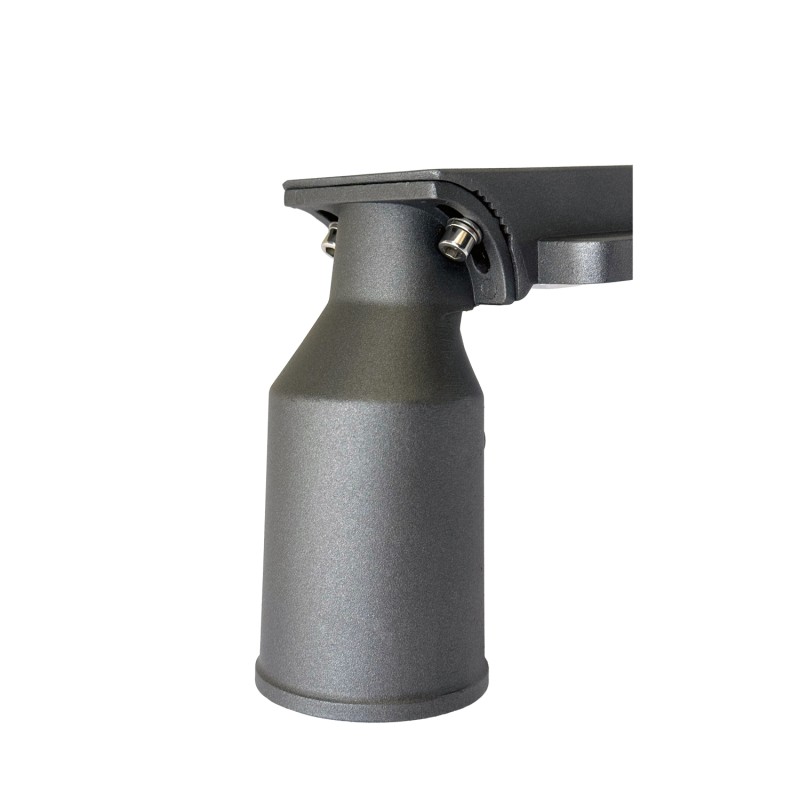

- Designed for mounting on columns or arms with Ø60mm tips
- Warranty: 5 years
- Certifications: CE, RoHS, TÜV, ENEC05
HALLEY LED Street Light 40W BRIDGELUX Chip 5600 lm IP65 IK10
The HALLEY 40W LED street light with a BridgeLUX SMD3030 chip delivers 5600 lumens (140 lm/W). Aluminium and PMMA, asymmetric 150ºx90º optic, IP65 and IK10, head adjustable up to 90º, over 50,000 h, 5-year warranty (CE, RoHS, TÜV, ENEC05).
⚡ 40W💡 5600 lm☂ IP65 / IK10🛡 5 ans
| 40W Power | 5600 lm Luminous flux | 140 lm/W Efficiency | IP65 / IK10 Protection |
The HALLEY 40W LED street light stands out for its power and efficiency thanks to the BridgeLUX SMD3030 LED chip, delivering a powerful flux of 5600 lumens (140 lm/W). Made of high-quality aluminium and PMMA, it offers a durable lighting solution with optimal protection against impacts (IK10) and weather (IP65).

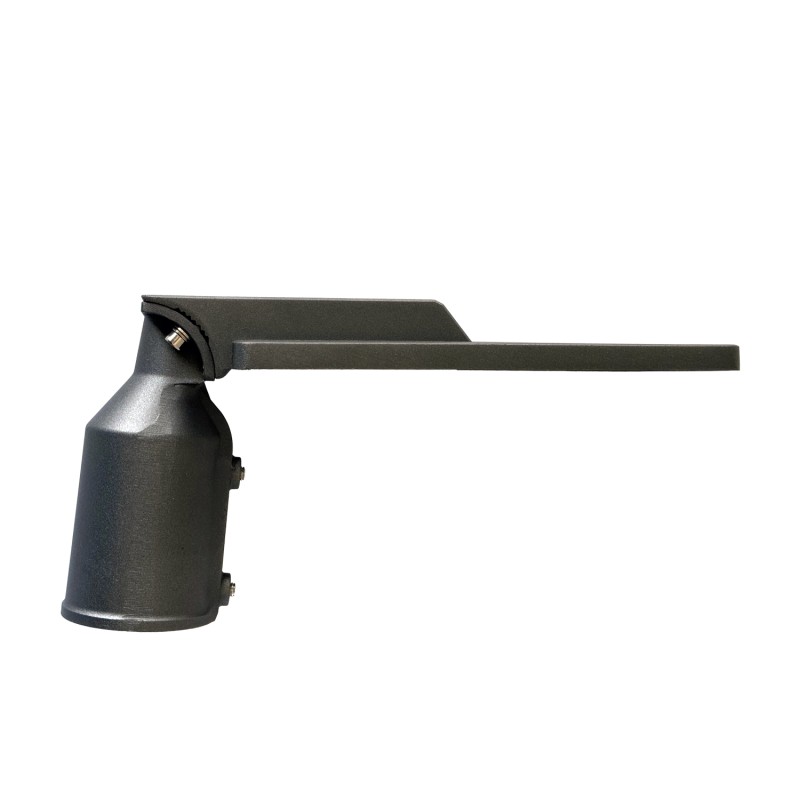

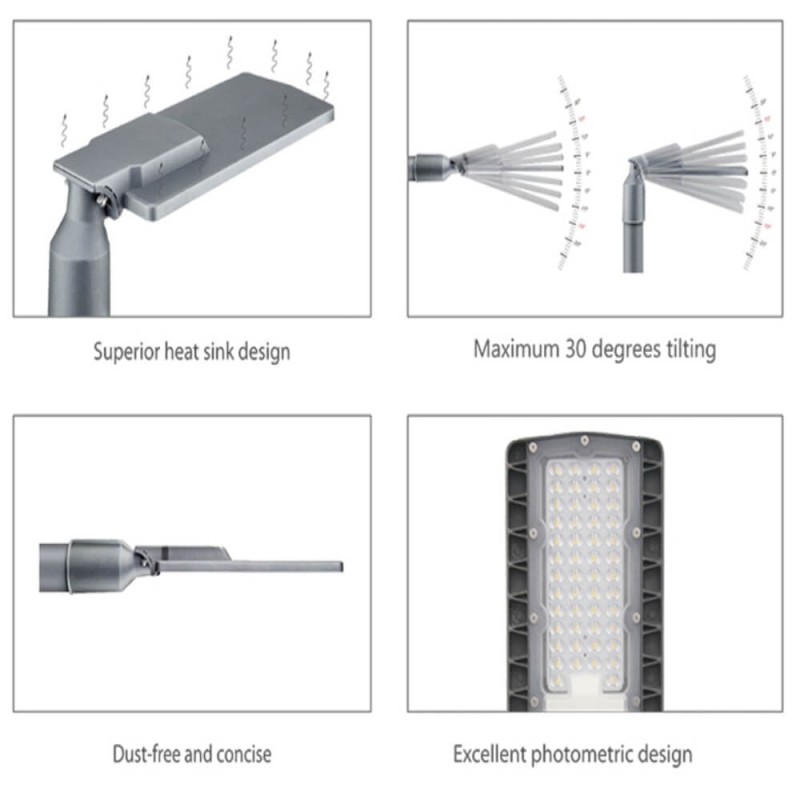

Its ultra-thin design prevents dirt build-up and reduces visual impact. Fitted with an asymmetric 150ºx90º optic, instant start-up and a head adjustable up to 90º, it mounts on columns or arms with Ø60 mm tips. With a lifespan over 50,000 hours and a 5-year warranty (CE, RoHS, TÜV, ENEC05 certifications), it guarantees quality street lighting for years. Dimensions 405x117x12 mm.
Why choose this product?
5600 lm, 140 lm/W, instant start-up.
Aluminium and PMMA, impact- and weather-resistant.
Asymmetric 150ºx90º optic, Ø60 mm mounting.
Technical specifications
| Product type | HALLEY LED street light |
|---|---|
| Power | 40W |
| LED chip | BridgeLUX SMD3030 |
| Luminous flux | 5600 lm |
| Efficiency | 140 lm/W |
| Optic | Asymmetric 150ºx90º |
| Material | Aluminium and PMMA |
| Protection | IP65, IK10 |

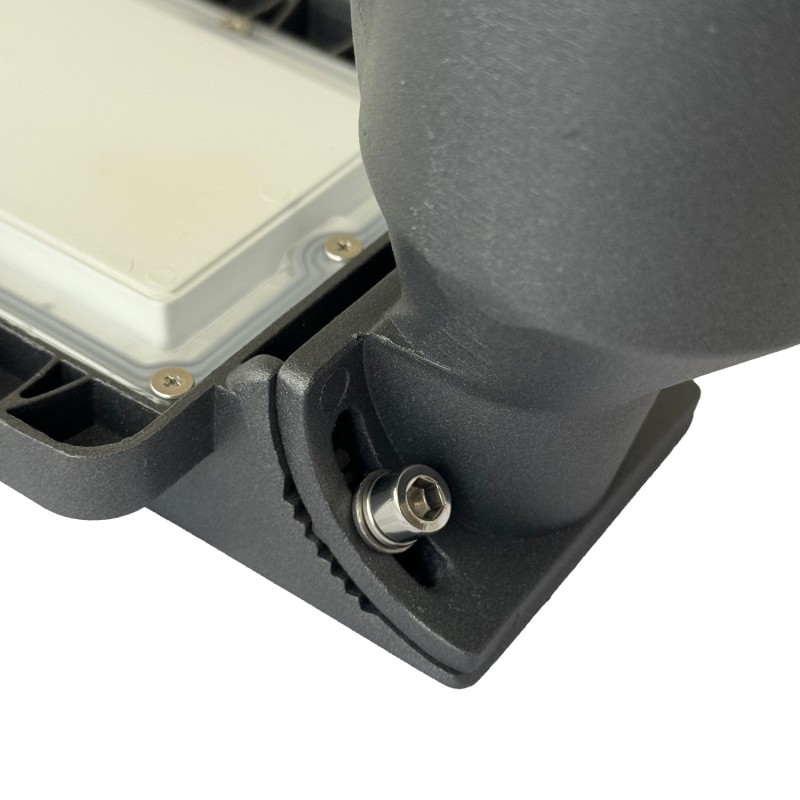

| Adjustable head | Up to 90º |
| Mounting | Columns/arms, Ø60 mm tips |

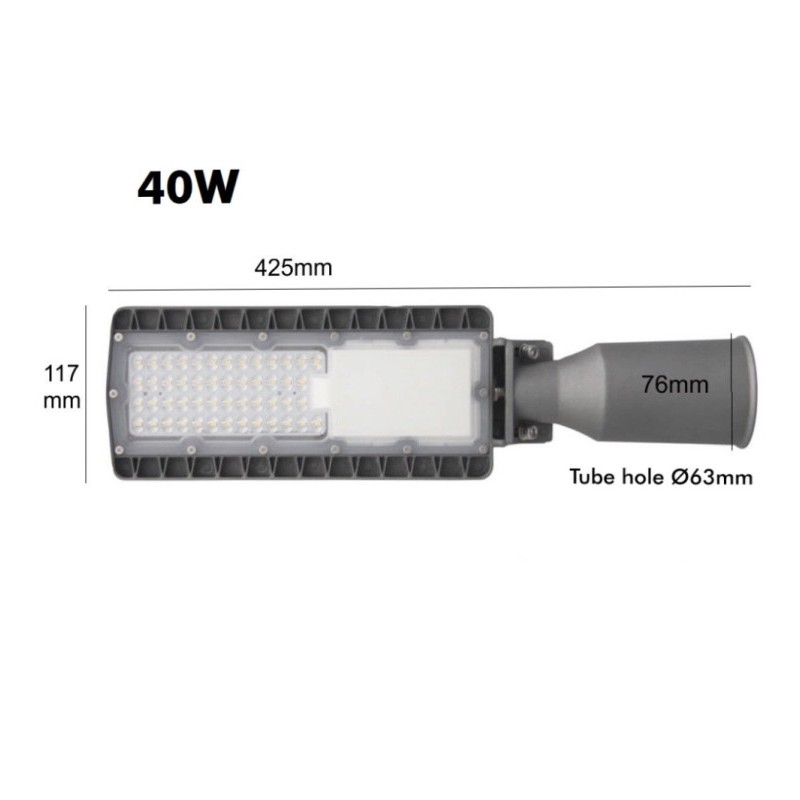

| Dimensions | 405x117x12 mm |
| Lifespan | > 50,000 hours |
| Certifications | CE, RoHS, TÜV, ENEC05 |
| Warranty | 5 years |
Advantages
- BridgeLUX SMD3030: 5600 lm, 140 lm/W.
- IP65 / IK10: impact- and weather-resistant.
- 90º adjustable head: directable lighting.
- Asymmetric 150ºx90º optic: no light pollution.
- +50,000 h, 5-year warranty: CE, RoHS, TÜV, ENEC05.
- Ultra-thin: low visual impact.
Recommended applications

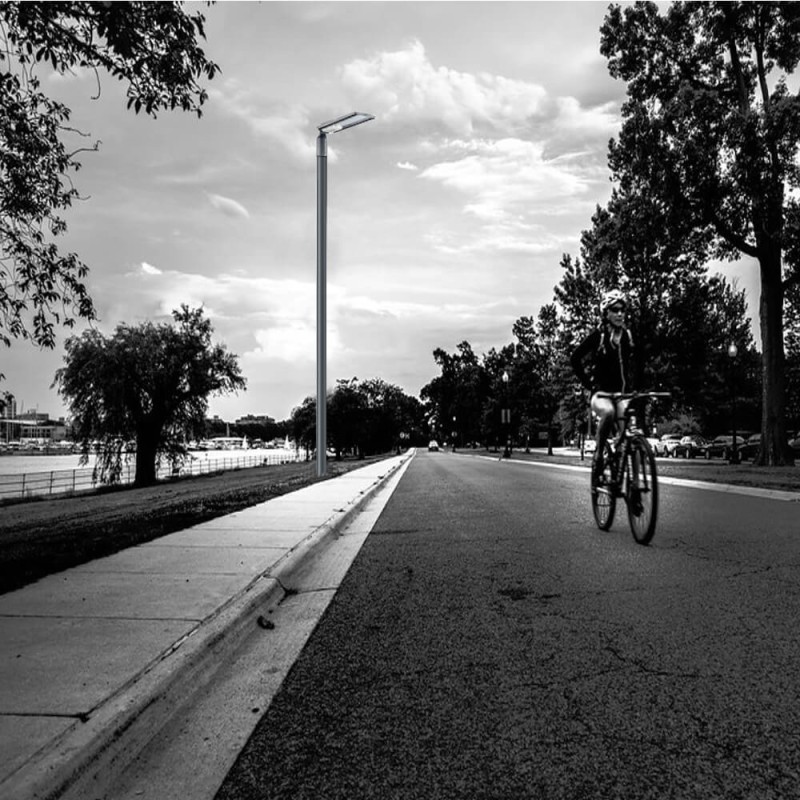

| 🚪 | Streets and avenues — street lighting. |
| 🏠 | Car parks and industrial areas — large surfaces. |
| 🏛 | Parks and squares — uniform urban lighting. |
| 🌿 | Residential areas — night safety. |
Installation guide
| 1 | Switch off the power Cut the supply before installation. |
| 2 | Fix on the tip Mount the street light on a column or arm (Ø60 mm). |
| 3 | Aim the head Set the head tilt (up to 90º). |
| 4 | Wire and check Wire per standards and check the lighting. |
Frequently asked questions
140 lm/W, i.e. 5600 lumens at 40W.
Yes, up to 90º, for mounting on a column or arm (Ø60 mm).
5 years, with CE, RoHS, TÜV and ENEC05 certifications.
| ⚡ 40W 5600 lm | ☂ IP65 IK10 | 🔄 90º 140 lm/W | 🛡 Warranty 5 years |
Data sheet
- Power (W)
- 40
- Power source (V)
- 85-265V
- Color temperature CCT
- 2000K
3000K
4000K
- LED
- SMD3030
- LED chip brand
- BRIDGELUX
- Luminous efficacy (Lm/W)
- 140
- LED diode efficiency (Lm/W)
- 165
- Brightness (Lm)
- 5600
- IP
- IP65
- IK
- IK10
- Luminous angle
- 150ºx90º
- Frequency (Hz)
- 50-60Hz
- Power factor φ
- 0,95
- Measures (mm)
- 405x117mm
- Material
- Aluminum
- Operating temperature
- -20ºC ~ +55ºC
- Lifespan
- 100.000h
- Certification
- CE - RoHS
ENEC
TÜV
- Warranty
- 5 años
