150W AVANT LED Street Light OSRAM Chip 15000Lm

59.45 € (tax incl.)
Available
Color temperature CCT (ºK)
  • Warm white 3000K
  • Natural white 4000K
In stock: 81 Items
Reference:
SLOSR150W-91103-3K

The AVANT 150W LED street light, equipped with an OSRAM SMD2835 LED chip of 130Lm/W, provides a luminous flux of 15000 lumens, specially designed for public and street lighting. It features a 130ºx70º asymmetric optic. This street light reduces electricity consumption by up to 90% compared to conventional discharge street lights.

Made of aluminum and PC, with a protection grade of IP65. Lacquered in gray, it has an anti-corrosive treatment and is UV resistant. Includes a 6kV surge protector. It is suitable for Ø60mm tubes. The arm is not adjustable, but the street light is compatible with adjustable column arms (sold separately).

  • Power: 150W
  • LED Chip: OSRAM SMD2835
  • Luminous Efficacy: 130 Lm/W
  • Luminous Flux: 15000 lumens
  • Optics: 130ºx70º asymmetric
  • Protection: IP65
  • Surge Protector: 6kV

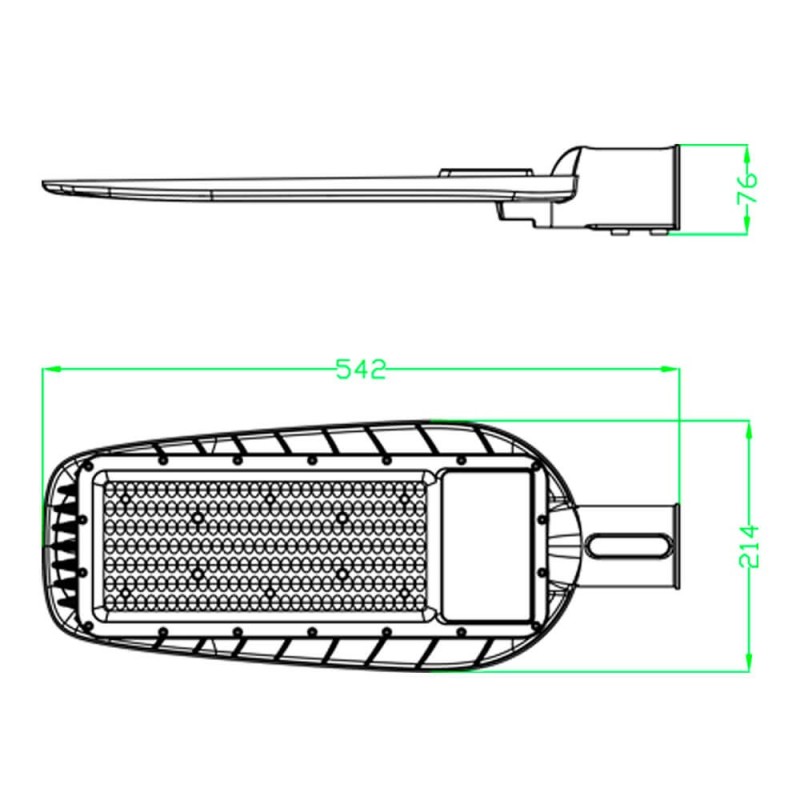

  • Dimensions: 542x214x76mm
  • Mounting: Suitable for Ø60mm tubes
Read moreShow less
Download PDF
You may also like
Description
AVANT 150W OSRAM street light, asymmetric optics, IP65

AVANT LED Street Light 150W OSRAM Chip 15000 Grey IP65 Asymmetric Optics Public Lighting

The 150W AVANT LED street light with an OSRAM SMD2835 130 lm/W chip delivers 15000 lumens in 130º×70º asymmetric optics, for public and road lighting. Aluminium and PC, anti-corrosion UV-resistant grey, IP65 rating, Ø60 mm tube mounting. 6kV surge protector included.

⚡ 150W💡 15000 lm🎯 OSRAM☂ IP65

150W
Power
15000 lm
Luminous flux
OSRAM
LED chip
IP65
Protection

The 150W AVANT LED street light, with an OSRAM SMD2835 chip of 130 lm/W, offers a brightness of 15000 lumens in 130º×70º asymmetric optics, specially designed for public and road lighting. It replaces old discharge street lights, cutting consumption by up to 90%.

Made of aluminium and PC with an IP65 protection rating, it resists rain, dust and dirt. Its grey paint includes an anti-corrosion treatment and resists UV rays. Compatible with a Ø60 mm tube and an adjustable column arm (not included). 6kV surge protector included. 3-year warranty.

Why choose this product?

🎯 OSRAM 130 lm/W chip
15000 lm, 130º×70º asymmetric optics.
☂ IP65, aluminium and PC
Anti-corrosion and UV-resistant grey, outdoor.
📉 -90% consumption
Replaces discharge street lights, Ø60 mm tube.

Technical specifications

Product typeAVANT LED street light
Power150W
Luminous flux15000 lm
LED chipOSRAM SMD2835 (130 lm/W)
OpticsAsymmetric 130º×70º
MaterialAluminium and PC
ColourGrey (anti-corrosion, UV-resistant)
ProtectionIP65
MountingØ60 mm tube
Surge protection6kV
Warranty3 years

Advantages

  • OSRAM 130 lm/W chip: 15000 lm.
  • Asymmetric optics: 130º×70º.
  • IP65: aluminium and PC, outdoor.
  • Grey: anti-corrosion and UV-resistant.
  • -90% consumption: replaces discharge.
  • Ø60 mm tube: adjustable arm (not included).

Recommended applications

🚪Streets and avenues — public lighting.
🏠Roads — asymmetric optics.
🏛Car parks and industrial areas — OSRAM IP65.
🌿Retrofit — replaces discharge lamps.

Installation guide

1Switch off the power
Cut the supply before installation.
2Mount on the tube
Fix the street light on a Ø60 mm tube.
3Wire it
Wire according to standards (230V).
4Check
Restore power and check the lighting.

Frequently asked questions

Which chip does it use?
An OSRAM SMD2835 chip of 130 lm/W.
Is it suitable for public lighting?
Yes, 130º×70º asymmetric optics and IP65 rating.
How is it mounted?
On a Ø60 mm tube (adjustable arm not included).
⚡
150W
15000 lm
🎯
OSRAM
IP65
📐
Ø60 mm
Grey
🛡
Warranty
3 years
Read moreShow less
Product Details
SLOSR150W-91103-3K

Data sheet

Power (W)
150
Power source (V)
175-260V
Color temperature CCT
3000K
4000K
5000K
LED
SMD2835
LED chip brand
OSRAM
LED diode efficiency (Lm/W)
130
Brightness (Lm)
15000
Color rendering index (Ra):
≥70
Colour
Grey
IP
IP65
IK
IK08
Luminous angle
130ºx70º
Frequency (Hz)
50-60Hz
Power factor φ
130ºx70º
Measures (mm)
542x214x76mm
Material
Aluminum + PC
Operating temperature
-20ºC ~ +55ºC
Energy efficiency 2021
A+
Energy efficiency 2023
F
Lifespan
30.000h
Certification
CE - RoHS
Warranty
3 años
